BinMaster    Lincoln, NE 68507
Dec 17, 2010 Remotely accessed via Modbus interface, NEMA 4X-rated Model C-100MB allows control of 1-120 sensors in SmartBob sensor network. SmartBob sensors take automated measurements using cable-based technology, while console provides interface for Modbus master to initiate measurements, monitor measurement progress, and retrieve data from sensors. Console provides 4-20 mA current output that, in conjunction with external start input, provides traditional interface to PLC or DCS system.

E-Switch Inc.    Brooklyn Park, MN 55428 1514

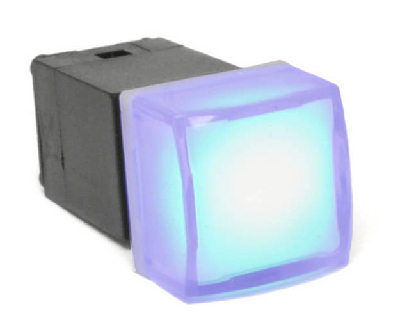

Dec 17, 2010 Available in 12.2 and 14.6 mm square cap sizes, LP16 Series features total travel of 3.3 mm ±0.3 mm, contact rating of 100 mA/20 Vdc, and contact resistance of 150 mW. SPST switch has dielectric strength of 500 Vac and insulation resistance of 10 MW at 500 Vdc. Operating from -5 to +60°C, unit is suited for A/V applications, instrumentation, telecommunication, networking, and computer peripheral market.

Mistral Solutions    Bangalore   India
Dec 17, 2010 Offering PoE and CAN bus interfaces, CraneBoard provides open source PCB and alternative development option for Texas Instruments' (TI) 600 MHz AM35x Sitara(TM) ARM® Cortex(TM)-A8 MPUs. Numerous integrated peripherals are included along with flexible power options such as power-over-DC wall adapter, PoE, and USB. Also, expansion port allows added functionality for LCD panel along with wireless and audio capabilities. JTAG enables communication with numerous devices.

HASCO Hasenclever GmbH + Co KG    Ludenscheid D-58513  Germany
Dec 17, 2010 Available in 3 sizes, Z1698/... 2-stage ejector is designed for large plate movements that also need off-center mounting when central 2 stage ejector cannot be used. One potential application is demoulding with internal slide bars or inclined sliding carrier applications in front ejector assembly. Ejection motion is subdivided into 2 aligned strokes, whereby second is defined individually by end-user and manufactured by HASCO accordingly.

Tripp Lite    Chicago, IL 60609
Dec 17, 2010 Combining 19 in. monitor, keyboard, mouse, and 8-port KVM switch in slide-out 1U rackmountable housing, Model B070-008-19 utilizes USB and/or PS/2 interface units and Cat5/Cat6 patch cables to manage servers up to 100 ft from KVM switch. Unit can control up to 128 servers when cascaded with additional KVM switches. Equipped with multi-level password security, Model B070-008-19 provides switching between servers via on-screen display menu or Hot Key commands.

Visual Workplace Inc.    Byron Center, MI 49315
Dec 17, 2010 Banner kits enable users to produce durable, high-quality banners for special events and announcements, and are suitable for indoor or outdoor use. They include six 6 x 6 ft and four 3 x 6 ft white pre-grommeted banners. Also included are two extra-wide rolls of 16 x 50 ft Sigma 16 vinyl with durable 3.0 mil thickness and high-gloss finish. Kits feature 603 red vinyl and 608 sapphire blue vinyl and banners are manufactured with 10 oz woven vinyl and nylon material.

Applied Plastics Co.    Norwood, MA 02062
Dec 17, 2010 Capable of 500°F continuous and 600°F intermittent use, APC Teflon®-Coated Nichrome Wire provides non-stick surface in variety of plastics and packaging processing applications. Product will outlast plain nichrome resistance wire and prevent melted plastic from building. Supplied on spools in standard 0.018, 0.020, and 0.036 in. sizes, wire is additionally suited for sealing, shrink wrapping, plastic sheet and styrofoam cutting, and acrylics bending equipment.

NKK Switches    Scottsdale, AZ 85260-3420

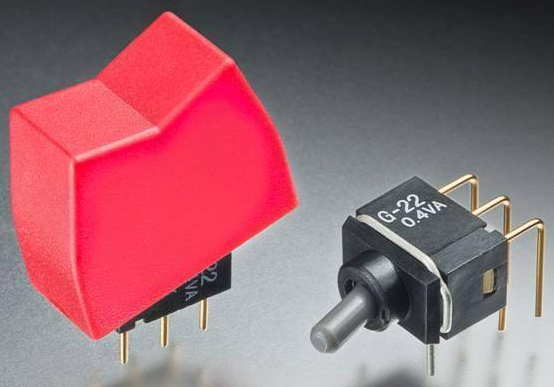

Dec 17, 2010 Process sealed for automated processing techniques, PCB-mounted G Series features self-cleaning, Sliding Twin Crossbar contacts that promote reliable logic level switching. Switches may be specified as SPDT/DPDT, and circuit combinations comprise momentary and maintained options with up to 3 actuator positions each. PC terminal-style mounting can be specified in straight, right angle, or vertical mount for toggle switches, and straight PC or right angle mount for rocker versions.

Power Integrations, Inc.    San Jose, CA 95138

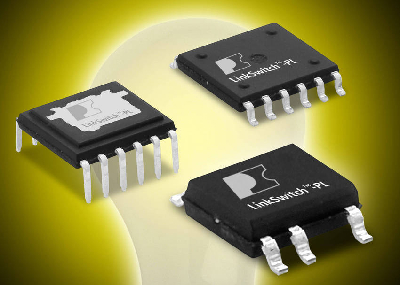

Dec 17, 2010 Based on LinkSwitch-PL LNK457DG LED driver IC, RDK-251 supports 5 W offline LED driver and fits inside A19 LED replacement lamp with E26/27 base. Reference design provides single constant-current output of 350 mA at nominal LED string voltage of 15 V. Output current can be reduced using standard AC mains TRIAC dimmer down to 1% at 3 mA without instability or flickering of LED array. Power factor is greater than 0.9 and input THD is less than 10% at 115 Vac and less than 15% at 230 Vac.

LGInternational    Portland, OR 97224
Dec 17, 2010 Available in 2 x 1 or 4 x 2 in. sizes with permanent or removable adhesive, EZ-Indicator CPI Labels combine sterile process indication strip with thermal transfer printable label. Autoclave models feature .25 in. autoclave indicating strip along edge that changes from cream to light pink when exposed to temperatures in excess of 280°F, typical of steam autoclaves. Gamma labels feature .25 in. gamma indicating strip along edge that changes from yellow to red when exposed to gamma radiation.

Spiroflow Systems, Inc.    Monroe, NC 28110
Dec 17, 2010 Designed for gentle handling applications and multiple-plane installations, CABLEflow(TM) Tubular Drag Conveyor can transfer friable bulk products from single or multiple in-feed points to single or multiple discharge points with little or no damage. DYNAFLOW(TM) Tubular Chain Drag Conveyor, which is comprised of mechanical system operating within confines of pipe, features heavy-duty discs that are connected by articulated metal links and move material along pipe.

Motor Protection Electronics, Inc.    Apopka, FL 32703

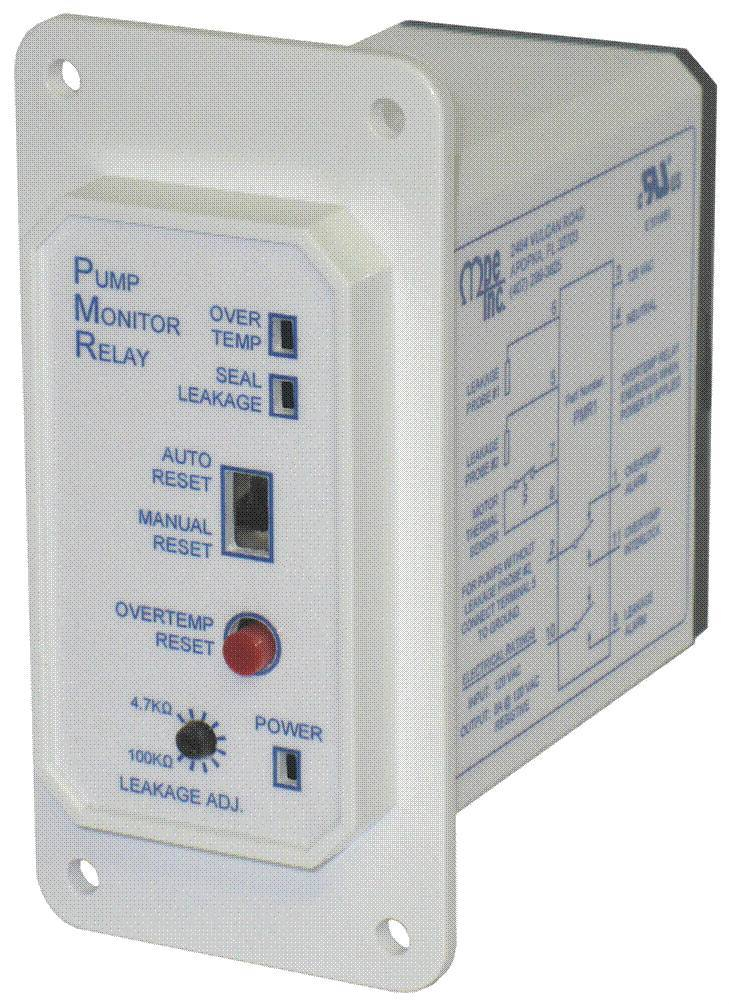

Dec 17, 2010 Powered by 120 Vac, PMR1 has relay contact for monitoring over-temperature and leakage conditions. Single subpanel and inner/deadfront door mountable unit can be used to measure leakage in one probe to ground, 2 probes to ground, or probe to probe applications. Face features selector switch to choose manual or automatic reset of over-temperature condition, reset pushbutton for manual reset of over-temperature condition; and potentiometer adjustment for trip point setting of leakage condition.

Rittal Corporation    Urbana, OH 43078
Dec 17, 2010 When installed, TopTherm fan-and-filter units foster air throughput for improved ventilation in enclosures and housings as well as energy savings to 43%. Outputs range from 20-700 m³/h, and diagonal air outlet to outside promotes even distribution of air while avoiding hot spot formation. Along with choice of 24 Vdc or 115, 230, and 400 Vac 3-phase, 50/60 Hz supplies, features include tool-free assembly, flat design, and spring-type terminals.

Bartec US Corp.    Tulsa, OK 74146

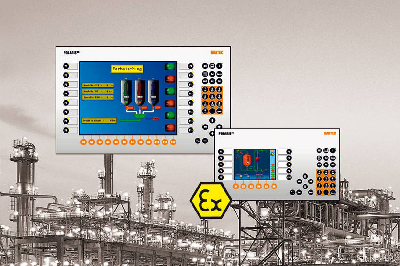

Dec 17, 2010 Available in 5.7, 10.4, and 12.1 in. sizes, POLARIS Touch Panel PCs with LED background illumination are designed for use in Zones 1, 2, 21, and 22. Units are equipped with LX800 processor, which offers sufficient processing power to display HTML pages or to serve as remote client. For higher processing power, 1.6 GHz Intel® Atom processor is available. PCs are suitable for mixers, dryers, or filling stations and for control of complex machines such as reactors, centrifuges, or ball mills.

Worksaver Inc.    Litchfield, IL 62056
Dec 17, 2010 Featuring plated handles, springs, and lock pins, Euro to Skid Steer Adapter allows use of skid steer type attachments on loaders equipped with Euro style quick attach system. Unit offers wide choice of attachments that can be switched between skid steer loader and tractor loader.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Dec 17, 2010 Featuring 1.8 in. display and user-selectable wind speed units, Model 9671 can measure air velocity and volume, dew point, wet bulb temperature, relative humidity, and BTU capacity. Built-in sensor records ambient temperature in °F or °C, and RS-232 interface lets unit download data as well as upload up to 99 measurements through pre-edited PC files. Data hold function and ability to record min, max, and average readings on single point are also standard.

INTERTEC Instrumentation Ltd    Sarnia, ON N7T 7H5
Dec 17, 2010 Available in wall- or floor-mounting models, BASIC VARIO Enclosures are manufactured using sandwich construction technique, with glass reinforced polyester skins enclosing thick layer of insulating foam. Design delivers thermal conductivity or k value rating of ~1.5 W/m²K, protecting against frost and condensation. Available in 41.3 x 25.2, 41.3 x 33.1, or 41.3 x 40.9 in. sizes with depth of 13.8 in., enclosures meet IP65 ingress protection standard and are fitted with hinged door.

Fluke Corp.    Everett, WA 98203
Dec 17, 2010 Featuring thin jaw design, Fluke 365 measures current up to 200 A ac/dc while allowing access to wires in PLCs and other tight spaces. Unit measures up to 600 Vac/Vdc and provides 6,000 W resistance measurement as well as continuity detection. Backlit display automatically shows correct measurement range, while built-in flashlight helps illuminate work location and identify wires. Meter is safety rated for use in IEC/EN 61010-1:2001, CAT III 600 V environments.

IntelliCom Innovation AB    Halmstad S-302 50  Sweden
Dec 17, 2010 Designed to connect any Modbus device with Netbiter Argos server over Ethernet, EasyConnect EC150 makes it possible to remotely monitor and control Modbus devices and networks. Gateway eliminates firewall issues and operates with no static IP, VPN, or programming required. Plug-and-play architecture makes large scale installations possible without IT/mobile network expertise.

ON Semiconductor, LLC    Phoenix, AZ 85008
Dec 17, 2010 BelaSigna R261 includes DSP with dual-microphone noise reduction algorithm to optimize speech intelligibility in noisy environments. Regulator, phase-locked loop, level translator, and memory are also included in 5.3 mm² WLCSP package. In conferencing applications, unit identifies and extracts speech within range up to 6 m from surrounding noise. Device, which plugs into digital microphone interface or baseband chip's microphone inputs, features power consumption is less than 16 mA at 1.8 V.
