Peter Wolters of America, Inc.    Des Plaines, IL 60016
Apr 04, 2013 Based on Moving-Wheel-Head concept, Micron Macro Machine is designed for Creep Feed-Profile and High Efficiency Deep Grinding. All linear movements are performed by grinding head, providing optimum force distribution with minimal thermal variation. Torque tube design guarantees vibration dampening and thermal stability. Available with different spindle speeds and power ranges to match application, Micron Motion can be automated with robotic loading and unloading.

Omega Engineering, Inc.    Stamford, CT 06907
Apr 04, 2013 Suited for water treatment, air/environmental control, and machine shops, WSS stainless steel AC motors come in TEFC enclosure and sizes from 1/3–2 hp. These 3,600 and 1,800 rpm motors, rated from 208 to 230/460 V, have 1.15 service factor and Class F insulation. Construction includes windings doubled-dipped and cured in polyester insulating varnish, anti-rust coating, double-lip seals, and V-ring shaft slingers. These 3-phase, industrial-grade, washdown-duty motors.

Volvo Penta Of The Americas, Inc.    Chesapeake, VA 23320
Apr 04, 2013 Automatic start/stop option for Volvo Penta industrial diesel engines can achieve fuel savings of 5% or more by switching engine off when idling and consequently helps reduce emissions and noise. When machine's engine idles, this option turns engine off after pre-set time (usually 5–10 sec). Engine starts immediately when driver activates any of machine's controls, and work can continue. Start/stop capability can be deactivated or reactivated as needed.

Custom MMIC    Westford, MA 01886
Apr 04, 2013 Housed in RoHS-compliant 3 x 3 mm QFN plastic package, Model CMD158P3 delivers 20 dB of gain with +20 dBm of saturated power while requiring +5 V supply at 95 mA. Input and output ports are DC blocked, and amplifier does not require any off-chip tuning components. Offering alternative to hybrid amplifiers, Model CMD158P3 is suited for point-to-point and point-to-multipoint radios, VSAT, mixer LO chains, and military EW applications.

Extreme Engineering Solutions (X-ES)    Middleton, WI 53562
Apr 04, 2013 Suited for environmentally challenging and space-constrained situations, maintenance-free XPand6103 supports Rugged COM Express™ modules, such as XPedite7450, that integrate Intel® Core™ i7 and Freescale QorIQ™ processors. Features include internal 64 GB Slim SATA SSD memory module, rugged and environmentally sealed M12 connectors, and diverse I/O options. With 3 internal PCIe Mini slots and support for 2 external antennae, PC also offers flexible array of additional I/O configurations.

Tripp Lite    Chicago, IL 60609
Apr 04, 2013 Offering up to 97% efficiency rating, models SU80KX2, SU100KX2, and SU120KX2 protect critical systems and eliminate downtime in high-density applications. Scalable capacity – up to 120 kVA for individual UPS or 480 kVA for up to 4 units in parallel – and expandable battery runtime accommodate infrastructure growth. While internal N+1 modularity provides fault redundancy, on-line double conversion operation delivers pure sine wave output and isolates equipment from power problems.

TSI, Inc. Environmental Measurements & Controls Div.    St. Paul, MN 55164
Apr 04, 2013 Based on laser-induced breakdown spectroscopy (LIBS) and designed for laboratory use, ChemReveal LIBS Desktop Analyzer serves those who need to identify materials and chemical composition of solids. Users can directly identify and analyze range of elements in virtually every matrix of solid sample. Solution comes with ChemLytics™ software and provides simultaneous characterization of organic, light, and heavy elements of solid samples without cumbersome or hazardous sample preparation.

Hypertherm, Inc.    Hanover, NH 03755 0010
Apr 04, 2013 Intended for PerCut 210M and 450M torches found on Kjellberg HiFocus systems, Centricut consumables, at 280 A, optimize cut quality throughout their life due in part to SilverLine electrode and CoolFlow nozzle technologies. SilverLine technology features hybrid copper/silver weld joint that delivers performance equal to solid silver electrode. CoolFlow technology optimizes cooling to help maintain size and shape of nozzle orifice for extended life.

Honeywell International    Houston, TX 77014
Apr 04, 2013 Facilitating wireless technology deployment and operation, OneWireless™ Network Release 210 offers over-the-air (OTA) field device provisioning, Gateway General Client Interface (GCI), and native integration of OneWireless field networks into Honeywell Experion® Process Knowledge System. GCI feature, enabled by ISA100 standard, lets operations continue using legacy protocols and proprietary applications while aiding process of wirelessly expanding those applications throughout plant.

Gehl Co.    West Bend, WI 53095
Apr 04, 2013 Driven by 74.3 hp Tier IV-compliant Deutz turbo-diesel engine, Model RT250 delivers up to 243 lb-ft of torque, up to 14,317 lb of tractive effort, and lift height of 128 ½ in. Loader features Automatic Track Tensioning System that eliminates need for manually tensioning tracks before operation. By sensing machine load electronically, AntiStall technology continuously monitors and adjusts hydrostatic drive pump displacements to manage available engine horsepower and torque.

Mustang Mfg. Co., Inc.    Owatonna, MN 55060
Apr 04, 2013 Powered by 74.3 hp Tier IV emissions-compliant Deutz turbo-diesel engine, 2500RT has respective rated operating capacities of 2,500 and 3,571 lb at 35% and 50% of tipping load (7,143 lb) and delivers 243 lb-ft of torque and up to 14,317 lb of tractive effort. AntiStall technology; Automatic Track Tensioning System; and welded, dedicated track loader chassis are standard features. Operator's station features customizable, multi-function display.

Access Fixtures    Worcester, MA 01608
Apr 04, 2013 Featuring 1,000 W pulse start metal halide sports lighter luminaires, Outdoor Basketball Court Lighting Packages come in 3 versions designed to provide light required for recreational, club, or professional play. Ballast box keeps ballast away from lamp's heat for extended life. In addition, pole and luminaire locations are optimized for even light distribution and minimal shadows.

Telect Inc.    Liberty Lake, WA 99019
Apr 04, 2013 Compatible with Telect, TE, and Panduit® fiber trough systems, WaveTrax Express™ expands overhead fiber ducting systems. Product routes fiber, drops fiber into equipment and racks, separates fiber for patching and splicing, and manages overfills. Offering tool-free installation with ratcheting bracket, WaveTrax Express installs anywhere along fiber trough, is suitable for both new fiber builds and existing layouts, and eliminates foreign object debris associated with traditional installation.

RS Components    Northants   United Kingdom
Apr 04, 2013 Available in over 50 body models, KQ2 Series is suitable for automation applications in automotive, electronics, pharmaceutical, petroleum/chemical, steel, textile, and mining industries. One-touch general-purpose fittings offer 2 thread material options of brass or brass and nickel plating, and come in sealant or gasket design, allowing for repeatable piping and preventing contamination. Supplied in diameters from 2–16 mm, fittings are available with M, R, NPT, UNF, and Uni thread types.

Applied Research Associates, Inc.    Randolph, VT 05060
Apr 03, 2013 Able to be deployed within seconds, E-UGS Unattended Ground Sensors provide live seismic sensing for up to 6 months in order to protect perimeter of any area without endangering personnel. Disposable sensors, which can be deployed several miles away from secured areas to provide early detection of people walking as well as vehicles, can also provide soft- and hard-spot fill in coverage. Operating with PC or laptop, controller/receiver shows maps with sensor locations and status alerts.

United Electronic Industries    Canton, MA 02021
Apr 03, 2013 With respective ±10 and ±300 Vdc input ranges, DNx-AI-218 and DNx-AI-228-300 feature 24-bit A/D resolution, 120 KSPS max sampling rate, as well as 350 Vrms channel-to-channel and channel-to-chassis isolation. DNR versions can be used with RACKtangle® chassis, while DNA versions can be installed into PowerDNA Cube chassis. Boards provide simultaneous sampling, and each channel is based on its own oversampled SAR converter. Input gains of 1, 2, 4, 8, 16, 32, and 64 are software programmable.

LCM Systems Ltd.    Isle of Wight PO30 5GY  United Kingdom
Apr 03, 2013 Providing dual volt-free relay outputs from load cell signal, LCTA Series Load Cell Trip/Relay Amplifiers offer hoist overload protection, safe crane lifting control, and personnel lifting platform protection. Units can power single load cell or load pin, or up to four 350 Ω load cells connected in parallel. Volt-free relay outputs have trip switching current of 10 A at 230 Vac and can be adjusted independently. For remote display, amplifiers also include 0-5 V analog output.

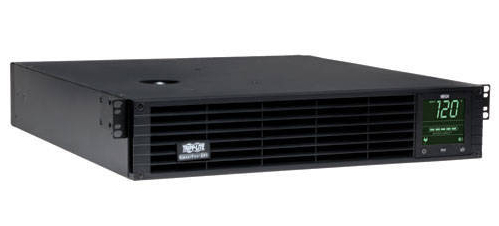

Tripp Lite    Chicago, IL 60609
Apr 03, 2013 Ranging from 1,500–3,000 VA/1,350–2,880 W, 6 SmartPro® models come with SNMPWEBCARD network cards and provide secure SNMPv3/HTTPS/SSH management with RADIUS as well as IPv4/IPv6 support. Interactive LCD shows power and protection status, and Automatic Voltage Regulation corrects brownouts and overvoltages without draining battery power. With up to 98% efficiency rating, each UPS provides individually controllable outlets that allow remote reboot of equipment and load shedding.

Akro-Mils, A Myers Industries Co.    Akron, OH 44301
Apr 03, 2013 Intended for use on wire shelving systems and suited for 1:1 labeling used in 5S Lean initiatives, Angle•Vu™ label holders are made of clear PVC and protect insertable card stock labels (included). Products snap onto edge of wire shelving and can be adjusted to position label at 30°, 60°, or 90° degrees. Design allows label face to be pointed upward on low shelves and downward on high shelves to facilitate viewing and scanning of barcodes.

Specified Technologies Inc    Somerville, NJ 08876
Apr 03, 2013 Offering 1-step solution, Series TTG SpeedFlex® Track Top Gasket provides fire, smoke, and acoustical ratings for head-of-wall joints between gypsum walls and flat concrete floor slabs. Because it is installed at same time as top track, intumescent firestop cover eliminates caulking process and need for second inspection. Gasket is UL classified up to 2 hours, provides acoustical values up to 56 STC in rated and non-rated wall construction, and has received L-rating of less than 1 cfm/Lin.
