Z-Communications, Inc.    San Diego, CA 92126

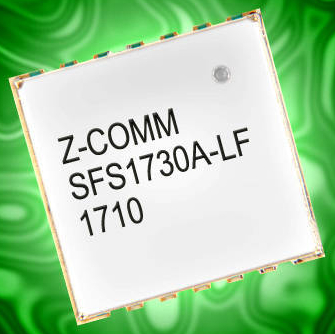

Mar 26, 2010 Operating at 1,730 MHz, SFS1730A-LF features typical phase noise of -95 dBc/Hz @ 10 kHz offset and typical sideband spurs of -70 dBc. RoHS-compliant product delivers typical output power of 6 dBm with VCO voltage supply of 5 Vdc while drawing 35 mA (typ) and phase locked loop (PLL) voltage of 3 Vdc while drawing 9 mA (typ) over -40 to +85°C range. Typical second harmonic suppression is -15 dBc, and PLL-V12N package measures 0.60 x 0.60 x 0.13 in.

Z-Communications, Inc.    San Diego, CA 92126
Mar 26, 2010 Operating at 1,980 MHz, Model SFS1980A-LF features typical phase noise of -95 dBc/Hz at 10 kHz offset and typical sideband spurs of -70 dBc. Unit delivers output power of 6 dBm with VCO voltage supply of 5 Vdc while drawing 35 mA, and phase locked loop voltage of 3 Vdc while drawing 10 mA over temperature range of -40 to 85°C. Housed in PLL-V12N package measuring 0.60 x 0.60 x 0.13 in., RoHS-compliant device features 2nd harmonic suppression of -20 dBc.

Dynabrade, Inc.    Clarence, NY 14031
Mar 26, 2010 Able to be used on variety of surfaces, Electric Rotary Polisher utilizes 120 V, 11 A motor and rotary motion for cutting, polishing, and buffing using compounds. Trigger handle rotates 180° to any position for operator comfort, while rubberized side handle further increases comfort and control. Operating at 3,000 rpm max, tool offers variable speed trigger, lockable speed, and double insulated housing. It accepts optional polishing pads and buffs in diameters of 6-8 in.

Omega Engineering, Inc. - omega.com    Stamford, CT 06907-0047
Mar 26, 2010 Featuring dual display and dual pressure inputs Model HHP886 is CE-compliant differential manometer that displays pressure in selectable units of psi, mbar, in. H₂O, and mm H₂O. Device includes protective rubber boot and also has USB connection or wireless interface for real-time data logging to computer. Data logging software is included for display of data graphically, and allows export of data to Excel or text files.

OKW Enclosures, Inc    Bridgeville, PA 15017
Mar 26, 2010 With external dimensions ranging from 9.055 x 7.480 x 1.968 in. to 13.779 x 10.236 x 5.905 in., UNIMET Enclosures consist of die cast front bezel which locates onto fabricated case body. Base panel can be removed separately, and includes mounting points for PCBs and assemblies, while removable rear panel is recessed and is suitable for mounting power inlets, connectors, and switches. Applications include test and measurement devices, machine controllers, and network peripherals.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Mar 26, 2010 Series EMR electromechanical relay includes quick-connect terminals for simple connection as well as Class F insulation for maximum coil temperature of 155°C. Compact, panel-mountable unit is impervious to shock and vibration. It is suited for motor control, power supplies, lighting, and compressor loads.

Gravograph - New Hermes Inc.    Duluth, GA 30096
Mar 26, 2010 Model LS100EX YAG combines XY platform that accommodates objects with maximum volume of 24 x 12 x 5.7 in. and YAG 12 W laser source. Laser can mark range of materials, especially those that are hard or reflecting. Maximum marking speed is 8.2 fps, and device is controlled with LaserStyle(TM) software that allows integration of lists of names and incrementation of numbers. Large work area can house bulky objects, such as holder trays for multiple parts for concurrent engraving.

HK Systems    New Berlin, WI 53151
Mar 26, 2010 Designed to handle and sort packages ranging from 6-36 in. in length, MB100 offers rates exceeding 100 packages/min, enhancing pre-sorting, value add, kitting, pre-shipping, and shipping activities. Sorter is suited for automated transport of small products in wide range of industries such as parcel (small and flat), media (CDs, DVDs, books), food and beverage, wine and spirits, e-commerce, retail, and manufacturing.

Kepco Inc.    Flushing, NY 11365
Mar 26, 2010 High current, 1 kW BOP 6-125MG can perform in Current mode-Voltage limit, as well in Voltage mode-Current limit, having a current-voltage rectangular characteristic. Up to 5 units may be operated in parallel for source-sink capability of up to 625 A at 0-6 V, and up to 3 units can be connected in series for up to 125 A at 0-18 V. Product is suited for many complex applications, such as battery test and characterization as well as corrector and injector magnets for medical imaging.

Crystek Corp.    Fort Myers, FL 33907
Mar 26, 2010 Available in 0.5 x 0.5 in. SMD package, CVCO55CC-2440-2540 features typical phase noise of -110 dBc/Hz at 10 kHz offset and control voltage range of 0.5-4.5 V. It accepts input voltage of 5 V, with Max current consumption of 40 mA, and delivers output power of +3 dBm typical. Second harmonic suppression is -15 dBc typical, while pulling and pushing are minimized to 1.5 MHz and 1.5 MHz/V, respectively. Applications include satellite communications systems and base stations.

Sherborne Sensors Limited    Hampshire RG21 6YH  United Kingdom
Mar 26, 2010 Designed to provide precision angular measurements, AccuStar® clinometer incorporates capacitance-based sensor design without moving parts and delivers ±60° measurement range, outputting signal that corresponds to direction and magnitude of angular displacement. Encased in rugged plastic housing, unit is available in choice of analog, ratiometric, digital, or serial models. Suited for wide range of applications, unit weighs just 2 oz and operates in temperatures of -30 to +65°C.

Alpha Wire Corp.    Elizabeth, NJ 07207 0711
Mar 26, 2010 Available in conductor sizes from 18-8 AWG and up to 65 conductors, Series XM cables handle demanding applications, such as high-speed pick-and-place robotic systems. They are oil- and sunlight-resistant and have temperature range of -5 to +90°C. Available unshielded or with braid shield, cables are approved to standards including UL Types TC-ER, MTW, WTTC, and CSA AWM I/II A/B FT4. Conductors are available in red, blue, or black to match standard color coding for AC and DC circuits.

ERICO    Solon, OH 44139-2631
Mar 26, 2010 Including 300, 600, and 1,000 Vdc models, each packaged for installation on 35 mm DIN rail, TDS50 series surge protectors feature internal thermal disconnect devices to help ensure suppressors do not overheat or cause system failure or damage. Visual indicator flag notifies user when disconnect device has been engaged and surge module is no longer functioning. Compact devices fit into inverters and solar combiner boxes and offer set of voltage-free contacts for remote signaling.

Missler Software    Evry Cedex 91055  France
Mar 26, 2010 Determining tool paths for numerically controlled machines, TopSolid'CAM v2010 facilitates simultaneous edition of cutting conditions of several parts. It utilizes parallel processing capabilities of multi-core processors to reduce calculation times in 3-5 axis machining operations. Advanced simulation control feature helps manage swiss turning machines and supports backwards navigation in NC programming. Software also supports import/export to and from several CAD solutions.

Emerson Network Power    St. Louis, MO 63136
Mar 26, 2010 Suited for use with telecom-standard 48 V power supplies, ALD15 Series achieves up to 92% efficiency at full load and may be used in applications requiring up to 35 W of output power. Units are available in 5 power ratings of 13 A at 1.8 V, 11 A at 2.5 V, 10 A at 3.3 V, 7 A at 5 V, and 2.75 A at 12 V. Featuring 1.3 x 0.9 in. sixteenth-brick footprint, converters accept input voltage of 36-75 Vdc and have outputs that can be adjusted from 90-110% of nominal voltage via external trim resistors.

Syncro Soft Ltd.    Craiova RO-200813  Romania
Mar 26, 2010 Supporting DITA, DocBook, TEI, and XHTML frameworks, XML Editor and XML Author v11.2 also supports SVN Client, which automatically refreshes working copy on external file changes and optimizes access to document repository. Visual XML editing, also available as separate component, can be integrated in Java applications or as applet in Web applications. Software includes XSLT Debugger, compatible with XPath 2.0 expressions, and automatic support for DITA reusable components.

United Electronic Industries    Canton, MA 02021
Mar 26, 2010 Featuring A/D per channel configuration that eliminates noise and offset errors of multiplexed inputs, DNA-/DNR-AI-217 provide 16 fully differential channels of 24-bit, analog inputs with 7 programmable input ranges from ±10 to ±0.156 V FS. Sampling rates are 30 kS/sec per channel and 480 kS/sec aggregate for entire board. DNA version mounts in any UEI 6-slot PowerDNA UEIPAC, UEISIM, and UEIModbus Cube, while DNR version works with 6- or 12-slot rack-mounted HalfRACK and RACKtangle chassis.

Pulse Engineering, Inc.    San Diego, CA 92128
Mar 26, 2010 Measuring 36 x 16.6 x 18 mm, Z-321NF in-line DSL customer premises equipment micro-filter is designed for Southeast Asia, India, and Eastern European markets with 600 ohm telephones. It offers voice and data protection by isolating DSL-band frequencies from voice-band equipment and telephone impedance changes from DSL equipment. Furthermore, DSL band attenuation prevents intermodulation distortion, resulting in optimal voice band quality and DSL data rates.

Arrive Technologies, Inc.    Roseville, CA 95747
Mar 26, 2010 FPGA-based Series AF6xxx provides total solution for first-mile equipment featuring 1, 4, 8, 16, or 32 DS1/E1/J1 lines; aggregation nodes with up to 84/63 DS1/E1 lines; or Radio Network Controllers and edge transport nodes with 336/252 DS1/E1 lines. SoC devices deliver up to 32 DS1/E1 of bandwidth across SAToP, CESoPSN, MEF-8, and ATM pseudowires. All legacy protocols may be tunneled concurrently within up to 128 pseudowire connections over PSN networks.

Mirial    Milan   Italy
Mar 26, 2010 ClearSea supports major videoconferencing standards and connects local/remote desktop users across firewalls and to SIP or H.323 legacy conferencing room systems. Centralized directory, user group management, integration with Active Directory/LDAP, and remote configuration simplify deployment and management. System embeds video IVR to call users by extensions and autoscan feature for finding existing systems. It is offered as physical appliance and as VMware-based Virtual Appliance.
