International Manufacturing Services, Inc. (IMS)    Portsmouth, RI 02871

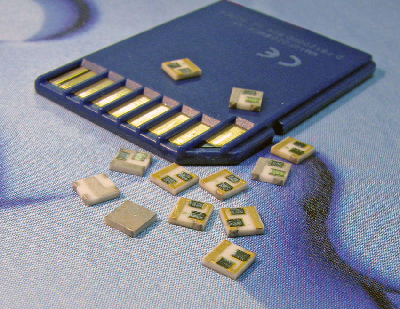

Jan 18, 2011 Measuring 0.120 x 0.120 in., IMK Series is available in both forward and reverse facing directions. Surface mount, thick-film units provide coupling values from 6-30 dB and are rated at 1 W dissipated power and 5 W through power. Characterized to 20 GHz, devices can exhibit insertion loss of 1 dB or less for nominal values greater than 18 dB.

JLG Industries, Inc.    McConnellsburg, PA 17233 9533

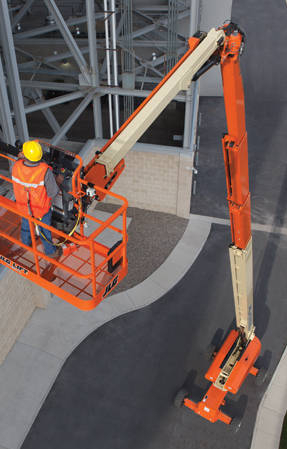

Jan 18, 2011 Capable of elevating operators 150 ft requiring only weight permit, Ultra Series model 1500SJ also features telescopic jib that extends up to 25 ft for additional vertical and horizontal reach. Self-propelled unit delivers dual 1,000/500 lb capacity, 3 steering modes, and systems that assist in safe positioning. Along with steel hoods that provide durability, lift offers graphic LCDs that relay key information to users to facilitate operability.

Transcend, Inc    Orange, CA 92867

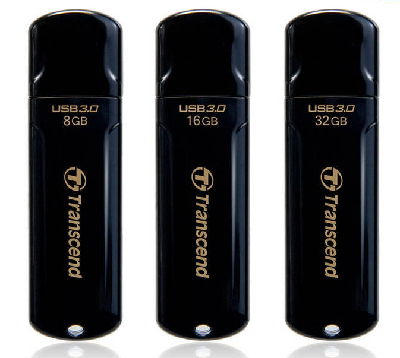

Jan 18, 2011 Measuring 69.5 x 19.8 x 8.8 mm, JetFlash 700 USB 3.0 Flash Drive is fabricated using ultrasonic welding technology and is available in 8, 16, and 32 GB capacities. Plug-and-play unit is fully compatible with SuperSpeed USB 3.0 and Hi-Speed USB 2.0. Once downloaded, JetFlash Elite data management tools allow users to check email from any compatible computer, and use drive as key to automatically log on to website accounts.

New Scale Technologies    Victor, NY 14534
Jan 18, 2011 Measuring 27.5 x 13 x 7.5 mm, Model M3-L integrates piezoelectric linear micro motor, position sensor, guide mechanism, motor driver, control processor, and software. Closed-loop unit operates on 3.3 V power and features typical travel range of 6 mm. Suited for precision motion control of variable inductors, trimming capacitors, and optical elements for RF, microwave, and photonics tuning applications, module draws approximately 500 mW of power while moving and 200 mW quiescent.

Hewlett Packard    Houston, TX 77269-2000
Jan 18, 2011 Featuring 17.3 in. WXGA+ Active Matrix TFT display, ENERGY STAR®-compliant HP TFT7600 G2 KVM Console suits datacenters, corporate computer rooms, and small business installations requiring local access to servers at rack. Connectivity is provided via PS2 and USB ports, and USB port on front of keyboard allows for USB pass through with compatible KVM switches. While 1U format and tool-less rails facilitate mounting in rack enclosure, 3-button touch pad and special keys promote usability.

Supertex Inc.    Sunnyvale, CA 94619

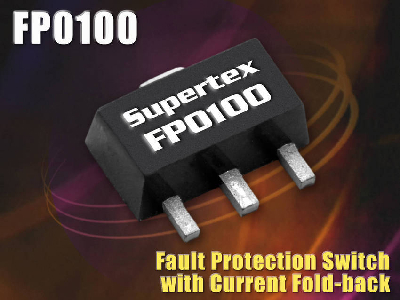

Jan 18, 2011 Available in a SOT-89 package, Model FP0100 includes current fold-back, which guards against over-current or short circuit conditions in system's output power supplies. Switch features low on resistance of 4.0 W typical and allows peak current of 260 mA, which is programmed via external resistor. In its off state, unit withstands input voltages up to 100 V. Response time to fault is less than 1 µs, and switch automatically recovers after fault conditions.

Datasound Laboratories Ltd.    Hertfordshire SG6 1LP  United Kingdom

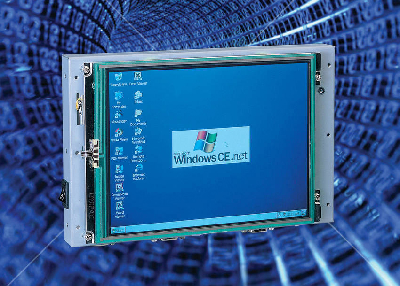

Jan 18, 2011 With choice of 4 TFT LCD touch screens ranging from 8.4-15 in., VOX-LCD Panel PCs are suited for home automation, industrial process control, and ticketing/payment systems. Embedded board integrates fanless 800 MHz Vortex86DX CPU with 512 MB RAM, 10/100 Mbps LAN, up to 3 USB 2.0 ports, and 6 serial ports along with digital I/O and PC/104 expansion. Additional IDE Disk-on-Modules provide flash-based storage that plugs onto IDE port of CPU card.

STMicroelectronics    Lexington, MA 02421

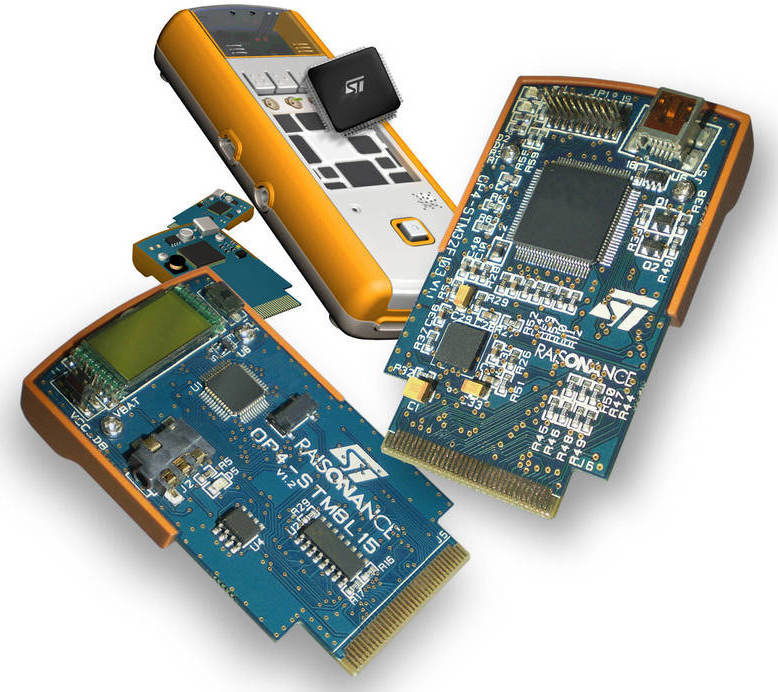

Jan 18, 2011 Allowing evaluation of alternative variations of STM8 and STM32 MCUs, EvoPrimer provides common base unit with interchangeable microcontroller modules or target boards. Target boards connect to functions on board EvoPrimer base unit, including LCD touchscreen, joystick, MEMS accelerometer, microphone, loudspeaker and jack, Micro SD card connector, and Li-ion battery with charge-management circuitry. Integrated extension connector allows extra functions to be added.

Key Technology, Inc.    Walla Walla, WA 99362
Jan 18, 2011 Suited for fragile, seasoned, coated, and frozen food products, Horizon(TM) features lube-for-life mechanical drive capable of moving product at speeds up to 42 fpm on single continuous conveyor up to 100 ft long. Horizontal motion produces continuous self-cleaning action, preventing buildup of coatings, oils, or seasonings as product slides along pan. Available in widths from 12-60 in., sanitary conveyor can be mounted to floor or other machinery or suspended from ceiling.

NJM/CLI Packaging Systems Int'l.    Lebanon, NH 03766 1403
Jan 18, 2011 Designed to attach outserts to round, square, and rectangular pharmaceutical containers, Model 277 Auto-Sert Outsert Applicator handles outserts from 0.875-2.5 in. wide, 1.125-4 in. high, and up to 1.5 in. thick at speeds up to 220 bottles/min. Vacuum cup at end of rotating arm moves into hopper to ensure outsert is securely held, while pivoting arm rotates to deliver outsert to container. Featuring heavy-duty stainless steel and aluminum construction, system meets GMP standards.

Almco, Inc.    Albert Lea, MN 56007 2751

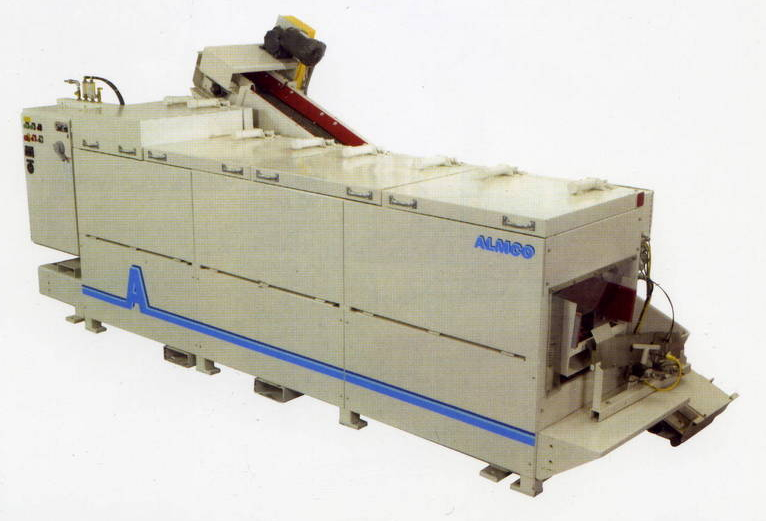

Jan 18, 2011 Available as standard and custom units designed for spindle finishers and continuous thru-feed vibratory systems, ALMCO hoods are made of sheet metal and lined with open-cell urethane sound deadening material. Functionality helps companies provide safe environment for workers while achieving noise levels that meet regulatory agency demands. Actual noise levels from machinery such as automated deburring and finishing equipment will depend on part size, finishing media, and other conditions.

Bridgeport Fittings, Inc.    Stratford, CT 06497
Jan 18, 2011 Used to compensate ±2 in. of lateral movement of conduit in dry locations, Mighty-Move(TM) steel dry location expansion couplings are UL-Listed and available for use with ¾-4 in. EMT and 2½-4 in. rigid conduit. Mighty-Move(TM) aluminum raintight expansion couplings can be used to compensate ±2 in. of lateral movement in indoor or outdoor raceway system. These UL-Listed products are available for use with 1 in. EMT or rigid conduit.

Wagner Moisture Meters    Rogue River, OR 97537
Jan 18, 2011 RapidRH® 4.0 Easy Reader system utilizes Touch-n-Sense(TM) technology to facilitate measurement of RH in concrete slabs. Once inserted into Wagner 4.0-version Smart Sensor, unit turns on and takes reading. It can then be immediately removed from test hole. RH and temperature are displayed for 5 min before unit turns itself off or until it is inserted into another sensor. Reader can be moved from test hole to test hole for repeated measurements.

FDK CORPORATION    Tokyo 105-8677  Japan
Jan 18, 2011 Housed in 2.30 x 1.45 x 0.555 in. package, Sensei Model FPQR48T5R050 operates from 36-75 Vdc input and provides regulated 5 Vdc output with efficiency in excess of 92.5% and 1,500 Vdc input to output isolation. With 48 Vdc input, converter delivers full-rated output of 50 A (250 W) at ambient temperatures up to 55°C with 500 lfm airflow. Unit can optionally support parallel operation of multiple units without need for external components, with load sharing accuracy within ±10%.

GE Intelligent Platforms    Charlottesville, VA 22911
Jan 18, 2011 Through intelligent causal analysis, proactive alarming, and decision support, Proficy® Troubleshooter/Cause+ v5.0 fosters preventative action and accelerated reaction to developing and known issues. Actionable information minimizes downtime, waste, and re-work while improving quality, throughput, and visibility into operations. Companies can look at historical data, determine causes of variation, put active intelligent monitoring in place, and trigger operational workflows.

Amacoil Inc.    Aston, PA 19014
Jan 18, 2011 Used in equipment requiring reciprocating linear motion component, Amacoil-Uhing RG3 Drives are available with extra bearing option (RG4), which doubles axial thrust by increasing number of bearing-to-shaft contact points. For models RG315, -20, -22, -30, and -40, there is only slight difference in length of drive box when fourth bearing is added. For sizes RG350, -60 and -80, drive boxes have identical dimensions and travel capacities.

Universal Flow Monitors, Inc.    Hazel Park, MI 48030
Jan 18, 2011 Offered in 3 models, Variable Area Lubrication Meters monitor rate of oil flow to keep gears, bearings, drills, and mills functional in processing industries. Vane-style SN Series measures flow from 0.5-20 gpm with ±5% FS accuracy, while MN Series handles flows from 10-70 gpm with FS accuracy of ±2%. Piston-style LL Series, suitable for flows from 0.25-20 gpm, provides ±5% FS accuracy. All utilize non-contact magnetically coupled transmitters instead of potentiometers that can wear out.

Physik Instrumente (PI)    Auburn, MA 01501
Jan 18, 2011 Based on maintenance-free PILine® ultrasonic ceramic motor, closed-loop Model M-272 combines motor, actuator, linear encoder, guiding system, and brake functionality for automation applications. Unit provides travel range of 50 mm, 5 µm resolution, and velocities up to 200 mm/sec. Motor is self-locking at rest with zero heat generation, eliminating need for additional motor brake. With integrated guiding system, payload can be attached to drive rod and positioned precisely.

Advantech Automation Corp.    Cincinnati, OH 45240
Jan 18, 2011 Resistant to heat and dust in extreme environments, ISA half-size Model PCA-6782 is available with dual-core Intel Atom D525 CPU or single-core Intel Atom N455 CPU, both with 2 GB of DDR2 667 MHz memory. Integrated graphic core is based on Intel's Embedded Gen 3.5+ graphic technology with 224 MB shared memory, enabling 2D/3D graphic processing tasks without additional graphic card. Equipped with VGA and LVDS video outputs, Model PCA-6782 supports dual display applications.

Advantech Automation Corp.    Cincinnati, OH 45240
Jan 18, 2011 Able to fulfill installation and Web browser configuration requirements for remote monitoring applications, EKI-1221D and EKI-1222D offer transparent connectivity between Modbus (ASCII, RTU) serial devices and Ethernet-based Modbus/TCP equipment. Both have built-in Ethernet switches for cascading/daisy-chain connectivity and flexible cabling. Designed to fulfill any master/slave relationship, gateways provide 921k baud speeds and support 16 TCP masters and 16 TCP slaves.
