FDK CORPORATION    Tokyo 105-8677  Japan

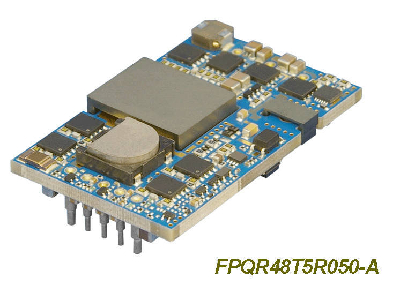

Jan 18, 2011 Housed in 2.30 x 1.45 x 0.555 in. package, Sensei Model FPQR48T5R050 operates from 36-75 Vdc input and provides regulated 5 Vdc output with efficiency in excess of 92.5% and 1,500 Vdc input to output isolation. With 48 Vdc input, converter delivers full-rated output of 50 A (250 W) at ambient temperatures up to 55°C with 500 lfm airflow. Unit can optionally support parallel operation of multiple units without need for external components, with load sharing accuracy within ±10%.

GE Intelligent Platforms    Charlottesville, VA 22911
Jan 18, 2011 Through intelligent causal analysis, proactive alarming, and decision support, Proficy® Troubleshooter/Cause+ v5.0 fosters preventative action and accelerated reaction to developing and known issues. Actionable information minimizes downtime, waste, and re-work while improving quality, throughput, and visibility into operations. Companies can look at historical data, determine causes of variation, put active intelligent monitoring in place, and trigger operational workflows.

Amacoil Inc.    Aston, PA 19014

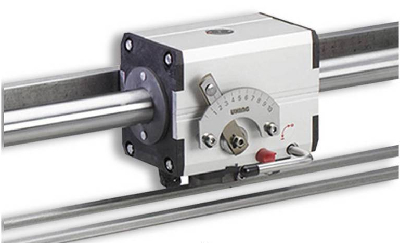

Jan 18, 2011 Used in equipment requiring reciprocating linear motion component, Amacoil-Uhing RG3 Drives are available with extra bearing option (RG4), which doubles axial thrust by increasing number of bearing-to-shaft contact points. For models RG315, -20, -22, -30, and -40, there is only slight difference in length of drive box when fourth bearing is added. For sizes RG350, -60 and -80, drive boxes have identical dimensions and travel capacities.

Universal Flow Monitors, Inc.    Hazel Park, MI 48030
Jan 18, 2011 Offered in 3 models, Variable Area Lubrication Meters monitor rate of oil flow to keep gears, bearings, drills, and mills functional in processing industries. Vane-style SN Series measures flow from 0.5-20 gpm with ±5% FS accuracy, while MN Series handles flows from 10-70 gpm with FS accuracy of ±2%. Piston-style LL Series, suitable for flows from 0.25-20 gpm, provides ±5% FS accuracy. All utilize non-contact magnetically coupled transmitters instead of potentiometers that can wear out.

Physik Instrumente (PI)    Auburn, MA 01501
Jan 18, 2011 Based on maintenance-free PILine® ultrasonic ceramic motor, closed-loop Model M-272 combines motor, actuator, linear encoder, guiding system, and brake functionality for automation applications. Unit provides travel range of 50 mm, 5 µm resolution, and velocities up to 200 mm/sec. Motor is self-locking at rest with zero heat generation, eliminating need for additional motor brake. With integrated guiding system, payload can be attached to drive rod and positioned precisely.

Advantech Automation Corp.    Cincinnati, OH 45240
Jan 18, 2011 Resistant to heat and dust in extreme environments, ISA half-size Model PCA-6782 is available with dual-core Intel Atom D525 CPU or single-core Intel Atom N455 CPU, both with 2 GB of DDR2 667 MHz memory. Integrated graphic core is based on Intel's Embedded Gen 3.5+ graphic technology with 224 MB shared memory, enabling 2D/3D graphic processing tasks without additional graphic card. Equipped with VGA and LVDS video outputs, Model PCA-6782 supports dual display applications.

Advantech Automation Corp.    Cincinnati, OH 45240
Jan 18, 2011 Able to fulfill installation and Web browser configuration requirements for remote monitoring applications, EKI-1221D and EKI-1222D offer transparent connectivity between Modbus (ASCII, RTU) serial devices and Ethernet-based Modbus/TCP equipment. Both have built-in Ethernet switches for cascading/daisy-chain connectivity and flexible cabling. Designed to fulfill any master/slave relationship, gateways provide 921k baud speeds and support 16 TCP masters and 16 TCP slaves.

L-Tron Corp.    Victor, NY 14564
Jan 18, 2011 Employing omnidirectional scanner capable of capturing barcode data from up to 30 ft away, MC9190-G incorporates mobile operating system, microprocessor, memory, and multiple connectivity options. Integrated 2D imager engine can read multiple barcode types, including those that are damaged or dirty. While backlit display facilitates viewing, display's flexible, sturdy glass tolerates drops, scratches, spills, and bumps. Customizable density and DPM options are available.

Mersen    Newburyport, MA 01950
Jan 18, 2011 Providing overcurrent protection at combiner box and inverter levels, Helio Protection® HP6M, HP6J, and HP10M Fuses cover applications ranging from 1-400 A, 600 Vdc and 1,000 Vdc. Optimized fuse construction makes units suitable for continuous temperature and current cycling withstand. With minimum breaking capacity of 1.35 X fuse-rated current value, devices allow for safe circuit interruption under typical low-fault current conditions produced by PV arrays.

Gateway Safety, Inc.    Cleveland, OH 44131 1045
Jan 18, 2011 Available in 5 diopter strengths: 1.0, 1.5, 2.0, 2.5, and 3.0, Scorpion® MAG and StarLite® MAG eyewear are designed for workers requiring extra magnification to read instrumentation and documents, work with small parts, or perform close-at-hand tasks. Scorpion® MAG features adjustable-length ratcheting temples and soft fingertip nosepiece. ANSI Z87.2+ standard compliant StarLite® MAG comes with all-around impact protection.

Electro Standards Laboratories    Cranston, RI 02921 3403
Jan 18, 2011 Rackmount, Cat5e-compliant Model 9081 allows access to any one of 3 RJ45 devices connected to A, B, and C ports with one RJ45 device connected to COMMON port. Manually operated unit does not require any power, and port selection is accomplished via front panel rotary knob. Transparent to data speed and format, sealed switch features self-wiping contacts and is certified for Cat5e compliance. All 8 pins of RJ45 interface are switched, and black box packaging provides EMI/RFI shielding.

Electro Standards Laboratories    Cranston, RI 02921 3403
Jan 18, 2011 Supporting local control by front panel pushbutton or remotely from DB9 (F) port on rear of unit using Serial ASCII Commands, PathWay® Model 7278 allows user to access any of 4 separate devices on ports A, B, C, and D via device connected to Common port. Position state may be attained locally via front panel LED display or remotely using Serial Commands. Switching all 8 pins of RJ45 interface, product is transparent to data speed and format and certified Cat 5e compliance.

Imco Carbide Tool Inc.    Perrysburg, OH 43552
Jan 18, 2011 Able to cut hard-to-machine metals such as superalloys, titanium, and stainless steel, enDURO® 5-flute end mills maximize metal removal rates and productivity, and optimize finish in high-power and lower-power machining centers. They are designed with advanced geometries and specialized coatings for maximum cutting efficiency and precision, and are available in various end designs, shank designs, and lengths.

Accu-Time Systems, Inc.    Ellington, CT 06029
Jan 18, 2011 AccuTouch(TM) workforce management terminal integrates multispectral fingerprint reader that uses multiple wavelengths of light to identify surface fingerprint in addition to capillary patterns under skin. Suited for dry, dirty, dusty, or wet environments, unit features finger placement slot to guide user's finger into proper location. Unit operates across range of temperatures, relative humidity, and ambient light and has template storage for up to 50,000 users.

Bliley Technologies, Inc    Erie, PA 16508-0428
Jan 18, 2011 Housed in low-profile, Euro-style packaging, 5-13 MHz Model NV47AE is intended for VMA slot applications and dense system design. Unit delivers HCMOS and sine wave output and offers multiple phase noise options. Operating from 5 or 12 V supply, RoHS-6/lead-free compliant oscillator has storage temperature range of -55 to 125°C and is suited for base stations, test equipment, synthesizers, and digital switching applications.

CLI, Inc.    Placentia, CA 92870
Jan 18, 2011 CLI Device Manager(TM) v3.0 can deploy, manage, and remove device images on physical thin client, integrated endpoint devices, and thin laptops. In addition to thin client provisioning of firmware image, solution offers policy and software package updates, asset tracking, and remote troubleshooting capabilities. Thin client device management software and total device management solution also supports device discovery/configuration and various preferences to aid setup and operability.

Enduris    Jacksonville, FL 32219
Jan 18, 2011 Available in 3 styles, Encore(TM) Code-Approved PVC-Coated Composite Railing works with cellular PVC decking and is approved for single- and 2-family dwellings and residential applications. Co-extruded systems include Series 100, 2 x 3.5 in. rectangular profile; Series 200, 2-piece T-Rail style with flat cap; and Series 300, Small Contour. Available in white, railing comes in kitted box with balusters, hardware, and installation instructions.

Freecom Technologies    Berlin 10829  Germany
Jan 18, 2011 Delivering portable storage for Macs, Mobile Drive Mg supports data transfer rates to 130 MBps via USB 3.0 interface. Drive comes in magnesium enclosure, offers plug-and-play operation, and is backwards-compatible with USB 2.0-enabled computers and notebooks. The 320 GB model has internal 7 mm hard drive and measures 10 mm high, while dual 750 GB models have 12 mm form factor; one also incorporates FireWire 800 technology. All models are 100% compatible with Time Machine.

GarrettCom, Inc.    Fremont, CA 94539
Jan 18, 2011 Magnum 10KT Managed Switches offer time synchronization based on IEEE 1588v2 protocol to provide sub-nanosecond timing accuracy. Substation-hardened enclosure utilizes advanced thermal design that allows switches to run cool and efficiently. Devices support master clock, boundary clock, and transparent clock features. Rack-mountable, 1U units have 10 slots for up to 36 x 100 Mb fiber and copper ports, including up to four Gb ports. Power supplies are available with multiple voltage options.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Jan 18, 2011 With Self Checkout System 6, retailers can deploy modular scanning, payment, and bagging units that suit any size environment. Retailers can choose to set up totally integrated system, separate scanning from payment, or deploy distinct pay stations to complement cashless lanes. Checkout Environment for Consumer-Service software allows retailer-unique, custom extensions to run on global base application, along with open POS integration and remote systems management.
