Anver Corp. - Anver.Com    Hudson, MA 01749

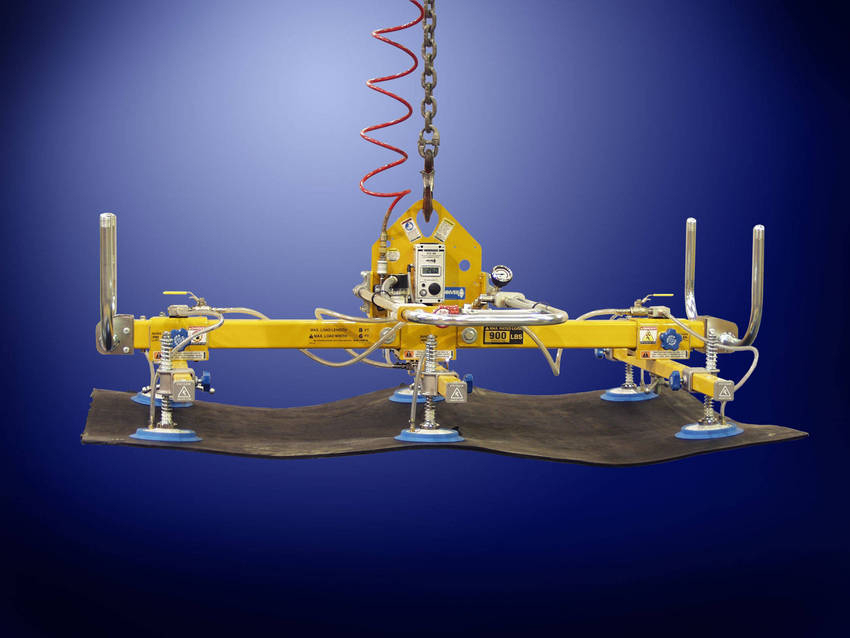

Jan 24, 2011 Including adjustable handlebar and integrated controls, Anver VPFL-4 air-powered lifter allows one person to handle foam, rubber, plastic, composite, and thin wood sheet for feeding cutting tables and other equipment. Below-the-hook unit operates on standard shop air and requires 8 in. of head room. Device comes with parking stands to protect vacuum cups. Other features included are air filter, vacuum check valve, vacuum gauge, and leakage sensor with audio-visual alarms.

GE Intelligent Platforms    Charlottesville, VA 22911
Jan 24, 2011 Proficy® Real-Time Information Portal v3.5 allows users to visualize and analyze facility data to support operational improvements. Interactive and data-rich web pages can be created in configurable, self-service environment, enabling executives to securely visualize, report, and analyze data from Internet-enabled locations. In addition to development in script without use of HTML, solution supports use of variables within displays and data sources and allows data sources to be changed on-the-fly.

PTi - Processing Technologies International, LLC.    Aurora, IL 60502
Jan 24, 2011 Developed to compliment HVTSE (High Vacuum Twin Screw Extrusion) system for dryer-less production of PET sheet, Intrinsic Viscosity (IV) real-time monitoring system is based on measurement of melt temperature and capillary piping pressures. Viscosity and subsequent intrinsic viscosity are calculated to ±0.02 dl/g accuracy, and extracted test data is continuously fed into TITAN control system for display, storage, and access.

AMETEK Petrolab Company    Broken Arrow, OK 74012
Jan 24, 2011 Designed to determine flash point of liquids and solids according to ASTM D7094 Standard, Grabner® MINIFLASH Touch offers extended temperature range of 0-400°C and communication via USB, Ethernet, LAN, RS232, LIMS, and PC. Detection method measures instantaneous pressure increase inside continuously closed test chamber resulting from high-energy electric arc that ignites vapor from 2 mL sample. Continuously closed cup design and small sample volume ensure safety and avoid fumes in testing area.

Lydall, Inc.    Manchester, CT 06045
Jan 24, 2011 Suited for industrial and laboratory settings, S-Series includes 4 models with extended temperature range of -10 to 30°C and ±0.1°C temperature stability. Units are available with copper or stainless steel wetted materials, ergonomic operator interface, and process alarms that protect equipment and production output. Multiple communication options enable remote monitoring and control.

Omega Engineering, Inc.    Stamford, CT 06907
Jan 24, 2011 Designed for diagnostic troubleshooting of all types of mobile or stationary hydraulic systems and components, CE-compliant HFP-110/120 lets users acquire flow pressure and temperature measurements simultaneously from one point. Self-contained and portable instrument, suited for hydraulics, automotive, and manufacturing industries, incorporates pressure relief disc protection and low battery/over-range indicators. LCD with 3½ digits facilitates reading of measurements.

Acromag, Inc.    Wixom, MI 48393 7037
Jan 21, 2011 Model ST131 ASIC-driven RTD transmitters include digital USB setup and calibration interface and are designed for operation in harsh environments, in temperatures from -40 to +80°C. Providing electrical noise immunity and surge protection, DIN Form B head-mount instruments also have non-polarized and reverse polarity protected output. Windows configuration software is include and units perform advanced signal linearization, lead-wire compensation, and sensor fault detection functions.

Adcole Corp.    Marlborough, MA 01752-3067
Jan 21, 2011 Featuring ball bearing spindle with less than 0.25 µm runout, Model 1200-10 measures crankshafts up to 180 in. long, with 22 in. swing diameter, that weigh up to 4,500 lb. Utilizing laser interferometer in combination with contact follower with 13 in. stroke, gage can measure 3,600 data points on pin journals for roundness and straightness with 0.5 µm accuracy. Unit includes 19 in. touchscreen display, Windows-based operating system, and ability to execute full measurement within 10 min.

Schunk    Morrisville, NC 27560
Jan 21, 2011 With functional components of hardened stainless steel and repeat accuracy of less than 5 microns, VERO-S module features dual clamping stroke and integrated turbo function that enable pull-in/retention force up to 9,000 lb. Locking is mechanical via spring package, and holding forces are rated to 16,800 lb. For opening module, 85 psi pneumatic pressure is sufficient. Product clamps workpieces, pallets, clamping stations, existing fixtures, and tombstones with one or more clamping pins.

Cognex Corp.    Natick, MA 01760 2059
Jan 21, 2011 Supporting remote setup and monitoring, Checker® 4G Series supports PLC communication through EtherNet/IP and PROFINET as well as ability to save inspection images to FTP server. Unit can be configured as presence sensor or measurement sensor to inspect and error proof manufacturing process, and there is no limit to number of part features that single sensor can check in either mode. Integrating lighting, optics, and I/O, product can detect and inspect 6,000+ parts per minute.

Wavelength Electronics, Inc.    Bozeman, MT 59715
Jan 21, 2011 Featuring 5 A drive current and single supply operation from +5 to +30 V, Model RHM5K-CH can be used to achieve precision control at off-ambient temperatures. Unipolar device uses PID control loop to drive resistive heaters or thermoplastic coolers. Onboard 12-turn trimpots control temperature setpoint, proportional gain, and output voltage limit, while single 10-pin terminal strip provides access to DC supply, sensor, resistive heater, and measurement connections.

AMD    Sunnyvale, CA 94088
Jan 21, 2011 Based on AMD Fusion technology, AMD Embedded G-Series incorporates 1.6 GHz x86 CPU based on Bobcat core with DirectX 11-capable GPU and parallel processing engine on single piece of silicon. Unit features DDR3 800-1,066 memory with support for 64-bit channel and 2 DIMMs. Housed in BGA package with 890 mm² footprint, including AMD Fusion I/O controller hub, APU is equipped with array of SIMD engines, 3rd Generation Unified Video Decoder, and C6 and power gating for power management.

CompuLab Ltd.    Haifa 32000  Israel
Jan 21, 2011 Housed in passively cooled die-cast aluminum 6.3 x 6.3 x 0.98 in. enclosure, fit-PC3 features AMD G-T56N processor with AMD Radeon(TM) HD 6310 Graphics or AMD G-T40N processor with AMD Radeon HD 6250 Graphics. Product accommodates custom I/O requirements with 2 mini-PCI express sockets and custom extension board. It also integrates six USB 2.0 ports, utilizes GbE and 802.11n WiFi for networking, and has up to 4 GB DDR3-1333 memory and internal 2.5 in. SATA 3 hard disk.

Power Integrations, Inc.    San Jose, CA 95138
Jan 21, 2011 Housed in 12-pin, low-profile eSOP(TM) package that occupies 119 mm² footprint, TOPSwitch-JX can achieve less than 60 mW no-load in power supplies up to 65 W. Unit incorporates PSU flyback controller and 725 V MOSFET power in single package, with multi-mode control algorithm that maximizes power efficiency across entire load range. With standby power consumption of 85 mW at 264 Vac, IC is suited for LCD TV auxiliary power, set-top boxes, PC standby, and DVD players.

Meissner Filtration Products, Inc.    Camarillo, CA 93012 8760
Jan 21, 2011 Designed to meet requirements of biopharmaceutical industry, TepoFlex® Biocontainers are made of polyethylene-based TepoFlex® film with combined gas and water vapor barrier that protects product stored within them. Units are available with silicone or TPE tubing with variety of connections, and can be specified with or without capsules. Certified animal component free, biocontainers come in 50, 250, and 500 mL sizes as well as 1, 2, 5, 10, and 20 L sizes.

Carlo Gavazzi, Inc.    Buffalo Grove, IL 60089
Jan 21, 2011 CLD/P Series offers various functions as well as tank-well option, which lets one device control levels in above ground tank and underground well to prevent either running dry. Master-slave option allows up to 7 controllers to be directly connected to each other, and all functions and adjustments are made via rotary switches and potentiometers on face of individual units. Single-point controller includes time delay function, allowing tank filling/emptying with single level point.

Saelig Co., Inc.    Pittsford, NY 14534
Jan 21, 2011 Combining scope, data logger, and I/O board, USB DrDAQ samples at 1 MS/s and can be used as single-channel 8-bit 100 kHz oscilloscope or spectrum analyzer with ability to measure voltages up to ±10 V. Unit features microphone, light sensor, RGB LED, and oscilloscope and resistance inputs, as well as 4 digital I/O ports, 3 sensor ports, pH/redox sensor input, and signal generator output. Supplied with Windows SDK, system is suited for applications ranging from education to research.

Cambridge Viscosity, Inc.    Medford, MA 02155
Jan 21, 2011 Model SPL-374 flow-thru sanitary process viscometer utilizes sensor that requires less than 5 mL of sample to accurately determine viscosity of solution. Connecting into ¼ in. process line using quick-release sanitary connections, it has integrated heater for tight temperature control under flow conditions up to 1 ft/sec. All wetted parts are stainless steel, and piston is in constant motion, so sampling area is continually scrubbed clean.

Schunk    Morrisville, NC 27560
Jan 21, 2011 Designed for harsh environments, PHL long stroke grippers use multi-tooth guidance or profiled rail guidance. Gripper fingers with guiding carriage and ball bearings minimize friction and evenly distribute force, and jaw guide is sealed and permanently lubricated to increase bearing capacity and reduce wear. Units are offered in 5 sizes with piston diameters from 25-63 mm, with 3 strokes/size available, covering range of strokes from 30-160 mm.

All Metric Small Parts (aMsp)    New Hyde Park, NY 11040
Jan 21, 2011 Featuring space saving design, MAKTOOMTHA236 Series features zinc die cast handles with chrome-plated finish. Handles are hidden within and rotate out for use with fully concealed mounting hardware. Suitable for lifting or pulling, handles are typically used on measuring instruments, telecommunication devices, distribution boards, distribution panels, and control boards.
