TE Connectivity Ltd.    Berwyn, PA 19312
Apr 28, 2010 Combining RJ-45 connector with integrated gigabit magnetics and embedded PoE Plus controller board, Mag45 PoE Plus PSE-ICM Connector allows data and power to be transmitted over same Ethernet cable via existing Cat5 infrastructure. Unit offers current capacity up to 600 mA per port and features surge-protected system with single voltage feeding. Applications include switches/routers/hubs, wireless access points, video/IP telephone, POS terminals, and thin client computers.

Merritt, J. R., Controls, Inc.    Stratford, CT 06615
Apr 28, 2010 Featuring modular design, FSALV Operator Armchair has fully adjustable armrests and control consoles that offer horizontal, vertical, and longitudinal adjustments, as well as tilt and twist to maximize comfort. Actimo seat features height adjustment, seat cushion tilt, and fore/aft adjustments along with weight compensation suspension. Suited for tight cabins and other compact workspaces, chair will accommodate five 22.5 mm control devices and is available with or without joysticks.

MAG IAS, LLC    Erlanger, KY 41018

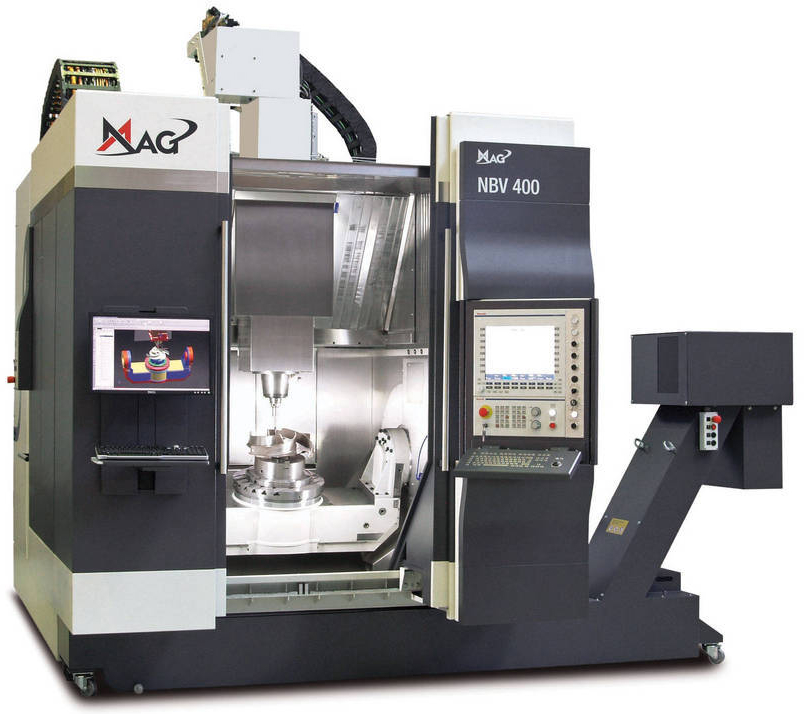

Apr 28, 2010 Able to be configured for 3- to 5-axis mill-turn work, NBV integrates CAM support as well as program simulation and 4 spindle options up to 42,000 rpm. Selectable ECO-Mode automatically levels speed and acceleration for balance of cutting performance, energy use, and machine-component life. Occupying 133.5 ft² footprint, fixed-table NBV 400 provides X/Y/Z ranges of 27.6 x 23.6 x 19.7 in. Table capacity of 661 lb, and disc-type 40-tool magazine is standard.

Kontron    Poway, CA 92064

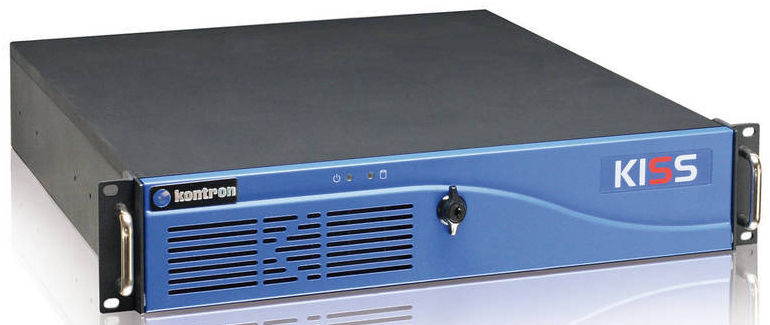

Apr 28, 2010 Offered in 4 versions with various I/O options, Kontron Industrial Silent Severs (KISS) 2U KTQ45/Flex accommodates needs of test and measurement, image processing, process control, and video surveillance applications. Each 2U rack-mount platform supports up to Intel® Core(TM)2 Quad Q9400 processor with embedded lifecycle support and 8 GB DDR3 SDRAM. Additionally, servers implement Intel AMT 5.0 Active Management Technology for in- and out-of-band remote management capabilities.

Dwyer Instruments, Inc.    Michigan City, IN 46361

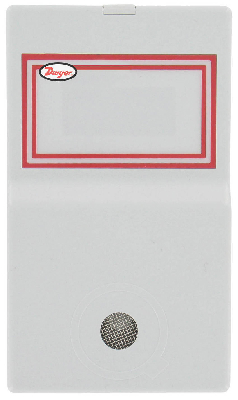

Apr 28, 2010 Available in wall mount or duct mount configurations, Series CMT detects and transmits low concentrations of carbon monoxide inside parking garage or loading dock. Units feature 0-125 ppm range with ±2.5% accuracy and ±1% repeatability. Universal current and voltage outputs are field selectable and match most common building management controllers. Optional relay and alarm buzzers, offered on wall mount models, directly connect to warning light or exhaust fan.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Apr 28, 2010 Designed to help students take active role in learning, TI-Nspire(TM) includes touchpad keypad with feel of laptop computer touchpad, alpha keyboard that facilitates text creation, and scratchpad feature that lets users perform quick calculations without opening file. Calculator can show math problems 4 ways simultaneously on single screen as graph, table, equation, and text problem. Dynamically linked representations all update each time one part of problem is changed.

Trimble Navigation Limited    Sunnyvale, CA 94085-3913
Apr 28, 2010 VisionLink(TM) utilizes GPS-based positioning and cellular technology to provide near real-time information on mixed fleet equipment performance. Tracking portable assets to heavy machinery, it shows machine fault codes, location, hours, events, and user defined alerts to provide overview of machine health, fuel management, etc. Users can view map-based equipment views and run reports or charts, and be automatically notified of unexpected activity via e-mail or SMS messaging.

Electro Standards Laboratories    Cranston, RI 02921 3403
Apr 28, 2010 QuickSwitch Model 6276 ST Duplex A/B Fiber Optic Switch with Custom Remote Control allows access to any one of two separate fiber optic networks from one computer. Its custom DB9 remote port provides control by signal transition logic to allow off-site monitoring and switch management. Supporting wavelength of 850 nm, fiber ports are ST duplex, multimode, and 62.5/125 micron. Switch handles Gigabit data rates and utilizes MEMS-based mirror/prism technology.

Daimer Industries Inc    Woburn, MA 01801
Apr 28, 2010 Combining steam cleaning system and wet/dry vacuum, 50 Hz KleenJet® Mega 550V models produce temperatures reaching 154°C and pressure levels up to 5.2 bar. Vacuum offers 2,200 mm water column lift and includes 4 L extraction chamber, as well as NEMA and water filtration to remove allergens from air. Each unit has 3 m steam hose and separate 3 m vacuum hose. Encased in stainless steel housing, 1,600 W steam cleaners measure 35.6 x 35.6 cm and weigh 12.7 kg.

ATRION International Inc.    Reston, VA 20190
Apr 28, 2010 Compliance Guardian for Microsoft Dynamics AX, Powered by ACE(TM), enables Microsoft Dynamics users to integrate software and regulatory content into business processes. It provides product and raw material compliance assessment, document authoring and management, automated labeling, substance volume tracking, and reporting. Managed Regulatory Content includes data on over 300,000 chemical substances, 7,500 rules, and 100 templates spanning over 50 countries.

RedPrairie Corp.    Waukesha, WI 53186
Apr 28, 2010 Featuring intelligent parsing of GS1/ASN labeling, Warehouse Management 2010.1 lets users define their own barcode templates to support other forms of inbound labels that contain multiple receiving identifiers. Program also enables configuration of items, lot formats, serial numbers, types, and default asset types to minimize amount of time needed for inbound personnel to determine what type of attributes item should be associated with during receipt of non-ASN inventory.

American Casting & Manufacturing Corp.    Plainview, NY 11803
Apr 28, 2010 Pre-printed with SEALED and pre-numbered with 7 sequential digits, series CL99 provides heavy-duty, adjustable cable seal for cargo doors, lids, drums, and containers. Each locking steel cable is bar-coded, applied via pulling up tightly by hand, and removed via cable cutter. Specific models of these C-TPAT/ISO/PAS 17712 compliant seals include CL-99-14 (14 x 1/16 in. dia), CL-99-18HD (14 x 1/8 in. dia), and CL-99-35SD (14 x 1/8 in. dia).

PIRTEK USA    Rockledge, FL 32955
Apr 28, 2010 Available in lengths up to 131 ft, Model PFMU21-20 is constructed with oil-resistant inner tube, 4-wire spiral reinforcement, and abrasion-resistant cover that conforms to both SAE and MSHA standards. Hose is suited for applications in various industries, including construction and drilling equipment, plastic injection molding, and manufacturing facilities.

Atego    San Diego, CA 92121
Apr 28, 2010 Supporting concurrent multi-processor garbage collection technology, Aonix PERC Ultra SMP 5.4 responds to need for multiprocessor and multicore solutions in complex mission-critical embedded and real-time Java(TM) applications. Program dynamically allocates available processors/cores to perform garbage collection tasks without disrupting active Java threads on other cores. In addition to AOT and JIT compilation, software offers remote debug support and extended commercial RTOS support.

Diamond Systems Corporation    Mountain View, CA 94043
Apr 28, 2010 Compatible with FeaturePak embedded I/O expansion standard, Model FP-GPIO96 integrates 96 buffered, programmable digital I/O lines with byte-wide and bit-wide port direction control. Unit includes eight 32-bit counter/timers, four 24-bit pulse width modulation circuits with 0-100% duty cycle, and watchdog timer with system reset capability. Supporting -40 to +85°C extended temperature operation, module is suited for COM baseboards, SBCs, and full-custom electronic designs.

Diamond Systems Corporation    Mountain View, CA 94043
Apr 28, 2010 SUMIT/FP Adapter allows use of FeaturePak I/O expansion modules in systems that provide SUMIT-ISM expansion stack locations. FeaturePak socket consumes one PCIe x1 lane from SUMIT-A bus connector on SUMIT-ISM module, while adapter board provides pair of 50-pin I/O header connectors for access to all FeaturePak I/O. Additionally, pass-through connectors are provided for SUMIT-ISM stack's SUMIT-B bus and PC/104 (ISA) bus. Adapter is rated for -40 to +85°C operation.

Hydracon Subsea    Anaheim, CA 92809
Apr 28, 2010 Suited for deepwater subsea hydraulic control systems, magnetically actuated Model 2406-100 uses only 2 wires and is supplied with underwater connectors. Unit features operating pressure of 0-3,000 psid, switching voltage of 500 V max, and switching current of 2 A max. Measuring 1.1 in. diameter x 5.7 in. long, switch is constructed of 316L stainless steel and meets highest industry standard protection against continuous immersion in water, IPX8 or IEC 529.

ComNet    Danbury, CT 06810
Apr 27, 2010 Designed to operate in environments with temperature and vibration extremes, environmentally hardened ComWorx(TM) CNGE2FE8MSPoE makes available eight 10/100TX ports that support IEE802.3af PoE. There are also two 1,000 Mbps combo ports that utilize interchangeable SFP optic devices as optical interfaces. In addition to IGMP snooping V1/V2, features include Rapid Spanning Tree Protocol (IEEE 802.1w) or RSTP and port-based VLAN (IEEE 802.1Q) capabilities.

Hexagon Metrology Inc.    North Kingstown, RI 02852
Apr 27, 2010 Metrology software suite, PC-DMIS 2010, includes PC-DMIS CMM that allows users to select animation path lines and either insert safety move at point of selection or jump to that command location in part program. Also included are PC-DMIS Portable and PC-DMIS Vision software as well as PC-DMIS Planner and DataPage+ products. Integration with noncontact 3D laser line sensors enables visualization of all parameters for programming laser-based 3D geometric features.

Hirose Electric (USA) Inc.    Simi Valley, CA 93065 6235
Apr 27, 2010 HR30 Circular Connector Series is available in all shell sizes and enables customers to specify multiple over-mold strain relief designs including straight, right angle, and 45°. Overmold feature prevents damage caused by tampering or unauthorized assembly. Units in series have insulation resistance of 1,000 MW at 100 Vac, with maximum contact resistance of up to 30 mW at 1 ADC. They operate in temperature range of -25 to +85°C.
