Carl Zeiss Microimaging, Inc.    Thornwood, NY 10594-1939
Apr 30, 2010 Compact Prime CP.2 lenses feature interchangeable mounts, which include PL, EF, and F mounts, for use with wide range of cameras. Iris opening consists of 14 high-precision blades, which stay consistently round and symmetrical over entire T-stop range. This translates into natural and out-of-focus highlights and smooth bokeh. Covering full-frame 24 x 36 image format without vignetting, lenses will be based around common aperture of T2.1 for standard set.

Harting KGaA      Germany
Apr 30, 2010 Supplied in singular gender crimp contact design, Han-Yellock® comes in multiple sizes incorporating up to thirty 20 A connections. Integral locking system incorporates pushbutton technology for latching and un-latching rectangular connectors, while pre-wired modules may be installed into connector body from front or back and without fixing screws. Ability to combine potentials and contacts conserves space, reduces wiring time, and eliminates potential wiring errors.

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089
Apr 30, 2010 Able to measure indoor environmental parameters such as CO2, humidity, temperature, and air velocity, CE-approved and RoHS-compliant CGES Series can help increase supply of fresh air into building, improve indoor air quality, and contribute to compliance with ASHRAE 62-1989. Each sensor operates on 24 Vac/Vdc and can be mounted in walls or ducts. Output options include 0-10 V, 4-20 mA, and switching, while auto-calibration ensures proper tuning for continuous, worry-free operation.

Allegro MicroSystems Inc.    Worcester, MA 01615
Apr 30, 2010 Suited for operation to 150°C, A1225/A1227/A1229 temperature-stable and stress-resistant sensor ICs suit motor commutation applications in sunroofs and power windows in automotive market. Internal protection circuits enable device to survive 40 V load dump compliance without external protection components, and internal compensation provides magnetic switchpoints that become more sensitive with temperature. ESD protection up to 8 kV human body model is offered without external protection components.

Blue Giant Equipment Corp.    Brampton, ON L6W 3K2  Canada
Apr 30, 2010 Offered in 4 rated capacities from 30,000-45,000 lb, U-Series is comprised of hydraulic, mechanical, and vertical models. Each universal dock, to withstand heavy use, features minimum of 6 U-beams welded at dynamic impact points on underside of deck. Single lip hinge pin enables strengthened and evenly distributed load, while continuous one-piece headboard intensifies strength of deck's front structure. To compensate for canted truck beds, products flex up to 4 in. under load.

Design Criteria, Inc.    Nashua, NH 03060

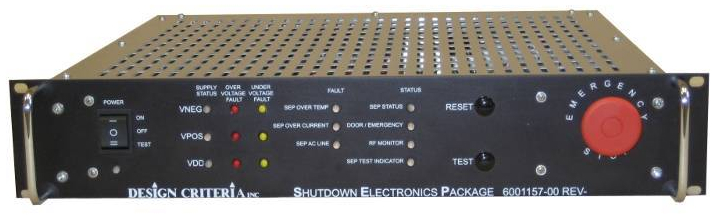

Apr 30, 2010 Suited for applications such as motors, power supplies, and other power electronics, Ultrafast Power Controller (UPF) will protect array of solid-state transmitters which can sense and shutdown power bus in less than 10 µsec upon specified fault conditions. Proprietary circuit of custom magnetics isolates power bus from control and sense circuits. Other capabilities include voltage monitoring, temperature monitoring, and power sequencing.

RCI Technologies    San Dimas, CA 91773

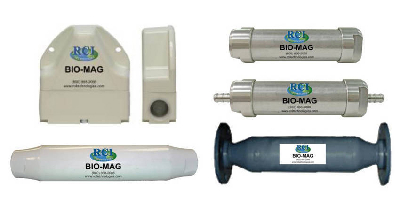

Apr 30, 2010 Available in variety of sizes and specifications, depending on application, Bio-Mag(TM) treats microbiological contamination in fuel systems and controls further growth, minimizing need for biocides and other chemicals. In-line device uses magnetic field to break down bacteria so it can pass through conventional filtration system to be consumed in engine combustion cycle. Applications include automotive, truck, tractor, marine, and bulk storage.

Micronor    Newbury Park, CA 91320
Apr 30, 2010 Operating at 24 Vdc, MR266 Series Remote Control Rheostats and MR267 Series Remote Control Potentiometers offer choice of 4-20 mA or 0-10 V input/output interface for compatibility with PLC, DCS, A/D, D/A, and other control devices. MR267 Series replaces low power potentiometers rated less than 5 W, in range of 100 to 100K W, while MR266 Series replaces high power rheostats in range of 2.0 to 50K W with 4 power options of 20/60/170/300 W.

Malvern Instruments Inc.    Westborough, MA 01581
Apr 30, 2010 Viscotek Triple Detector Array includes viscometer, with 316 SS transducer construction, that provides viscosity and structural information for range of biomolecules and natural/synthetic polymers. Viscometer uses digital inert transducer for sensitive response to viscosity changes. Also suitable for protein analysis, viscosity component of gel permeation/size exclusion chromatography platform has inert capillaries in measuring flow path suitable for biomolecule applications.

Unitek Miyachi Corporation    Monrovia, CA 91017 7133

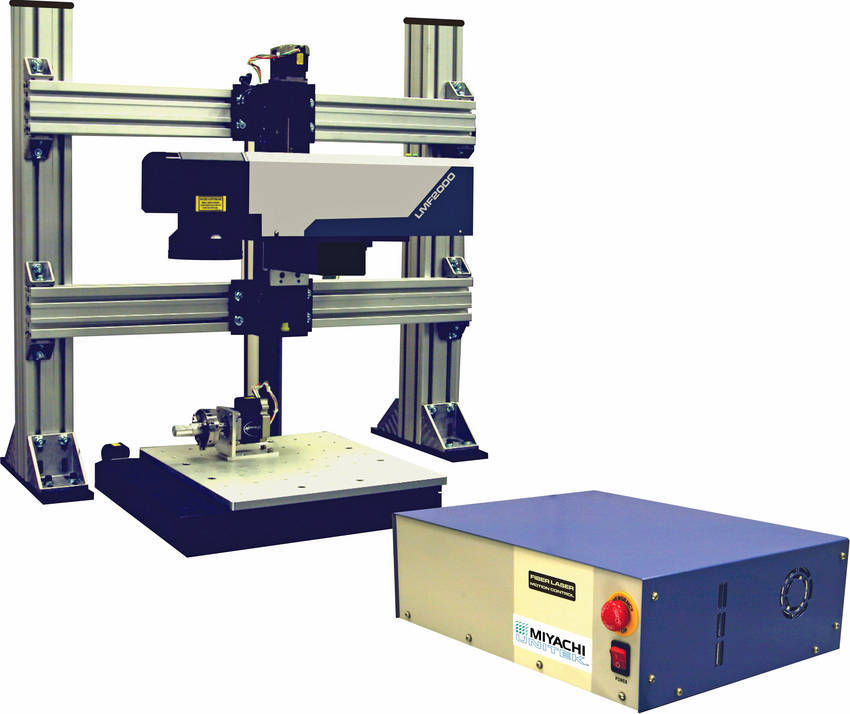

Apr 30, 2010 Enabling any combination of linear or rotary motion control in up to 4 axes, LMC1 features automated functions such as serialization, step-and-repeat, and marking around cylinder that can be programmed utilizing integrated automation build function. Standard stage sizes for single linear or combined X/Y/Z axes range from 6-18 in., and there are 2 rotary options: direct drive for banding applications, or precision rotary for Hi-Res marking.

Kontron    Poway, CA 92064

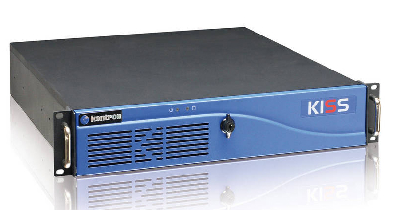

Apr 30, 2010 With 2U height, Industrial Silent Servers KISS 2U KTQ45/Flex come in full box depth of 472 mm or in short version with depth of 350 mm. Units offer enough space for 4 low-profile PCI and PCIe cards or 2 full height cards, configurable as 2 PCIe, 2x PCI, or 1PCIe and 1 PCI. All models are equipped with Intel Core 2 Quad Q9400 processor, 8 GB DDR3 SDRAM, and Intel AMT 5.0 Active Management Technology, which enables in- and out-of-band remote management.

Schleuniger, Inc.    Manchester, NH 03103
Apr 30, 2010 Requiring no mechanical adjustments to process different wire sizes, UniStrip 2300 features color touchscreen interface where user selects desired wire size from pre-programmed library and all parameters, including cutting diameter, clamping pressure, and blade wayback are automatically set. All settings can be password protected and role-based functionality controls who changes data and configurations. Cycle time is 0.35 sec.

WAGO Corp.    Germantown, WI 53022

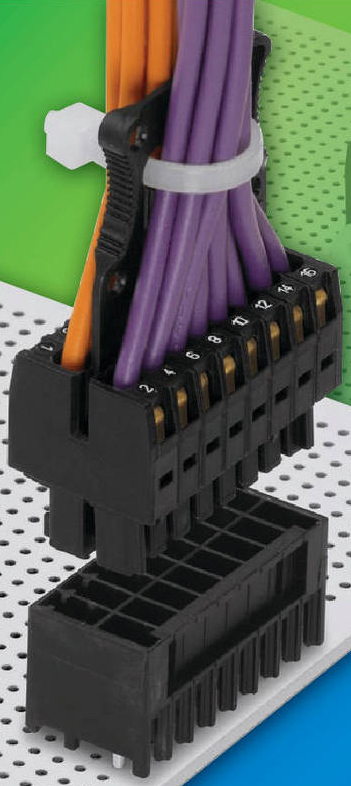

Apr 30, 2010 Measuring 16 mm wide, 713 Series MCS MINI-HD Double Row Connector System consists of low-voltage - 150 V/10 A (UL) and 160 V/10 A (IEC) - wire-to-board connector suited for control circuits. High-density design features rear-side CAGE CLAMP® terminals, permitting factory or in-field wiring, while dual-purpose lever doubles as lock and disconnection aid. Optional centered strain-relief plate anchors conductors while acting as disconnection handle, and direct pole marking is available.

Thermo Fisher Scientific    Waltham, MA 02454
Apr 30, 2010 Suited for scientists engaged in variety of spectroscopic experiments and disciplines, GRAMS Suite v9.0 offers solution for visualizing, processing, reporting, and managing spectroscopy data. GRAMS IQ, for visual chemometric modeling, delivers workflow and model deployment capabilities that facilitate quantitative and qualitative analyses. With import wizard in Smart Convert/Import, scientists can manage data from more than 180 types of IR, UV-Vis, NMR, and LC/GC-MS instruments.

Gleason Corp.    Rochester, NY 14692 2970
Apr 30, 2010 High-performance bevel gear grinding wheels feature abrasive materials and designs that result in accelerated and aggressive metal removal. Series covers any bevel gear or Curvic® Coupling application involving all ranges of steels and very hard materials. Reducing equipment and tool expenditure, setup times, and cycle times, wheels make bevel gear grinding from solid gear blank viable alternative to traditional process of rough cutting prior to grinding.

Z-Communications, Inc.    San Diego, CA 92126

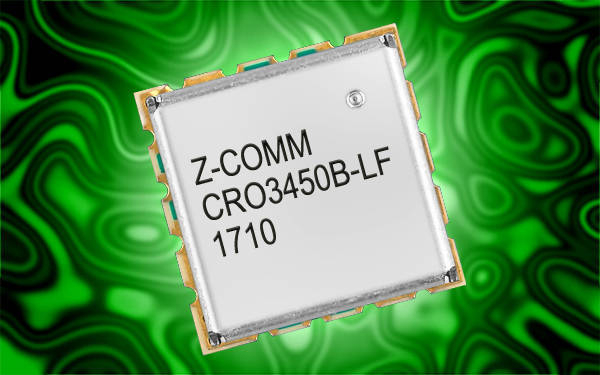

Apr 30, 2010 Ideal for automated surface mount assembly and reflow, model CRO3450B-LF VCO in S-band operates at 3,449-3,451 MHz with tuning voltage range of 0.5-4.5 Vdc and typical tuning sensitivity of 8 MHz/V. Featuring second harmonic suppression of -20 dBc, RoHS-compliant unit delivers output power of 4.5 dBm at 5 Vdc supply while drawing 20 mA over -40 to +85ºC temperature range. It is available in MINI-16-SM package measuring 0.5 x 0.5 x 0.22 in.

Z-Communications, Inc.    San Diego, CA 92126

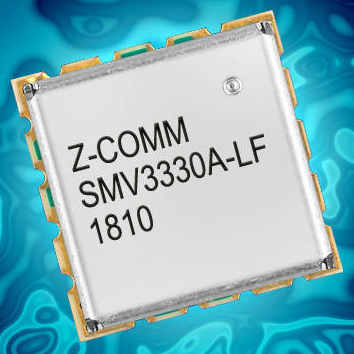

Apr 30, 2010 Operating at 3,300-3,360 MHz with tuning voltage range of 0.5-2.5 Vdc, SMV3330A-LF features typical phase noise of -84 dBc/Hz @ 10 kHz offset and typical tuning sensitivity of 125 MHz/V. RoHS-compliant VCO delivers typical output power of 5 dBm at 3 Vdc supply while drawing 14 mA (typ) over -5 to +60°C range. Typical second harmonic suppression is -20 dBc, and SUB-L package measures 0.3 x 0.3 x 0.08 in.

Industrial Test Systems, Inc.    Rock Hill, SC 29730
Apr 30, 2010 Offered as field test to check water quality without reagent drops or bulky test kits, WaterWorks(TM) Peracetic Acid (No. 480065) test strips employ visual dip and read method that takes 32 sec. Users dip strip into sample for 2 sec, shake, and wait 10 sec for color development. Thereafter, strip must be matched to color blocks within 20 sec. Product has 3-year shelf life and does not require sample dilution. Detection levels are 0, 2, 5, 10, 20, 30, 40, 100 ppm.

Dwyer Instruments, Inc.    Michigan City, IN 46361

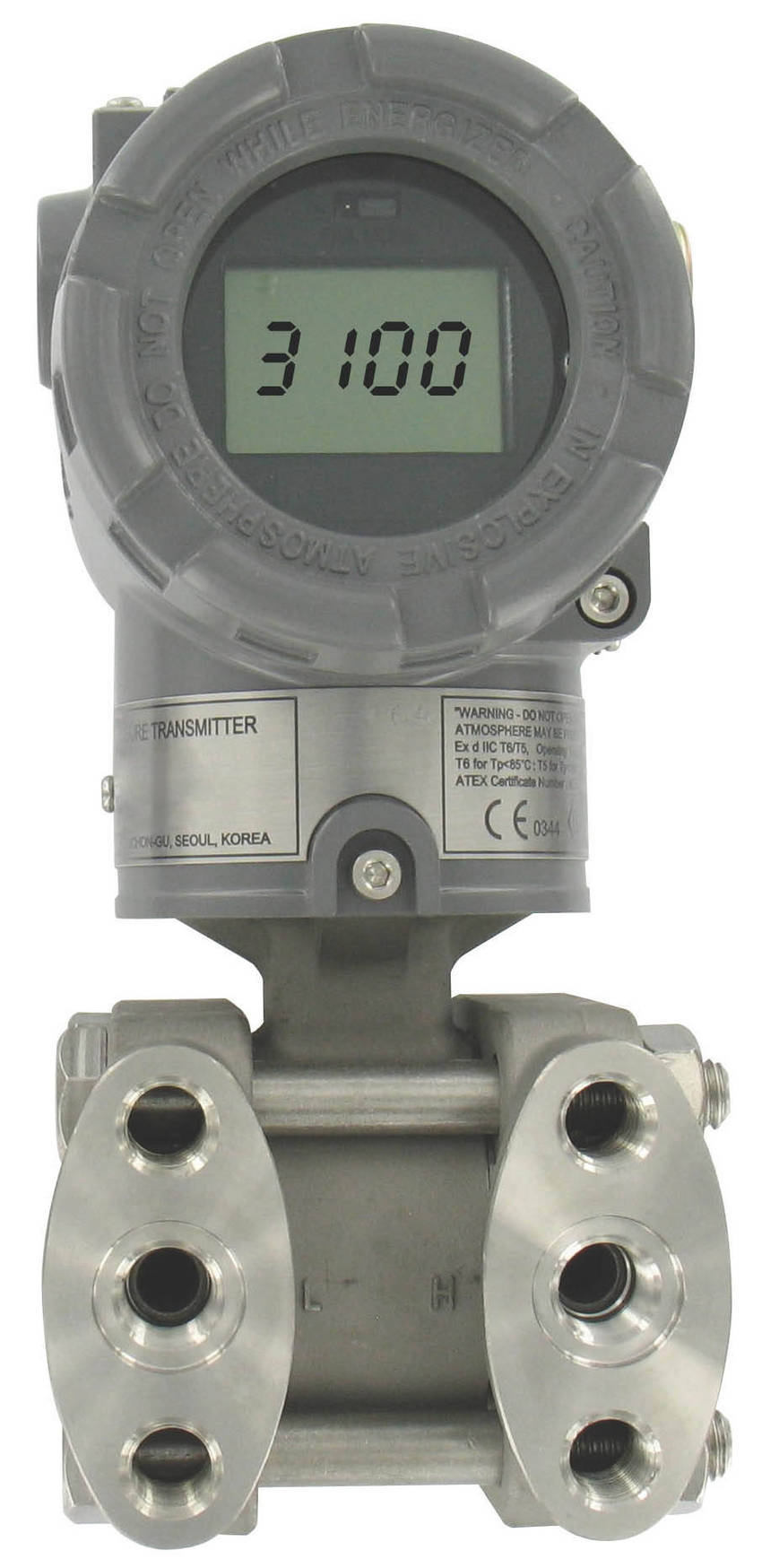

Apr 30, 2010 Series 3100 Smart Pressure Transmitter is microprocessor-based device with flexible pressure calibration and push button configuration. Unit is programmable using HART® Communication and can be configured for differential pressure or level applications with zero and span buttons. In event of shutdowns or power loss, EEPROM stores configuration settings as well as sensor correction coefficients. Unit is FM-approved for use in hazardous locations.

Capable Controls, Inc.    Bensenville, IL 60106
Apr 30, 2010 Designed for OEM and replacement for natural or manufacturer gas or LP applications, microprocessor-based 8X Series provides standard wiring and configuration to facilitate installation. Internal circuitry monitors system gas valve, wiring, and hot surface element while automatically shutting down system in case of failed or shorted circuit. Also, ODL (Optical Data Link) programming can download custom OEM parameters to finished product within seconds.
