Reel Options® By Vandor Corp.    Richmond, IN 47374
Feb 24, 2011 Offering alternative to plywood, 19.75 in. Dead~Bolt(TM) Flange is available in 7, 8, 10, and 12 in. cores sizes with 1.59, 1.75, or 0.063 in. arbor holes. Drive hole is elongated to minimize need for adjusting winding machines. Made from environmentally friendly reprocessed material, flange is available KD or assembled and can be constructed with either paper or plastic cores.

ZMD International, Inc.    Long Beach, CA 90813
Feb 24, 2011 Delivering 0.25% FS output accuracy, Model ZSSC3122 cLite features operating current as low as 60 µA over entire voltage range of 1.8-5.5 V. Built-in sleep mode lowers current consumption to less than 1 µA for temperatures up to 85°C. Accommodating single and differential input sensor configurations, mixed-signal device can be configured to interface with capacitive sensors from 2-10 pF with sensitivity as low as 125 aF per digital bit. All calibration is digital and completed in one pass.

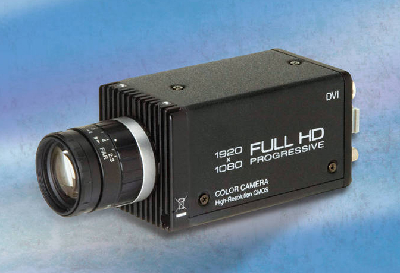

Toshiba America Imaging Systems Divison    Irvine, CA 92618-1697
Feb 23, 2011 Offering real-time, live-image data capture, Model IK-HR2D is suitable for microscopy, industrial, and broadcast applications. One-piece unit, measuring 1.73 x 1.73 x 3.17 in., allows user to choose from selectable outputs to capture and send out video data up to 60 fps at 1080p/720p or 30 fps at 1080i, or via DVI-D output. Optional USB port is suited for still images, series of images, or video at 5 fps in 1080 mode or 10 fps in 720 mode.

Tyrolit    Westborough, MA 01581
Feb 23, 2011 Intended for internal/external honing of gear teeth, MIRA hard machining consumables use fused abrasives that promote extended lifecycle while reducing cycle time by allowing for increased feed rates. Resin-bonded rings use aluminium oxides embedded in epoxy matrix, and compound rings feature construction with vitrified conglomerates embedded in resin matrix. Vitrified rings, for high performance gear honing, are capable of stock removal rates as high as 0.1 mm per flank.

ASM Sensors, Inc.    Elmhurst, IL 60126
Feb 23, 2011 Operating with MEMS technology, POSITILT® PTAM5 comes in single- and dual-axis versions with respective measurement ranges of ±180° and ±60°. Both are available for smaller measurement ranges in ±15° increments and offer resolution of 0.05° with linearity of ±0.5°. Stainless steel housing, rated to IP67/69K as standard or IP68 optionally, withstands outdoor use in harsh environments. Tilt sensor is available with 4-20 mA and 10 V analog outputs as well as CANOpen and CAN SAE J1939.

Janus International    Temple, GA 30179
Feb 23, 2011 Model 3652 nylon windlock certified wind load sheet door achieved +36/-40 PSF design rating (12 ft wide) utilizing 3 windlocks per sheet per side. Actual test pressures attained were +54/-60 PSF. Design facilitates installation with guide set as well as smooth and quiet operation, and no separate windbar is required. Product is suited for wind load coded areas.

Maxim Integrated Products    Sunnyvale, CA 94086
Feb 23, 2011 Designed using BiCMOS technology, Models MAX44007/MAX44009 integrate 2 optical sensors, ADC, and digital functionality into 2 x 2 x 0.6 mm package. Integrated adaptive-gain block automatically selects optimum gain range, while interrupt function constantly measures amount of light and reports to microcontroller when measurement passes threshold. Operating from 1.7-3.6 V supply voltage, units feature operating current of 0.65 µA and consume 1.1 µW of power.

TRIATEK    Norcross, GA 30093
Feb 23, 2011 Available as surface or flush mounted unit, Model CMS-1650 can be deployed in any situation in which room status needs to be closely monitored. Unit integrates into building's BACnet network and mates with 5th Generation Triatek FMS Controllers, providing individual room control with monitoring capabilities from central location. Employing full color touchscreen, CMS-1650 provides single screen display of pressure, alarm status, and isolation mode for up to 4 rooms simultaneously.

Scott Safety    Monroe, NC 28111
Feb 23, 2011 Supporting detection of toxic and combustible gases, Freedom 6000 incorporates universal transmitter into fixed gas detection system to facilitate maintenance and minimizing training. Sensor technology with modular design aids component replacements and field upgrades, and accessories are available to support unique application requirements. Gas trending data information is available locally via LCD screen, and additional options include modbus and relay outputs.

DuPont Co., Packaging & Industrial Polymers    Wilmington, DE 19898
Feb 23, 2011 Because ionomer-based DuPont(TM) PV5400 Series is fundamentally resistant to moisture intrusion, it is possible to achieve lasting edge integrity without caulking or additional edge sealing. Compared with traditional EVA and PVB encapsulants, PV5400 Series has up to 100 times more electrical resistivity, offering modules optimized electrical insulation, which minimizes current leakage. Products are available in roll form with sheet thicknesses of 400 and 500 microns.

Coulbourn Instruments    Allentown, PA 18106
Feb 23, 2011 Modular in design, M3 Metabolic Measurement and Mapping System integrates respiratory metabolism, food and drink intake, and activity monitoring in specially adapted cages. Users can collect precise and reproducible data with laser sensors, which eliminate effects of humidity and temperature on measurements. Simultaneous experiments with multiple animals of different sizes can be conducted with independent air flow control, up to 20 lpm total, per cage.

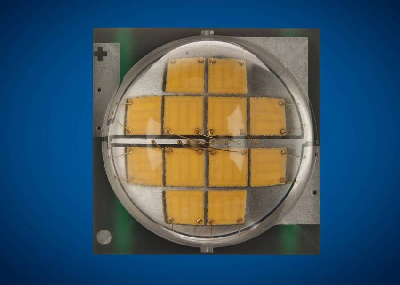

Cree, Inc.    Durham, NC 27703
Feb 23, 2011 Featuring Cree EasyWhite(TM) technology, multi-die XLamp® MT-G LEDs deliver consistent color and are designed for high-output, small form-factor directional lighting applications. With 9 x 9 mm footprint, devices deliver up to 560 lumens at 1.1 A and 85°C or up to 1,525 lumens at 4 A and 85°C in warm white. Units are optimized for 35-50 W halogen MR16 retrofit bulbs and other accent, track, display, and down lighting used in retail stores, museums, hospitality, and landscapes.

MICO, Inc.    North Mankato, MN 56002
Feb 23, 2011 Suited for on- and off-highway applications, Hydraulic-Over-Air Relay Valves accommodate max air pressure of 150 psi and max hydraulic pressure of 2,000 psi. Single input design provides 1 hydraulic pilot port to control modulated air braking pressure, while dual input features 2 independent ports, either of which can accept pilot pressure. Functionally similar to single design, tandem input provides redundancy by utilizing 2 independent pilot pressure ports.

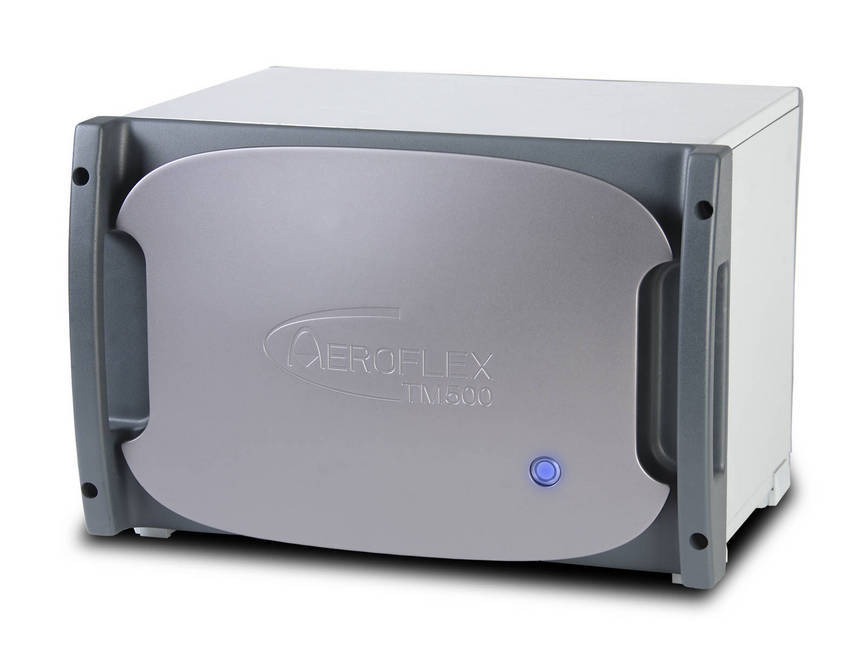

Aeroflex    Irvine, CA 92618
Feb 23, 2011 With support for 3GPP DC-HSDPA Release 9 standard, TM500 test mobile enables 3G infrastructure equipment manufacturers to test DC-HSDPA base station and network against multiple handset configuration. Product can transfer data at up to 84 Mbps against 3GPP WCDMA Release 9 specifications, enabling concurrent operation of MIMO and DC-HSDPA. Model provides full multi-UE implementation of HSDPA Categories 1-28, including DC-HSDPA, MIMO, and 64 QAM.

Optronics    Goleta, CA 93117
Feb 23, 2011 Designed for research and experimental microsurgery and micro-dissection, VITOM HD couples KARL STORZ optical instrument with full HD camera system. Optical design supports working distance of 25-60 cm and 6 cm depth of field. System uses extracorporeal magnification and full 1920 x 1080 imaging technology to create immersive visualization, documentation, and teaching experience. Crafted using stainless steel components, VITOM HD is corrosion-resistant and autoclavable for sterile applications.

Tabula, Inc    Santa Clara, CA 95054
Feb 23, 2011 With ABAX 3PLD Development Kit, FPGA and ASIC designers can implement and test variety of parallel and serial interfaces such as DDR3 and PCI Express Gen2. Kit includes PCIe plug-in card featuring ABAX A1EC04 3PLD with 5 Ethernet 10/100/1000 ports, x1 and x8 PCIe connectors, and SFP connectors. PLD provides 390k LUTs, 5.5 MB RAM blocks, and 48 channels of 6.5 Gbps SerDes. Off-chip memory, consisting of x36 72 MB of QDRII RAM and x72 1 GB DDR3 RAM, is provided via LP-DIMM socket.

Tektronix, Inc.    Beaverton, OR 97077
Feb 23, 2011 Integrating functional, stress, conformance, and interoperability testing with QoS measurement and monitoring, Spectra2 7.2 extends Diameter test portfolio with support for Ro/Gy, which facilitates testing of on-line billing functions. Spectra2 enables testing of Secure RTP/RTCP media interfaces through emulation of elements such as MGW or SIP UA. It also supports IMS, TISPAN, NGN, and Fixed-Mobile Convergence as well as VoIP and legacy communications technologies, including PSTN/SS7 and ISDN.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Feb 23, 2011 Housed in 16-pin SOIC package, Model ISO1176T provides primary voltage for isolation transformer and, in conjunction with external transformer, rectifier, and regulator, delivers small, isolated signal and power system with low EMI. Unit provides 2,500 Vrms of isolation between line transceiver and logic-level interface to minimize risk of data corruption and damage to control circuits over long transmission lines. Operating at 40 Mbps, half-duplex unit supports 160 nodes.

VERTEX Incorporated    New Britain, CT 06051
Feb 23, 2011 Designed to mitigate risks inherent to changes in data, VTXcompare(TM) XML Compare Utility Service compares semantic equivalency of 2 or more XML documents, records only meaningful differences, and ignores inconsequential differences such as XML order, system IDs, system keys, or ignorable whitespace. Built on Microsoft's .NET technology, VTXcompare applies logic that incorporates use of pre-defined business intelligence, including entity recognition, against underlying XML schema.

Reynard Corp.    San Clemente, CA 92673
Feb 23, 2011 Used in laser system applications, Galvo mirrors are manufactured from any substrate but most commonly BK-7, fused silica, or silicon. Substrates are shaped to suit specific jobs and coated with reflective protected metal or multilayer dielectric tuned for required wavelength band and application. Mirror coatings can achieve reflectivity of greater than 99.9% and meet durability requirements per military specifications, including Mil-C-48497A.
