American Industrial Systems, Inc.    Irvine, CA 92614
Mar 04, 2011 Express II line of HMI operator interface terminals are powered by Intel® Atom(TM) 1.6 GHz processor with 2.5 W thermal design power (TDP) and 1.56 TDP-to-clock speed ratio, which enables passive and fanless cooling system architecture. Terminals have 5-wire resistive touchscreen, non-volatile solid state storage, and NEMA 1/12/4 sealed front side. Available in 10.4, 12.1, 15, and 17 in. sizes, they include GbE, RS232, and RS422/485 serial ports and accept 9-36 V input.

TazTag    Bruz   France
Mar 04, 2011 In addition to 7 in., color, full HD screen with multitouch capacity, TazPad features HDMI output as well as WiFi, Bluetooth, NFC, and ZigBee connectivity. Additional functions include camera, GPS, and accelerometer. Based on secure hardware and software architecture, tablet accommodates biometric authentication option and works with Android. It can link back-end system with vendor and their customers or be used at aisle end displays or store windows.

GAO RFID Inc.    Toronto   Canada
Mar 04, 2011 Using 433 MHz for data reception and 916 MHz, 927 MHz, or 868 MHz for data transmission, Model 127007 is suited for asset tracking and monitoring, inventory control, and warehousing. Transmission range is up to 45 m and receiving range is up to 30 m. Ultra-high-frequency device includes automatic wake-up function and uses anti-collision algorithm for simultaneous read capability. Powered by 3 V Li-Ion battery, tag provides 256 kb data storage capacity.

Electro-Spec, Inc.    Franklin, IN 46131
Mar 04, 2011 Utilizing ultrasonic technology and continuous flow of plating solution, Spouted Bed Electrode process plates parts in chamber, rather than basket or barrel. Designed specifically for parts that have difficult geometry, are fragile, are extremely small, or have deep counter bores, SBE process produces plating distribution that is very consistent all over part, making is effective for plating with gold and nickel.

Lumastrobe Warning Lights    Midland Park, NJ 07432
Mar 04, 2011 Solar powered barricade lights, solar powered revolving and flashing lights, as well as several models designed for 24/7 operation are available in amber (caution) and red (stop) for drawing attention in low-visibility areas where dangerous conditions or obstructions exist. Waterproof, steady-on or flashing lights, also solar-powered, are available for marine or extremely wet applications.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Mar 03, 2011 Series 1FW3 torque motors are available in plug-in shaft version with axis heights of 150, 200, and 280 mm, while solid shaft models are offered for axis heights of 150 and 200 mm. Both versions have rated torque rotational range from 100-7,000 Nm. At height of 280 mm, rated speed range is from 250-600 rpm, suiting motors for use as roller drives. Units are water-cooled and rated power range for all versions is from 3-380 kW.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Mar 03, 2011 Suitable for global operation in industrial environments, Sinamics G120C can operate in pumps, compressors, fans, mixers, extruders, and handling machines. Unit includes memory card port for commissioning and can also be parameterized using PC via USB interface. Designed for ambient temperatures up to 60°C, inverter integrates Siemens safety technology to ensure drives can be stopped safely. Sensorless vector operation enables precise control for energy-efficient operation of induction motors.

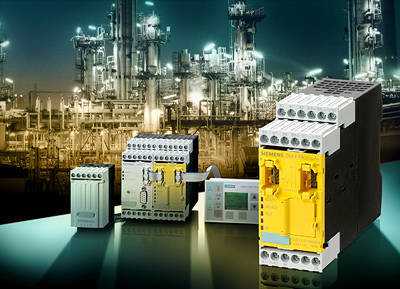

Siemens AG    Munich D-80333  Germany
Mar 03, 2011 Fail-safe digital DM-F Local modules safely shut down motor in response to local fail-safe signal from sensor or controller, while DM-F Profisafe modules receive fail-safe signal via Profibus from fail-safe controller. Both are controlled by Simocode pro motor management device for safe shutdown of motors in process automation, and are configured using Simocode ES software. Simocode pro connects to automation systems via Profibus and covers functions between motor feeder and automation system.

FleetwoodGoldcoWyard    Romeoville, IL 60446
Mar 03, 2011 Tight Pitch Live Transfer Conveyor utilizes 0.3 in. pitched chain wrapped around ¼ in. nosebar to minimize deadplates from chain-to-chain transfers, which helps to eliminate product skewing. Unit is designed to be driven off existing chain with no need for motor, and is also available as standalone conveyor. It is suited for companies that process shrink wrap packs and corrugated 4-, 6-, 8-, and 12-packs.

Lee Products Ltd    Buckinghamshire SL9 9QE  United Kingdom
Mar 03, 2011 Available in either plug-in or face mount models, High Density Interface Solenoid Valve offers choice of configurations, including 2-way Normally Closed and 2-way Normally Open. Unit features operating pressure range of 0-50 psid and flow capacity of 19 slpm at 50 psid with Cv of 0.022. Operating from 40-120°F, valve has PPA, PBT, 316 SS, 430F SS, FKM, and epoxy wetted materials.

Crystek Corp.    Fort Myers, FL 33913
Mar 03, 2011 Series LL335 Cable Assemblies come with high frequency SMA or N-Type connectors and feature stainless-steel solder-clamp construction and heavy-duty strain relief with neoprene jacket. They exhibit low loss with attenuation ratings of 0.03 dB/ft at 500 MHz and 0.20 dB/ft at 18 GHz. All cables offer min bend radius of 1.5 in., and available lengths include 36, 48, and 60 in. Shielding effectiveness is greater than -100 dB over operating range of -45 to +125°C.

Radica Software    Kuala Lumpur 50490  Malaysia
Mar 03, 2011 Electra E6, available in Standard and Professional editions, is suited for electrical, control, and automation engineers. Program integrates symbol sets and allows for real-time cross referencing. It simplifies wire links, auto-location of shapes, duplication, circuit re-use, and generating of panel layouts. Allowing import of AutoCAD drawings and images, software also enables reports to be exported to Excel and integrates Microsoft Office tools as well.

Alliance Scale Inc.    Canton, MA 02021
Mar 03, 2011 Featuring ABS plastic construction and removable stainless steel pan, Alliance/OHAUS® RA Series Retail Scale provides by-count price computing function, memory storage, and front/rear backlit LCDs. It is intended for retail applications, including portioning and packaging of foodstuffs, and delivers NTEP-approved 3,000d resolution (30 x 0.01 lb). Measuring 12.3 x 12.9 x 4.6 in., scale comes with 120 V adapter and may be powered by 6 D batteries for up to 60 hr.

Flexaust Co., Inc., The    Warsaw, IN 46581
Mar 03, 2011 Constructed from polyurethane with embedded copper grounding wire, FlexStat® is reinforced with rigid external ABS helix and provides 10⁸-10¹⁰ W/sq surface resistivity to prevent static buildup. Hose has smooth interior for unrestricted flow and external wear strip for drag resistance. Available in 25 and 50 ft lengths with wall thickness from 0.040-0.060 in., product is suitable for powders, light bulk pneumatic conveying, dust collection, and paint spray extraction.

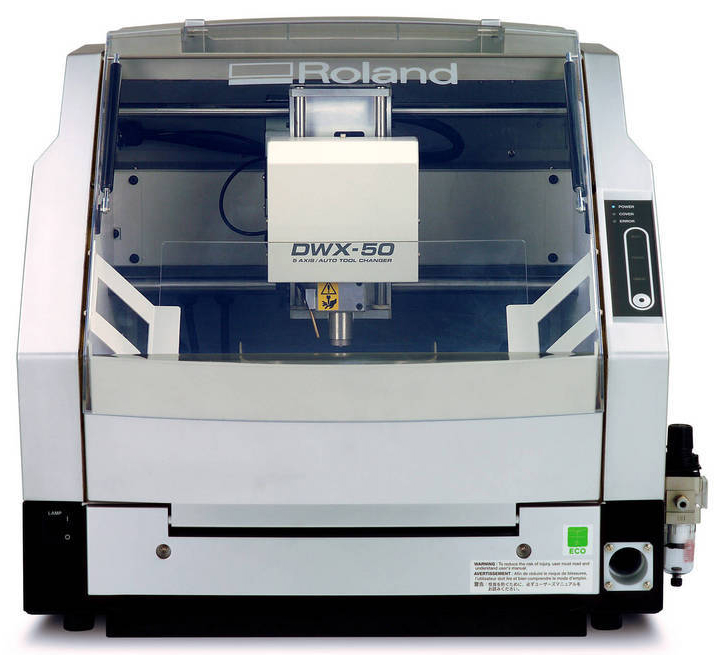

Roland DGA Corporation    Irvine, CA 92618
Mar 03, 2011 Offering 5-axis simultaneous machining and 5-station automatic tool changer with tool length sensor, DWX-50 is used for creating precision dental prosthetics - copings, crowns, full bridges, abutments - using zirconia, wax, and PMMA. Virtual panel facilitates desktop operation, while diagnostic notification system minimizes operator intervention via alerts for system errors or job completion. Multicast capability allows connection of up to 4 machines to one computer.

Novellus Systems, Inc.    San Jose, CA 95134
Mar 03, 2011 Equipped with 2,100 mm OD lapping wheel, AC-2100L microLine® can process up to twenty 300 mm prime silicon wafers in one batch with sub-micron precision. It can also process up to eight 450 mm wafers. Along with independently driven inner and outer pin rings, features include automatic force calibration, in-situ wafer thickness metrology, and contactless gauges. Latter controls lapping wheel gap dimension, ensuring repeatable within-batch and batch-to-batch wafer thickness.

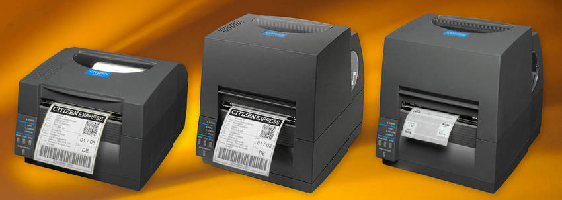

Citizen Systems Europe    Feltham TW14 8PA  United Kingdom
Mar 03, 2011 Designed for label printing, Models CL-S521, CL-S621, and CL-S631 include Cross-Emulation(TM) feature, which automatically detects code and switches from Datamax to Zebra emulation or vice-versa. Direct thermal Model CL-S521 prints at up to 6 ips, while thermal transfer Model CL-S621 uses 360 m ribbons on 1 in. cores, and Model CL-S631 delivers 300 dpi. Equipped with 16 Mb RAM and 4 Mb flash, printers can store range of logos, fonts, and BASIC programs.

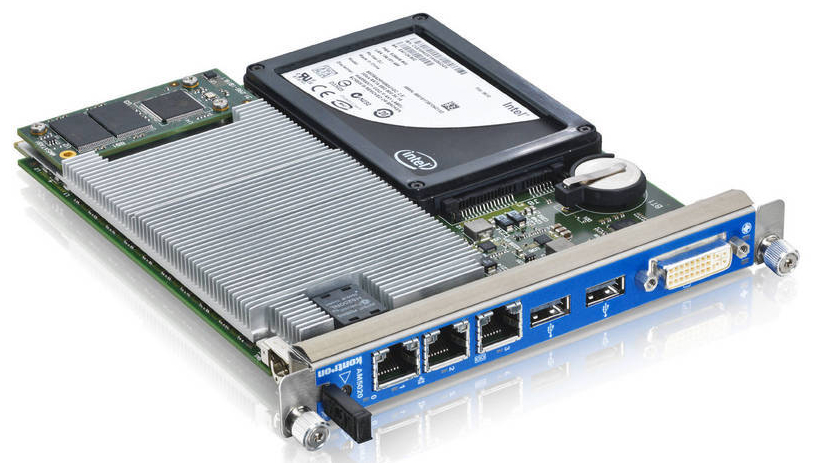

Kontron    Poway, CA 92064
Mar 03, 2011 Equipped with Intel® Hyper-Threading technology, double-width AM5020 offers up to 2.53 GHz dual-core performance to run parallel, multi-threaded applications on MicroTCA platforms. It leverages Intel Core(TM) i7 mobile processor with integrated memory controller, PCIe Gen2 I/O, and Intel HD graphics. Streamlined data paths between CPU, Intel QM 57 platform controller hub, and peripherals optimize performance. Multiple I/O and connectivity options are standard.

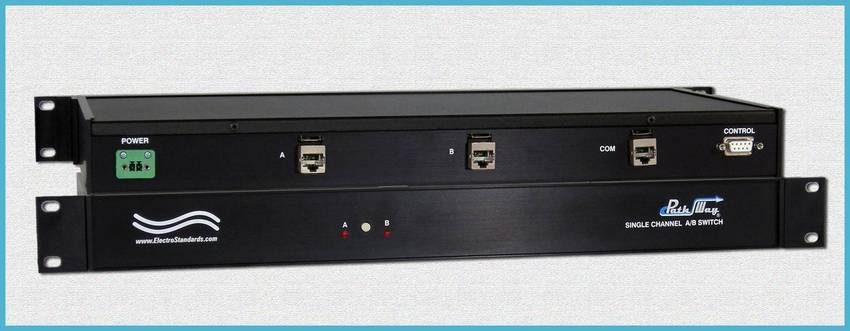

Electro Standards Laboratories    Cranston, RI 02921 3403
Mar 03, 2011 Equipped with serial remote control port, single-channel Model 7370 allows sharing of single RJ45 Cat6A interface network or device among 2 others, eliminating need to plug and unplug cables. Unit utilizes shielded RJ45 connectors and switches all 8 pins of RJ45 interface. Switch is transparent to data speed/format and can be controlled via front panel pushbutton or remotely via RS232 Serial DATA ASCII commands. In event of power loss, device retains last position and continues to pass data.

Sensorex    Garden Grove, CA 92841
Mar 03, 2011 Suited for use in municipal and industrial water and wastewater treatment, S600 Series has flat surface measuring glass design. Submersible Electrode S651CD integrates pH glass protection and acrylamide reference gel. Featuring standard HT gels and reduced breakage potential, S656CD Insertion Mounted Electrode allows pH measurements in pressurized tanks and main lines without shutting down system for electrode maintenance. Measurement range for both is 0-14 pH at ±2,000 mV for ORP.
