Raven Industries    Sioux Falls, SD 57117
Mar 11, 2011 Available in polyethylene or flexible polypropylene, Dura-Skrim® Textured K-Series mill rolls or fabricated panels come in single- or double-sided, textured, 36 and 45 mil thicknesses as well as various widths and lengths. Scrim reinforced geomembrane, manufactured utilizing cast extrusion process, has consistent core thickness with uniform asperity heights. GeoGrip(TM) surface technology provides uniform stabilization and increased friction between soil and geosynthetic layers.

WIN Enterprises    North Andover, MA 01845

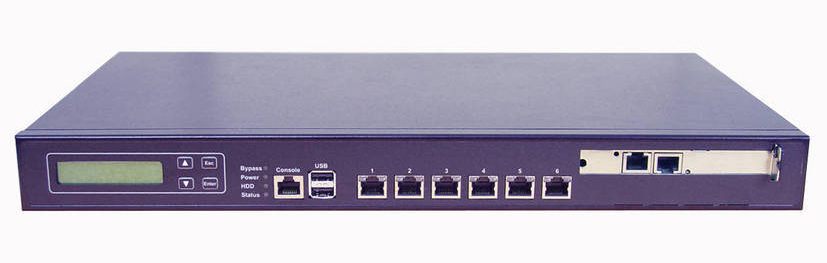

Mar 10, 2011 Supporting Intel® Atom(TM) D510 dual-core or D410 single-core processor plus Intel 82801HM Controller, PL-80300 proffers externally accessible PCI slot that lets unit be configured to support range of networking, telecom, and security applications. Flexibility accommodates incremental GbE ports (6 max), FXO/FXS, T1/E1, Wi-Fi, Crypto acceleration, and more. Additional features include USB 2.0, 3.5 in. SATA HDD bay, CF socket, mini-PCI slot, and Console port.

Renishaw, Inc.    Hoffman Estates, IL 60192

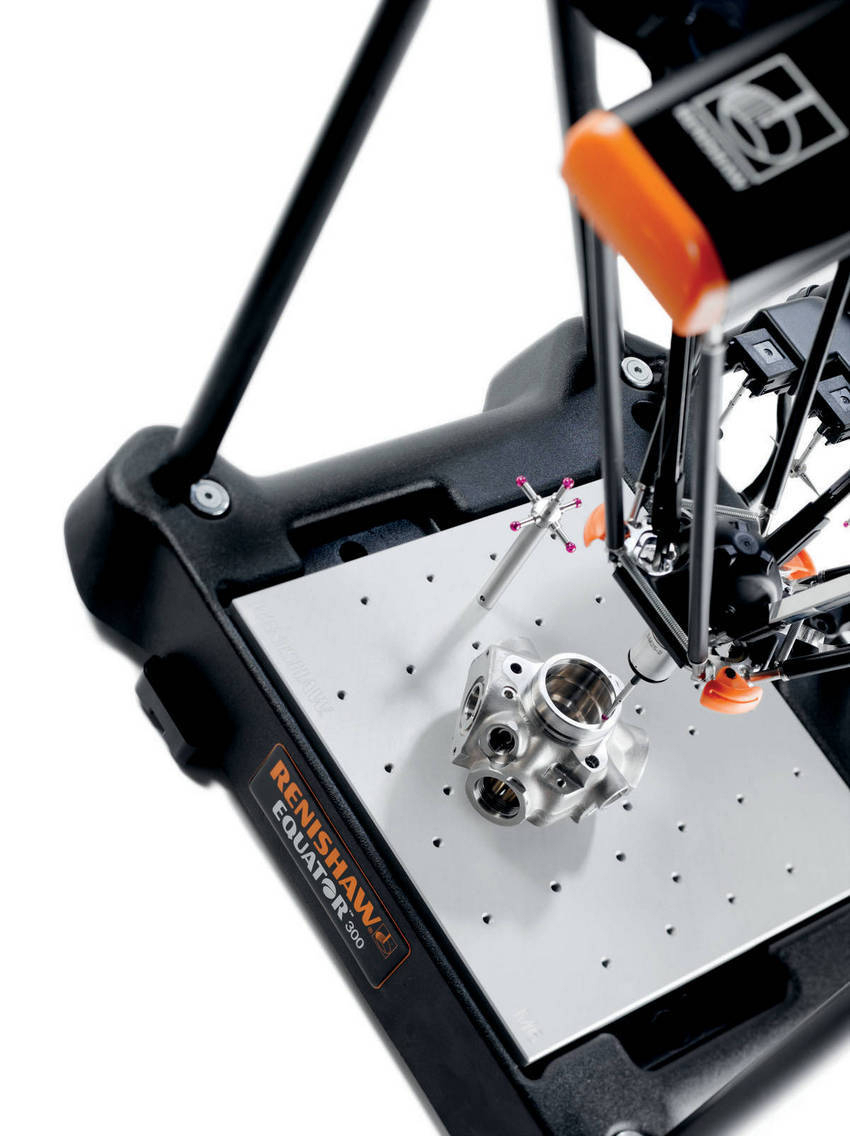

Mar 10, 2011 Equator(TM) gauging system is capable of high-speed comparative gauging for inspection of high-volume manufactured parts. Controller runs Equator-specific Windows applications and enables users to create and execute DMIS measurement programs, change measurement settings, and transfer data or programs. Systems are available in programmable version for production engineers to create DMIS programs and shop floor system that allows programs to be executed but prevents operators from making modifications.

Trek, Inc.    Medina, NY 14103 9710

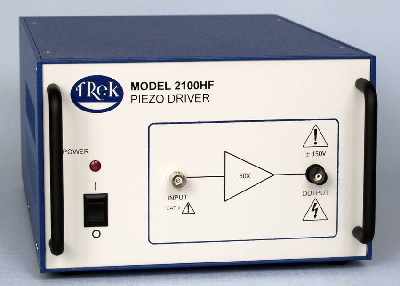

Mar 10, 2011 Featuring solid-state design, Model 2100HF controls output voltages from 0 to ±150 Vdc or peak AC, with output currents of 0 to ±300 mA, signal bandwidth to 2.6 MHz, and 2,000 V/µs slew rate. Four-quadrant, active output stage sinks/sources current into reactive or resistive loads throughout output voltage range. With dual feedback design that assures no overshoot or instability of waveform, device is suited for applications in MEMS and electro-optics, materials research, and piezoelectrics.

Photron USA, Inc.    San Diego, CA 92126

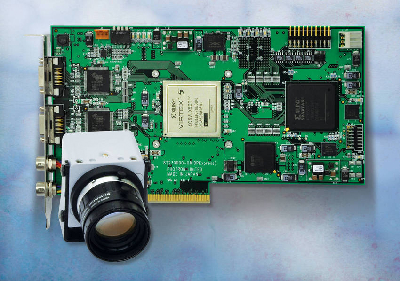

Mar 10, 2011 Available with or without Xilinx FPGA, IDP Express R2000 System supports 1 or 2 miniature CMOS high-speed camera heads at full or reduced resolution and speed. Without FPGA, system operates in typical, high-speed image acquisition capacity, writing image data directly to host computer's RAM. When operating with FPGA, R2000 system enables real-time hardware-based pre-processing while recording event.

Heason Technology Ltd    Horsham   United Kingdom

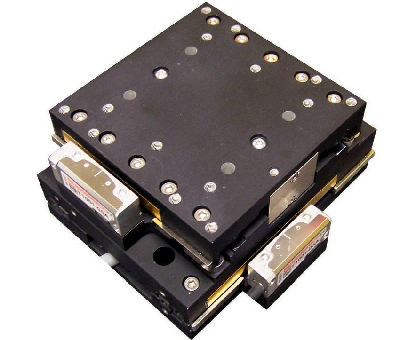

Mar 10, 2011 Featuring aluminum construction and optional single-phase linear motor, Model MMG-AL offers 4 travel options from 25-150 mm. Unit includes MAG(TM) moving magnet motor technology, which eliminates need for moving motor cables. Suited for imaging industries, stage supports max velocity of 0.5 msec, acceleration to 2.2 m/sec², and typical sustained throughput rate up to 2,000 moves/min. Side-mounted tape style optical encoder is available in positional resolutions from 0.1-0.005 microns.

PREMO Group    Barcelona   Spain

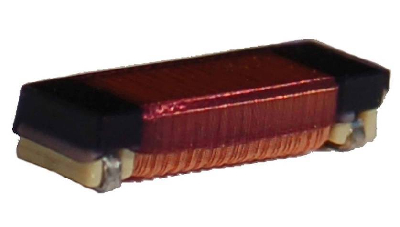

Mar 10, 2011 Suited for RFID applications, SDTR1103-HF Series is available with 290 µH/2 MHz, 400 µH/2 MHz, and 20 µH/13.56 MHz inductance values. Units have NiZn ferrite core material with surface resistance greater than 10 MW/mm. Providing stable performance in wide temperature range of -40 to +85°C, antennas feature Surface Mount Device configuration, which facilitates integration in automatic PCB assembly processes.

ON Semiconductor, LLC    Phoenix, AZ 85008
Mar 10, 2011 Housed in SOIC-7 package, Models NCP1234 and NCP1236 allow offline power supplies to be designed into systems. Units integrate over-power and ramp compensation without increasing power dissipation or adding external components. Dynamic Self-Supply technology enables direct connection to line voltage, eliminating need for startup resistors. Available in 2 frequency options of 65 or 100 kHz, ICs are suited for laptop/notebook computers, LCD displays, printers, and consumer electronics.

International Manufacturing Services, Inc. (IMS)    Portsmouth, RI 02871
Mar 10, 2011 Offered in sizes 0402-2512, HVI Series is comprised of chip resistors with values to 1 GW and tolerances to 1% that are suited for high-voltage applications. Nickel barrier layer optimizes solder leach resistance, and proprietary thick film architecture allows 2512 size to withstand 3 kV continuous and 4 kV overload. Applications include power supplies, power converters, defibrillators, sensors, detectors, pacemakers, and power meters.

Ondrives Ltd.    Chesterfield, Derbyshire S41 9RN  United Kingdom
Mar 10, 2011 Bevel gearboxes are available in 3 sizes ranging from 34.925-63.5 mm OD with 1:1 torque ratio as standard. Integrated in green anodized aluminum housings, units have 303 stainless steel shafts, 2 sealed ball bearings/shaft, and an operating temperature of -20 to +80ºC. Maximum rotational speed for all versions is 2,000 rpm, and 3,000 rpm for units with hardened spiral bevels. Backlash figures vary from 1-0.5º for gearboxes with polished hardened steel gears and spiral bevels.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Mar 10, 2011 Suited for use with Series DCT1000 and Series DCT500 duct collection timer boards, Series DCS/RDCS offer option for coupling or NPT connections. Coupling connection facilitates installation, requiring only stub pipe and blowtube to be cleaned and deburred before valve is fit into position. T-Series DCS has female threaded connections, while C-Series DCS has coupling connection. Both have 90° angle between inlet and outlet. Integrated and remote coil configurations are also available.

Overly Door Co.    Greensburg, PA 15601
Mar 10, 2011 Tiger Door Fiberglass Reinforced Plastic (FRP) Commercial Duty Door Series is built with 1 ½ x 1 ¾ x 5/8 in. web pultruded FRP C channel stile and rail framework. Interior structure of each door is filled completely with phenolic impregnated honeycomb, and all hardware locations are further reinforced with non-hygroscopic polymer blocking and/or polymer structural shapes. Outer skin is manufactured from random chopped fiberglass roving and modified polyester copolymer resin.

R. Stahl, Inc    Houston, TX 77054
Mar 10, 2011 Certified for hazardous gas and dust explosion zones, Open HMIs feature Intel Atom CPUs and can be fitted with 15 in. displays that utilize polarization filters to minimize glare and reflections. Displays can be adjusted up to 1,000 cd/m² and are readable even in direct sunlight, with luminescence of 700-800 cd/m². Capable of operating at continuously extreme temperatures from -30 to +50°C, HMIs are suited for oil and gas sector as well as chemical and pharmaceutical industries.

Tripp Lite    Chicago, IL 60609
Mar 10, 2011 Ranging from 5.7-12.6 kVA, Switched 3-Phase Power Distribution Units support real-time individual outlet control to power up and power down network hardware remotely. Units deliver complete visibility of power consumption per device, per group of devices, and per phase, locally or remotely. By warning of potential overloads via user-defined alarms, PDUs keep users aware of load conditions. Units adapt to PDU orientations served by overhead or raised floor power feeds via rotating display.

WAGO Corp.    Germantown, WI 53022
Mar 10, 2011 Interface Adapter provides JUMPFLEX® Signal Conditioners and Relays with interface to WAGO-I/O-SYSTEM or other PLC interfaces. Accommodating machines requiring large amounts of I/O signals, adapters capture analog/digital signals for 8 combined JUMPFLEX® modules. Ribbon cable and D-Sub connector models provide 8-channel connectivity, while other interface products connect Interface Adapters to WAGO 16-Channel DIO modules. Use streamlines commissioning and eliminates wiring errors.

NewAge Industries Inc.    Southampton, PA 18966
Mar 10, 2011 Available in acetal copolymer as well as brass, Newloc® push-to-connect fittings accelerate connections to rigid and semi-rigid tubing. Products offer instant, leak-proof connections with no flow restrictions as well as full vacuum rating to 29.9 in./Hg. While plastic versions, certified for use with food equipment materials (NSF-51) and potable water (NSF-61), are suited for pneumatics, brass versions handle temperatures to 200°F and max pressure ratings to those of connected tubing.

ECAF Technology Inc.    Xindian 231  Taiwan
Mar 10, 2011 Digital Signage Viewer Counter 200 analyzes face images of people watching displays and transmits this data wirelessly to content management system of digital signage network. System requires separate webcam. It assesses impact of advertising by counting number of viewers and noting their dwell and attention time. No image of viewer is recorded, respecting individual privacy, and product stores this anonymous audience data for secure access via USB or FTP device.

Boart Longyear    Stone Mountain, GA 30086
Mar 10, 2011 Engineered to accelerate on-site setup, RC6 offers coring, down-the-hole-hammer, and rotary drilling capabilities. Safety features include intuitive control panels, safety cage, and emergency trip wires. With steel crawlers and optional radio remote control for driving, rig can be driven on slopes up to 30°. It weighs 17,000 lb; delivers 5.5 ton pullback; and features rotary head with 6,540 Nm max torque, 4 m feed-stroke, and Deutz air-cooled diesel engine with 96 hp rating.

Boart Longyear    Stone Mountain, GA 30086
Mar 10, 2011 Comprising underground rock drill and blast rods and bits, Robust Standard Thread (RST(TM)) Series enhances impact efficiency, accelerates penetration, and lessenes hole deviation. Rods incorporate cross-sectional transition area that increases bending strength, while extended bit skirt reduces likelihood of rod tip-off events and downtime. Also, interchangeability with standard threaded rods and bits promote in-field flexibility.

Trimble Navigation Limited    Sunnyvale, CA 94085-3913
Mar 10, 2011 Equipped with built-in GPS, 3G, Wi-Fi, and 5 megapixel digital camera, Trimble® TSC3 helps construction professionals stay connected while providing accurate positioning, digital design information, and ability to locate, measure, and record information anywhere on construction site. Two-way data capability minimizes delays and rework associated with using outdated information and synching data at end of day. Shock, dust, and water-resistant, unit includes 4.2 in. sunlight-readable touch screen.
