Electro Standards Laboratories    Cranston, RI 02921 3403

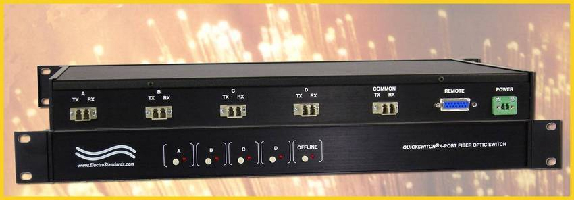

Mar 18, 2011 Allowing connection to any one of 4 devices from 1 device, single-channel Model 4291 features remote control operation via DB15 connector accepting Contact Closure commands. All fiber ports are LC duplex, multimode supporting 50/125 micron fiber size and 1,310 nm wavelength. Featuring MEMS-based mirror/prism technology and Gigabit data rates, Model 4291 is service protocol, bit-rate, and data transparent. Unit's secure OFFLINE position stops all data throughput.

KORENIX Technologies    Taipei 231  Taiwan

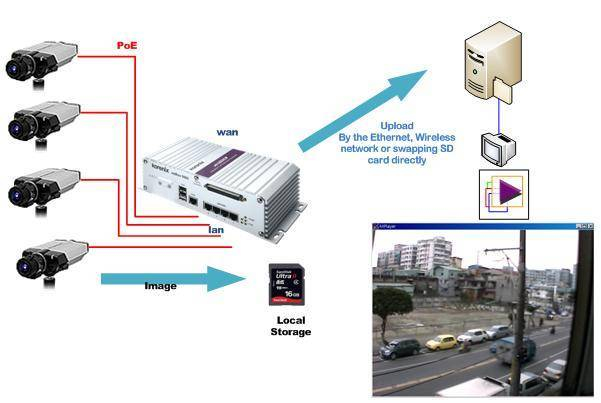

Mar 18, 2011 JetBox 9400/9500 series Embedded Linux-based VPN computers can be used as Linux NVR systems to provide video recording while supporting use in industrial applications. They include LAN/PoE ports that let users collect MJPEG format video, while video can be stored on SD card and patch uploaded to server using Ethernet port or wireless connection. Suited for ruggedized industrial networking and communications applications, programmable computers also provide Ethernet transmission management.

Daimer Industries Inc    Woburn, MA 01801
Mar 18, 2011 Featuring 440 V, 50 Hz configuration, Vapor-Flo® 7500 series operates with minimal noise and non-existent fumes. Steel, coil-based heating unit can deliver max temperatures in 15 sec. Portable models 7500, 7525, and 7575, as well as stationary unit 7550, offer pressure level ratings of 130 bar and flow rates of 2.3 Lpm. While entry level 7525 is housed in rust-resistant steel case, other models come in powder-coated housing. All are driven by 50 Hz, 2.0 hp, industrial-duty motor.

BVM Ltd    Southampton Hampsh SO30 0GH  United Kingdom

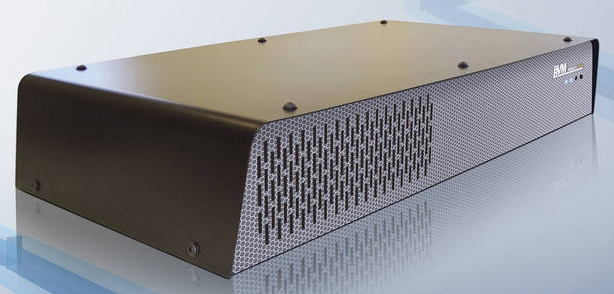

Mar 18, 2011 While OB100 is based on Intel® Atom(TM) D510 dual core CPU, supports 2 GB max RAM, and has 4 USB2.0 ports, OB200 is based on 64-bit Core(TM) i7/i5/i3 CPUs, supports 8 GB max RAM, and offers 2 serial, 10 USB 2.0, LCD inverter, and SMBUS ports. Both PCs offer connectivity options that include embedded GPS, 3.5G with 5.7-45 Mbps download bandwidth, WiFi (802.11b/g/n) with 11-600 Mbps raw data rates, and Bluetooth. Support is also provided for wired Ethernet and wireless capability.

United Conveyor Corp.    Waukegan, IL 60085
Mar 18, 2011 Models 4050/6050 condition ash and other abrasive material with water to suppress dust and facilitate transport to trucks and rail cars. While cleaning chains generate contact against ash material, pin-paddles reduce buildup during each cycle stop. Spray nozzles promote water penetration into bed of material for uniform conditioning and can be independently controlled for precise discharge during start up, mixing, and shut down. Shafts and pins use covers made of UHMW PE to resist buildup.

Calex Mfg. Co., Inc.    Concord, CA 94520
Mar 18, 2011 Measuring 3.78 x 1.06 x 1.65 in., DIN Rail mount Model 4710 is designed for load cell, strain gage, or single ended analog amplification and filtering. DC powered module contains instrumentation amplifier; 0-10 Vdc filtered output with frequency response of DC to 10 Hz; and 10 V excitation supply capable of driving 350 ohm bridge. Connections are made via screw clamp terminal blocks, and 0-30 mV input makes unit compatible with strain gage based load cell or pressure transducer outputs.

Forrest Manufacturing Co., Inc.    Clifton, NJ 07014
Mar 18, 2011 Suited for use with most table, circular, and panel saws, 12 in. dia Woodworker II blades are available with 1 or 5/8 in. bore or can be customized to end-user specifications. Products are engineered from corrosion-resistant C-4 micrograin carbide and have 1/8 in. kerf. Suited for making clean cross cuts, 48-tooth design facilitates feeding, and sharp teeth points have 25° bevel. Hand-straightened for perfect flatness, blades have side runout of ±.001 in.

Holophane    Granville, OH 43203
Mar 18, 2011 Designed for use with CosmoPolis(TM) lamps, Estilo Luminaires are available with flat glass or sag glass optics to provide IES Type I and II with full cutoff, cutoff, and semi-cutoff distributions. Fixtures may be used with 60, 90, and 140 W lamps, which offer color rendering index of 65-70 on average. Electronic ballast, intended for outdoor use, includes surge protection and is fully potted to protect against moisture and dust. Fixtures may be ordered with 6-, 8- or 10-hour dimming, or no dimming.

Illinois Capacitor, Inc.    Lincolnwood, IL 60712

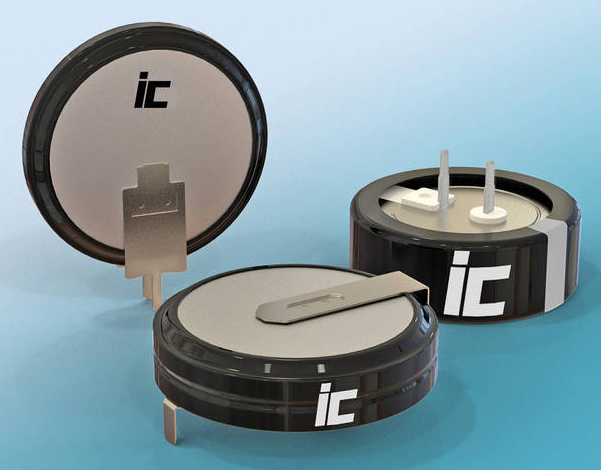

Mar 18, 2011 With 0.15-8 Farads capacity at voltages up to 5.5 WVDC, DC Series can supply sufficient power to provide on-board memory backup for preventing loss of data during power interruption. There are 3 case configurations available for horizontal, vertical, and center-lead mounting, and sizes can be as small as small as 6.8 x 4.6 mm. Operating from -40 to +85°C and 90-95% RH, series also offers accelerated charge/discharge cycling as well as IEC 62391 and RoHS compliance.

Omron Scientific Technologies Inc.    Fremont, CA 94555

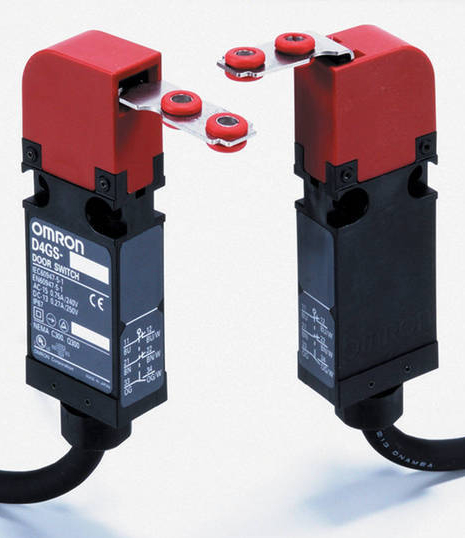

Mar 18, 2011 Designed to fit in narrow spaces subject to water washdown cleaning, D4GS-N Slim Safety Door Switches feature IP67 protection and operate from -30 to +70°C without icing. Reversible design enables front or rear mounting, and operation key with rubber mounting holes absorbs vibration as well as shock. Resistant to vibration and shock, tongue-actuated switches are rated to provide 1,000,000 min mechanical operations and 100,000 electrical operations.

Heat Trace Products, LLC    Leominster, MA 01453
Mar 18, 2011 Available in 5, 10, 20, 50, 100, and 200 ft lengths, T-Links Self-Regulating Heating Cables provide specified amount of heat anywhere along their length in direct response to local temperature or thermodynamic variations to maintain process heating and prevent freezing. Cables maintain temperatures up to 150°F and will not burnout if overlapped. Offered in 3, 5, 8, and 10 W/ft version in 120 and 240 V, cables can be stepped up or down and LED lights can be installed anywhere.

Physik Instrumente (PI)    Auburn, MA 01501
Mar 18, 2011 Measuring 130 mm dia x 115 mm high, M-811 Miniature Hexapod can handle loads to 11 lb and position them in all 6° of freedom with 0.04 µm actuator resolution and ±0.5 µm repeatability. Unit features XYZ travels of 35/35/13 mm and velocities to 10 mm/sec. Positioner comes bundled with software and digital controller with high-speed Ethernet connectivity. Unlike rotation stages which come with fixed center of rotation, Hexapod lets user set and change pivot any time via software.

Pflow Industries Inc.    Milwaukee, WI 53209

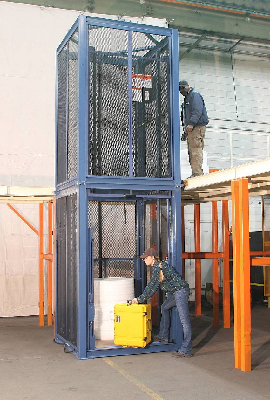

Mar 18, 2011 Supplied in 2 or 3, stackable, bolt-together sections, Modular Series D lifts loads up to 3,000 lb between 2 levels, and is suited for mezzanine or balcony applications in both new construction and existing structures. Lift is driven by dual 2 in. ram direct-acting hydraulic cylinders, and has no cables, chains, bearings, or other components that can break or require lubrication. Available with 5 x 5 or 6 x 6 ft carriage, lift moves loads to heights of 15 ft at 17 fpm.

Simplex Isolation Systems, Div. Of Simplex Strip Doors    Fontana, CA 92336
Mar 18, 2011 Meeting ASTM E-84 Class 1 rating for flame and smoke generation, FlexSim(TM) FR is fire-rated vinyl for standard applications, and FlexSim FR AS adds built-in anti-static inhibitors. Both products also meet/exceed requirements for NFPA-701 and UL Title 19 for compliance with California Fire Marshall. Made with non-phthalate plasticizers and non-halogen additives, vinyl accommodates Fire Marshalls' and regulatory agencies' insistence on lower flame and smoke emissions from curtain walls.

Thermo Fisher Scientific    Waltham, MA 02454

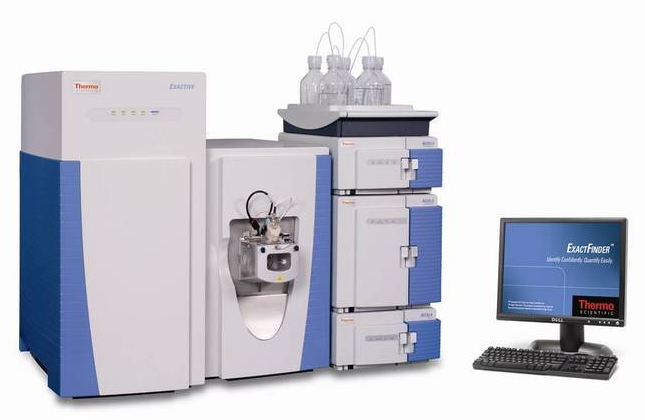

Mar 18, 2011 Exactive LC-MS system, powered by Orbitrap(TM) technology, is available with ExactFinder software, which offers laboratories one streamlined data processing, review, and reporting workflow for routine screening and quantitation. Integrating into laboratory workflows with minimal user training, software fully automates data processing and reporting. Furthermore, software integrates full-scan high-resolution, accurate-mass (HR/AM) spectral data and multiple forms of compound identification.

Tripp Lite    Chicago, IL 60609

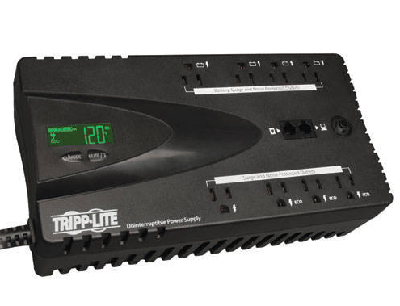

Mar 18, 2011 Equipped with Green technology, Model ECO650LCD helps conserve electricity without sacrificing power protection. Unit features 8 outlets, including 3 energy-saving ECO surge outlets that automatically turn off idle equipment. USB port and included USB cable enable automatic unattended shutdown with PowerAlert software. Providing 99% power efficiency, RoHS-compliant power supply has flat-pack housing and interactive LCD user interface that displays detailed UPS data.

HaydonKerk Motion Solutions    Waterbury, CT 06705
Mar 18, 2011 Integrating size 11 stepper motor, SRA04 ScrewRail® consists of Kerk® precision rolled lead screw supported by sealed ball bearings and contained within concentric steel guide rail driving integrated nut and bushing. KerKote® TFE coating and self-lubricating nut/bushing material ensure zero maintenance. Available with freewheeling or anti-backlash nut assembly, product can be used to simultaneously lift and rotate when mounted vertically. Up to 72 in. stroke length is available.

EXAIR Corporation    Cincinnati, OH 45249-1621
Mar 18, 2011 Atomizing spray nozzles consist of internal mix nozzles that atomize fluids in range of spray patterns to meet diverse application requirements. Functionality lets users coat, cool, treat, and paint various products using compressed air and liquids with viscosity of up to 300 cps. Available in various sizes and shapes, nozzles feature stainless steel construction that provides durability and corrosion resistance.

Rig-A-Lite Co., Inc.    Houston, TX 77075
Mar 18, 2011 BVP series features brass housing that suits hazardous, marine, and watertight environments where hazardous gasses are present. Also available in marine rated only configuration, series supports up to 150 W incandescent and 26 W compact fluorescent lights as well as pendant, wall, or ceiling mounting. Approvals include Class I Division 2, Groups A/B/C/D; Zone II, Group IIA, IIB, and IIC; UL 1598A Marine Outside Type; UL 844 Hazardous Locations; as well as NEMA 3, 4, and 4X.

Biochrom Ltd.    Cambridge CB4 0FJ  United Kingdom

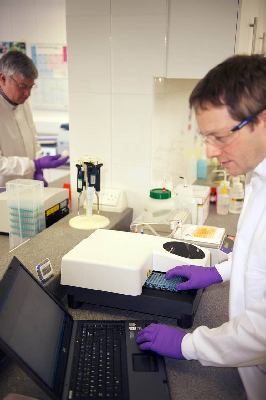

Mar 18, 2011 Able to perform single or dual wavelength measurements to incorporate reference wavelength readings, and to do so at timed intervals, EZ Read 400 is suited for ELISA, protein, cell biology, and kinetic assays. Unit incorporates ADAP Basic PC software and USB connections for instrument connection and data transfer. Reader can be configured with choice of filter options from 400-750 nm, choice of data analysis software packages, and QC plate for instrument validation.
