Northfield Precision Instrument Corp.    Island Park, NY 11558

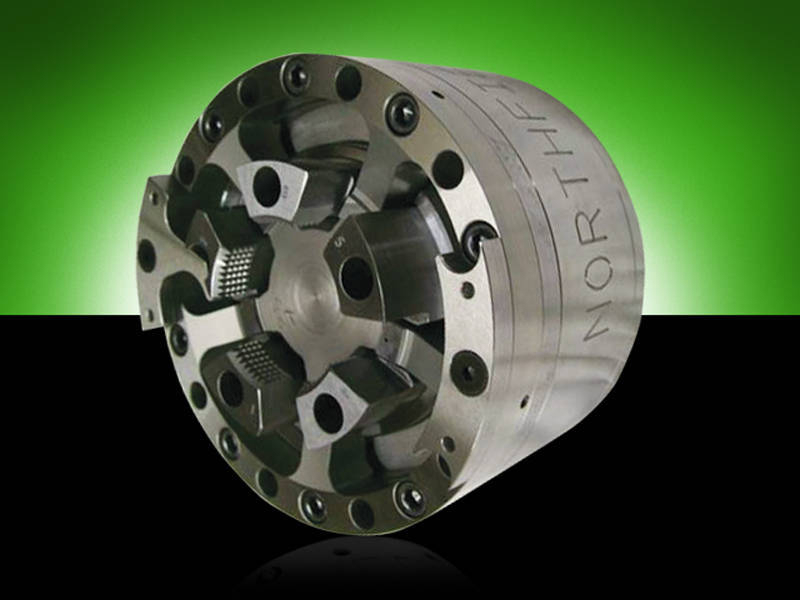

Apr 22, 2011 Available in both SAE and metric sizes, Model DPH-500-5 chuck gives accuracy of 0.001-0.00001 in. Customizable unit features serrated jaws to enhance gripforce and axial locator with integral/air-detect function for positive loading of customer's part. Tertiary datum locator in axial locator allows parts to be twisted into position upon loading.

Tiffen Co. LLC, The    Hauppauge, NY 11788
Apr 22, 2011 Far Red Control Kit includes T1 and T½ IR filters, which absorb unwanted light while preserving camera's increased red response. Specifically, kit provides options needed to capture subtle hues of red while maintaining crisp blacks and assisting camera in capturing wide color gamut with minimal light loss: ½ and 2/3 stop. It is available in 4x5.650 and comes in 4 filter capacity belt loop style pouch.

Acrosser Technology    Cypress, CA 90630

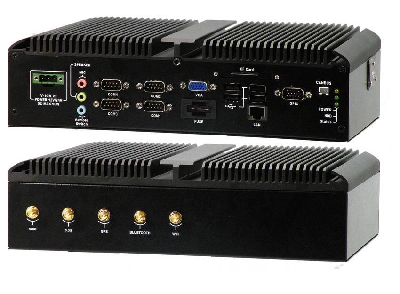

Apr 20, 2011 Designed for telematics applications, Model AR-V6002FL accepts standard 12/24 V car battery input and can operate in environments from -20 to 50°C. Fanless unit supports CAN 2.0A/2.0B protocol to facilitate data transmission and offers optional GPS/ GSM/ GPRS/ EDGE/ UMTS/ HSDPA/ Wi-Fi/ Bluetooth communication modules for mobile communication and navigation. For power management, unit provides selectable delay timing and power input monitoring to shut down system at low power.

Acrosser Technology    Cypress, CA 90630

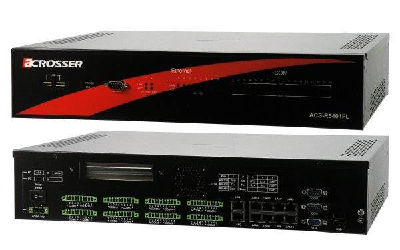

Apr 20, 2011 Based on ATOM N270 processor and ICH7M chip set, Model ACS-R5401FL provides 8 or 16 COM ports, which are 3-in-1 selectable for RS-232, RS-422, and RS-485 and offer up to 15 kV ESD protection. Unit also includes 3 console ports for remote and local management, 10 LAN ports, 6 USB ports, and VGA port. Since server is IP-based, it can be accessed via secure web browser or SSH client anytime. Unit features fanless design and operates up to 55°C.

Cognex Corp.    Natick, MA 01760 2059
Apr 20, 2011 Able to integrate with factory network/automation control systems, In-Sight® Explorer v4.5 cameras provide Flexible Flaw Detection edge and surface inspection tool. EasyBuilder® UI tools, Bead Finder and Bead Tracker, are also included for finding positional and width-based defects, gaps, as well as all necessary bead data needed for process control. Based on 1DMax(TM) and 2DMax(TM) ID algorithms, included ReadIDMax supports simultaneous reading of up to 128 barcodes and inspections.

Phoenix Contact    Harrisburg, PA 17111 0100
Apr 20, 2011 Available in 9 and 13 mm profiles, open-style ring screw (RSC) and ring bolt (RBO) lug connection terminals are offered in panel-mount and DIN rail-mount packages. RSC/RBO series supports feed-through connections, disconnects and current transformer shorting within switchgear and control system applications. Polyamide material meets flammability class V0 per UL 94, and they are UL recognized at 600 V with range of electrical current ratings from 30-45 A.

Diversified Technologies, Inc.    Bedford, MA 01730

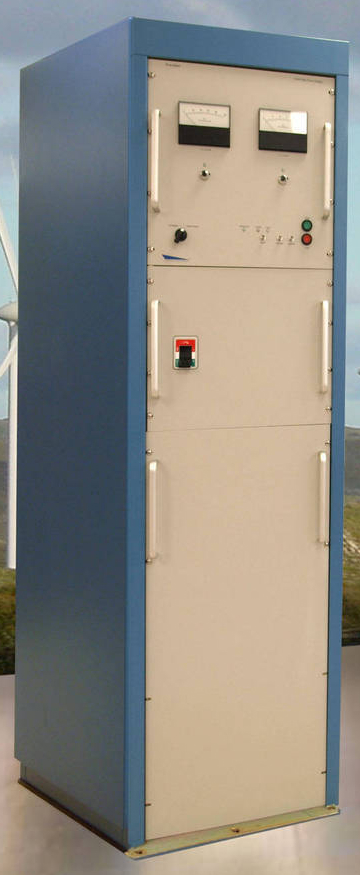

Apr 20, 2011 Facilitating integration of wind and solar power generators by transmitting DC power, PowerMod(TM) Micro-Grid Power Distribution System includes DC power supply, DC cable, and down converter for providing AC or DC power at load end point. Eliminating limits of AC point-to-point installation, generator or load can be placed anywhere along cable, which is suitable for up to 1 MW power transfer. System provides constant 10 kVdc transmission at distances up to hundreds of kilometers.

Monotype Imaging Inc.    Woburn, MA 01801

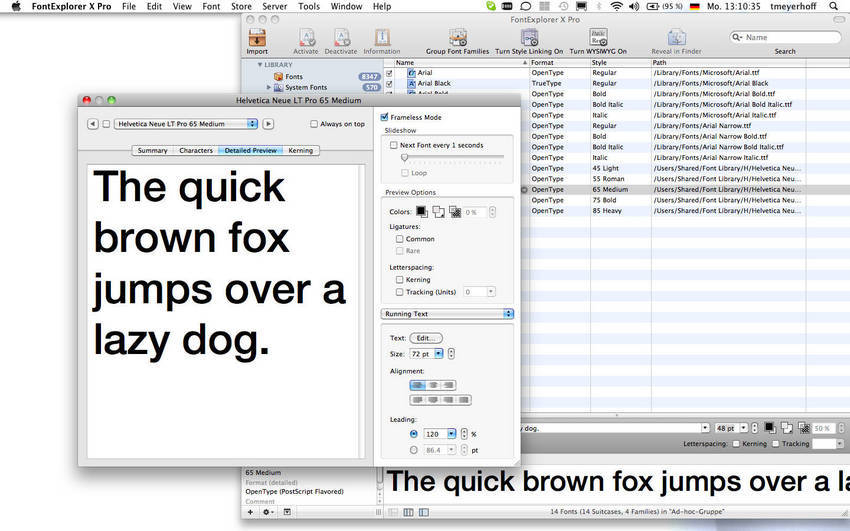

Apr 20, 2011 FontExplorer® X Pro v3.0 offers transparent font slideshow feature that lets users place text over existing document in preview window and change desired fonts automatically. Also included, character toolbox displays information on languages supported by particular font in addition to specific characters available. Additional features are provided for comparing fonts relating to their ink and paper consumption during printouts as well as organizing fonts into groups.

Linear Technology Corp.    Milpitas, CA 95035

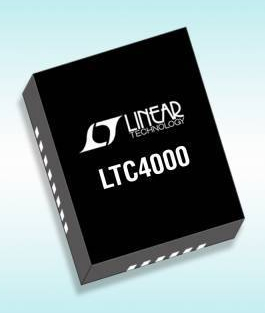

Apr 20, 2011 Capable of driving typical DC/DC converter topologies, LTC4000 converts externally compensated DC/DC power supply into full-featured battery charger. It operates across 3-60 V input and output voltage range; is compatible with various input voltage sources, battery stacks, and chemistries; and preferentially provides power to system load when input power is limited. IC also controls external PFETs, providing low-loss reverse current protection and instant-on operation.

Platinum Tools    Camarillo, CA 93012
Apr 20, 2011 Featuring EZ 1-button design, palm-sized 4Mapper Coax Tester is used for troubleshooting and identifying single or multiple coax cables connected to security cameras, TVs, monitors, routers, and splitters. Individually identified custom F remotes, featuring push-on design, let user track up to 4 connections simultaneously from main cable box. Tool displays Pass, Open, or Short and incorporates tone generator, automatic power off, and warning LEDs.

Unipower Corp.    Coral Springs, FL 33065

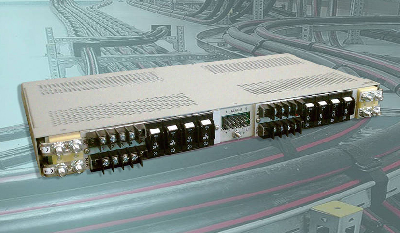

Apr 20, 2011 Mounted in 19 or 23 in. rack, 1U high DPBF1U Series provides distribution and overload protection for 8 circuits. Unit can support up to 8 single-bus load breakers or 4 dual-bus breakers with capacity of 150 A of load current per bus. Breaker ratings from 1-30 A can be accommodated, and any combination of 12, 24, or 48 V positive or negative ground is available as standard. Breaker trip alarm is indicated by red LED and 2 Form C relay contacts for each bus.

Combi Packaging Systems LLC    Canton, OH 44721
Apr 20, 2011 Designed to handle loads up to 48 x 40 x 87 in., Combi SW-10 is manufactured with manual mechanical core braking film tensioning system that facilitates threading of film. Control panel and photo eye offer soft start and fix stop for precise control. Measuring 65 in. in diameter, chain-driven turntable provides rotational speed of 15 rpm. Belt-driven film carriage, operating on ½ hp motor, accommodates 20 in. roll width and core diameter of 2-3 in.

Macro Sensors    Pennsauken, NJ 08110 1334
Apr 20, 2011 While alternatively available with 0-10 Vdc output, EAZY-CAL(TM) MMX Series Mini-Module LVDT Signal Conditioner with 4-20 mA output supports process control and factory automation applications with extended cable run requirements. Calibration can be accomplished in seconds via 2 front panel pushbuttons. Measuring 2.77 x 3.35 x 0.7 in., single-channel modules support most manufacturers' LVDT position sensors with plug-and-play compatibility and can be remotely located up to 100+ ft.

Mini-Circuits    Brooklyn, NY 11235
Apr 20, 2011 Measuring 3.8 x 3.8 mm, TCBT-14+ wideband Bias-Tee enables engineers to design with DC current up to 200 mA, insertion loss of less than 1 dB, and VSWR of 1.1:1. It covers frequencies from 10 MHz to 10 GHz without resonances typically observed over such a range. Suitable for automated pick and place operation, surface-mount product is designed to handle 1 W of RF power.

Moyno Inc. Unit Of Robbins & Myers, Inc.    Springfield, OH 45501 0960

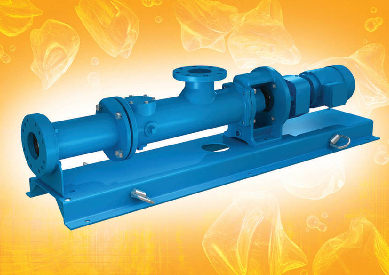

Apr 20, 2011 Designed for low flow, low pressure applications, Moyno® 2000 WA and WB Pumps have sealed, gear-type universal joint drive train. WA model features standard size/keyed gear reducer shaft and bearings integral to adapter housing that support radial thrust loads at rotor/stator. WB model, featuring traditional close-coupled design with thrust loads supported by bearings in gear reducer, has no shaft bearings. Cross drilled pin holes on gear reducer output shaft extend service life.

BEI Kimco Magnetics    Vista, CA 92081

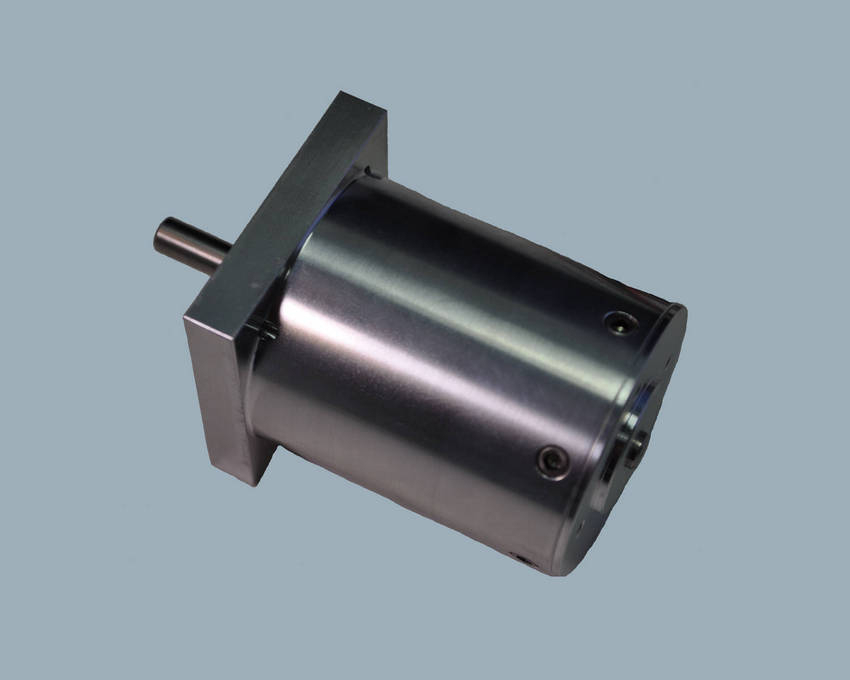

Apr 20, 2011 Measuring 1.8 in. diameter and 2.1 in. axial length, Model DIH18-21-BBNA provides continuous output of 40 Vdc at speeds of 11,000 rpm. Unit incorporates bearing suspension that absorbs vibration and shock, as well as one-piece housing that eliminates vulnerable attachment points. Motor is used as generator to supply power to remote brake health monitoring system and can withstand high shock and vibration levels in railcar environments.

Sauer-Danfoss    Ames, IA 50010
Apr 20, 2011 Designed to complement H1 axial piston pumps, H1 160 cm³ Bent Axis Motors provide 0°capability, enabling seamless, on-the-go shifting from 32-0°, such as in wheel assist applications. Variable displacement motors are optimized for electrical control and are fully PLUS+(TM) Compliant. To withstand harsh working environments, controls are designed with IP67 and IP69K rating. Typical applications include rough terrain forklifts, combines, sprayers, road rollers, and wheel loaders.

Master Bond, Inc.    Hackensack, NJ 07601

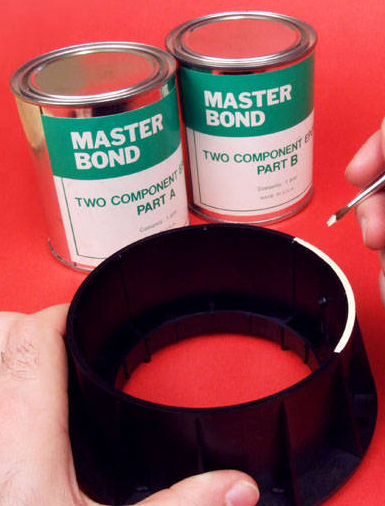

Apr 20, 2011 Formulated with blend of polymeric and inorganic materials, 100% reactive EP30LTE-LO is used for bonding, sealing, casting, and coating applications. This 2-component epoxy exhibits dimensional stability and is serviceable over -60 to +250°F range. CTE is 12x10^-6 in./in./°C, and shrinkage rate is less than 0.0002 in./in. Producing bonds with tensile strength over 5,000 psi, electrically insulative product bonds to metals, glass, ceramics, wood, vulcanized rubbers, and plastics.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Apr 20, 2011 Offering 8% accuracy, Series AVUB operates by measuring heat loss from sensing element in air-stream and calculating air velocity by reading local temperature of air on probe. Models are available in 3 ranges of 0-785 fpm, 0-1,575 fpm, and 0-3,150 fpm with 0-10 Vdc output. Offering 10 sec response time, Series AVUB is suited for wide range of HVAC measurement and control applications, particularly in complete building control and energy management systems.

Murata Electronics North America, Inc.    Smyrna, GA 30080
Apr 20, 2011 Suited for various mobile devices, JSC series connectors feature board-mounted, 2 x 1.8 x 0.5 mm receptacle that mates with 0.81 mm dia RF cable. Mated height of receptacle and cable plug is 1.0 mm maximum. Product withstands up to 30 mating cycles and emits audible click on connecting. Connector and cable structure supports RF performance up to 12 GHz and voltage standing wave ratio of 1.3 GHz up to 3 GHz, 1.4 GHz between 3-6 GHz, 1.5 GHz between 6-9 GHz, and 1.6 GHz between 9-12 GHz.
