Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Jun 01, 2010 DaVinci(TM) DMVA2 video processor enables video surveillance and security to utilize smart analytics for people counting, trip zone, intelligent motion detection, camera tamper detection, and streaming metadata analytics. Along with ARM926EJ-STM core, SoC is also equipped with Smart Codec Technology that promotes video quality and network bandwidth utilization. Multi-codec solution supports H.264 in high, main, or base profiles 720p at 30 fps or 1080p at 15 fps plus secondary CIF stream.

Xinet, Inc.    Berkeley, CA 94710
Jun 01, 2010 With Video v4.0 for WebNative® Suite, users can search, view, annotate, approve, and distribute video files. Program generates key frame previews of Shockwave Flash files using scene detection, and can extract artwork from ID3 tags of MP3 audio files to create Web previews. Video v4.0 can also create key frame previews for HTML, MHTML, URL, and webloc files. With Video Reel Generator, users can create new video reels from segments of different videos, audio files, and documents.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Jun 01, 2010 PNA-X Series Microwave Network Analyzer configured with Option 028 enables source-corrected noise figure measurements of amplifiers, frequency converters, and mixers up to 50 GHz. Device corrects for effects of imperfect system source match using both vector error correction as well as ECal module that serves as impedance tuner to remove noise-parameter-induced errors. Series accommodates measurement applications from RF to millimeter wave.

Alibre Inc.    Richardson, TX 75081
Jun 01, 2010 With Alibre Design Personal Edition, users can become entrepreneurs and set up their own businesses by creating products and inventions at home. Program provides integrated 3D solid modeling, part and assembly design, associative 2D drafting, and STL export. Software creates 2D drawings directly from 3D model and automatically updates them when model changes. It offers complete set of parametric solid modeling tools including extrude, revolve, loft, sweep, shell, patterns, and arrays.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Jun 01, 2010 Supplied in lead-free BGA package, Series ADC12D1x00 provides sampling speeds of 3.6, 3.2, and 2.0 GSPS. Units run off 1.9 V single supply and consist of 2 channels that can operate interleaved or independently. Devices include circuitry for multi-chip synchronization, programmable gain, and offset adjustment per channel. Internal track-and-hold amplifier and extended self-calibration scheme enable flat response of all dynamic parameters for input frequencies exceeding 2 GHz.

Lattice Technology, Inc.    San Francisco, CA 94104
Jun 01, 2010 XVL Kernel v7.2 delivers access at geometry level to utilize XVL in custom 3D applications, so that XVL data can be natively created within other software. It includes core illustration and technical documentation tools and digital mock up (DMU) functions for testing and simulating products, processes, and assemblies prior to prototype. Lightweight 3D format exhibits no loss of 3D data accuracy, enabling use by developers as part of integrated CAD, AEC, and custom applications.

Solartron Metrology    Gastonia, NC 28054
Jun 01, 2010 Orbit3 allows users to build large, flexible sensors and gauging systems with single common interface, regardless of sensor technology. Sensors are hot-swappable and up to 200 probes can be connected to network card. System features RS485 multidrop communications link and T-Con 9-pin lockable connectors that channel output of each I/O device to receiver electronics. Other features include accuracy to 0.05% of reading and local LED diagnosic display for each unit.

AMETEK Technical & Industrial Products    Kent, OH 44240
Jun 01, 2010 Available in round and square versions with respective standard diameters of 1.200 and 1.496 in., G30A can achieve reduction ratios to 46,656:1 in 4:1, 5:1, and 6:1 multiples. Max load capabilities range from 106 oz-in. for single-stage models up to 1,250 oz-in. for versions with 4-stages or greater. Intended for Pittman® DC motors, gearbox comes in 0.895-1.585 in. lengths and weighs 3.9-6.6 oz. Sintered steel planet gears minimize audible noise.

Caplugs    Buffalo, NY 14207
Jun 01, 2010 Featuring thin walls for flexibility and elasticity, TS Series stretches over bolts 3 times their size and can be pushed into ports half their size. Resilient silicone material offers heat resistance making caps and plugs suitable as masking devices and for many high-temperature finishing processes.

Eagle Eye Power Solutions, LLC    Milwaukee, WI 53211
Jun 01, 2010 IBEX-ULTRA simultaneously measures ohmic value, voltage, and temperature of battery. Portable, lightweight device offers most menu options in icon form and includes battery diagnostic software that allows user to trend batteries, create battery reports, view graphs, export information to Excel, and more. Unit is CE-compliant and meets all IEEE Standards for stationary battery testing.

XP Power    Sunnyvale, CA 94085
Jun 01, 2010 Accepting AC input from 90-305 Vac, DLA series drivers with output power ranges of 50, 75, 100, 120, and 150 W offer efficiencies of greater than 85% for 50 W and up to 94% for 150 W models. They are available with either constant current outputs from 350-5,950 mA or constant voltage outputs of 12, 18, 24, 36, 42, 48, 54, or 105 Vdc. IP67 rated units provide protection from ingress of dust or water to depth of 1 m, and meet EN61347 and UL8750 safety standards.

FasTest, Inc.    Roseville, MN 55113-1317
Jun 01, 2010 Providing quick connections to ¼ to ½ in. male NPT, -4 to -8 AN, and -4 to -8 compression threads, FasCal High Pressure Ball (HPB) series connectors utilize patented pressure-assisted, grip-and-seal technology to create leak-tight connections and eliminate thread damage. Connectors are rated at 5,000 psi, and include safety feature to prevent disconnect under pressure. Stainless steel construction provides corrosion resistance in wide range of environments.

Alps Electric    Raleigh, NC 27607
May 28, 2010 Measuring 2.7 x 3.0 x 1.4 mm, SKSG Series TACT Switch(TM) features metal contact that combines high operation force of 4 Newtons with operating life of 200,000 cycles, making switch suitable for car AV equipment as well as keyless entry or car navigation systems. Definite clicking sensation helps prevent unintentional operation, while ground function prevents static electricity from flowing into set device, which can cause operation failure and IC destruction.

Analog Devices, Inc.    Norwood, MA 02062-9106
May 28, 2010 Providing digital output specifically for angular rate sensing in harsh environments, Model ADXRS450 features differential quad-sensor design that enables accurate operation under intense shock and vibration. Sensitivity to linear acceleration is specified at 0.03°/sec/g and acceleration rectification is 0.003°/sec/g2. Consuming 6 mA under typical conditions, gyroscope includes internal temperature compensation over extended industrial temperature range of -40 to +105°C.

Oriental Motor U.S.A. Corp.    Torrance, CA 90502
May 28, 2010 Able to control power supply without losing torque output, TMP-1 allows complete control between controller and motor. It also offers 3 methods for setting torque and provides option to change torque between 2 levels by switching between internal potentiometer and external potentiometer/voltage. Other standard features include alarm output function, instantaneous bidirectional operation by CW/CCW signal switching, and switching of signal input logic between sink and source.

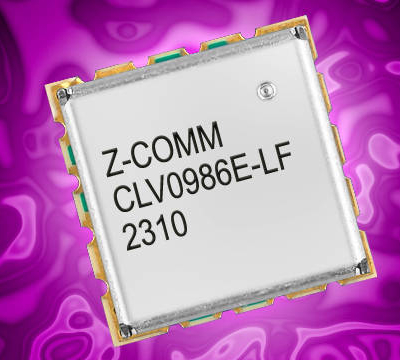

Z-Communications, Inc.    San Diego, CA 92126
May 28, 2010 Operating at 971-1,002 MHz with tuning voltage range of 0.5-4.5 Vdc, Model CLV0986E-LF features typical phase noise of -113 dBc/Hz at 10 kHz offset and typical tuning sensitivity of 18 MHz/V. Unit delivers output power of 0 dBm at 5 Vdc supply while drawing 20 mA over temperature range of -40 to 85°C. Housed in MINI-14S-L package measuring 0.5 x 0.5 x 0.13 in., RoHS-compliant VCO features typical second harmonic suppression of -20 dBc.

Pregis Corp.    Deerfield, IL 60015
May 28, 2010 For large, heavy, low-volume applications, IntelliPack SmartShot(TM) Hybrid offers hand-held option, which allows operator to remove dispenser nozzle from housing unit and pull attached hose over to shipping case. Channel is created between item and internal corrugated wall, and liquid foam is injected into channel. For smaller, high-volume production-line parts, wall-mounted machine converts to bagging mode, where bag of predetermined size is dispensed and liquid foam is injected into it.

AVX Corp.    Myrtle Beach, SC 29578
May 28, 2010 TurboCap(TM) switch mode power supply (SMPS) capacitors help designers reduce component count and board space as well as maintain benefits such as low ESR/ESL, ability to withstand transients, and ability to handle large amounts of power. Offered in 100 V/47 µF, 25 V/220 µF, and 50 V/100 µF versions, series features ceramic placed up off of board to minimize cracking issues as well as susceptibility to shock and vibrations.

AVX Corp.    Myrtle Beach, SC 29578
May 28, 2010 Available in miniature 0402 case sizes with LGA termination for frequencies from 787 MHz to 5.5 GHz, LP0402N Series enhances harmonic performance for WiMAX, WiBro, and W-LAN applications. Products are based on thin film multi-layer technology and provide minimal insertion loss and optimal attenuation at second and third harmonics in 0402 case size. Filters are designed specifically to improve signal-to-noise ratio in wireless communication systems.

Loadstar Sensors, Inc.    Mountain View, CA 94043
May 28, 2010 Digital load cell interface model DI-100U converts analog millivolt output from resistive load cell into PC-compatible USB output. After direct connection to load cell, unit can seamlessly acquire calibrated load data in lb/N/kg. Integral 16-bit ADC enables better than 0.1% load cell accuracy, and on-demand or continuous load display modes are available. Unit is compatible with PCs running Windows XP/Vista.
