Acromag, Inc.    Wixom, MI 48393 7037
Apr 06, 2011 Model ST132 thermocouple/millivolt signal conditioner converts sensor input signals from 8 thermocouple types or ±100 mV range and output proportional 4-20 mA process control signal. Device is output loop-powered, 7-32 Vdc 2-wire transmitter that mounts in DIN Form B sensor heads or on DIN rail. Offering response time as low as 8 msec, it performs signal linearization and cold-junction compensation functions. Unit has 24-bit A/D controller that supports -40 to +80°C temperature range.

Siemens AG    Munich D-80333  Germany
Apr 06, 2011 As central component for design of electric vehicle charging posts, CM-230 charger controller enables mode 3 charging in accordance with IEC 61851-1 and is equipped with Ethernet communication interface for communication with control system or other components. Charge current can be set from 6-80 A, and device is designed for supply voltage of 24 Vdc. Functionality handles controlling power arm of charging post, monitoring charging cable, and communicating with electric vehicle.

Stakrak Ltd    West Sussex RH11 9SH  United Kingdom
Apr 06, 2011 Wet Area Lockers, made using pre-galvanized mild steel and powder coated with Germ Guard active anti-bacterial paint, exhibit resistance to scratching that minimizes potential for rust problems. in addition to strengthened and ventilated doors with rubber buffers, lockers are fitted with moisture-resistant camlock with 2,000 different combinations. Available in 1,800 x 300 x 300 or 450 mm sizes, lockers come in choice of colors and 1-4 doors.

Wilden Pump & Engineering Co.    Grand Terrace, CA 92313
Apr 06, 2011 Air-operated double-diaphragm drop-in pumps install without change to piping in paint and coatings manufacturing facilities. They feature Pro-Flo X(TM) air distribution system which allows user to control flow rate and maximize efficiency. Optionally available with full-stroke PTFE diaphragms and DIN flanges, units are offered in Advanced(TM) Series Metal 1 in. bolted stainless steel and aluminum, 1½ in. bolted stainless steel, and 3 in. bolted stainless steel and aluminum models.

Blue Chip Technology    Richwoood, NJ 08074
Apr 06, 2011 Model RE2 includes OMAP 3 processing core, 256 MB LPDDR SDRAM, and 512 MB NAND Flash memory. System's input voltage range is 7-36 Vdc and power dissipation is 2 W at 720 MHz. Video output is available through 24-bit RGB TTL connector or DVI port, and 4-wire touchscreen controller and audio codec interface are also included. Unit has 10/100 Ethernet port, 4 x USB 2.0 host ports, one USB 2.0 device port, dual RS-232, and RS-485 port as well as Bluetooth, Wi-Fi, and camera interface.

Murata Machinery USA, Inc. (De)    Charlotte, NC 28208
Apr 06, 2011 Model XRCGB26 features nominal 26 MHz frequency, with frequency tolerance of less than ±30 ppm and frequency shift of ±40 ppm. Frequency aging is less than ±5 ppm per year and units have operating temperature range of -30 to +85°C. Measuring 2.0 x 1.6 x 0.7 mm, all resonators in XRCGB-M range have 4 connection pads on base and are RoHS-compliant. They are also available in versions with 24, 25, 26, 27, 27.12, 30, 33.86, 40, and 48 MHz frequencies.

Air Technical Industries    Mentor, OH 44060
Apr 06, 2011 Designed for indoor/outdoor use, Tele-Mast hydraulically operated crane can carry loads up to 50,000 lb through 12 x 12 ft overhead door and straddle flat bed or semi truck. Four telescopic masts are synchronized for level as well as uniform lifting and positioning, and dual wide-flanged I-beams are equipped with 4 laterally adjustable lifting hooks. Able to lift loads up to 120 in., crane travels on 16 polyurethane wheels to protect floor from damage.

HINO MOTORS SALES U.S.A., INC.    Novi, MI 48375

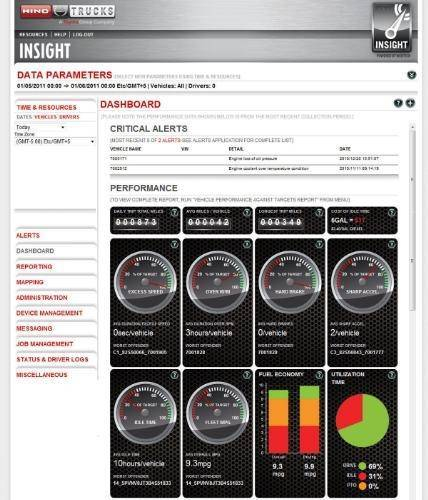

Apr 06, 2011 Web-based HINO INSIGHT provides GPS-based, remote fleet management capabilities to fleet operations of all sizes. Services range from route tracking, geofencing, vehicle administration, and planned maintenance management to real-time critical diagnostics alerts, custom fleet performance dashboard reporting, and remote door unlock telemetry. Web portal provides daily snapshot of fleet's diagnostics status and performance against established targets.

A&B Software    New London, CT 06320
Apr 06, 2011 GigESim comprises GigE Vision camera emulator, camera type convertor, and GigE Vision Server SDK. Any computer running GigESim presents itself to network as one or several GigE Vision cameras, and any GigE Vision- or GenICam-compliant software running at same/other computers on network can receive images from virtual cameras and control their features. Uses include prototyping GigE Vision cameras, performing GigE client application development, and virtual GigE Vision camera conversion.

Kurt Manufacturing Co., Industrial Products Div.    Minneapolis, MN 55413 1540
Apr 06, 2011 Consisting of high precision pins, bushings, and liners that provide locating repeatability up to ±.005 in., PinLock(TM) System facilitates attachment and removal of fixtures, subplates, and vises from machining centers. Helical extraction design aids in overcoming binding in side load conditions. Precision machined of heat-treated, alloy steel with black oxide finish, liner bushings are available for fixture plate thicknesses of 0.75, 1.00, 1.50, and 2.00 in.

Universal Instruments Corp.    Binghamton, NY 13902 0825

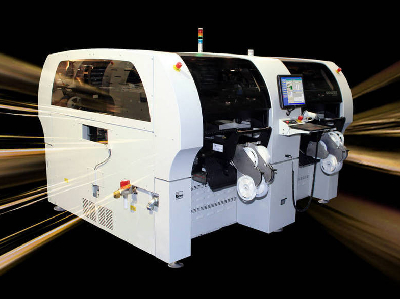

Apr 06, 2011 Powered by VRM linear motor with closed-loop 1 µm positioning, Genesis Series 2 is available 1-, 2-, and 4-beam configurations with throughputs up to 140,000 cph. Unit features 30-spindle Lightning® head, which places passives down to 01005, CSPs, WSPs, µBGAs, eCAPs, DPAKs, and MELFs at full speed. Vertical part sensor verifies part presence immediately prior to placement, while dual on-the-head cameras support components up to 30 x 30 mm and up to 6 mm tall.

Tumbler Technologies, Inc.    Santa Clara, CA 95054

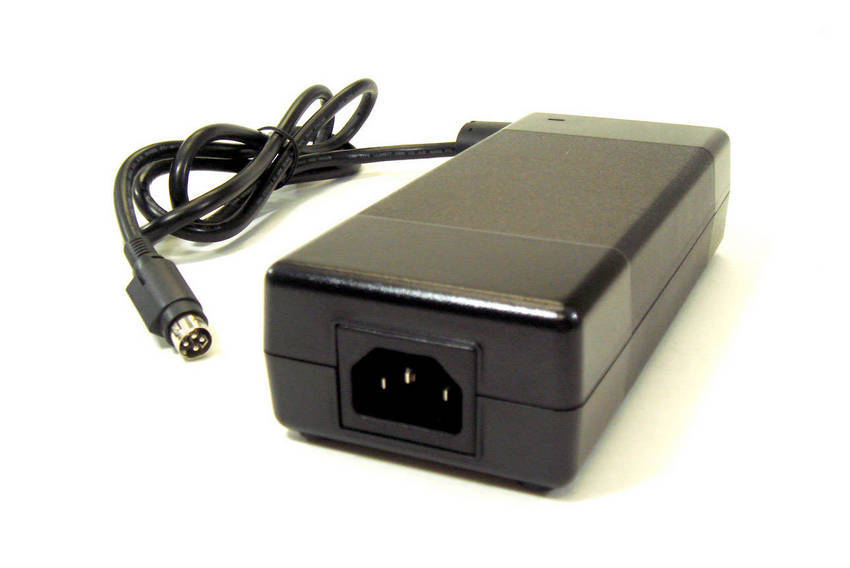

Apr 06, 2011 Fanless TMP135 series of medical power adapters are approved to UL 60601-1, EN 60601-1 3rd edition medical standards, and ITE adapters to UL 60950-1, EN 60950-1 2nd edition ITE standards. Peak power for 10 sec is up to 270 W, leakage current is less than 200 µA, and efficiency is up to 91%. Operating at full load over temperature range of 0-40°C, and with derating to 50% at +60°C, adapters require 90-264 Vac universal input. They include overvoltage and overcurrent protection.

Pepperl + Fuchs, Inc.    Twinsburg,, OH 44087 2245

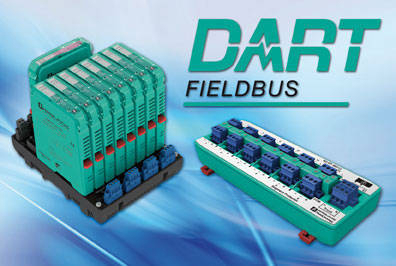

Apr 06, 2011 Dynamic Arc Recognition and Termination System (DART) is power supply and control system for fieldbus installations in intrinsic safety environments. Feeding power of 8-50 W, product detects change in current resulting from electrical fault where explosive spark is possible and immediately switches off power. Power is shut off in microseconds, robbing spark of energy needed to ignite hazardous gases. Up to 32 devices are supported in segment, and cable lengths as long as 1,000 m are possible.

Lowell Corp.    West Boylston, MA 01583
Apr 06, 2011 Designed with bolt-thru feature that facilitates access to nuts on any threaded length, SureTork® wrench facilitates clamp installation by ensuring nuts are always properly torqued. Click-type torque handle with quick release socket head accepts Lowell standard or extended reach sockets. Measuring 20 in. long and weighing 5 lb with head and one socket, wrench offers torque range of 30-150 lb-ft and supports field-adjustments in 1 lb-ft increments.

TE Connectivity Ltd.    Berwyn, PA 19312

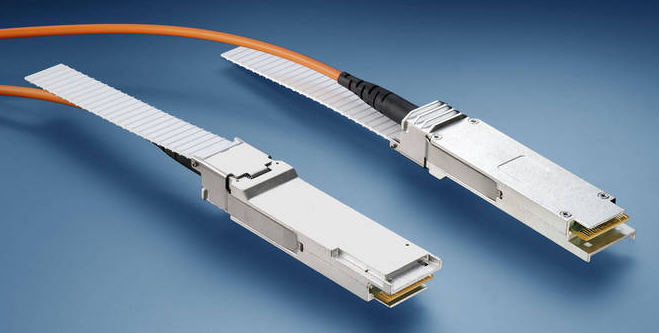

Apr 06, 2011 Designed with internally terminated optics, PARALIGHT QSFP+ cable assemblies have passively cooled design and fully integrated optical engines. Cable management is facilitated via 3.0 mm dia and tight bend radius. Electrical-optical and optical-electrical conversion are built into connector shell. Cables feature 7 transmit and 4 receive channels for InfiniBand standard SDR, DDR, and QDR applications. With 850 nm VCSEL technology, cable assemblies operate over 2.5-10 Gbps per lane.

Tingue Brown & Co.    Saddle Brook, NJ 07663
Apr 06, 2011 Waterproof and washable Elastoliner create sanitary barrier inside laundry carts, trucks, baskets, and hampers to prevent cross-contamination from soiled laundry during transit or storage. Also suited for protecting clean linens from contamination due to contact with interiors, these custom-sized cart liners are manufactured from 100% nylon in choice of 200 or heavy-duty 430 Denier with internal elastic cord for gripping rim and maintain shape.

Bobcat Company    West Fargo, ND 58078
Apr 06, 2011 Model S750 skid-steer loader features 11 ft of vertical lift, 23 gpm standard hydraulic flow, operating weight of 8,730 lb, and rated operating capacity of 3,200 lb. Loader is powered by 85 hp turbo-diesel engine and has cab-forward design that provides visibility in all directions. In addition to keyless start that helps prevent theft, cab features include 5 in. color LCD and instrumentation panel that intelligently monitors key loader functions.

Bobcat Company    West Fargo, ND 58078
Apr 06, 2011 Powered by 85 hp turbo-diesel engine, T750 has rated operating capacity of 3,325 lb, lift height-to-hinge pin measurement of 132 in., 23 gpm standard hydraulic flow, and operating weight of 10,327 lb. Panel intelligently monitors key loader functions, and keyless start helps prevent theft. Mounted directly to front plate of lift arm, auxiliary hydraulic quick couplers provide solid mounting, and cab-forward design promotes visibility in all directions.

Daimer Industries Inc    Woburn, MA 01801
Apr 06, 2011 Vapor-Flo® 7600 series electric power washer systems include mobile models 7600, 7625, and 7675 as well as static model 7650. Offering cleaning temperatures up to 79.4°C, systems are rated to pressure levels of 130 bar and water flows of 3.8 Lpm. Driven by commercial-duty, 2.0 hp motor systems, machines offer no-exhaust heating via all-electric coil-enhanced heater. They use electricity for heating and pressure and reach maximum temperature in less than 25 sec.

Select-Arc, Inc.    Fort Loramie, OH 45845-0259

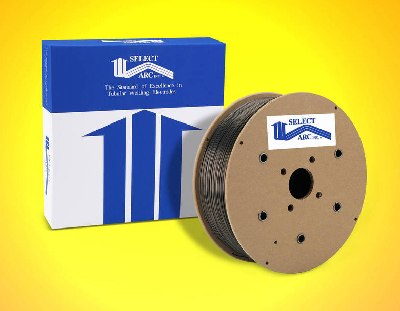

Apr 06, 2011 Composed of nominal weld metal compositions of 30% chromium, 9% nickel, and 0.1% carbon, SelectAlloy 312 and SelectAlloy 312-C produce 2-phase weld metal with substantial ferrite in austenitic matrix. Flux-cored SelectAlloy 312 welds dissimilar metals such as carbon steels to stainless steels high in nickel, while metal-cored SelectAlloy 312-C welds dissimilar metals at elevated speeds. Both gas-shielded electrodes are available in .045 in. and 1/16 in. diameters.
