Rockford Systems, Inc.    Rockford, IL 61109 2695
Apr 26, 2011 Available for vertical milling machines, electrically interlocked heavy-duty milling machine shields exceed OSHA and ANSI safety requirements. Products consist of thermo-formed, impact-resistant, transparent, polycarbonate front shield in tubular-steel frames. When shield is swung out of position at either of 2 safety microswitch location, positive contacts open and send stop signal to machine control. Each shield can be positioned for maximum protection during operation.

SUI    Princeton, NJ 08540

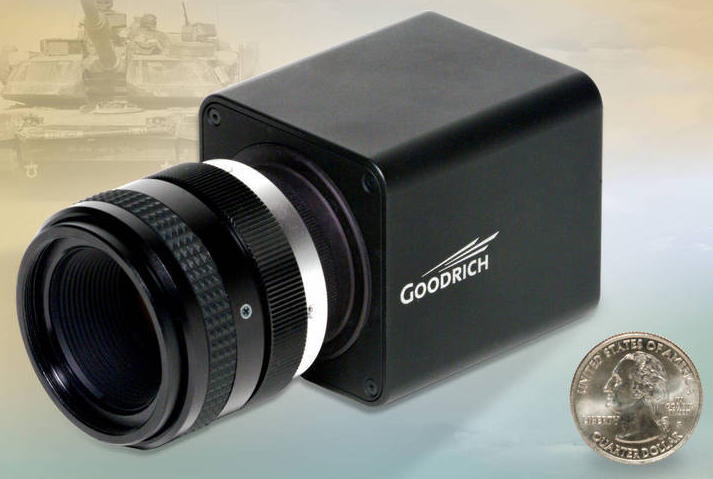

Apr 26, 2011 J-Series model GA-1280J-15A features 1,280 x 1,024 pixels, with 15 µm pitch and 60 Hz full frame rate. Measuring less than 4.3 in.³, solid-state unit fits onboard unmanned aerial and ground vehicle systems as well as in handheld and mobile surveillance systems. Also available in OEM model, uncooled camera comes in versions that operate in SWIR range from 0.9-1.7 µm and NIR-SWIR range from 0.7-1.7 µm. Both image through fog, smoke, haze, or dusty conditions and low-light to daylight conditions.

STMicroelectronics    Lexington, MA 02421

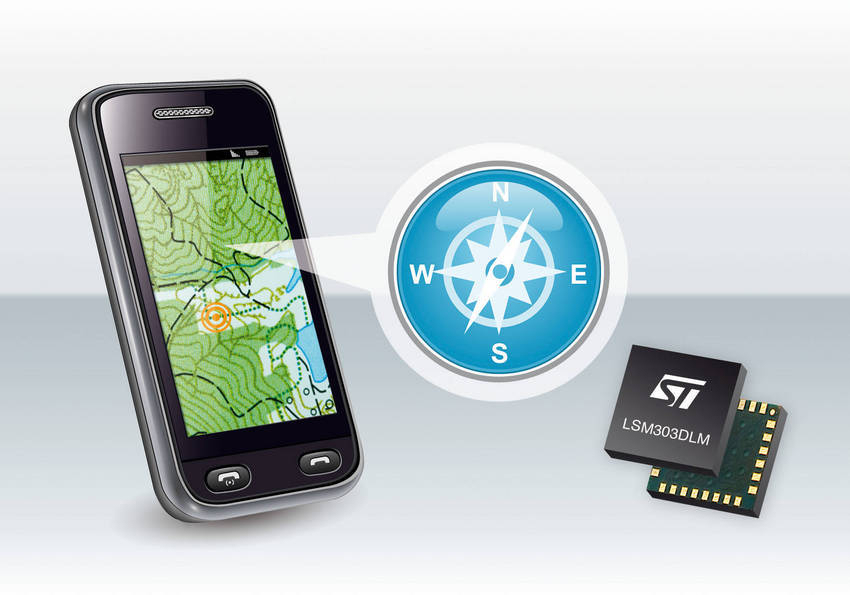

Apr 26, 2011 Model LSM303DLM geo-magnetic digital compass module offers 3-axis sensing of linear and magnetic motion. Built into 5 x 5 x 1 mm package, MEMS-based unit also provides 6D orientation detection; 2 programmable interrupt signals that enable notification of motion detection and free fall; and wake-up/power-down functions. Operating power consumption is 360 µA and product has accurate output across full-scale ranges of ±2, ±4, and ±8 G and from ±1.3 up to ±8 Gauss.

Supertex Inc.    Sunnyvale, CA 94619

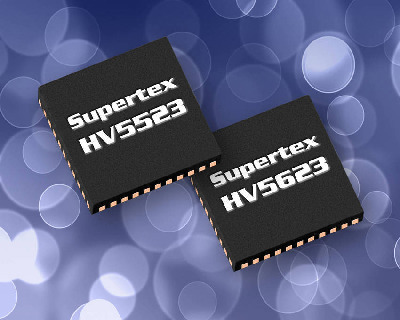

Apr 26, 2011 Housed in 7 x 7 mm, 44-lead QFN package, Models HV5523 and HV5623 feature 32-bit shift registers capable of up to 16 MHz, 32 latches, and 5 V control logic to perform polarity selection and blanking of outputs. Model HV5523 shifts data in counter-clockwise direction, while Model HV5623 does so in clockwise direction. RoHS-compliant devices suit applications driven by open drain output up to 220 V, such as inkjet printers, plasma panels, and vacuum fluorescent displays.

E-Switch Inc.    Brooklyn Park, MN 55428 1514

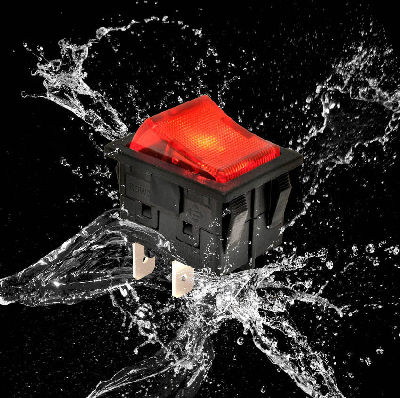

Apr 26, 2011 Designed for 22 x 30 mm panel cutout, RBW2 Series uses patented internal sealing technology to provide protection from dust and water while offering full illumination. Unit features contact resistance of less than 30 mW, insulation resistance of 500 MW at 500 Vdc, and dielectric strength of 1,000 Vac for 1 minute. Operating from -20 to +85°F, switch supports DPST Off-On and DPDT On-On functions.

GOEPEL electronics LLC    Austin, TX 78759

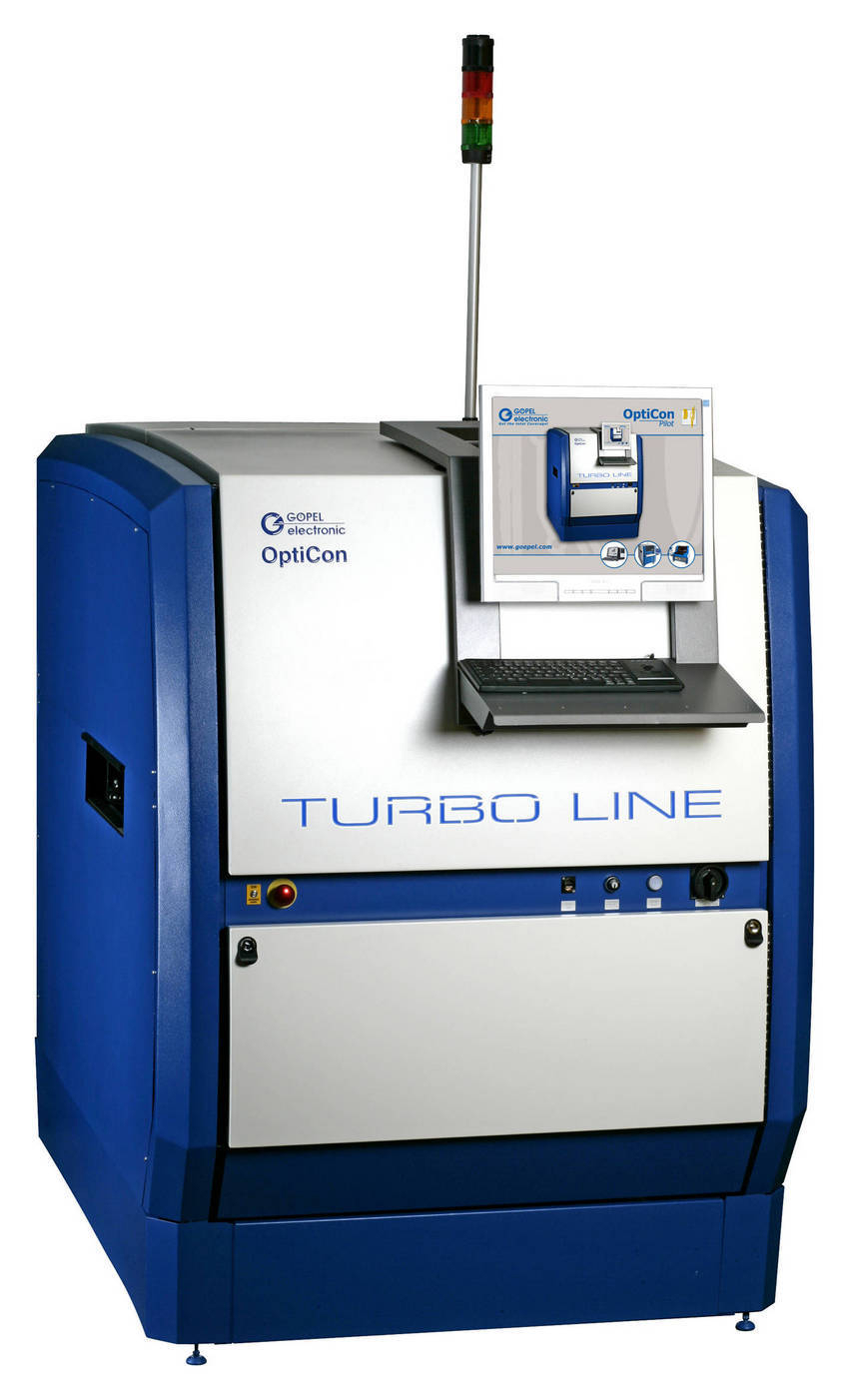

Apr 26, 2011 OptiCon automated optical inspection (AOI) systems are available with camera module featuring resolution of 3 µm to enable micrometer range inspection of bonding pads for solder splashes, deformations, and any other impurities. High-resolution camera system can be utilized parallel to test modules for component and solder joint inspection. Systems can be used in different PCB production areas, such as before or after soldering process and as stand-alone or inline machines.

Donaldson Australasia Pty Ltd    Wyong   Australia
Apr 26, 2011 Available in standard and anti-static versions, PowerCore CP Series can replace traditional baghouse technology for dust collection in industrial, grain handling, cement, plastic, and wood industries. UltraWeb nanofiber surface loading technology with corrugated, fluted media optimizes particulate collection efficiency. Featuring built-in handles, filter packs facilitate change-outs, which are accomplished in minutes without tools.

Kin-Tek Laboratories    LaMarque, TX 77568 4202
Apr 26, 2011 Trace Source(TM) 57FPK Gas Fed Permeation Tubes produce stable ppb calibration standards of arsine and other hydride impurities in polymerization-grade ethylene and propylene. Tubes are used with gas standards generating instrument to maintain them at constant temperature and flush them with olefin matrix gas. Flow of arsine from tubes mixes with this gas to create flowing calibration standard. Process enables concentrations from below 10 ppb to over 500 ppb of arsine to be produced.

Ironwood Electronics, Inc.    St. Paul, MN 55121
Apr 26, 2011 Model CBT-BGA-7007 features 0.5 mm pitch stamped spring pins with 26 g actuation force/ball, and 0.4 mm pitch etched spring pins with 34 g actuation force/ball, both which have cycle life of 500,000 insertions. Socket also features floating guide for precise ball-to-pin alignment. Operating in temperatures from -55 to +180°C, it is designed to test 12 x 12 mm, 0.4 mm BGA package in bottom socket and 12 x 12 mm, 0.5 mm pitch memory BGA in top socket. Unit mounts to PCB without soldering.

Henkel Corporation    Rocky Hill, CT 06067
Apr 26, 2011 Compatible with lead-free and tin-lead processes, Multicore MF210 offers pre-heat temperature of 80-130°C and 1-3 sec contact time on wave, delivering sustained activity without resin. Activity capability helps minimize solder microballing by optimizing coalescence and limiting stray particles around solder joint. Supporting single- and dual-wave processes with no degradation in activity, halide-free formulation is effective with solder resists as well as rosin and OSP-based protectants.

TE Connectivity Ltd.    Berwyn, PA 19312
Apr 26, 2011 Featuring waterproof, dustproof, and corrosion-resistant design with metal die cast bulkhead, FullAXS provides SFP connection between remote radio and base station for telecommunications applications. Unit offers bayonet locking and provides positive mechanical feedback to inform operator when connector is fully mated. Providing duplex LC interface for mating with all LC duplex SFP transceivers, connector can be designed for single mode or multimode optical transmission applications.

Stafford Mfg. Corp.    Wilmington, MA 01887
Apr 26, 2011 Featuring triple-link hinge and captive clamping screw, Custom Hinged Collars can be manufactured from aluminum, brass, bronze, steel, stainless steel, titanium, and other alloys. Typical modifications include square, hex, contoured, and threaded bores; OD and face treatments, such as wrench flats and spanner wrench holes; and swing-away clamping handles. These hinged shaft and pipe clamping collars come in IDs from 1/8-13 in. and widths from ¼-6 in.

Envirosight LLC, Video Pipeline Inspection    Randolph, NJ 07869
Apr 26, 2011 Delivering 1 ¾ hp at 12,000 rpm, air-powered Titan 150(TM) cleanly cuts pipe and liner material. Cutter arm, with 2-axis, variable-speed articulation and creeping, reaches up 9 in., sweeps 400°, and also performs horizontal front cutting. Also capable of adapting to CUES CCTV crawler control equipment, system features lightweight hose design that allows travel up to 400 ft. Other features include vane motor, water-flushed pan/tilt color camera, and cooling via water quenching.

Eriez Magnetics    Erie, PA 16506
Apr 26, 2011 Eriez Pull Test Kit helps monitor efficiency of magnetic separator by measuring holding force of magnet. This quality assurance device includes one graduated scale, 4 non-magnetic spacers (¼, two ½, and 1 in. thick), one 1/8 x 1 x 3 in. steel plate, one 1/8 x 1 x 3 in. steel plate with attached radius non-magnetic spacer, one 1 in. dia steel ball, and one ¼ in. dia steel ball, all housed in hard plastic case. Kit is designed for use on variety of magnetic separators.

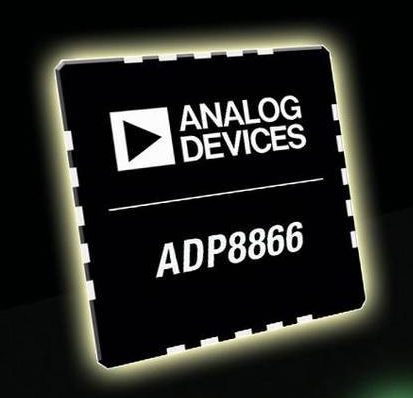

Analog Devices, Inc.    Norwood, MA 02062-9106
Apr 26, 2011 Model ADP8866 LED charge pump backlight driver provides independent control of LEDs, which allows designers to program different currents for each channel and enable them at different times. Programmable fade on/off and blinking sequences allow complex LED effects to be generated automatically and for battery life to be maximized. Requiring less than 1 µA during standby, unit consumes less than 325 µA during automated blinking sequences and is suited for use in portable systems.

Slideways, Inc.    Worcester, MA 01605

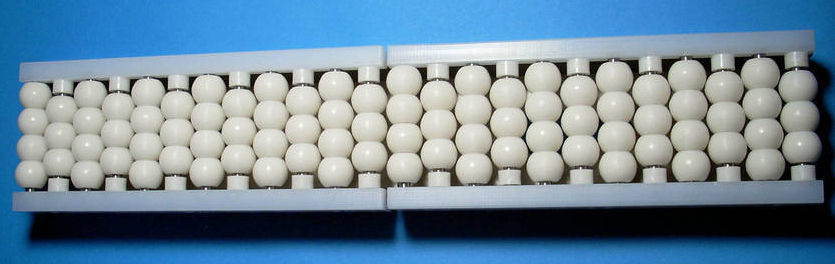

Apr 26, 2011 Heavy-duty SlideRails provide low-friction service in accumulators and combiners. Made from acetal, white beads have operating temperature of 180° suited for serving range of applications. Channels, made from 10-gauge stainless or galvanized steel, utilize 304 stainless steel pins with glass-filled nylon pin rails. Products are designed with 2 in. fastening key slots for 3/8 in. carriage bolts and are on 12 in. centers. Heights of 2 and 3 in. and lengths from 2-10 ft are available.

O.BERK Co.    Union, NJ 07083

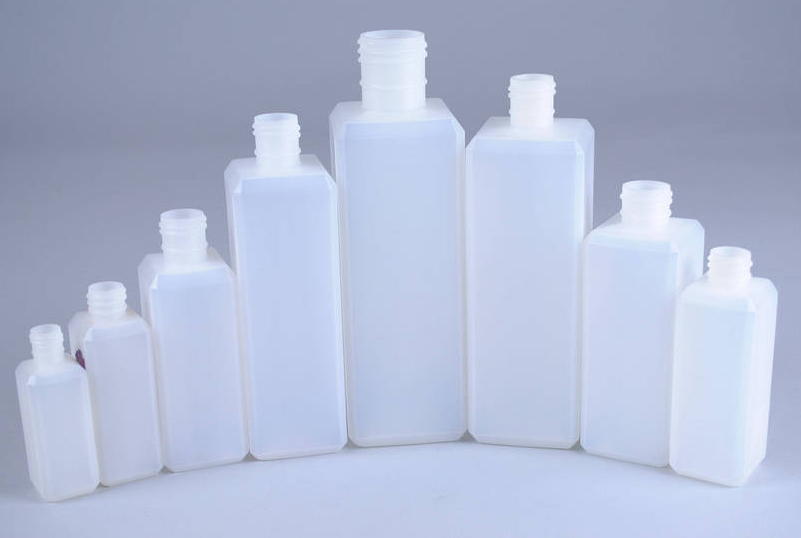

Apr 26, 2011 Available in 8 sizes from 1-16 oz, Beveled Square Collection is suited for moisturizers, body lotions, suntan, and other skin care products. Any size may be paired with choice of closure: screw caps, flip tops, or spray pumps. Decorating options, from frosting to hot stamping and labeling to silk-screening, enhance retail presence and are performed to exact customer specifications.

IntelLiDrives Inc.    Philadelphia, PA 19152

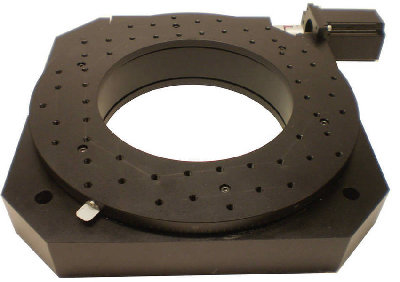

Apr 26, 2011 Constructed of anodized aluminum, RTLA-130 features micro-step drive that enables angular speed up to 20°/sec and double row of preloaded bearings that allow for off-center loads. Device offers load capacity of 50 kg and travel range of 360° with 0.001° resolution and 0.005° repeatability. Measuring 240 x 240 x 62 mm, stage is equipped with precision ground and hardened worm gear, 2-phase stepper motor, and Omron optical home sensor.

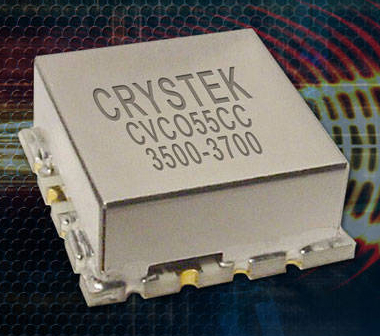

Crystek Corp.    Fort Myers, FL 33913
Apr 26, 2011 Operating from 3,500-3,700 MHz with control voltage range of 0.1-16 V, model CVCO55CC-3500-3700 has typical phase noise of -108 dBc/Hz @ 10 kHz offset and typical output power of +5 dBm. Input voltage is 8 V, with max current consumption of 30 mA, and second harmonic suppression is -20 dBc typical. Supplied in 0.5 x 0.5 in. SMD package, VCO offers minimized pulling and pushing values of 2.5 MHz and 1.0 MHz/V, respectively.

Cal Sensors, Inc.    Santa Rosa, CA 95403
Apr 26, 2011 With sensitivity of 1.5 x 10¹⁰ Jones in 1-5 µm wavelength region, Lead Selenide Position Detectors can identify and track location of infrared sources. Multi-channel format allows technology to zoom in on hot spots or other IR emissions, making detectors suitable for weapons targeting, security and defense counter-measures, and hot spot detection for fire fighting. Integrated software provides real-time streaming data on target position relative to detector location.
