General Pipe Cleaners    McKees Rocks, PA 15136
Apr 12, 2010 Gen-Eye SD(TM) video pipe inspection and location system, supplied in padded package that weighs 10 lb, features Command Module with 8 in. color LCD, SD Card Reader, and full keyboard. Docking arm can be used to mount on full size reel to troubleshoot 3-10 in. lines or mini reel to view 2-4 in. lines. In addition to voice over microphone and switch, features include LED dimmer control, camera test port, video and audio out connections, and storage compartment.

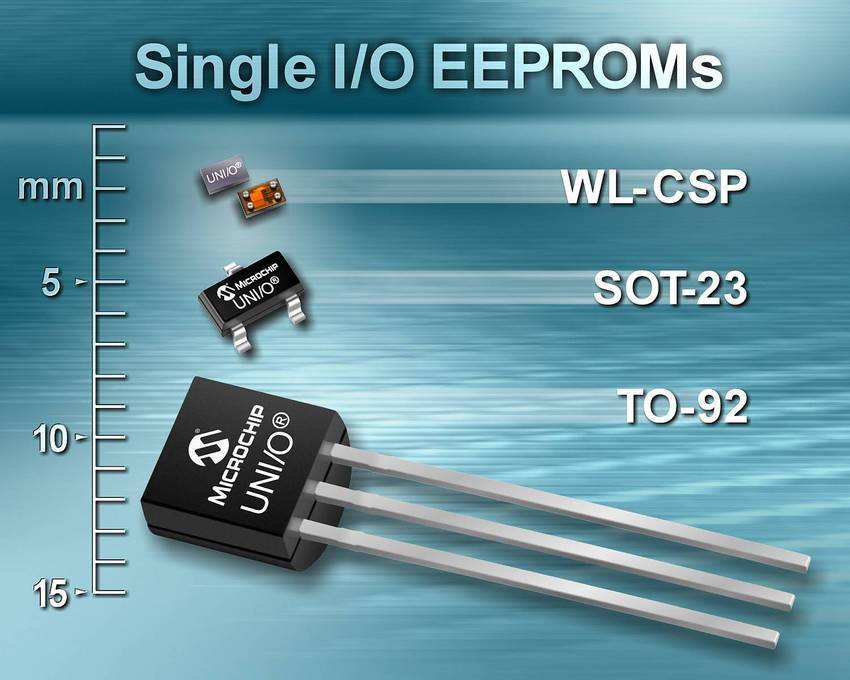

Microchip Technology, Inc.    Chandler, AZ 85224 6199
Apr 12, 2010 Single-I/O bus UNI/O® EEPROM devices are available in packages that support specific manufacturing flows. Respectively rated at 16 and 2 Kbit, 11AA160 and 11AA020 are available in 0.85 x 1.38 mm Wafer-Level Chip-Scale Package (WLCSP) for use with pick-and-place machines. Both models, in addition to 1 Kb 11AA010, are also available in 3-pin TO-92 package commonly used when manufacturing flow consists of hand-assembly process mounted directly on cable assemblies.

Airtec Products Corp    Fall River, MA 02720
Apr 12, 2010 Able to be field-installed in 72 sec or less, MV Series diffuser/damper/collar is constructed of scratch- and heat-resistant, rust-proof white engineered polymer and comes in 8 x 8 and 6 x 6 in. square or 8 and 6 in. dia round styles. Seamless, airtight sealed construction will distribute air with virtually no leakage, and included 90° butterfly damper features rubber gasketed construction and adjustable, anti-binding, corrosion-resistant mechanism.

Stanley-Proto Industrial Tools; A Division of The Stanley Works    Conyers, GA 30013
Apr 12, 2010 Placed between multiplier and fastener, Proto® Torque Multiplier Display Wrench helps tighten/loosen stubborn fasteners and eliminates need for long levers. Torque is measured directly at fastener with ±1% accuracy and displayed to ensure proper application of final torque. This eliminates need for manual calculation as well as associated mistakes. Measuring 24 in. long, tool has 1 in. drive and comes in 2 torque ranges: 100-1,000 lb-ft (J6349A) and 200-2,000 lb-ft (J6352).

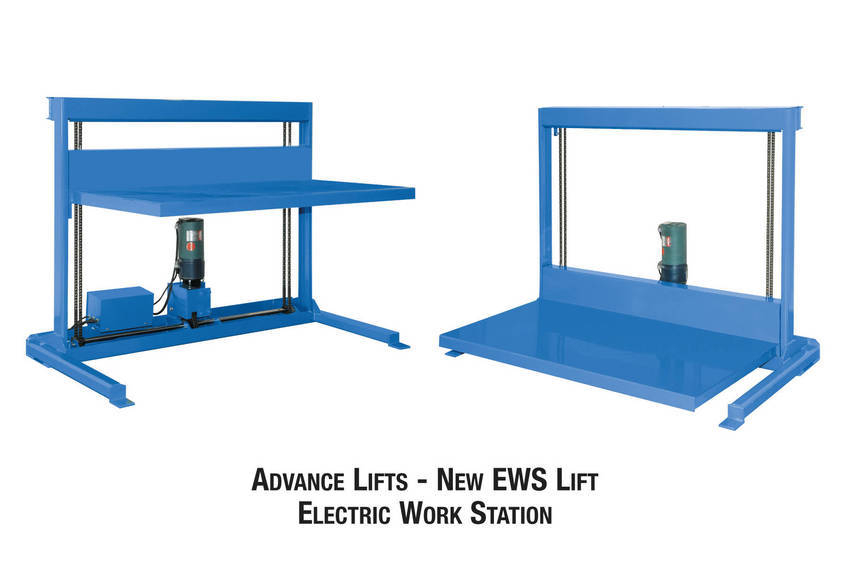

Advance Lifts, Inc.    St. Charles, IL 60174
Apr 12, 2010 Featuring open area under platform that facilitates straddle stacker access, EWS all-electric lift is suited for applications where air is not easily available and hydraulic fluids cannot be tolerated. It employs standard 115 V power units, and rear mounting increases accessibility when lift is in down position to aid maintenance. Lift is available with full compliment of options to suit needs of individual applications.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Apr 12, 2010 Datel Digital Panel Meters ACM20 series measures and displays frequency in Hertz in addition to indicating true-rms AC Volts, Amps, and Watts. Measurement ranges of 0-32 and 0-100 A respectively offer resolutions of 0.01 and 0.1 A. Accurately displaying true-rms voltage and current values of triangle/square waves and other irregularly shaped waveforms, UL-Approved products feature typical FS accuracy of ±0.5%. Max power reading for 100 A models is 26.4 kW.

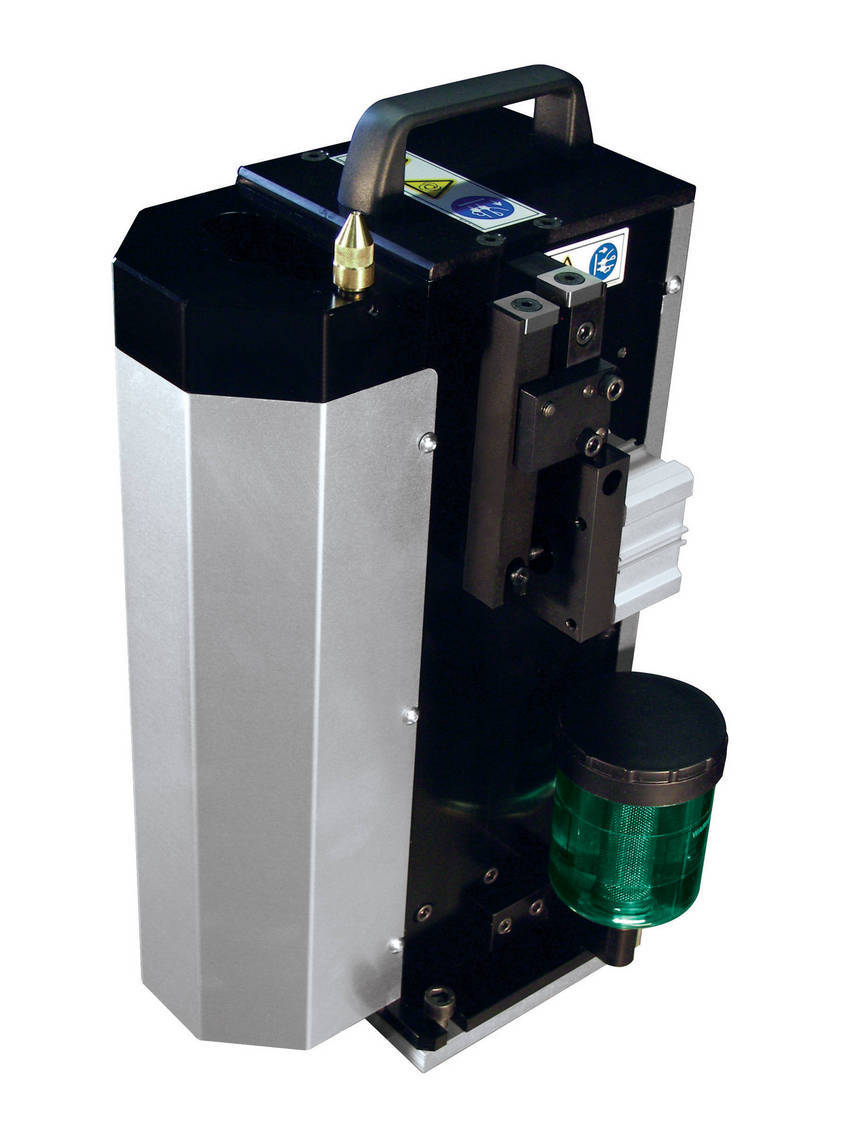

Tregaskiss, Ltd.    Oldcastle, ON N0R1L0  Canada
Apr 12, 2010 Hard wired to integrate with existing robotic or PLC automation controls, TOUGH GARD(TM) runs on 24 Vdc and as little as 60 psi, and effectively removes spatter build-up from MIG welding consumables. Compact all-in-one cleaning station includes sprayer and wire cutter within robotic weld cell measuring 9.75 x 9.75 x 17.5 in. Wire cutter re-dresses welding wire for accurate arc starting, while sprayer applies thin layer of TOUGH GARD Anti-Spatter Liquid to protect front-end consumables.

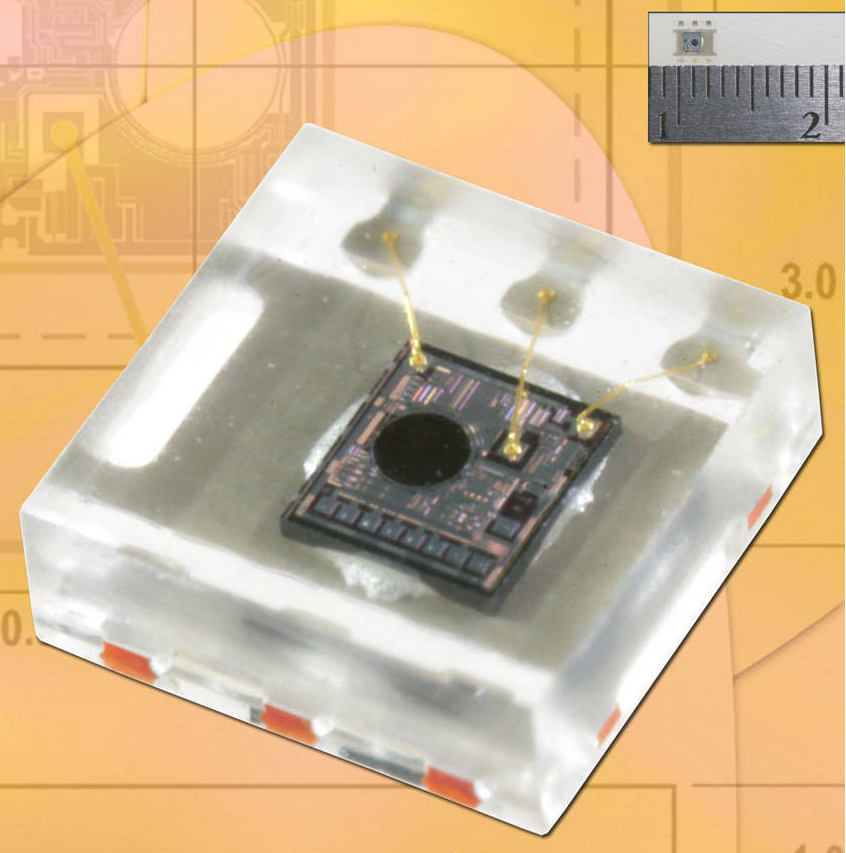

Optek Technology, Inc.    Carrollton, TX 75006-6905
Apr 12, 2010 Featuring data rates to 250 kbaud, miniature OPL611 series photo light sensors consist of Photologic® chip encapsulated in transparent molded plastic, providing optical coupling and mechanical protection. Sensors are available with buffer and inverter 10 K internal pull-up, open collector outputs, and direct TTL/LSTTL CMOS interface. Measuring 3 x 3 x 1 mm, surface mount units accept input power of 1.0 mW/cm², have VCC range of 4.5-16 V, and operate at -40 to +85°C.

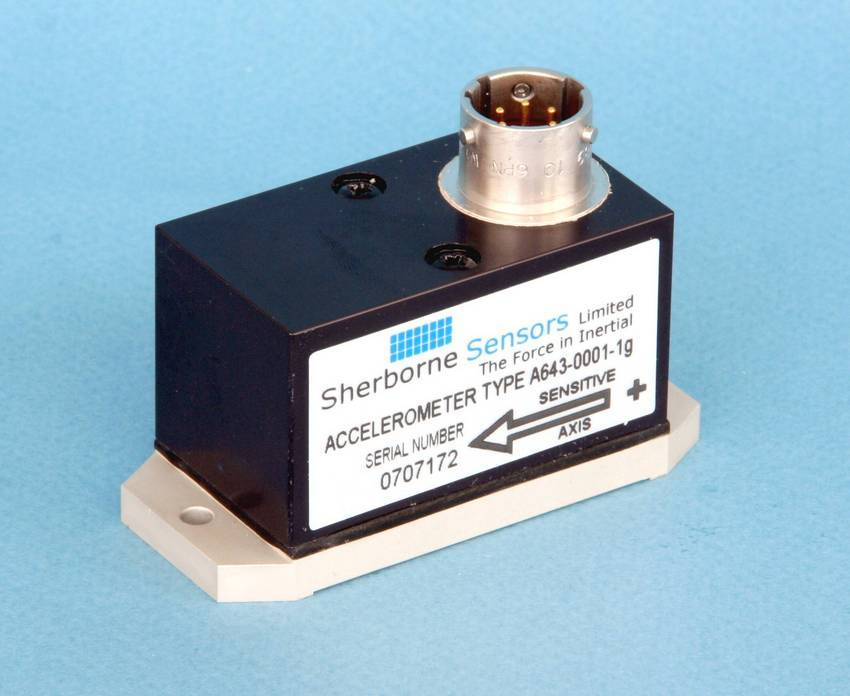

Sherborne Sensors Limited    Hampshire RG21 6YH  United Kingdom
Apr 12, 2010 Available in ranges from ±1 to ±20 g with ±5 Vdc output, A640 series accelerometers have solid-state MEMS sensor, incorporating integral air damping, and offer precision measurement capabilities in variety of applications. Units incorporate positive mechanical stops, perform over wide temperature range of -40° to +100°C, and operate from unregulated dc power source. Standard features are unfiltered output that offers frequency response up to 600 Hz, and 5 Hz low pass filtered output.

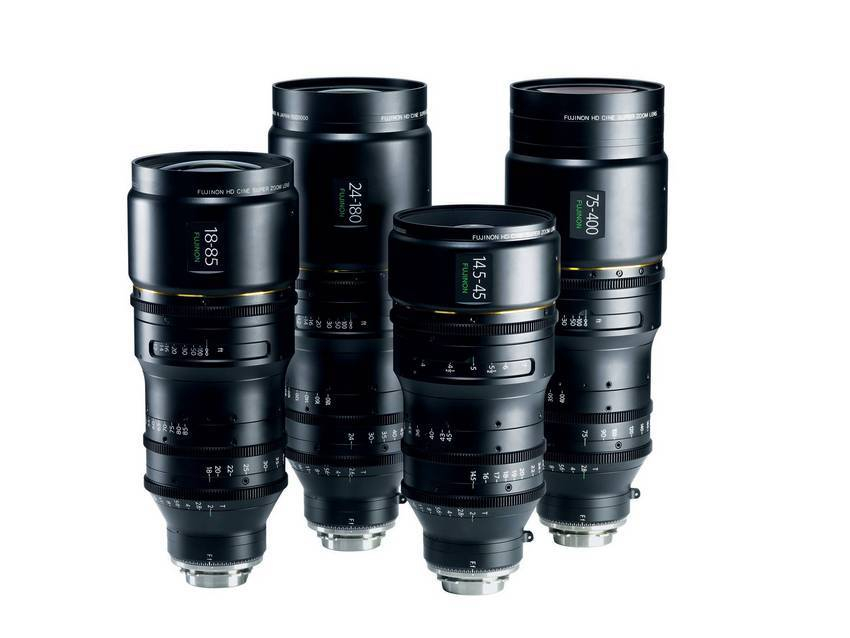

Fujinon, Inc.    Wayne, NJ 07470
Apr 12, 2010 Designed for current and emerging 35 mm format film and digital cinema motion picture cameras, PL Series 24-180 mm model T2.6 and 14.5-45 mm model T2.0 offer T-stop and feature 136 mm front dia. Focus, zoom, and iris gears are all in same position to speed up lens changes, while focus barrel rotation is uniform 280°.

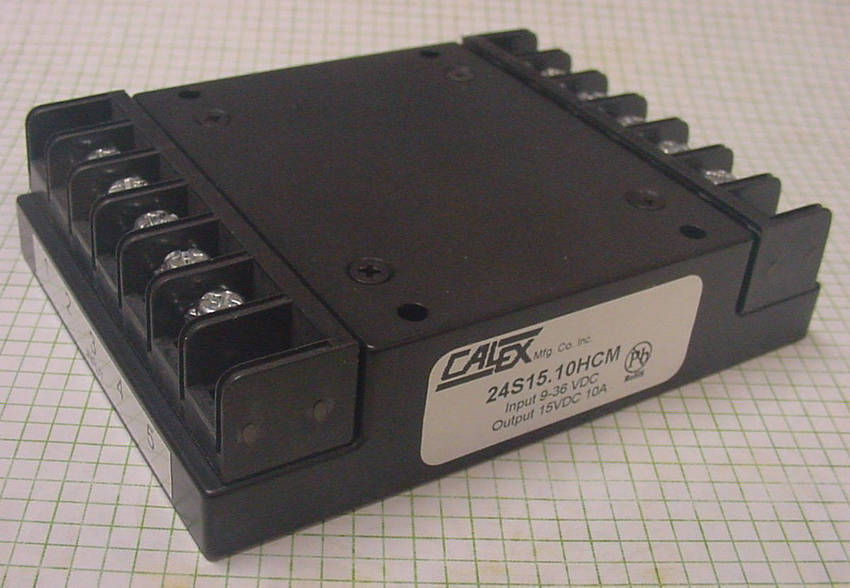

Calex Mfg. Co., Inc.    Concord, CA 94520
Apr 12, 2010 Available in case with dimensions of 4.3 x 3.2 x 1 in., 150 W HCM Series have input voltage range from 9-36 Vdc and 18-75 Vdc, and output voltages of 3.3, 5, 12, 15 and 24 Vdc. RoHS compliant units in case have operating temperature range between -40°C to +100°C, MTBF of over 1M hr, and weigh 11.4 oz. Electrical features include volt-seconds clamp, over voltage protection, pulse by pulse current limiting, auto-softstart, dead short shut-down, and remote sensing.

TDK-Lambda Americas Inc.    San Diego, CA 92154
Apr 12, 2010 With footprint of 3 x 5 in., single-output 100-150 W CSS150 series is suited for non-patient contact medical and dental applications. They have low leakage current of less than 250 µA at 264 Vac, 63 Hz. Open-frame supplies feature voltage input range between 90-264 Vac, and 47-440 Hz, and can be operated from 120-180 Vdc input. Units are designed to withstand 4 kVac, input-to-output and are available with output voltage of 12 V, 15 V, 36 V, or 48 Vdc, with ±3% adjustment range.

SJE Rhombus    Detroit Lakes, MN 56502
Apr 12, 2010 Enabling users to make adjustments at control panel rather than in tank, C-Level(TM) floatless sensor converts water pressure in tank into low-voltage electrical signal and sends it to IFS control panel. IFS panels offer simple operation, digital display of settings, and data-logging capabilities. Sensor also provides option for redundant pump off float and high water alarm float for regions that require float for tank level monitoring operations.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Apr 12, 2010 Offered in dia of 0.157-0.500 in., CoroDrill® 854 and CoroDrill® 856 are designed to withstand carbon fiber reinforced plastics and aluminum stacks in aerospace applications. Suited for high fiber content materials, model 854 addresses splintering or fraying problems, while model 856 eliminates delamination in resin-rich materials. Available in standard N20C solid carbide versions with diamond coating, both products help eliminate burrs and enhance surface finish.

NewLeads, Inc.    Ventura, CA 93003
Apr 12, 2010 RegPartner Version 4.3 integrates attendee registration, badge creation, vendor lead retrieval systems, event/session attendance tracking, and certificate creation. Useful for documenting accreditation units, it also allows attendees to register online before event or on-site. Keychain scanners allow for entry or exit verification of attendance. In addition to showing who attended each session, reports show most attended sessions as well as statistics and charts.

NXP Semiconductors    NanGang District   Taiwan
Apr 12, 2010 Models LPC1769 and LPC1759 offer 256-point 16-bit FFT execution time of less than 190 µs and, for 1,024-point 16-bit FFT, execution time is less than 0.89 msec. Units include 512 KB Flash, 64 KB SRAM, USB 2.0 Host/On-The-Go/Device, CAN 2.0B interfaces, 12-bit ADC, 10-bit DAC, I2C, SPI, UARTs, and other peripherals. In addition, LPC1769 features 10/100 dedicated Ethernet Direct Memory Access controller. Both are supported by various development tools, RTOSs, and middleware.

NXP Semiconductors    NanGang District   Taiwan
Apr 12, 2010 Offered in ultra-low VCEsat and high-speed switching versions, BISS-4 (Breakthrough In Small-Signal) transistors are available in 20-60 V range and come in 2.9 x 1.3 x 1 mm SMD SOT23 and 2.9 x 1.5 x 1 mm SOT457 packages. Ultra-low VCEsat versions enable saturation voltage below 50 mV at 1 A, while high-speed switching versions come with reduced switching and storage times down to 125 ns. DC collector current is 4.3 A (peak ICM 8 A).

Bruck Lighting Systems, Inc    Tustin, CA 92780
Apr 12, 2010 Ledra® Chroma and Chroma II fixtures exhibit fixture-to-fixture color consistency of ±50 Kelvin, achieved via use of single-source LED module with cold remote phosphor technology. While Chroma accommodates different interchangeable reflectors or decorative white glass shade for various beam spread angles, fixed snoot design of Chroma II has 40° internal reflector with clear glass lens. Integral driver works with Bruck tracks featuring 12 Vac transformers using appropriate adaptor.

NXP Semiconductors    NanGang District   Taiwan
Apr 12, 2010 Model IP4284CZ10 delivers 8 kV of contact ESD protection, which is at level 4 according to IEC61000-4-2 standard. Differential crosstalk is -70 dB at 2.5 GHz and typical line to line capacitance matching is 0.05 pF, while pass-band ranges up to 8 GHz. Product has channel capacitance of 0.5 pF, in range of 0-5 V independent of bias voltage. It is available in 1.0 x 2.5 x 0.5 mm, leadless SOT1059 or leaded, 3.0 x 3.0 x 1.1 mm TSSOP10 package.

Elemental Technologies, Inc    Portland, OR 97204
Apr 12, 2010 Elemental(TM) Live video processing system provides users with video/audio encoding for live streaming. Device encodes 4 simultaneous 1080p output streams or up to eight 720p output streams. Fitting into any existing video content creation and delivery workflow, GPU-accelerated system includes web-based interface with real-time operator controls. Unit supports CableLabs® compliance for streaming to cable set-top boxes, standards for HTML 5, and encoding for stereoscopic content.
