ICS Electronics Corp.    Pleasanton, CA 94588
Mar 19, 2012 Used for controlling I²C devices from GPIB Bus, Model 4802 provides I²C serial bus, 8-bit parallel bus, and asynchronous serial interface. I²C signals control devices that comply with I²C Specification v3.0 dated June 2007 and also with SMBus Specification 2.0 when used in Standard Mode with 100 kHz bit rate. This IEEE-488.2 compatible interface board may also be used in Fast Mode with 400 kHz bit rate and Fast Plus Mode with 1 MHz bit rate.

Allegro MicroSystems Inc.    Worcester, MA 01615
Mar 19, 2012 Intended for analog and digital satellite receivers, Model A8299 is a monolithic linear and switching voltage regulator that provides power and interface signals to LNB down converter via coaxial cable. Unit requires few external components, with boost switch and compensation circuitry integrated inside. Housed in 5 x 5 x 0.90 mm QFN-28 package, regulator meets or exceeds OEM requirements for satellite set top box designs.

Murata Electronics North America, Inc.    Smyrna, GA 30080
Mar 19, 2012 Measuring 5.7 x 5.0 x 2.1 mm, Model LXDC55B features input voltage of 2.7-5.5 Vdc and can support output currents up to 3.0 A. Single output models provide 1.2, 1.8, 2.5, 3.0, or 3.3 Vdc nominal output. Measuring 4.0 x 4.0 x 2.0 mm and operating as output boost converter, Model LXDC44A delivers up to 0.7 A at 5 Vdc from input of 2.7-4.5 Vdc. Both multi-layer devices are constructed on ferrite substrate with embedded inductor, power IC, and I/O capacitors.

Micro Motion Div., Emerson Process Management    Boulder, CO 80301

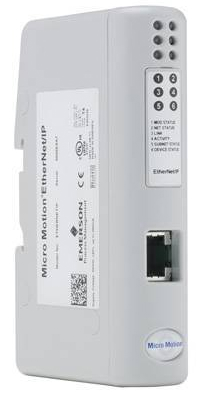

Mar 19, 2012 Suited for new or retrofit installations, EtherNet/IP(TM) Module is compatible with all Micro Motion Coriolis flowmeters and is suited for hazardous areas. Device provides access to multivariable data including flow, density, temperature, and other parameters. Web browser offers network access to configuration and diagnostic interface, enabling full range of remote activities. Mounted in control cabinet, module eliminates need to run Ethernet cabling out to field.

Fluid Imaging Technologies    Yarmouth, ME 04096
Mar 19, 2012 Detecting thousands of particles and microorganisms in sample in less than 1 minute, FlowCAM® PV-5x and PV-10x Particle Vision Series takes full color digital image of each particle detected while measuring them based on actual size and shape of images and characterizing them with up to 32 parameters - all in real-time. Analyzers process both liquid and fluidized dry products with particles ranging from 2-800 µm in size and samples as small as .1 mL with up to 90% volume efficiency.

Laird Technologies    Earth City, MO 63045
Mar 19, 2012 Intended for in-building wireless solution providers, omnidirectional CMS69273 provides indoor cellular coverage for GSM, DCS, UMTS, and LTE/WiMAX standards in 698-960, 1,575, and 1,710-2,700 MHz frequency ranges. Uniform and symmetrical pattern, shaped to provide optimal performance and maintain integrity from ceiling mount location, lets system integrators precisely determine cell size. Mounting options include flush mount with screws and anchors or threaded stem.

Larson Electronics, LLC    Kemp, TX 75143
Mar 19, 2012 Extendable to 8 ft in height and equipped with 60 W LED light head, Model LED10W-6RT-LT produces 4,800 lumens and is capable of illuminating 270 x 240 ft area. IP68-rated light head is waterproof, adjustable, and also available in spotlight configuration. Powered by 33 A AGM SLA battery with 500+ charging cycle rating, tower provides 6.5 hr illumination on single charge. Charging options include connection to common 115 Vac wall outlets or 12 Vdc through 12 V adapter with cigarette plug socket.

Platinum Tools    Camarillo, CA 93012
Mar 19, 2012 Measuring 5 x 3.25 x 1 in. and weighing 3.7 oz, BR1 Multi-Stripper (part No. 15041C) is capable of working with diverse voice, data, and video cable types/sizes. Pre-set coax cassette blades are included along with adjustable stripper for twisted pair and audio cables as well as cutters for cable and wire conductors. Tool comes standard with braid comb, Velcro, for folding braid back over cable jacket.

Dwyer Instruments, Inc.    Michigan City, IN 46361

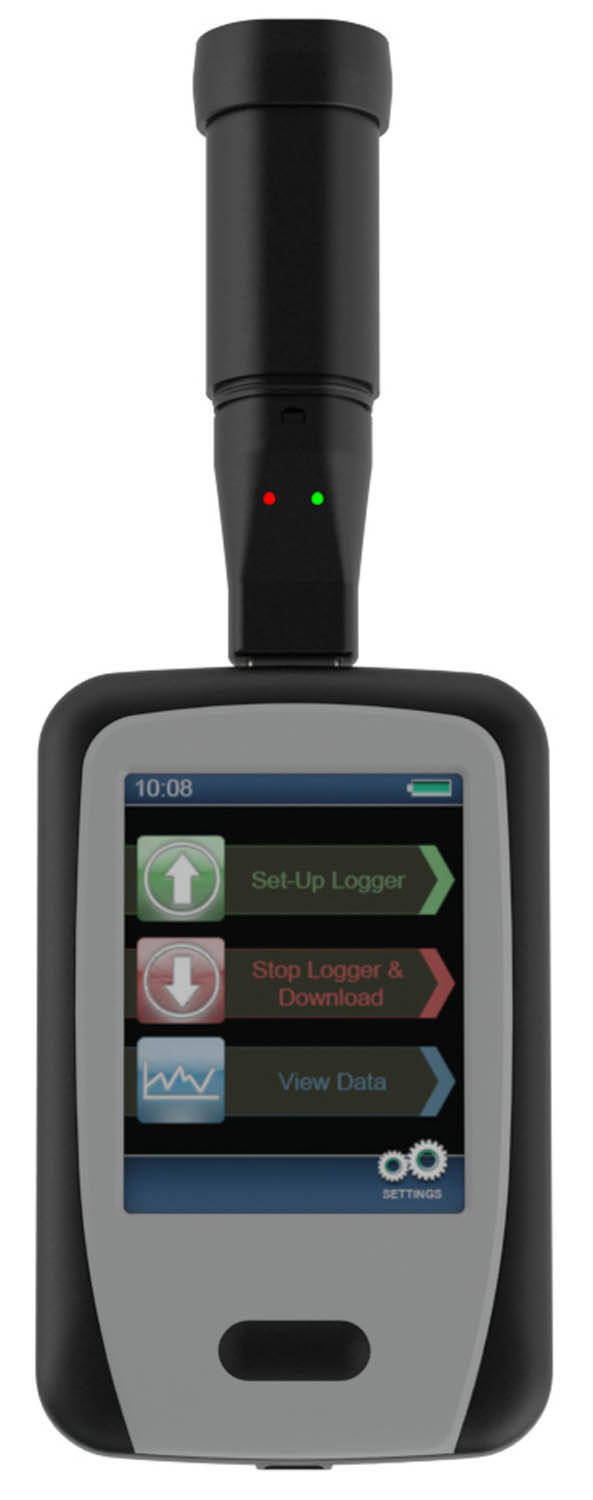

Mar 19, 2012 Model DW-DataPad Handheld Portable Data Viewer can configure as well as read data from up to 500 DW-USB data loggers. Color, 2.8 in. TFT touchscreen, optimized for readability, facilitates navigation through configuration menus. Data downloaded to viewer can be displayed as trend graph or statistical summary. Also, stored data can be transferred to computer via included micro-USB cable and Windows®-based software. Rechargeable battery lasts 5-8 hr typ under constant use.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Mar 19, 2012 Offered in molded package in 5 standard EIA-535BAAC case codes, TANTAMOUNT® TL3 Series features capacitance range of 0.1-470 µF over voltage ratings from 4-63 Vdc with capacitance tolerances of ±10% and ±20%. Designed to extend battery runtime in portable devices, surface-mount capacitors are suited for portable instrumentation, tire-pressure monitoring, medical instruments, local power supplies, hand-held instruments, and battery backup supplies.

Worksaver Inc.    Litchfield, IL 62056
Mar 19, 2012 Designed for contractors and suited for handling pallets of bricks or boxes, SSPF-3748 has one-piece backstop with class II tapered forks rated at 4,000 lb for pair. All-welded design offers see-through visibility, and product can also fit tractor loaders that use skid steer attaching systems. Able to mount to skid steer buckets without use of tools, forks extend 14.5 in. under bucket and 8 in. inside bucket to support load.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Mar 19, 2012 Packaged in through-hole mount ¼-brick format measuring 58.4 x 36.8 x 11.7 mm, UWQ Series features 4:1 input voltage of 18-75 Vdc and provides single output voltage of 12 Vdc up to 17 A of current. Line and load regulation are ±1% and ±1.5%, respectively, and input to output isolation is certified to 2,250 Vdc in accordance with EN/UL60950. Operating from -40 to +85°C, 204 W converter is suited for optical networking, wireless base stations, and microwave radio communications equipment.

Measurement Specialties, Inc.    Hampton, VA 23666

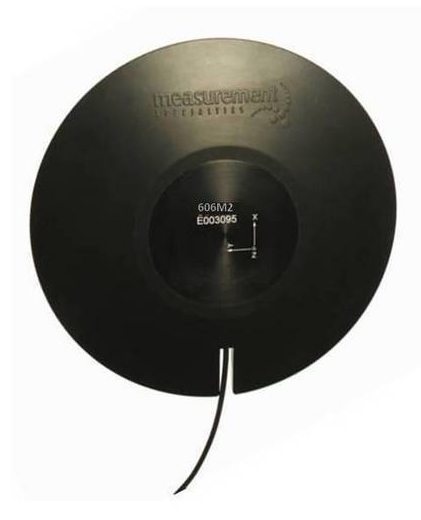

Mar 19, 2012 Designed for characterizing whole body vibration in accordance with ISO 2631-1 and ISO 8041, Model 606M2 features nitrile rubber seat pad that incorporates removable triaxial IEPE accelerometer with 100 mV/g output sensitivity. Unit is designed for low-frequency measurements from 0.5-1,000 Hz and with resolution of less than 0.4 mg. Detachable 10 ft cable is included with 3 BNC connectors for facilitated interface, and dynamic range is ±50 g with over shock protection to ±5,000 g.

Abbess Instruments & Systems, Inc.    Ashland, MA 01721
Mar 19, 2012 Rated for 10^-4 Torr service, Digital VCC Controlled Low Vacuum Chamber comprises cylindrical or cuboid chamber, digital gauge, automated pump and vent valves, and manual vent manifold. Chamber prevents overpumping of product by allowing operator to limit operational vacuum level. In event of power outage, system permits manual vent, and also allows for manual chamber burping while chamber is being pumped down to its setpoint.

Abtex Corp.    Dresden, NY 14441-0188
Mar 19, 2012 Customized for application-specific abrasive filament brushes, Tri-Ten Series accepts precision ground parts, in carriers, directly from grinding, lapping, or honing machine. As magnetized belt grips parts in carrier, they are presented to planetary head, where three 10 in. abrasive filament brushes deburr upward facing surface. Edge break, surface finish, and material removal are accurately controlled. Brushes may be specified with silicon carbide, aluminum oxide, ceramic, or diamond filaments.

Phoenix Contact    Harrisburg, PA 17111 0100
Mar 19, 2012 Designed for use with both AC and DC versions of Quint UPS-IQ line, Lithium-Ion-Based Battery has lifespan up to 15 years, depending on ambient conditions. Unit can operate between temperatures of -20 to 58°C, allowing back-up batteries to be placed in harsh environments. Quint UPS-IQ gives user advanced diagnostics and battery management information, including states of charge, health, and function.

Dytran Instruments, Inc.    Chatsworth, CA 91311
Mar 19, 2012 With overall height of 0.33 in., Model 3334A1 is suited for vibration testing where vertical space is limited. Miniature unit is available with sensitivity of 10 mV/g and features titanium housing, 5-40 mounting stud, and 5-44 radial connector. Hermetically sealed for operation in high humidity and dirty environments, accelerometer supports product response testing applications in addition to environmental stress screening.

Extreme Engineering Solutions, Inc.    Madison, WI 53719
Mar 19, 2012 Supporting Freescale(TM) QorIQ P3, P4, and P5 processor families with up to 8 cores, air-cooled XPedite5400 provides 2 channels of DDR3-1333 ECC SDRAM up to 8 GB, 16 GB user flash, and 256 MB of boot flash with redundancy. Single board computer delivers x4 PCI Express interface to P15 and 2 SATA 3.0 Gbps ports to XMC site. Linux, Wind River VxWorks, and Green Hills INTEGRITY board support packages are available.

Super Talent Technology    San Jose, CA 95132
Mar 19, 2012 Operating at 1.5 V, DDR3 RDIMMs are designed for servers that require more DRAM capacity. Model W13RB8G4S is 1,333 MHz, DDR3 RDIMM with 8 GB density. Supplied in 1Gx72 configuration with 512Mx4 chip configuration, it features PC3-10600 data rate. Model W10RC16G4S is 1,066 MHz, quad rank DDR3 RDIMM with 16 GB density. Supplied in 2Gx72 configuration with 1Gx4 chip configuration, it features PC3-8500 data rate. Both modules integrate heat spreader.

Super Talent Technology    San Jose, CA 95132
Mar 19, 2012 By running at speeds up to 2,133 MHz, Quadra(TM) Series DDR3 Kit enables PC builders to fully utilize 6-core processor-based motherboards. This over-clocked quad-channel DDR3 kit includes modules that support Sandy Bridge E-based motherboards, enabling support of full 16 MB of DDR3 DRAM at over-clocked speeds of 2,133 MHz. Also, unique heat sink enables this solution to efficiently operate with i7-3960X 6-Core processors.
