Pinpoint Laser Systems    Peabody, MA 01960
May 16, 2011 Comprised of laser transmitter, digital receiver, and handheld display, Laser Microgage 2D Kit can measure and realign misaligned rolls and web systems, uneven travel on CNC machine tools, and poorly aligned bore tubes. Rotating base helps align and check flat planes, while right angle beam bender squares machinery. Readings are shown on LCD screen in 0.0001 in. increments or millimeters. To store readings and generate printouts, Microgage connects to laptop or PC via interface cable.

Monitor Technologies LLC    Elburn, IL 60119

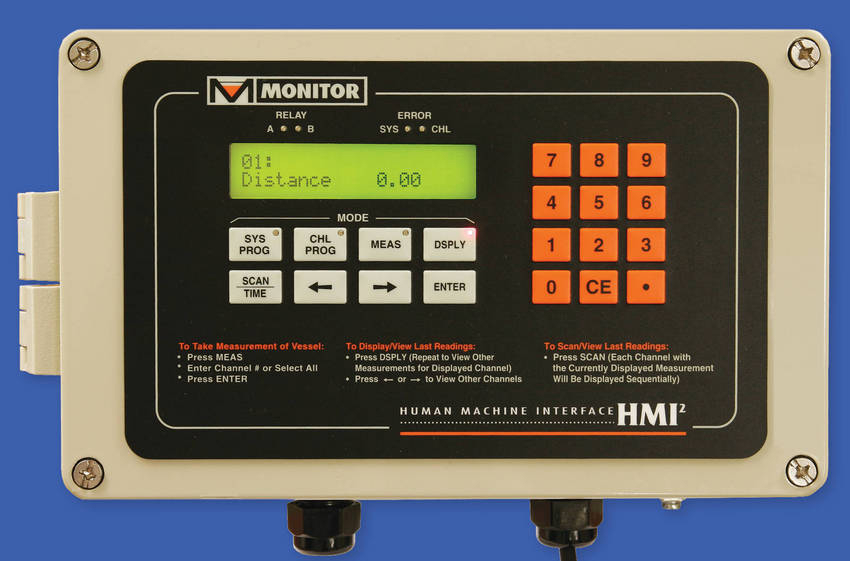

May 16, 2011 Providing local operator interface, HMI2 control console supports up to 32 Flexar® guided wave radar level sensors and/or SiloPatrol® SMU SE smart cable-based level sensors via 2 RS-485 networks. Product can control operations for sensors, display measured and calculated data, as well as perform/display system and sensor diagnostics. Also, built-in strapping table can be used to produce volumetric or gravimetric calculated readings.

Thomas & Betts Corp.    Memphis, TN 38125

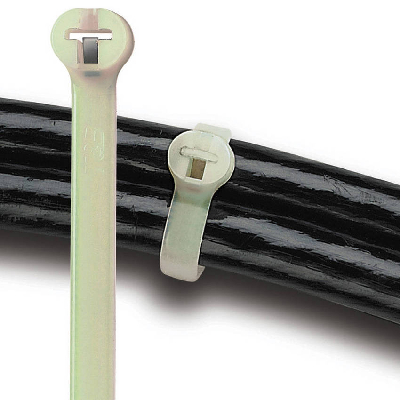

May 16, 2011 Made of advanced heat-resistant nylon, Ty-Rap® Extra High Temperature Cable Ties offer alternative to metallic fasteners. Units feature smooth, low-profile head that resists snagging when bundle is pulled, and non-magnetic, stainless steel locking wedge that replaces ordinary nylon catches to secure tie. Cable ties are suited for OEM and industrial MRO applications where temperatures range from -40 to 302°F.

Phoenix Products Co., Inc.    Milwaukee, WI 53224
May 16, 2011 While retaining design of jelly-jar fixtures, Metallic LED VP Series houses Bridgelux LED light source rated for 50,000 hr of illumination. Fixtures are UL 1598A-listed for marine, outdoor, and saltwater environments; UL 844-listed for hazardous locations; and ABS-listed as well as IP66 and LM79 tested and certified. Thermal paste in mounting array optimizes transfer of heat for dissipation, while driver and array are fully potted to protect against moisture, dust, and vibration.

Chemineer, Inc., A Unit of Robbins & Myers, Inc.    Dayton, OH 45401

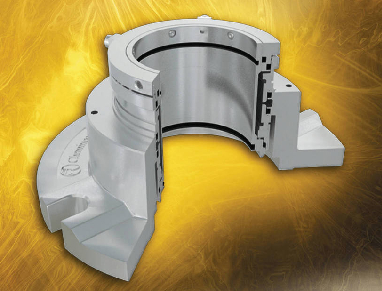

May 16, 2011 Available in 2, 2.5, 3, and 3.5 in., sizes, ChemSeal(TM) Series comes in both single and double cartridge configurations, and can be removed from agitator as complete assembly for repair on workbench before re-installation. Units feature bi-directional rotation capabilities and reverse pressure capability, which keeps seal faces closed when tank pressure exceeds seal pressure. Available in variety of materials, seals withstand temperatures to 356°F and pressures to 300 psi.

Nu-Star, Inc.    Shakopee, MN 55379

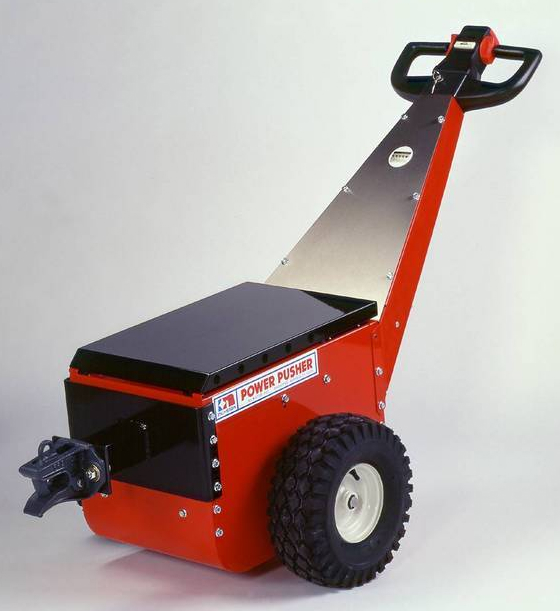

May 16, 2011 Operated by one pedestrian, Power Pusher runs on batteries and does not emit any harmful exhaust or fumes. Unit occupies footprint of less than 2 yd² and does not require operator to be licensed in order to efficiently and safely push, pull, and maneuver wheeled loads up to 150,000 lb. Built in battery charger plugs into standard outlet, and available accessories/attachments include hitches, tow bars, strobe, motion beeper, and push plates.

Continental Fan Mfg. Inc.    Buffalo, NY 14215
May 16, 2011 Offering capacities to 44,000 cfm, 24-60 in. dia UBVL series is constructed with heavy-duty, welded steel base; galvanized butterfly exhaust damper section; and spark-resistant, cast aluminum airfoil axial impeller with factory set, adjustable pitch blades. Units feature v-belt drive and TEFC industrial-duty motor as well as self-aligning pillow block ball bearings. Uses include exhausting hot or contaminated air streams as well as general ventilation.

Hyde Industrial Blade Solutions    Southbridge, MA 01550
May 16, 2011 Designed for electric, cable, and telephone line cutting and splicing, Lineman's Knives are made via proprietary blanking, laser cutting, heat treating, grinding, and polishing processes that optimize cutting performance and helps knives maintain sharp edge. Available blade types include skinning, with or without notches or serrations; splicer; long round and short round; square point; and long mill. Handle options include standard wood or ergonomic SoftGrip plastic.

VarTech Systems, Inc.    Baton Rouge, LA 70809
May 16, 2011 Featuring NEMA 4 rating, 32 in. Model VT320VHB is intended for applications such as digital signage, walkway advertising, and kiosks where rigors of harsh weather conditions exist. Outdoor High Luminance Enhanced display is optically bonded with VBOND Technology for optimized performance in sunlight. Unit is also equipped with AR treated, laminated, 6 mm impact-resistant glass. Mounted on wall or ceiling, display supports portrait and landscape applications.

Bollards by Reliance Foundry    Surrey, BC V3S7G7  Canada

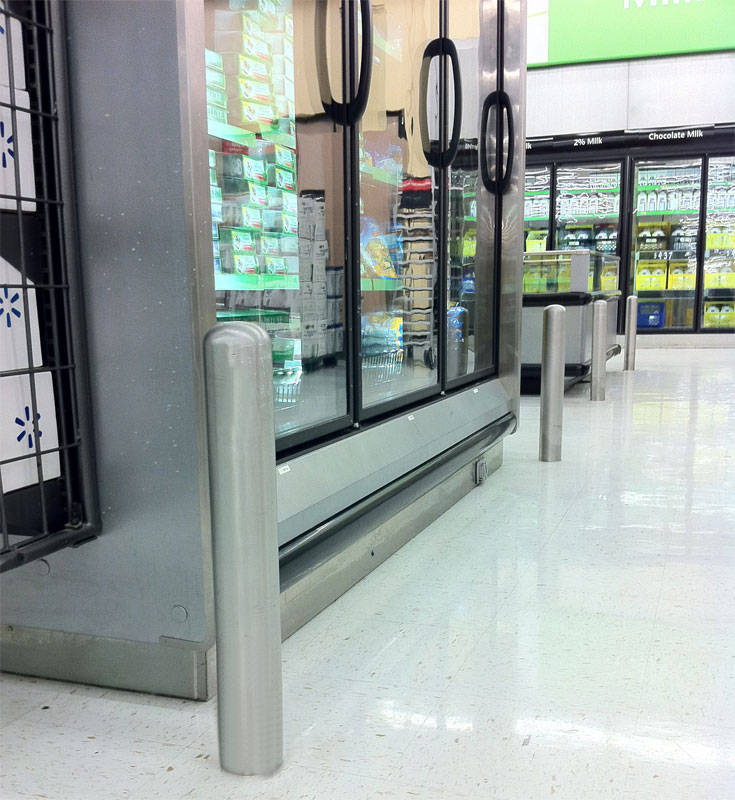

May 16, 2011 Asset-protection Bollards are constructed of 4 mm gauge brushed 304 stainless steel and are available in 24 in. high model R-7180 and 32 in. model R-7181. Mounted at ground level, they can be used to protect edges of doorways, building corners, utility installations, and other property features in grocery stores, malls, and warehouse storage areas. To install, bollards thread on to round metal mount that is drilled into existing flooring, providing flush-to-the-floor presentation.

Baseline Industries Inc.    Lyons, CO 80540
May 16, 2011 Used in portable and stationary gas monitors for detecting VOCs, piD-TECH® plus offers T90 response time of 3 sec typ and built-in RF immunity. Extended Range version is capable of seeing concentrations up to 10,000 ppm, and spectrum purity promotes repeatability. As UL-recognized component, product is intrinsically safe without need of external mechanisms. Available lamp energy values include 10.6 eV and 9.6 eV; latter suits more selective benzene measurement.

JouleX    Atlanta, GA 30305
May 16, 2011 JouleX Energy Manager for Data Centers measures energy consumption and utilization, as well as carbon emissions, of any device attached to data center network. Power usage is managed through policy- and rules-based engine, and software can also compare energy consumption of similar replacement devices to help select most energy efficient systems. Product monitors potential for energy savings by location, business unit, device, or group and can also simulate energy-saving scenarios.

Rohde & Schwarz GmbH & Co      Germany
May 16, 2011 Available for SFU Signal Generator, DVB-C2 software coder enables manufacturers of broadcast receiver equipment and chipsets to perform standard-compliant tests on products with DVB-C2 signals. Since SFU supports all common digital and analog radio and TV standards as well as second-generation broadcast standards, users need only one instrument to test receiver components. Even multi-standard receivers, such as those for DVB-C/C2, DVB-T/T2, or DVB-S/S2, can be tested.

Airtec Products Corp    Fall River, MA 02720
May 16, 2011 Rooftop RD-Series ducting and support system is designed for multiple linesets used with variable refrigerant flow multi-split air-conditioning systems. Product has 20 ga roll-formed sheet metal lineset casing with anti-corrosive, scratch-resistant ZAM® coating. Including 90° and 45° ells, vertical ells, tees, crosses, wall flanges, end caps, reducers, and couplers, series is available in 7 models ranging from RD150, 5 7/8 x 4 3/8 in. models to RD900H, 35 3/8 x 9 7/8 in. versions.

Panorama Software Ltd.    Toronto M4P 1G4  Canada
May 16, 2011 Combining power of social networking with relevant results, Panorama Necto offers self-service BI solution that tracks interests of individual users, and suggests other users who are looking for similar data insights. Optimized relevancy is accomplished through One Click Insights, which pinpoint issues, and Cause and Effect, which automatically identifies causes of issues. Analytics are automatically performed to suggest exceptions and see positive or negative trends.

Ironwood Electronics, Inc.    St. Paul, MN 55121
May 16, 2011 Model SM-BGA-9000 for 23 x 23 mm, 0.8 mm pitch BGA packages operates at bandwidths up to 40 GHz with less than 1 dB of insertion loss. It dissipates 4.5 W with heat sink compression screw and can be customized up to 100 W with modified fin design and adding axial flow fan. Operating in temperatures from -55 to +150°C, unit offers contact resistance of 15 mW/pin as well as current capacity of 4 A/pin. Socket, constructed with shoulder screw and swivel lid, mounts on PCB with no soldering.

American Sensor Technologies, Inc.    Mt. Olive, NJ 07828
May 16, 2011 AST 4000 Series, constructed with all-316L stainless steel wetted parts, survives sub-sea environments. Even where oxygen levels are low and water movement continuous, one-piece construction with diaphragm membrane free of welds and O-rings minimizes pitting and crevices of sensor. Wet, pluggable connector completely seals electronics. Sensors provide gauge, sealed gauge, or compound gauge pressure measurement in ranges to 10,000 psi and offer accuracy of less than +0.5% BFSL at 77°.

BSI Group    London W4 4AL  United Kingdom
May 16, 2011 Offered as Web-based solution, Entropy® Software provides technology framework that lets companies manage Governance, Risk, and Compliance (GRC). Included quality management (QM) module enables Good Practice quality guidelines to be embedded into every facet of QM program. This provides transparency across product lifecycle, facilitating early identification of gaps in product realization process. Software also offers focused reports using traffic-light, real-time performance dashboards.

Pepperl + Fuchs, Inc.    Twinsburg,, OH 44087 2245
May 13, 2011 FieldConnex Compact Power Hub is compact motherboard that holds up to 16 plug-in power modules to supply redundant power for up to 8 FOUNDATION Fieldbus H1 segments. It has typical power loss of 1.3 or 1.6 W, allows modules to be exchanged without interruption of power supply, and also supports physical layer diagnostics. Measuring 150 x 268 mm, system features passive impedance design that results in minimum heat dissipation. Unit is available for 21-23 V/500 mA or 28-30 V/500 mA operation.

Endwave Corporation    San Jose,, CA 95134

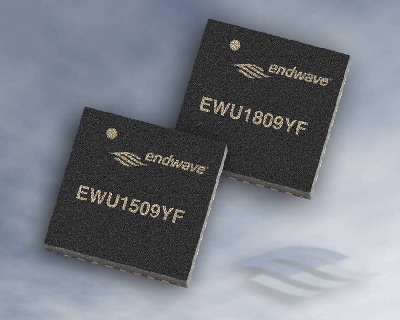

May 13, 2011 Based on GaAs pHEMT technology, Models EWU1509YF and EWU1809YF operate over IF range of DC to 4 GHz and generate frequencies of 10.0-15.4 and 17.0-24.0 GHz, respectively. Devices incorporate several frequency mixers, local oscillator amplifier or frequency doubler, and variable-gain RF amplifier circuitry. Housed in 5 x 5 mm SMT packages with integrated ESD protection and operating temperature of -55 to +85°C, RoHS-compliant MMICs are suited for commercial and military transmitter systems.
