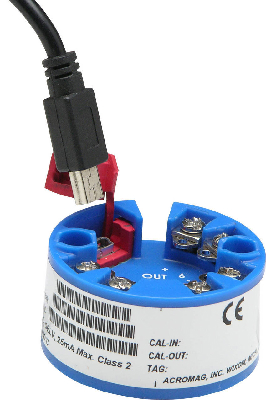

Acromag, Inc.    Wixom, MI 48393 7037
Jul 06, 2011 Mounted in DIN Form B sensor heads or on DIN rail, Model ST133 converts sensor input signals from 8 thermocouple types or ±100 mV range and outputs proportional 4-20 mA process control signal. Addition of 1,500 V isolation between input and output circuit shields equipment from high-voltage surges and transient signals and breaks up ground loops. Operating from -40 to 80°C, USB-configured transmitter includes signal linearization, cold-junction compensation, and response time of 30 msec.

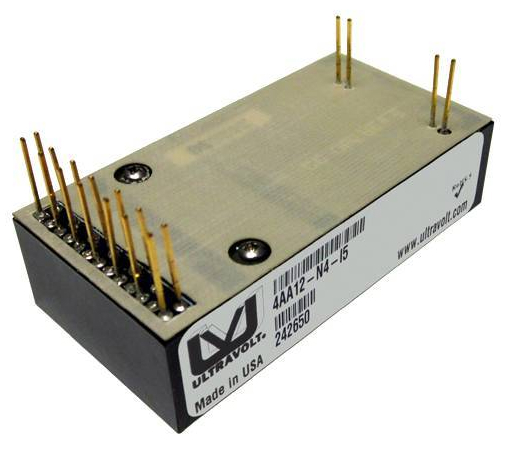

UltraVolt Inc.    Ronkonkoma, NY 11779
Jul 06, 2011 AA Series and High Power C Series are available with -I5 and -I10 interface options, which are optimized for connecting to computers and PLCs in process systems and capital equipment. Options include buffered, low output impedance current and voltage monitors and have programming accuracy of ±1%. Also, remote programming for all polarities and all modes is 0 to +5 V (-I5) or 0 to +10 V (-I10). Both options also feature +5 V (-I5) or +10 V (-I10) reference, ±0.05% PPM/°C.

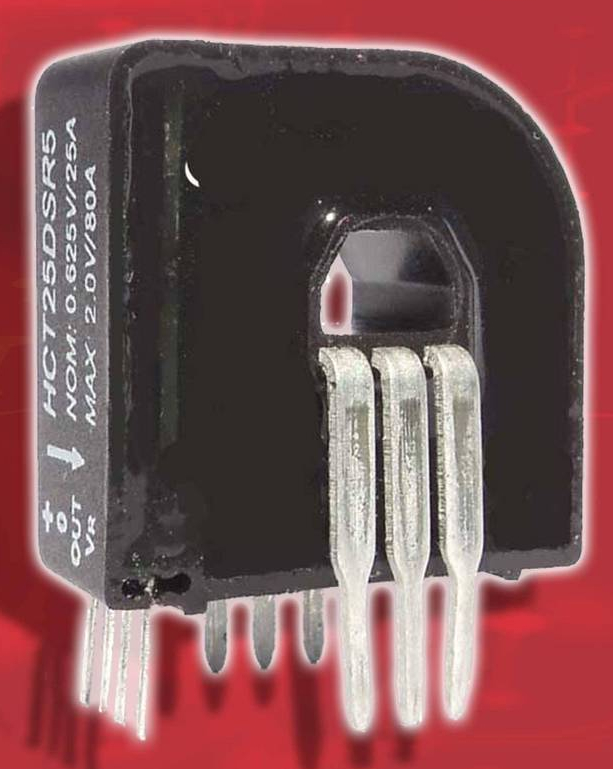

PREMO Group    Barcelona   Spain
Jul 06, 2011 Supplied in package for THT mounting, DSR5 series is designed for single supply voltage of +5 V and integrates primary winding that allows DC, AC, and pulse current measurement on PCBs. This close loop technology component also features external pin that allows access to internal reference (2.5 V) and can be used as output or input signal to be used by MCUs, optimizing offset control at cero current. Series is designed for nominal currents of 6, 15, 25, and 50 A.

Contrex, Inc.    Maple Grove, MN 55369 4018
Jul 06, 2011 In addition to slim motor mount flanges, NRK ring kits feature 60-tooth ferrous sensing gears and drop-in magnetic pickup (variable reluctance) sensors. Products are available to fit 56C through 256TC NEMA C-face motors and also offer 30-tooth sensing gear option. Additional sizes, gear tooth configurations, and sensor cables may be available upon request. Magnetic pickup ring kits are rated to sense speed of rotating motor shafts from 2,000-10 rpm.

Master Appliance Corp.    Racine, WI 53403
Jul 06, 2011 Built around MASTER PROHEAT LCD Model PH-1400 Dial-in Electronic Heat Gun, MASTER PROHEAT PH-1400WK Welding Kit is suited for fabrication and repair of rigid and flexible plastics, auto bumpers, tarps, liners, covers, and tents. Heat gun's dial-in feature offers 10° increment temperature control from 130-1,000°F and control of airflow from 4-16 cfm. With magnetic key lock-in feature, operators can lock-in proper temperature and airflow for each welding application.

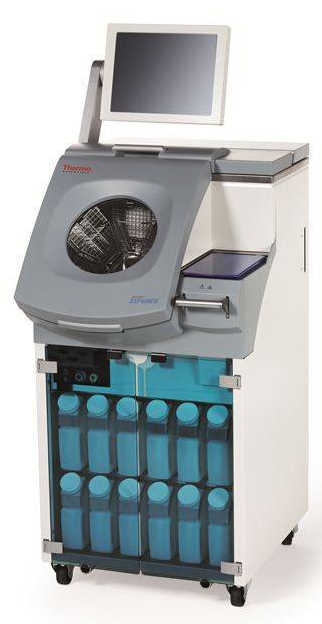

Thermo Fisher Scientific    Waltham, MA 02454
Jul 06, 2011 STP 420ES enables fast turnaround times for same-day diagnosis. Dual-chamber design features rotational agitation, which optimizes flow of reagents to enable processing of up to 420 cassettes per run. First and second chambers hold 360 and 60 cassettes, respectively, and second chamber allows processing of STAT samples or special or difficult tissues without disrupting routine workflow. Processing time, with use of Fast Flex reagents, is 4.4 hr for 5 mm specimens and less than 1 hr for biopsies.

GlacialTech Inc.    Taipei   Taiwan
Jul 06, 2011 Intended for 65 W AMD CPUs with FM1/AM2/AM2+/AM3 sockets, Igloo A200 Series includes 3 models made of aluminum alloy that measure 68 x 76 x 42.3 mm and weigh 165 g. Included 12 Vdc fan measures 70 x 70 x 15 mm and operates, depending on model, up to 2,600, 3,200 rpm, or 1,200 PWM (±300 rpm) to 3,600 ±10%. Respectively, airflow values of 18.4, 22.4, and 27.6 ±10% cfm are achieved with noise ratings of 21, 26, and 34 dBA. In PWM version, fan speed increases with CPU load.

Hobart Welding Products    Lithonia, GA 30058
Jul 06, 2011 In addition to accommodating direct plug-in of SpoolRunner(TM) 100 spool gun, Handler® 190 MIG welder features 7 voltage selections, infinite wire-feed-speed control, and dual-groove quick-change drive rolls. Capable of operating on 230/240 V circuits, welder has 25-190 A output range that lets users weld materials from 24 gauge to 5/16 in. Optional spool gun eliminates feeding problems associated with aluminum wire and can also be used with mild or stainless steel wire.

Keyence Corporation of America    Elmwood Park, NJ 07407
Jul 06, 2011 Utilizing short-wavelength laser, VK-X Series provides non-contact profile, roughness, and thickness measurements, even on surfaces with highly angular surfaces. System features 0.5 nm Z-axis resolution with magnification range from 200-24,000x and ability to capture images at up to 21.6 MP. By combining laser with 16-bit photomultiplier, VK-X Series can obtain image and measurement on nearly any type of material. AI-Scan function enables users to image and measure target with click of mouse.

DynamicOps    Burlington, MA 01803
Jul 06, 2011 Cloud Development Kit contains all tools necessary for administrators and developers to deploy and extend cloud into new and unique infrastructures, including automation and orchestration of non-virtual or physical machine-related processes and resources. Solution leverages Operations Virtualization(TM) platform, which enables unified cloud automation and management and runs on foundation of Microsoft® technologies. All enterprises policies, processes, and resources work in unison.

SuccessFactors, Inc    San Mateo, CA 94404
Jul 06, 2011 Business Execution (BizX) Professional Edition provides tools to help manage entire employee life cycle, hire best people, keep them on track, develop their skills, and proactively manage business health. Web-based and scalable, solution gives managers framework to discuss, measure, and improve employee performance through automated review process based on best practices. Each employee has objectives aligned to company strategy for increased agility, focus, and accountability.

Synopsys, Inc.    Mountain View, CA 94043 4033
Jul 06, 2011 Available for multiple 180 nm process technologies, DesignWare® AEON® Non-Volatile Memory (NVM) IP products include few-time programmable (FTP), multiple-time programmable (MTP) RFID, and EEPROM IP solutions. No high-voltage generation circuitry is required; all programming and re-programming is done using standard CMOS technology with no additional masks or process adaption. Products support extended temperature ranges to 125°C (commercial/industrial) or 150°C (automotive).

Seiko Instruments GmbH    Neu-Isenburg   Germany
Jul 06, 2011 Developed in CMOS technology, 1-wire Model S-5855A changes duty cycle of frequency, preset with single capacitor, according to ambient temperature. Temperature at which sensor will start to modulate its output signal is determined at time of order and may be selected from 40-80°C in 10°C increments. Housed in SNT-4A and SOT-23-5 packages with current consumption of 50 µA, IC is suited for over-temperature protection of LED lighting used in flat screen TVs and computer LCDs.

Trimble Navigation Limited    Sunnyvale, CA 94085-3913
Jul 06, 2011 Intended for mechanical, electrical, and plumbing trades, Accubid® LiveCount® and LiveCount Pro lets contractors integrate and mark up digital image files to manage quantification process during takeoffs. Links eliminate need to import/export information to on-screen takeoff tool or estimate, while ability to create and manage alternate bids lets users create what-if scenarios. Also, LiveCount Pro introduces auto count process and facilitates complex document set naming/orientation.

ZeroDesktop, Inc.    San Francisco, CA 94105
Jul 06, 2011 Supporting 1,000+ concurrent users per entry-server, ZeroPC Private Cloud enables IT administrators to set up kiosk-mode desktops with predefined applications, files, and programs that students access in classrooms, labs, or libraries without user login credentials. Web-based VDI technology delivers Web desktop to client workstation using HTTP/S protocol and AJAX techniques. There are no plug-ins, downloads, or installation on client side, and users can access desktops from any Web browser.

Crouse-Hinds Div., Cooper Industries, Inc.    Syracuse, NY 13221
Jul 06, 2011 Available up to 60 hp, ACE Series is suited for installation in Class I, Div 1 or 2 areas. Explosion-proof units feature NEMA 7 enclosure with active cooling technology that enables operation in ambient temperatures up to 50°C without overheating. To minimize energy consumption, drives allow motor level to be adjusted exactly to performance needs. Built-in diagnostics constantly monitor operating conditions, bringing real-time visibility to potential problems.

ABBYY USA    Fremont, CA 94538
Jul 06, 2011 Mobile Data Capture Solution turns camera-equipped mobile devices into entry point for data input by providing ability to capture printed and hand-printed text, checkmarks, and barcodes from structured and semi-structured documents. Devices's image processor works with server or cloud-based intelligent recognition software, enabling users to extract information from virtually any source, then populate forms, update content management applications, or send information for further processing.

Advanced Analogic Technologies Inc.    Sunnyvale, CA 94085
Jul 06, 2011 P-channel MOSFET power switches of AAT4616 SmartSwitch(TM) series offer precision-current-limit capability as tight as ±5% or 10%, allowing products such as HDTVs, STBs, and tablet computers to maximize power usage from USB or other supply rails and buses. Designed for high side load switching applications, products offer 2.4-5.5 V input range, 130 mW typ RDS(ON), programmable over-current limit from 300 mA to 1.6 A, and quiescent current ratings of 10 µA (enabled) and 1 µA (switch off).

GarrettCom, Inc.    Fremont, CA 94539
Jul 06, 2011 Magnum(TM) 12KX provides 16 combo ports with built-in SFP ports, allowing choice of fixed 10/100/1000 BASE-TX connectivity or fiber SFPs. With Layer 3 switching capability, unit accelerates routing of data in applications using complex networking techniques. Substation hardened product can be synchronized via SNTP or IEEE 1588 v2 precision timing and has non-blocking switching fabric that provides wire-speed performance on all ports. Four ports may optionally be configured for PoE.

Woodward Industrial Controls    Fort Collins, CO 80525
Jul 06, 2011 Available in 100, 250, 500, and 1,000 kW output ratings, SOLO series maximizes power output from solar array based on current switching, liquid cooling, and maximum-power-point tracker (MPPT) technologies. All models come with local color touchscreen interface and are available for indoor (IP54) or outdoor (IP55) installation. Configurations for extended temperature range (-25 to +55°C) and high-altitude (up to 3,500 m above sea level) are also available.
