Thermo Fisher Scientific    Newington, NH 03802
Jun 09, 2011 Featuring quantitation-enhanced data-dependent MS/MS, triple quadrupole TSQ Quantum XLS Ultra(TM) enables simultaneous quantitation and structural confirmation. DuraBrite(TM) IRIS technology offers optimized sensitivity and extended maintenance cycles, while highly inert and exchangeable ion volumes minimize maintenance time to minutes without venting of vacuum system. HyperQuad(TM) technology delivers ultra selective reaction monitoring for maximum detection with more selective SRM.

W. L. Gore & Associates Cable & Assemblies    Landenberg, PA 19350
Jun 09, 2011 Engineered for high throughput production test applications in wireless infrastructure market, GORE® PHASEFLEX® 18 GHz Microwave/RF Test Assembly is available in 1.0 and 1.5 m lengths with SMA and N-type male connectors. Unit withstands 100,000 flexures at minimum bend radius of 1 in. Internally ruggedized construction delivers crush resistance of 187 lb/linear inch. Offering stable performance for precise measurements and repeatability, assembly minimizes risk of testing errors.

NetBit Electrionics, Inc    Brooklyn, NY 11218
Jun 09, 2011 Measuring 1.88 x 1.58 x 1.52 in., NBS10 Series 10 W Wall Mount Power Supply comes with interchangeable AC plugs for portable applications. Unit features Universal AC input, Class B emissions, and standby power consumption of less than 0.3 W. Power supply complies with international energy standards, including CEC Level 5, ErP2, and EISA 2012 standards.

XP Power    Sunnyvale, CA 94085
Jun 09, 2011 Rated at up to 90% efficiency, convection-cooled ECS65 series comprises single-output power supplies with 1.05 in. profile and no-load power consumption of less than 0.5 W. They operate over -20 to +70°C range, accommodate 80-275 Vac input and provide nominal outputs from +12 to +48 Vdc. Full output power is available up to +50°C, with derating thereafter. In addition to UL/EN60601-1 medical and UL/EN60950-1 commercial safety standards, series meets EN55011/EN55022 level B standard.

HARTING, Inc. Of North America    Elgin, IL 60123 5538
Jun 09, 2011 Han® PushPull SCRJ POF Assembly Tool (Part No. 09 35 000 9913) simultaneously strips and cuts both single optical fiber conductors via circular knife. Precision of cut on front face of optical fiber is such that there is no need for subsequent polishing. Permanently integrated in gripper, mechanical counter registers number of steps performed. Replaceable cutting unit can be used for 1,200+ cuts, and visual display signals how many cuts can still be made.

HARTING, Inc. Of North America    Elgin, IL 60123 5538
Jun 09, 2011 Designed to meet EN 50155 and EN 50121-3-2 standards, Ha-VIS 4000 Series features vibration-tested M12 interface, enabling integration of cameras and wireless access points into network. Unmanaged and managed switches offer 2 operating modes: plug and play and plug and play with application-specific configuration of PoE functions. With managed PoE switches, individual PoE devices can be booted up or shut down via web interface or SNMP without resetting entire network.

FIPA, Inc.    Atlanta, GA 30318
Jun 09, 2011 Available in oil-resistant NBR (Acrylonitrile Butadiene Rubber) or FDA-compliant, temperature-resistant silicone, oval vacuum cups feature sealing face with three-dimensional (3D) shape designed for optimal grip. Contour of suction lip partially grips cylindrical workpiece and can securely accommodate very small diameter items such as pipettes, pencils, bolts, and needles.

Rubyquartz, LLC.,    Aventura, FL 33160
Jun 09, 2011 Measuring 5.0 x 3.2 x 1.2 mm, surface mount Model CWSMF243 offers frequency choices between limits of 1.0-60.0 MHz, such as T-1/E1, 1.544 MHz and 2.048 MHz and T-3/E3, 34.368 MHz and 44.736 MHz. RoHS-compliant device features frequency stability of ±100 ppm at operating voltage of 3.3 V at 30 Ma within temperature range of -10 to +70°C. Peak jitter is 70 pc.

Advanced Micro Controls, Inc.    Terryville, CT 06786
Jun 09, 2011 Developed specifically as affordable solutions for adding motion (stepper or servo) to Allen-Bradley PLCs, single axis 3401L modules for Point/IO and 2-axis 3602 modules for CompactLogix meet Rockwell Automation's performance requirements. Model 3401L features 2 discrete inputs and controls velocity and position of stepper motor, while 3602 modules include additional axis of motion and coordinated linear and circular interpolated commands. Both are designed to keep cost of ownership minimal.

Aeroflex    Irvine, CA 92618
Jun 09, 2011 SGA Signal Generator with Option 6 offers internal generation of waveforms required for testing avionics functions. Option includes waveforms for Instrument Landing Systems (ILS), VHF Omni-directional Radio (VOR), marker beacons, and COM ID tones for airport identification. Digitally generated modulating waveforms ensure accurate and stable performance under all operating conditions. Respective operating frequency ranges for SGA Models 3 and 6 are 100 kHz to 3 GHz and 100 kHz to 6 GHz.

Aeroflex    Irvine, CA 92618
Jun 09, 2011 In addition to handling data call hand-over between LTE and HSPA, Aeroflex 7100 LTE Digital Radio Test Set supports Option 103, which provides test capabilities for GSM/GPRS, and Option 105, which extends capability to include WCDMA and HSPA. Device provides manufacturers of cellular terminals and chipsets with unified test environment in which to fully test all radio access technologies supported by DUT.

ID Technology Corp.    Fort Worth, TX 76106
Jun 09, 2011 Built for conveying boxes of various widths and weight, Adjustable Conveyor supports corner wrap label applications. Unit features slanted guide rollers that provide positive pressure on boxes as they push through label application module, keeping positive control during labeling process. Single crank handle adjusts guide rail in or out to accommodate variety of box widths.

Pinpoint Laser Systems    Peabody, MA 01960
Jun 09, 2011 Suited for industrial applications, Microgage Bore Alignment Kit consists of cylindrical laser that can be adapted to bores of all sizes. Laser reference beam is projected to digital receiver held in reversible bore mount, allowing receiver to detect laser beam coming either through bore or entering bore. Measurement readings, as small as 0.0001 in., are transmitted to handheld display and define bore or shaft's alignment, guiding user to what changes are needed for optimal performance.

Larson Electronics, LLC    Kemp, TX 75143
Jun 09, 2011 Suited for hazardous locations where protection against fire and explosions is mandatory, Model EXP-LED-FX2 is equipped with 2 LED light emitters, each producing 80 lumens. Each LED is controlled by separate momentary/constant on switch that allows LEDs to be activated independently or in combination. Running on 3 AAA batteries, flashlight will operate for 14 hours in single lamp mode and 7 hours using both LEDs. Three operating modes include spot, flood, and spot/flood combination.

RIA Connect    Tinton Falls, NJ 07112
Jun 09, 2011 Available in 3.5, 5.0 and 5.08 mm centerlines, Models ASP063, ASP065, and ASP066 utilize spring clamp technology, allowing for wire and push-button actuation in same plane. Versions with finger-friendly pushbuttons are available, eliminating need for screwdriver. Thru-hole Reflow compatible headers, for pin and paste assembly, as well as versions with mounting latches are also available.

L & J Technologies, Inc.    Hillside, IL 60162
Jun 09, 2011 Using FMCW (Frequency Modulated Continuous Wave) technology, evo 2600 operates in 26 GHz frequency band. Graphical e.WAVE LCD provides detailed information for user, including level, temperature, discrete status, and diagnostics. In addition to displaying graphical profile of tank, display lets user fine tune radar unit to cancel out disturbances. Wizard ensures setup in minutes without violating explosion proof environments, and configured is accomplished via IR technology.

Magnetic Products, Inc.    Highland, MI 48357
Jun 09, 2011 Utilizing neodymium Rare Earth magnets, Eco-Mag(TM) removes ferrous and para-magnetic contamination from fluids and is particularly effective with machine tool oils, coolants, and hydraulic fluid machinery systems. Eco-Mag does not use consumables, and removed contamination can be recycled, eliminating disposal costs.

Electro Standards Laboratories    Cranston, RI 02921 3403

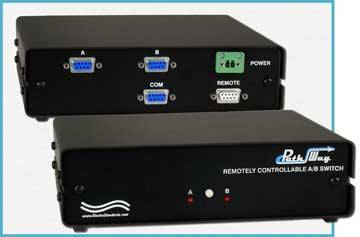

Jun 09, 2011 Model 4135 enables one DB9 device connected to COMMON port to be shared among 2 devices connected to A and B ports. In addition to local control via pushbutton, switch features remote port that accepts either TTL signaling or contact closure switch commands. Ports are transparent to all data, and switch retains current position and continuity if power is removed. Optional remote toggle switch control cable is available.

Creative Packaging    Newberg, OR 97132

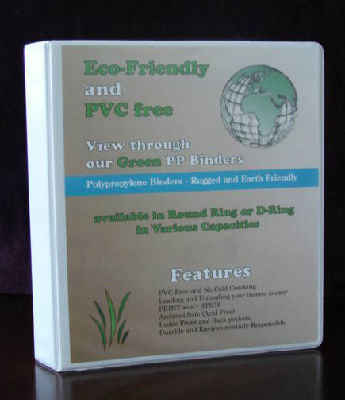

Jun 09, 2011 Designed to hold standard 11 x 8.5 in. sheets, Polypropylene Binders feature look and feel of regular vinyl, but will not crack in cold conditions. Chipboard is made from 100% recycled materials and metal rings are also recyclable. Available with ½ or 1 in. spines and round rings or in 3 in. version with Slant-D rings, binders have clear overlay sleeves on front, spine, and back cover for inserting custom sheets. Pockets on inside of front and back covers store loose materials.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Jun 09, 2011 Integrating 70 V, 1.5 A N-channel MOSFET and featuring input range of 6-70 V, Model LM3466 uses 1 resistor and 1 capacitor to drive LED string from any AC/DC constant-current power supply. Dynamic current equalizing control scheme enables communication between each LED driver to divide current amongst multiple active LED strings. During open string state, each LM3466 automatically equalizes current throughout remaining strings to maintain relatively constant output power.
