Magellan Systems Corp.    San Dimas, CA 91773
Jun 29, 2011 Equipped with 5 in. Wide VGA touchscreen, RoadMate® 5175T-LM GPS offers built-in Internet browser that allows user to search for destinations or points of interest. TourDirector helps plan tours by providing address, phone number, and detailed description of attractions and restaurants. In addition, unit includes lifetime maps, lifetime traffic alerts, highway lane assist, customizable OneTouch(TM) menu, and built-in directory of more than 6 million points of interest in North America and Canada.

HABEY USA    City of Industry, CA 91748
Jun 29, 2011 Supporting Intel Sandy Bridge 2nd generation i3/i5/i7 processor and Intel QM67 chipset, Model MITX-6910 carries dual mini-PCIe with one corresponding SIM slot to allow for 3G/4G/GSM/FPGA/HSPDA. Dual Gigabit Ethernet with wake-on-LAN features allow for remote access. Measuring 170 x 170 mm, board provides 2x DDRIII 1,067/1,333/1,600 MHz SO-DIMM slots with up to 8 GB capacity. It includes 2 x SATA 3.0 with up to 6 Gbps, 8 USB 2.0 ports, 6x serial ports, and 2 DVI-I display outputs.

Server Technology, Inc.    Reno, NV 89511
Jun 29, 2011 Providing secure always-on outlet status, Smart POPS CDUs combine power distribution with local and remote power and environmental monitoring. Built-in network interface lets user view power, temperature, and humidity levels via Web browser, or receive SNMP-based alarms when conditions exceed defined thresholds. Power information per outlet includes Current load, Voltage, Power, Apparent power, Crest factor, and Power factor. Expansion CDU can be added to master unit via single IP address.

Optronics    Goleta, CA 93117
Jun 29, 2011 Microcast® HDXS(TM) 3CCD HD (1920 x 1080) progressive scan c-mount camera system, suited for research and microsurgical imaging applications, creates 2 MP video. It solves low-light dynamic imaging problems via combination of image sensor sensitivity and exposure features, and user preset functionality provides access to multiple white balance settings to accommodate different illumination sources. Camera head design facilitates installation on surgical and compound microscope systems.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Jun 29, 2011 Featuring complete set of signal chain components qualified for operation from -55 to +210°C, H.E.A.T. (harsh environment acquisition terminal) evaluation module (EVM) is test-oven ready and qualified to operate up to 200 hr at temperatures to 200°C. System accepts 8 channels of analog data and then conditions, digitizes, and processes those signals for applications in ruggedized, high-temperature environments.

FZLED    New Taipei City   Taiwan
Jun 29, 2011 Compatible with electronic transformers that don't have LED drivers, MR16-03 series can fit GU5.3, GU10, E11, E14, E17, E26, E27, and B22 sockets and takes AC input voltages of 100-240 V; GU5.3 version also accepts 12 V AC/DC power source. Spotlights use 3 W of power and emit 120 or 160 lm. Depending on CCT of 3000K or 6000K, products have CRI higher than 80 or 75. Available beam angles include choice of 10°, 15°, 25°, 40°, or 60°, and lifetime ratings exceed 35,000 hr.

KVH Industries, Inc.    Middletown, RI 02842
Jun 29, 2011 Utilizing 170 micron E *Core® ThinFiber technology, Model DSP-1750 is available in single- and dual-axis configurations with optional magnetic shielding. Unit features flexible design in which 1.7 in. diameter optical sensor is connected to power and processing electronics via interlocking tether. Gyro is suited for integration into variety of mobile applications, including gimbals, optical/antenna stabilization, long-range optical and sensor systems, and payloads for UAVs.

Shimadzu Scientific    Columbia, MD 21046
Jun 29, 2011 Comprised of tabletop and floor-type material analyzers, AG-Xplus Series features 5 kHz (0.2 msec) sampling that captures fluctuations in test force. Respective return and crosshead speeds of 3,300 and 3,000 mm/min reduce test cycle time for specimens that stretch. Additional capabilities include auto-tuning of control parameters in real-time as based on stress and strain data measured during testing, as well as comparison of unknown sample data, without pre-testing.

DuPont Co., Packaging & Industrial Polymers    Wilmington, DE 19898
Jun 29, 2011 Kalrez® 9300 parts offer balanced performance in remote and in-situ plasma for etch process manufacturers. For deposition processes where ozone is prominent, Kalrez® 9500 provides manufacturers with parts that demonstrate resistance to process chemistry. Additional applications for low outgassing Kalrez 9500 parts, resistant to ozone, ammonia, and water vapor, include SACVD and ash/strip processes. Max continuous service temperature rating is 310°C.

LEONI Fiber Optics Inc    Williamsburg, VA 23188
Jun 29, 2011 Torsion approved and tested, High-Flex Fiber Optic Cables for SCADA are available in low-temperature models down to -40°C as well as high-temperature versions up to +70°C. Plug-and-play solutions are UV-resistant and rodent proof and are offered with Fastbus, Fast Ethernet, and V Pin connections. Applications include communication and control in solar plants and both onshore and offshore wind turbines.

Pinpoint Laser Systems    Peabody, MA 01960
Jun 28, 2011 Used for aligning machinery and equipment, Microgage 2D Transparent Receiver allows laser beam to pass clearly through it while measuring position with precision of 0.0005 in. Unit operates over distances of 100 ft or more, and instructions guide operator through alignment project. Several accessories allow for alignment of straightness, runout, parallelism, squareness, roll and web alignment, shaft and bore alignment, flatness measuring, and more.

Pinpoint Laser Systems    Peabody, MA 01960
Jun 28, 2011 Used for evaluating and correcting machinery alignment problems, 4D Microgage Receiver measures 2 linear axes (X and Y) and their 2 angular components' yaw and pitch. Linear axes show how well machinery is aligned along common centerline, while angular readouts show if parallelism problems are present. Able to operate over distances of 100 ft or more, product incorporates digital display and delivers measuring precision of 0.0005 in. and 0.002°.

Dytran Instruments, Inc.    Chatsworth, CA 91311
Jun 28, 2011 With 10,000 Hz upper frequency response and 0.24 in. overall height, 3274A series can mount in typically inaccessible spaces. Models offer sensitivities of 5, 10, and 25 mV/g and feature shear sensing element in teardrop titanium housing. Used to measure shock and vibration of small, lightweight objects such as PCBs and board-mounted components, hermetically sealed series is designed for adhesive mount, utilizes IEEE 1451.4 TEDS, and has resonant frequency of greater than 40 kHz.

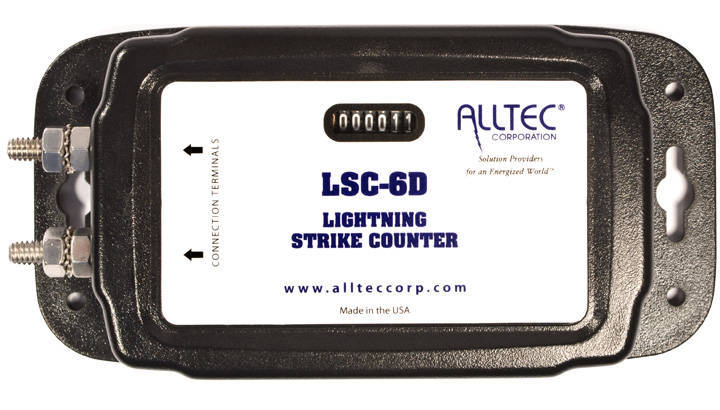

Alltec Corporation    Canton, NC 28716
Jun 28, 2011 To enhance lightning protection security as well as increase inspection/maintenance effectiveness, LSC-6D registers and records direct lightning strikes suffered by facility or equipment and can assist in determining need for additional security. Unit captures up to 999,999 events before automatically resetting and does not require any external power supply or internal battery. Supplied in NEMA 4X/IP66 enclosure with SMT flanges, counter uses 2-wire connection to any metal conductor.

Emphase    South Burlington, VT 05403
Jun 28, 2011 Delivering capacities from 1-32 GB and transfer speeds of 120 read/100 write, S3 Series SLC NAND SSDs integrate TransferSAFE technology and operate off of 0.5 W max. SATA Flash Module S3, weighing less than 10 g, plugs directly into SATA port and is available in vertical or horizontal orientation with optional pin-7 power. CFast S3 suits jobs requiring data mobility or hot-swap functionality, while mSATA S3, measuring less than 4 mm thick, accommodates needs of low-profile embedded systems.

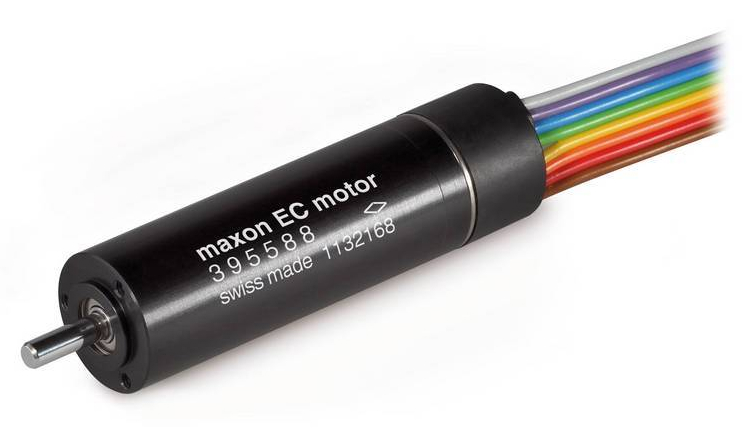

Maxon Precision Motors    Fall River, MA 02720
Jun 28, 2011 Featuring 60° winding pattern and NdFeB high performance magnet, EC16 is available with hall sensors or as sensorless solution. There are up to 5 winding types available and 4 motor options: 30 or 60 W, sterilizable or non-sterilizable. Designed for stability and quiet running, motor is coupled with gearheads that are also sterilizable and can be used in medical and hand tool applications.

Continental Fan Mfg. Inc.    Buffalo, NY 14215
Jun 28, 2011 Available in 24, 30, and 36 in. dia with capacities up to 20,500 cfm, APC Direct Drive Industrial Product and People Coolers feature all-welded steel construction and heavy-duty, non-tipping base. Adjustable drum housing encloses spark-resistant, cast aluminum axial impeller within front and rear guards. Portable products, designed to provide rapid cooling and spot ventilation, are available with 115/230/1/60 V or 230/460/3/60 V TEFC motor.

Red Valve Company Inc    Carnegie PA 15106
Jun 28, 2011 Series DX, designed for heavy slurry applications in power and mining industries, provides drop tight shut-off in both directions. When valve opens, reinforced elastomer sleeves seal against each other and provide 100% full port opening. This minimizes turbulence as well as resulting wear, while seats isolate and protect all metal parts of valve from coming in contact with process. When valve is closed, sleeves provide drop tight seal.

ILSCO    Cincinnati, OH 45227 1426
Jun 28, 2011 Featuring silicon bronze hardware, Type GPL3 series fits IPS pipe sizes from ½-12 in. and accepts ground conductor sizes from 4-4/0. UL-Listed and CSA-Certified products, resistant to corrosion, rotate 90° for installation flexibility. Suitable for direct bury in earth or concrete, series supports use within industrial construction, maintenance, power plants, sub-stations, and anywhere perimeter fencing is required to be grounded.

Allpax Products, Inc.    Covington, LA 70433
Jun 28, 2011 Capable of providing in excess of 10 sweeps/min and basket changeover in less than 20 sec, 400X Hyper-Loader supports 3,000/min throughput of 212 X 107 sized cans. Servo carriage control lend to positioning precision and speed, while container pattern pre-stage area allows for continuous sweeping. Additional features include slip sheet squaring area, VFD control on all conveyor motors, hydraulic product elevator, and proportional hydraulic valve control.
