Olympus    Waltham, MA 02453
Jul 18, 2011 Utilizing confocal IR laser scanning microscope technology, 3DIR Metrology and Defect Review System measures post bond parameters of 3D stacked integrated circuits, such as overlay alignment accuracy, bonding interface thickness variations, and bonding interface quality. System measures alignment points at selected die of bonded wafers, stores images and data, and summarizes results. Correlation of overlay alignment offset data to electrical yield provides early indication of bonded wafer yield.

Saelig Co., Inc.    Pittsford, NY 14534

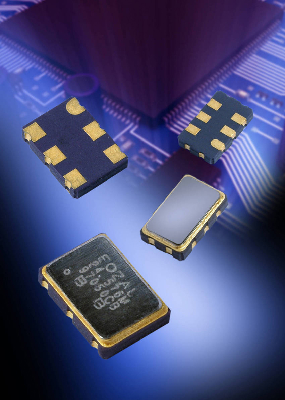

Jul 18, 2011 Available in frequency range of 40-200 MHz with 2.5 or 3.3 V supply, Series HCK5361 and HCK5761 offer 200 fsec integrated phase jitter performance with ultra-low phase noise of -138 dB/Hz at 10 kHz offset. HCK5361 models are housed in 5 x 3.2 x 1.2 mm 6-pad surface mount packages, while HCK5761 parts feature 7 x 5 x 1.8 mm housings. Both differential, high-speed current steering logic (HCSL) oscillators operate from -40 to +85°C with less than ±3 ppm/year aging at 25°C.

Dwyer Instruments, Inc.    Michigan City, IN 46361

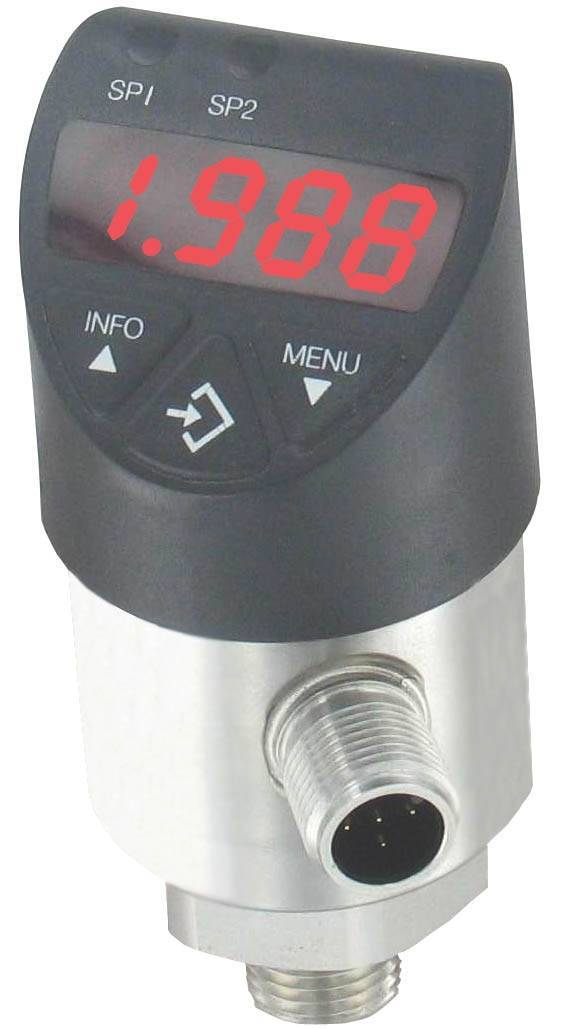

Jul 18, 2011 Featuring ergonomic push buttons and thin-film piezoresitive sensor technology Series DPT with Switches combines 14-segment LED display with 2 programmable solid state switches in one unit. Three-way rotating design allows transmitter to meet specific installation requirements without any retrofitting. Also, display and electrical connection can be rotated independently to maximize visibility while orienting electrical connection in best position for cable connector.

EPI Labelers    New Freedom, PA 17349
Jul 18, 2011 Suited for low volume applications in snack and baking industries, Label Dispenser comes standard with sealed inkjet cartridge that uses HP technology to print date codes, lot numbers, and expiration dates to boxes, cartons, and clamshells. Labeler is operated by handheld controller, dispenses one pressure sensitive label at a time, and advances automatically. Designed to withstand harsh environments, unit comes equipped with continuous duty gear motor with solid steel gears.

CNC Software Inc.    Tolland, CT 06084

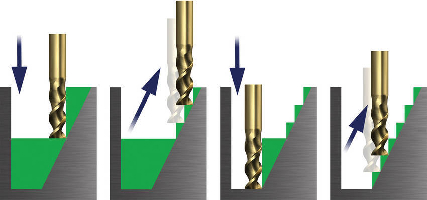

Jul 18, 2011 With hybrid finishing function, Mastercam® X5 evaluates model shape and switches between Constant Z cutting and Constant Scallop machining. Dynamic milling constantly adjusts toolpath to ensure most efficient cut possible and allows use of entire tool flute length, often eliminating multiple depth cuts. By using dynamic milling motion, OptiRough toolpath removes large amounts of material quickly. Large, aggressive cuts are followed by fast, smaller up-cuts, safely delivering fully roughed part.

Microscan Systems, Inc.    Renton, WA 98057

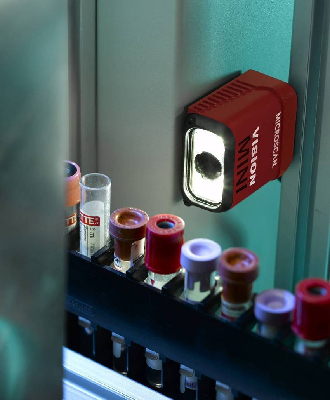

Jul 18, 2011 Measuring 1.80 x 2.10 x 1.00 in., Vision MINI allows for flexible positioning in tight spaces. Unit features fully integrated lighting, autofocus lens, complete AutoVISION(TM) software tool set, and wide angle optics for close-range applications. Suited for embedded clinical and lab automation applications, camera performs critical inspection tasks such as cap presence, color matching, and test tube identification in addition to reading 1D and 2D barcodes.

AutomationDirect.com    Cumming, GA 30040-9905

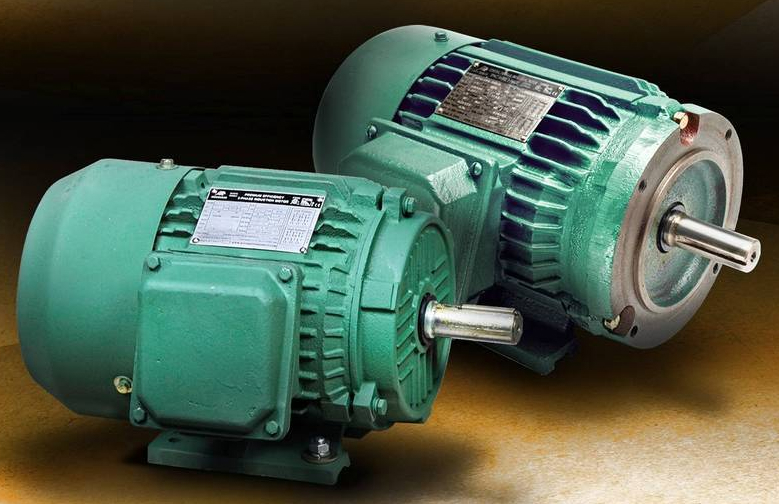

Jul 18, 2011 Offered with 1-200 hp ratings and 1,200, 1,800, and 3,600 rpm speeds, IronHorse(TM) 3-phase, industrial-duty T-frame and TC-frame TEFC motors feature ribbed cast iron frames for optimal cooling. Products also feature solid full frame length cast iron mounting feet, cast iron junction box with rubber gasket, and rubber dust cover. While motors 10 hp and lower employ maintenance-free bearings, larger motors are available with NSK/NTN/SKF ball or roller bearings.

Maxon Precision Motors    Fall River, MA 02720
Jul 18, 2011 Operating as standalone controller or integrated into final product as sub-board, EPOS2 36/2 Motherboard features snap-apart construction with 11 nodes connected via CAN-Open, allowing multi-axis customization on single board. Two digital inputs and 1 digital output are mapped on board with additional I/O expansion module as option. In addition to motor speed, torque, and position control, EPOS2 36/2 is capable of synchronously running coordinated multi-axis path dictated by interpolating points.

COMSOL Inc.    Burlington, MA 01803

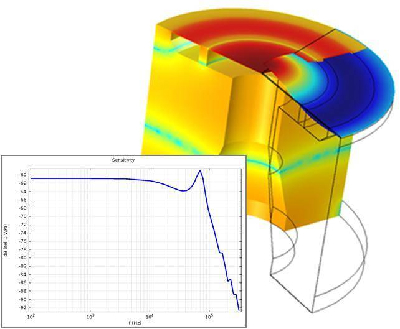

Jul 18, 2011 Part of COMSOL Multiphysics software, Acoustics Module v4.2 enables simulation of thermoacoustic effects, poroelastic waves, acoustic-shell interactions, and piezo-acoustic devices. Users can model vibrations and elastic waves in solids and piezoelectric materials, as well as their bidirectional interaction with surrounding fluid. Compatible with all add-on modules, capabilities enable virtual prototyping of microphones, mobile devices, piezo-acoustic transducers, and mufflers.

WinSystems, Inc.    Arlington, TX 76011

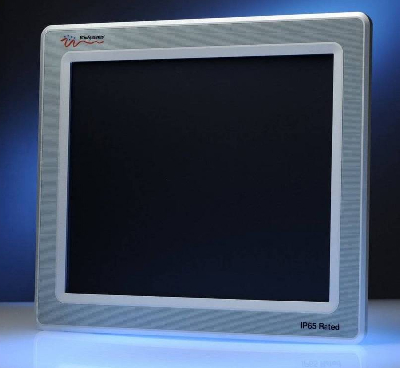

Jul 18, 2011 Available with 12, 15, 17, or 19 in. diagonal displays and touchscreens, PPC65 Series is powered by 1.6 GHz Intel® Atom(TM)-based SBC, which includes 2 GB system memory. Front bezels are environmentally sealed to comply with NEMA 4/IP65 specifications, preventing ingress of moisture, dust, and dirt. I/O support includes GigE port, 4 USB 2.0 ports, and 2 RS-232 serial channels. Requiring +12 V, PCs are suited for medical, utility, security, transportation, and test/measurement applications.

TE Connectivity Ltd.    Berwyn, PA 19312
Jul 18, 2011 Comprised of 20 AC/DC fuses with current ratings from 0.5-20.0 A, 2410SFV series helps provide secondary-side circuit protection in high-voltage, high-current designs. Products come in 6.1 x 2.5 mm SMD package and offer nominal cold resistance (DCR) from 0.0034-0.231 ohms as well as high-interrupt current from 50-300 A. Rated from -55 to +125°C, fuses provide inrush current withstand capability that minimizes nuisance tripping during transient overload conditions.

B & R Industries Inc. - The Manifold Center    Medford, NY 11763
Jul 18, 2011 To accommodate specific application requirements, precision miniature custom machined parts can be made from most any type of material. Cost analysis and reduction exercises are available in addition to assistance in specifying standard or custom manifolds. For engineers, company can provide technical assistance in operating pressure, material recommendations, and port specifications. Available materials include, but are not limited to, Delrin®, PEEK(TM), Nylon, and PVDF.

EXAIR Corporation    Cincinnati, OH 45249-1621
Jul 18, 2011 Premium Heavy Duty Dry Vac(TM) System has wear-resistant design suitable for cleaning up abrasive materials such as steel shot, garnet, metal chips, and sand. Also used for general-purpose applications, this compressed air-powered vacuum attaches to included 30, 55, or 110 gal drum and operates at 82 dBA. Surrounding air is kept clean by 0.1 micron filter bag, and included parts consist of 10 ft, static-resistant hose; 20 ft compressed air hose; heavy-duty tools; and drum dolly.

Pro Mach Inc.    Loveland, OH 45140
Jul 18, 2011 Featuring 8 ft³ cap bin, which sits flush to machine, WSI 300 Waterfall-Style Cap Sorter processes 100-300 bottles/min. System can be loaded at floor level, which keeps dust from corrugated shipping cases below level of capping operation and helps maintain clean environment where closure meets bottle, jar, or jug. Since WSI 300 can handle wide range of cap diameters and styles on single set of cleats, few if any change parts are required when switching between different sized closures.

Nippon Pulse America, Inc.    Radford, VA 24141
Jul 18, 2011 Featuring 2-phase, tin-can style design, Model PF55 is available with both unipolar and bipolar windings. With unipolar winding, unit offers holding torque of 120 N, while bipolar winding provides 150 N of holding torque. In full-step excitation mode, motor has 48 steps/rev, rated voltage of 5 and 12 V, inductance from 12-37 mH, and 5-36 W resistance. Gearhead version, available with 20 ratio options from 6/25 to 1/300, provides max torque of 400, 700, and 1,000 mNm.

Control Co.    Houston, TX 77258 8307
Jul 18, 2011 Measuring 6 x 2/3 in., Counter Pen combines marker and digital counter. Each time black mark is made with felt-tipped pen, unit automatically sounds beep and LCD displays counts. Even when interrupted, marks hold place and counter holds total. Pen provides audio/visual counts to 99,999, and includes reset button, on/off switch, and cap. It is suited for counting cell growth on Petri dishes, inventorying parts, and tallying samples received.

Brookfield Engineering Laboratories, Inc.    Middleboro, MA 02346
Jul 18, 2011 Gelatin Bloom Strength Test system includes CT3 Texture Analyzer for measuring bloom strength, 2 baths, and one refrigeration unit for gelatin preparation. Texture analyzer combines operation that accommodates users of all experience levels and test method capability in compression and tension modes of operation. Variety of standard probes - cones, cylinder, blades, balls, punches - and fixtures -extrusion, cell, shear cell, grips, etc. - are available.

Pulltarps Mfg.    El Cajon, CA 92020
Jul 18, 2011 Providing self-contained diesel fuel transfer pump station, PiusiBox® Pro withstands harsh operating environments, both off and on road, encountered by diesel trucks and heavy equipment. Everything - hose, pump, nozzle, fuel pick up strainer with one way valve, and protective gloves - is contained in hard case for portability. Powered by vehicle battery via clip-on connections, product also has full-size, spin-on filter cartridge that keeps contaminants out of fuel.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Jul 18, 2011 Designed to mount on various DIN rails, GPA Series handles wire sizes from 2/0 to 500 MCM with rated voltage of 1,000 V and current handling capacity up to 415 A. Panel mount Model GPA/FIX allows for direct mounting to equipment with use of 2 mounting flanges, while Model GPA.70 can accept center jumper for connecting circuits together. In addition, threaded locking rod can be inserted though terminal blocks to hold them together.

Tripp Lite    Chicago, IL 60609

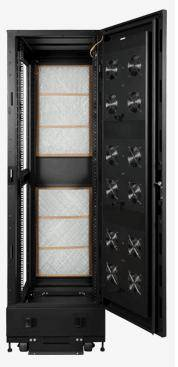

Jul 18, 2011 Designed to protect equipment from harmful environmental conditions, model SR42UBEIS heavy-duty 42U SmartRack Industrial Rack Enclosure features sealed and locked cabinet, torsion-resistant construction, as well as dust- and drip-resistant ports. Louvered front and rear doors with sealing gaskets allow ample airflow while keeping out dripping and splashing water. Along with built-in, removable dust filters, features include 12 air pulling fans in rear door and 6 self-sealing cable ports.
