Triangle Manufacturing Co.    Oshkosh, WI 54903
Aug 02, 2011 To maximize bearing life, Bearing Balls can be impregnated with Zonyl® MP1100 fluoroadditive and Chemlube 645 synthetic lubricant, which, when combined, minimize wear and weathering. Consisting of white, free-flowing PTFE powder, Zonyl® MP1100 can be added to lubricants to optimize performance under severe or abnormal conditions. Chemlube 645, offering low evaporation rate and oxidation stability, prevents oil seepage to extend motor life.

W. Amsler Equipment Inc.    Richmond Hill   Canada
Aug 01, 2011 Supporting runs of up to 250 bottles/hr, 5-head leak tester has flying head design that promotes output and flexibility. System accommodates plastic containers up to 2 L, using low-pressure air to detect holes as small as 0.006 in. dia. It can also detect fallen bottles, choked necks, and blocked necks. Controlled by servo motors, 5 heads travel with bottles along conveyor in enclosed system; extra heads can be added to unit to increase speed and productivity.

Besa Lighting Co., Inc.    Blacklick, OH 43004
Aug 01, 2011 Featuring 8 ft of monorail plus LED power supply, 12 V LED Monorail Kits support up to 9 LED lights, at up to 6 W each, and are dimmable. Power supply does away with bulky surface transformers or remote transformers, and instead uses small, no-load 60 W electronic transformer that fits into junction box. Available in bronze or satin nickel finish, monorail kits include all required support and mounting hardware.

HMS Industrial Networks, Inc.    Chicago, IL 60607
Aug 01, 2011 With throughput delay of no more than 5 msec, Anybus® Communicator CAN(TM) Protocol Converter enables any industrial device with CAN interface to communicate with Profibus, Profinet, DeviceNet, EtherNet/IP, EtherCAT, or CANopen networks. This allows automation devices, even those with slower CAN communication, to be integrated into high-speed fieldbus/Ethernet networks without restrictions to upper network. Dual-port switch enables daisy chaining and eliminates need for external switch.

Crystek Corp.    Fort Myers, FL 33913
Aug 01, 2011 Operating from 137-171 MHz with 0.5-4.5 V control voltage range, CVCO55FLM-0137-0171 features typ phase noise of -118 dBc/Hz @ 10 kHz offset. Extra modulation port (TX modulation), suited for transmitter applications, has negative slope and typ modulation sensitivity of -25 kHz/V. Supplied in 0.5 x 0.5 in. SMD package, U.S. manufactured product offers typical output power of 0 dBm, input voltage of 5 V, and max current consumption of 20 mA. Second harmonic suppression is -15 dBc typ.

Schréder Lighting LLC    Elk Grove Village, IL 60007
Aug 01, 2011 With onboard metering chipset, Owlet(TM) Intelligent Street and Area Lighting Control System monitors and reports power usage with ±2% accuracy. Telemanagement system controls, meters, and manages outdoor lighting for major roadways, city streets, and other large public lighting applications. Each light point can be switched on or off, or dimmed at any time. Operating status, energy consumption, and possible failures are reported and stored in database with time stamp and geographical location.

A-B-C Packaging Machine Corp.    Tarpon Springs, FL 34689
Aug 01, 2011 Featuring complete gripper assemblies for all pack/bottle patterns, Model 101 is designed for quick-changeover operation. Guide rail placement is simplified with sliding and locking handles that allow quick adjustment to new specification. Featuring servo-driven pick and place operation that ensures gentle product handling, Model 101 is suited for packing glass and plastic bottles, jugs, jars, and specialty shapes, as well as metal and composite cans and many styles of cartons.

Saint-Gobain ADFORS    Albion, NY 14411
Aug 01, 2011 Designed to reinforce joints for seamless drywall finishing, FibaTape® Extra Strength Tape has fiberglass open mesh design, which provides protection against mold and eliminates blisters and bubbles. Self-adhesive product, available in 2 3/8 in. x 250 ft rolls, requires no pre-bedding coat. It is suited for applications that require additional strength, including vaulted ceilings, arches, halls, and veneer plaster jobs.

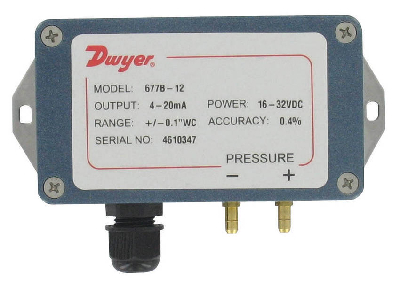

Dwyer Instruments, Inc.    Michigan City, IN 46361
Aug 01, 2011 Used with air and non-conductive, non-corrosive gases, Series 677B measures pressures as low as 0.1 in. wc with ±0.4% accuracy, making it suited for building energy management systems, environmental pollution control, and fume hood control, as well as HVAC/VAV applications. Units feature 15 psid overpressure, reverse polarity protection, and EMI/RFI protection. Operating from 0-185°F, transmitters have internal regulation that permits use with unregulated DC power supplies.

Epoxies Etc.    Cranston, RI 02921-3407
Aug 01, 2011 Featuring flexible formulation that allows bonding to substrates with different coefficients of thermal expansion, High Viscosity 10-2055 and 10-2055 HV Polyurethane Adhesives produce semi-flexible bond with resulting durometer of 55 Shore D, while 10-2080 and 10-2080 HV produce semi-rigid bond with durometer of 80 Shore D. Iso and Poloyol components are low in viscosity for handling and only increase in viscosity for flow control after they are mixed together.

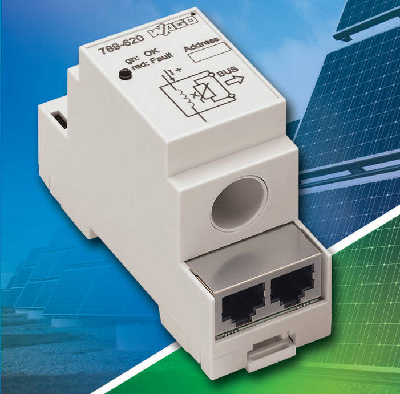

WAGO Corp.    Germantown, WI 53022
Aug 01, 2011 Designed to help identify defective or damaged PV modules, Model 789-620 measures DC currents from 0-80 Adc, while Model 789-621 measures 0-140 Adc. Equipped with dual RJ-45 interfaces, sensors transmit data via RS-485 serial communication lines up to 4,000 ft with accuracy of 0.5%. Feedthrough configuration eliminates need to terminate conductors. Operating in temperatures from -20 to +70°C, both models are addressable via on-unit DIP switch and include operational status LED.

Biohit Inc.    Neptune, NJ 07753
Aug 01, 2011 Featuring fully electronic air displacement pipetting operation, Roboline(TM) can pipette any combination of columns, rows, single wells, or entire plates. Closed environment protects reagents and samples from contamination. System is capable of forward/reverse pipetting, multiple dispensing, and diluting volumes from 5-200 µl using liquid level sensing. In addition, Roboline helps minimize repetitive strain injuries and exposure to harmful or toxic solutions.

HEIMATEC INC    Prospect Heights, IL 60070
Aug 01, 2011 With HT Series, users change adapter only, not tooling, using single clamping bolt. Collet assemblies can be preset outside machine tool, then swapped out as needed. Featuring standard coolant-through design and repeatability to 0.0002 in., system is available with all common outputs, including collet, extended collet, collet with tension and expansion for tapping, weld-on, weld-on extended, arbor, hydro-chuck, indexable insert holder, shrink fit, and blank/plug.

GAO Tek Inc.    Toronto M1B2K4  Canada
Aug 01, 2011 With input voltage range of 8-36 V, 4-channel Model A0E20001 offers more than 20 automatic measurement functions, automatic cursor tracking measurements, PASS/FAIL check, and FFT spectrum analysis. Unit provides max real-time sampling rate of 200 MS/s in single-channel mode and 100 MS/s in dual channel mode. Operating at 60 Hz, device offers vertical resolution of 8 bits/channel, time base range of 5 ns/div to 1,000 s/div, and buffer size from 10 k to 16 M samples.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Aug 01, 2011 Series LMP900xx multi-channel sensor analog front-end (AFE) ICs provide path for interfacing sensors to MCUs. Combined with WEBENCH® Sensor AFE Designer software tool and bench-top development system, series lets design engineers attach sensor, configure signal path, optimize design, and download configuration data to sensor AFE for immediate prototyping. Series features either 24- or 16-bit sigma-delta ADC with programmable input configuration.

Fluid Components Intl.    San Marcos, CA 92069 5115
Aug 01, 2011 Featuring plug-in card replacement that can be changed out in field to adapt to plant's network communication needs, Series ST100 measures gas mass flow rate, total flow, temperature, and pressure, depending on model. Basic insertion style air/gas meter has thermal flow sensing element that measures flow from 0.25-1,000 SFPS with accuracy of ±0.75% of reading and ±0.5% of FS. Graphical, multivariable, backlit LCD continuously displays all process measurements and alarm status.

Norman Data Defense Systems, Inc.    Fairfax, VA 22031
Aug 01, 2011 Using Hybrid SandBoxing technology, Norman Malware Analyzer G2 combine traditional sandbox analysis with IntelliVM capability, which monitors system events for signs of malicious behavior. IntelliVM uses KernelScout driver, embedding intelligent observation agent at lowest level of system's kernel for discovery of deeply hidden suspicious software behavior. Web-based management and operations console delivers customizable technical and executive reports as needed.

Dawn VME Products    Fremont, CA 94539
Aug 01, 2011 With VITA(TM) 62 power connector pin-out and full OpenVPX support, PSC-6234 comes in plug-in or bulkhead mounted models available for air- and conduction-cooled configurations. Six-channel design provides up to 400 W output at 28 or 48 V input on 1 in. pitch, and front I/O panel includes LED status indicator, USB port, and VBAT battery access. Shock and vibration compliant per MIL-STD-810F, product integrates RuSH(TM) Rugged System Health Monitor interfaced to OpenVPX management plane.

Denso Sales California, Inc.    Long Beach, CA 90810
Aug 01, 2011 Eliminating need to learn robot programming language, b-CAP binary control access protocol option enables users to control DENSO robot via device such as PC, PLC, vision system, or smartphone. Solution incorporates server mode that accelerates communication between robot and control device, further reducing development time. With this protocol, users can control their DENSO robots using devices that have familiar interfaces and common programming languages.

Furnace Belt Co.    Buffalo, NY 14216
Aug 01, 2011 Offered as alternative to round-wire woven metal conveyor belting, balanced extra-flat (BEF) weave suits high-temperature, heavy-duty applications. BEF weave thickness is based on 2 spiral wire diameters and one cross-rod wire diameter, with just enough clearance to allow mesh to be properly assembled. Features create uniform, flat surface that presents little to no unwanted stretch or camber, reducing repair and downtime.
