Helm Instrument Company, Inc    Maumee, OH 43537
Mar 28, 2012 Able to accept input from up to 6 frame or in-die mounted strain gage sensors, PTM-4500 LoadGard can be used with most types of press machines. Built-in alarms prevent machine damage while high/low limits provide tooling protection and consistent part quality control. Embedded PC, signature display on color touchscreen, job recipe storage, SPC charting, and Ethernet connection are standard. Latter enables cloud computing via Helm WebView software.

Schleuniger, Inc.    Manchester, NH 03103
Mar 28, 2012 Featuring integrated library of standard wire sizes and intuitive menu-guided touchscreen user interface, RotaryStrip 2400 can strip wires with various insulation types, including Kapton, Fiberglass, and Teflon®. Single step unit can also strip and twist inner strands of wires 14 AWG and smaller, as well as strip jacketed cables up to 0.275 in. OD. All parameters are fully programmable and can be stored or recalled in seconds.

CAS Data Loggers    Chesterland, OH 44026
Mar 28, 2012 Enabling instant visualization of data, Brainchild lets user monitor, record, and evaluate plant processes. Up to 6 isolated analog input channels are available for measuring voltage, current, thermocouples, or RTDs, and datalogger also offers 6 user-configurable plug-and-play I/O card slots. Along with built-in 6.4 in. VGA color LCD, features include 200 msec sampling rate, mathematical and programmable capabilities, DIO, Ethernet, and multiple data storage options.

Fortrans Inc.    Wendell, NC 27591
Mar 28, 2012 Resting above water drawn from concrete plant's cleanest detention basin or final weir, diffusion and injection chamber mixes CO2 gas into flowing water. Gas bubbles convert to carbonic acid and lower pH value. Specifically, concrete-grade 5000 Series models are set to lower settled process water to 7.5 pH, for release from plant property, and total suspended solids (TSS) to 14-17 range. CO2 gas-charged cylinder houses diffuser material and exhibits up to 90% gas utilization rate.

Parameter Generation & Control    Black Mountain, NC 28711
Mar 28, 2012 With rooms and chambers mapped and validated for US FDA-mandated long- and short-term shelf life studies under various temperature and humidity requirements, Parameter Stability Storage in Wilson, NC features -20°C freezers that provide tight overall chamber uniformity of ±0.85°C. Freezers can remain in International Conference on Harmonisation (ICH) uniformity specification even while running defrost cycles. Also, facility has added 2 new temperature and relative humidity rooms.

NEC Display Solutions of America, Inc    Itasca, IL 60143
Mar 28, 2012 Featuring thermal protection and sealed panel design, Model X463UN provides 1080p HD resolution, 500 cd/m² brightness, and contrast ratio of 3,500:1. Distance between active screen areas of 2 neighboring displays is 5.7 mm. Consuming 120 W, display offers full digital connectivity with DisplayPort In/Out, DVI-D In/Out, and HDMI. Network control and communications are via RS232C or LAN, which allows remote management. Expansion slot enables integration of NEC-branded or Intel OPS-certified cards.

NEXCOM Inc.    Fremont, CA 94538
Mar 28, 2012 Designed for security surveillance applications in hostile mobile environments, NViS 2280 leverages Intel® Atom(TM) D2700 processor and allows gigabit-speed transmission of 16 channels of HD video. Features include 4 Gigabit PoE ports, 2 GbE LAN ports, and G sensors. In addition to wireless connectivity, NVR has event recording mode, 9-36 V input options, 2 hot swappable HDD bays that provide up to 1.5 TB storage, and simultaneous supports for HD video output via VGA and HDMI ports.

NLB Corporation    Wixom, MI 48393 2824
Mar 27, 2012 Using simple conversion kit, 125 Series water jet pump units can be converted to any of eight operating pressures from 6,000 to 40,000 psi. Series features flow ranges of 4.4 to 32.5 gpm and choice of 125 or 145 hp diesel or electric engine. Unit's ultra-high pressures offer flexibility to do diverse jobs with a single water jet pump unit. Applications include contractor and industrial uses such as, surface preparation, pipe/tube cleaning, concrete hydrodemolition, and more.

Binder-USA, LP    Camarillo, CA 93012
Mar 27, 2012 Adopting standard Profinet design, Series 876 D-Coded connectors are available in male or female versions with 4 gold-plated contacts and in 2, 5, and 10 m lengths. Each connector is molded to shielded polyurethane (PUR) cable, which consists of 22 AWG wires; other cable types and lengths are available upon request. Rated current is 4 A per contact, and total rated voltage is 250 V. When fully mated, connection offers IP67 protection against liquids and debris.

ABB Robotics, Inc.    Auburn Hills, MI 48326
Mar 27, 2012 Available for high-speed bag palletizing or compact end-of-line case palletizing, PalletPack 460 function package consists of IRB 460 palletizing robot, Flex-Gripper EOAT, control PLC, Jokab safety PLC, PalletWare support software, user documentation, and FlexPendant graphical HMI. The 4-axis IRB 460 features 2.4 m reach and 110 kg capacity, and streamlined programming wizard does not require PLC programmers to have specific robotic experience.

Phihong USA    Fremont, CA 94539
Mar 27, 2012 Supplied in IP67 housing, fully isolated POE33U-560DO delivers 56 Vdc output per port and offers minimum output efficiency of 70%. Power injector has total output of 33.6 W for 2 outdoor IEEE802.3af-compliant applications. Intended for use on outdoor utility poles for IP cameras, device relays data between ports in order to allow wireless access point to be deployed for data transfer while avoiding IEEE regulation that powered devices be within 100 m of network switch.

Rotronic Instrument Corp.    Hauppauge, NY 11788

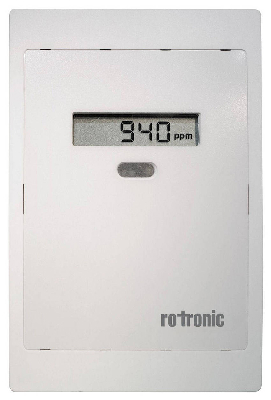

Mar 27, 2012 Based on NDIR principle, CO2 Transmitters measure carbon dioxide, carbon monoxide, and temperature. Units feature auto calibration function, relay and alarm, and operating range of 0-50°C/0-95% humidity. Designed to detect CO2 before it poses risk, transmitters are suited for regulating ventilation in living areas, offices, classrooms, cinemas, and hospitals, as well as for measuring CO2 pollution in garages, tunnels, and logistics facilities.

Super Micro Computer, Inc.    San Jose, CA 95131
Mar 27, 2012 Utilizing high-speed digital power controllers with adaptive switching in place of analog circuitry to generate PWM control signals, Platinum-Level Power Supplies enable compensation and output parameters to be dynamically configured to match different load conditions. Units include remote monitoring with PMbus 1.2, node management support, and SMBAlert. Delivering 340-1,400 W with less than 5% input current THD, power supplies are suited for data center, cloud computing, and HPC applications.

Siemens AG    Munich D-80333  Germany
Mar 27, 2012 Measuring 70 mm long, Models RF210R and RF220R have cylindrical design with thread diameters of 18 and 30 mm and short ranges of 20 and 40 mm, respectively. Model RF260R, measuring 75 x 75 x 40 mm, is used for ranges up to 130 mm. IO link interface allows readers to be integrated into machines and systems to extend applications. In addition to smart labels that are permanently attached to product, devices can read mechanically applied screw-type transponders and tags.

Western Digital Corp.    Lake Forest, CA 92630
Mar 27, 2012 Configurable as RAID 0 or RAID 1, My Book® Thunderbolt(TM) Duo provides safe way to back up content stored on computer while delivering speed for multitasking activities such as editing video/music, 3D rendering, and other HD graphics-intensive projects. RAID 1 support allows user to create second copy of digital content for double-safe protection, while JBOD mode lets user allocate each disk individually to specific task. Dual Thunderbolt ports enable daisy-chaining of up to 6 drives.

Kurt Manufacturing    Minneapolis, MN 55421
Mar 27, 2012 Designed for use with hydraulic vises, cluster towers, and swing clamps, 5,000 psi Hydraulic Pump is driven by pneumatic motor and operates from 90-145 psi shop air using foot pedal. Unit maintains constant pressure when foot pedal is depressed regardless of system pressure, ensuring accurate and repeatable clamping pressure with every clamping cycle. Designed for single acting systems, pump features internal load limiting valve, air exhaust muffler, and air/oil filters.

Ergodyne Corp.    St. Paul, MN 55108
Mar 27, 2012 Made of 400 x 400 denier black polyester with PU backing for protection against rain, SHAX® 6094 Tent Weight Bags have funnel design that allows workers to fill opening with up to 40 lb of sand or dirt using any jobsite shovel. Units use differentiating drawstring for secure closure and feature handle at top for worker transport once filled.

JVL USA/Motion Control Sales Ltd.    Morrow, OH 45152
Mar 27, 2012 Available for complete JVL range of integrated servo motors, JVL Profinet Module is equipped with 2 Ethernet connectors and built-in switch, enabling line topology without extra hardware. Several LEDs enable technicians and operators to get quick status overview, while opto-isolated digital I/Os embedded in module allow control of extra sensors without external I/O modules. All connectors are rugged M12 connectors suitable for industrial environments.

Gates Corporation    Denver, CO 80202
Mar 27, 2012 Designed to fit popular applications such as 2009-10 Ford F-Series and 2009-11 Ford Focus vehicles, Molded Branched Radiator Hoses are engineered to resist electrochemical degradation for maximum service life. PowerGrip® SB clamps provide maintenance-free performance and never need retightening, while OEM quality connectors eliminate coolant leaks.

Bernard Welding Equipment    Beecher, IL 60401
Mar 27, 2012 Providing 350 A at 60% duty cycle, Dura-Flux(TM) Self-Shielded Arc Welding Gun features advanced handle design that minimizes operator fatigue. Unit has sealed trigger, rotatable Hi-Viz(TM) neck to optimize weld puddle visibility, and internal trigger leads that prevent trigger cord from tangling with surrounding equipment. Integrated into handle for protection against weld spatter, optional dual schedule switch allows for wire feed speed adjustment while welding.
