BioMedix    St. Paul,, MN 55101
Aug 09, 2011 As expandable, all-in-one practice management platform and fully ONC-ATCB certified EHR, TRAKnet(TM) PM helps make primary care and sub-specialty practices eligible to capitalize on government incentives while streamlining patient care. Platform incorporates billing, charting, scheduling, e-prescribing, and inventory management capabilities, allowing seamless transition from scheduling to encounters and claims. Offering comes as complete premise or cloud-based solution.

Kemet Electronics Corp.    Greenville, SC 29606
Aug 09, 2011 With DC leakage at 0.0075 CV, T489 Series is suited for decoupling and filtering in high-end industrial and automotive applications. Units are rated from 6.3-50 Vdc with capacitance values from 0.1-470 µF and tolerances of ±10% and ±20%. Standard terminations are available in 100% matte tin and provide compatibility with surface mount solder systems. Operating from -55 to +125°C, RoHS-compliant capacitors use halogen-free epoxy and meet or exceed EIA standard 535BAAC.

Epson America, Epson Mechanisms    Long Beach, CA 90806
Aug 09, 2011 Suited for businesses and educational institutions, PowerLite 1880 offers 4,000 lm color and white light output with XGA resolution, while PowerLite 1850W delivers 3,700 lm output with WXGA resolution. Easy-Slide horizontal keystone slider squares image even if projector is placed off-center from screen. Connectivity options include HDMI digital connection, USB Plug-n-Play, and PC-Free slideshows. In addition, PowerLite 1880 offers advanced networking with wired LAN connectivity.

EMC Corp.    Hopkinton, MA 01748-9103
Aug 09, 2011 Available in 2 and 3 TB capacities, Iomega® Mac Companion Hard Drive utilizes 7,200 rpm 3.5 in. hard drive formatted HFS+ for compatibility with Mac computers. Unit includes 2.1 Amp USB port to charge iPad, iPhone, or iPod, as well as 2 FireWire 800 ports, 1 USB 2.0 port, and 2-port integrated USB 2.0 hub that lets user connect multiple devices such as printers or other external storage devices. Four LEDs on front of unit indicate total capacity of data volume being used.

National Instruments Corp.    Austin, TX 78759-3504
Aug 09, 2011 Featuring 1.33 GHz Intel® Core(TM) i7 dual-core processor, Xilinix Spartan-6 FPGAs, and WES7 OS option, NI cRIO-908x performs complex signal processing and control in rapid control prototyping, advanced motion control, and machine vision applications. System includes 2 GigE ports, MXI Express port, 4 USB ports, RS232/RS485 serial ports, and CPU eXpansion Module. NI sbRIO-9605/06 Single-Board RIO devices, featuring 400 MHz processor and Spartan-6 FPGA, are suited for high-volume and OEM applications.

Netlist, Inc    Irvine, CA 92618
Aug 09, 2011 Suited for server blades, Storage Bridge-Bay applications, telecom servers, switches, and routers, 16 GB 4Rank VLP RDIMM leverages Planar-X technology, which doubles number of DRAM components within standard DIMM dimensions using 2 PCB connected by flex circuit. This enables use of 72 two Gb DRAM in 36 four Gb dual die packages. Module features JEDEC compatible form factor and offers 1 DPC 1333 MT/s memory bandwidth support.

Kingston Technology Co., Inc.    Fountain Valley, CA 92708
Aug 09, 2011 Offered in 120 and 240 GB capacities, respectively, HyperX SH100S3/120G and SH100S3/240G are based on SandForce SF-2281 controller featuring SATA Rev 3.0 (6 Gbps) and utilize Intel 25 nm Compute NAND (P/E 5K). Sequential read and write throughputs are 555 and 510 MBps for both 2.5 in. models, and SandForce DuraClass(TM) technology optimizes endurance. Sustained random 4K read rates reach 40,000 IOPS, while max random 4K read rates reach 95,000.

Asahi/America    Malden, MA 02148
Aug 09, 2011 Available in 3-8 in. lever-style and 10-12 in. gear operator-style, Type 57IL Isolator Lug Butterfly Valve can be electrically or pneumatically actuated. Unit's 316 stainless steel lugs are inserted into PVC valve body during injection molding process, permanently combining lugs and body into one unit. Molded flange stopper acts as body-stop, limiting compression of valve's full seat design liner, while absorption channel acts as stress relief.

Klüber Lubrication    Londonderry, NH 03053
Aug 09, 2011 Developed for lubrication of plastic parts inside cars, Klübersynth RA 44-702 mechanically dampens and reduces noise of slowly moving parts. Fully synthetic, high-viscosity grease does not contain any silicone, has no odor, and can be used for plastic/plastic and plastic/metal material pairings. Resistant to abrasion, product helps reduce oscillation, noise, and vibration. It has been tested on 100+ standard and customized rigs to surpass requirements of automotive industry.

Kemet Electronics Corp.    Greenville, SC 29606
Aug 09, 2011 With capacitance from 1,000 pF to 6.8 µF, FO-CAP MLCC combines open mode chip design and flexible termination. Open Mode component utilizes internal electrode, which minimizes possibility of short circuit condition if mechanically damaged. Flexible Termination component, utilizing conductive silver epoxy, establishes pliability while maintaining terminal strength and solderability. Available in DC voltage ratings of 16, 25, 50, 100, and 200 V, RoHS-compliant device operates from -55 to +125°C.

M/A-COM Technology Solutions, Inc.    Lowell, MA 01851
Aug 09, 2011 Respectively, MAPS-010143/63 are GaAs pHEMT 4- and 6-bit digital phase shifters that have 1.4-2.4 GHz range and are suited for communications, electronic warfare, and radar applications. Model MAPS-010143 provides 360° phase shift range with 22.5° step size, 3.2 dB insertion loss, with ±0.5 dB attenuation variation and ±2.0° phase accuracy. Respective values for MAPS-010163 include 5.625° step size, 5.0 dB insertion loss, ±0.8 dB attenuation variation, and ±4.0° phase accuracy.

Interstate Products, Inc.    Sarasota, FL 34233
Aug 09, 2011 Made from military grade materials, IPI Fuel Bladders are suited for storing potable water, wastewater, fuels, chemicals, dielectric oil, and alternative or blended fuels. Tanks utilize variety of geomembrane fabric materials with 3 in. overlap on seams. Fabrics are matched to application to resist temperature extremes, humidity, UV exposure, abrasion, and corrosion. Available with variety of connections, fittings, and valves, collapsible cells provide temporary and long term storage.

Raytheon Corp.    McKinney, TX 75070
Aug 08, 2011 Miniaturized interrogation antenna extends use of Cooperative Target ID technology to soldiers and unmanned aircraft to help prevent friendly fire incidents. It uses cooperative millimeter wave technology, certified at technical readiness level 7 by military. Designed for integration with surveillance, targeting, and soldier systems, Cooperative Target ID is electronic, question and answer, Ka band radio technology that can identify equipped friendly forces in less than 1 sec.

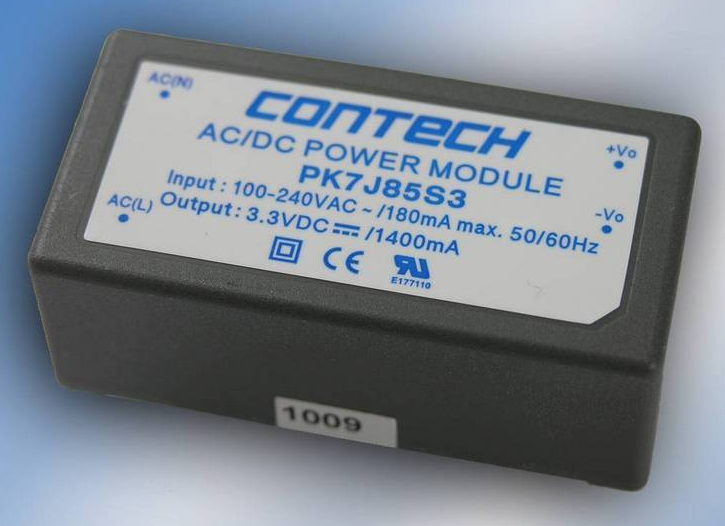

Contech    Goddard, KS 67052
Aug 08, 2011 Suited for small- to medium-size PCB applications, PK7 Series AC/DC switching power supply provides 7 W output power and operates from 85-265 Vac at 47-440 Hz. Single-output models, available as 3.3, 5, 12, 15, and 24 Vdc, incorporate output over-voltage protection as well as short circuit protection. Encapsulated with thermally conductive potting compound in plastic resin and fiberglass case that meets UL94V-0, RoHS-compliant and UL-approved series is rated for 3000 Vac isolation.

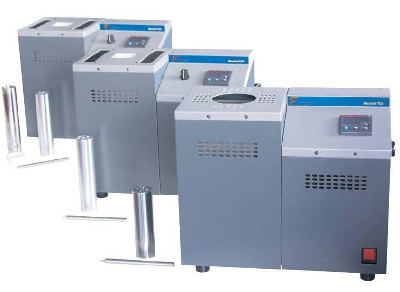

E Instruments International LLC    Langhorne, PA 19047
Aug 08, 2011 Designed to verify and calibrate sensors, thermometers, and process transmitters both in field and in laboratory, Series TCS 650 features temperature range of 35-650°C with ±0.03°C stability at 650°C and radial uniformity of ±0.02°C. Standard configuration includes 6-hole 140 mm deep metal block insert. Supplied with NIST Calibration Certificate, portable units heat from 50-600°C in 30 min and cool from 600-150°C in 30 min with stabilization time of 10 min.

Harting KGaA      Germany
Aug 08, 2011 Suitable for use in switchboard cabinets and control terminals, har-port offers service interfaces for 1/10 Gigabit Ethernet as well as USB 2.0 and 3.0 Type A and makes control units and industrial computer interfaces accessible from outside. Compact design also makes unit suited for use as communication interface for conference tables or workstations. Assembly calls for one central fastening nut in standardized, circular, 22 mm panel cutout.

SKF USA, Inc.    Lansdale, PA 19446
Aug 08, 2011 Reducing need for manual maintenance, SKF Hydraulic Driven Lubricator automatically lubricates construction and off-highway equipment attachments using integrated pump driven by hydraulic oil itself. Integral pump feeds proper lubricant in appropriate amount at right time, and delivery rates can be adjusted or reset to meet operating requirements. Installed directly on attachment, unit performs ideally with chisel paste and helps increase machine availability as well as worker safety.

SKF USA, Inc.    Lansdale, PA 19446
Aug 08, 2011 With SKF Grease Test Kit, users can take samples and evaluate grease consistency, oil bleeding characteristics, and contamination in field, without training or use of harmful chemicals. Kit is equipped with instructions, methodology, relevant tools for sampling and testing, and guidelines to interpret test results. Sample size of only 0.5 g is required to perform all 3 tests and process can be conducted as frequently as necessary.

Data Device Corp. (DDC)    Bohemia, NY 11716-2482
Aug 08, 2011 For optimized reliability, BU-65596F/M features enhanced Mini-ACE® core in ASIC design. Total-ACE® integrated terminals create rugged design suited for military applications. Along with DDC ASIC featuring over 62 million hr of in-service history, card offers up to 4 MIL-STD-1553 channels or up to 16 avionics discrete I/O. Solution is software-compatible with ACE and Enhanced Mini-ACE® and rated to VITA 47 Class V3 for rugged environments.

Jet Edge    St. Michael, MN 55376
Aug 08, 2011 Powered by Jet Edge waterjet intensifier pump, Mid Rail Gantry Model MR513 comes standard with one abrasivejet cutting head or optinally with second and is sized for fabricators, machine shops, and stone/tile shops. Machine can cut complex parts from virtually any material without creating heat-affected zone (HAZ) and offers optional mirroring capability for accelerated large part cutting. Machine can also be configured so that all 3 axes are fully programmable (Z optional).
