Electro Standards Laboratories    Cranston, RI 02921 3403
Sep 14, 2011 Using MEMS-based mirror/prism technology and supporting Gigabit data rates, QuickSwitch 6302 allows 2 channels quick connection to any one of 2 LC Duplex fiber optic networks from one computer. User can change switch position, lockout front panel pushbutton control, or obtain switch status via Telnet command interface or GUI. IP-addressable and password-protected, switch maintains switch position upon power loss and continues to pass data. Switch ports are transparent to all data.

For-A    Cypress, CA 90630
Sep 14, 2011 Providing real-time character generation, clip recording, and picture-in-picture capability, SmartStudio is suited for live event production, studio production, and webcasting. System is powered by MBP-1244 Video I/O board, which delivers 4:4:4:4 RGB signal processing and supports 1 HD-SDI or SD camera as well as 3 additional video sources. Template-based CG, built around Brainstorm interface, can key graphics over background video internally or output key and fill signals for external mix.

Newport Corp.    Irvine, CA 92606
Sep 13, 2011 Based on stiff-body design, stand-alone IMS-LM-SA Series suits applications that carry up to 10 kg loads. Self-supporting stages are available in 800, 1,000, and 1,200 mm travel capacities, and all feature industrial-grade, direct drive linear motors; direct read linear encoders; recirculating ball bearings; and stiff, FEA-optimized aluminum base. Also standard, 4-point mounting method ensures stability even when mounted on less than ideal, flat surfaces.

Midwest Motion Products    Watertown, MN 55388
Sep 13, 2011 Accepting any 12 Vdc source, including solar or battery power, Model MMP TM57-12V GP52-124 develops 136 lb-in. torque at 35 rpm. Reversible gearmotor measures 2.24 in. D x 7.76 in. L and has keyed output shaft of 12 mm D x 25 mm L. Mounting is accomplished with 4 face mount M5 threaded holes, equally spaced on 40 mm dia BC. Featuring IP54 rating for operation in harsh environments, motor requires just 7.2 A at 12 Vdc to generate full load torque.

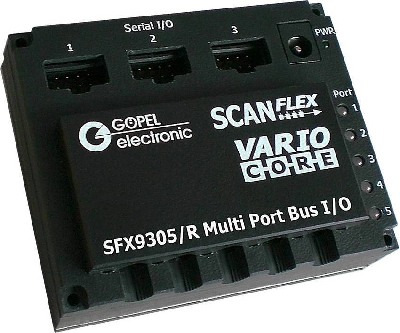

GOEPEL electronics LLC    Austin, TX 78759
Sep 13, 2011 Providing 5 independent, freely configurable bus ports, SCANFLEX® SFX-9305/R enables users to combine functional test procedures for bus interfaces such as LAN, USB, CAN, or LIN with vector-less working test methods. Target is physically accessed by selection of Bus Access Cables (BAC). Current configuration is automatically identified, whereby BAC type and quantity are freely definable. Module programming and handling of test program data are based on CASLAN instructions.

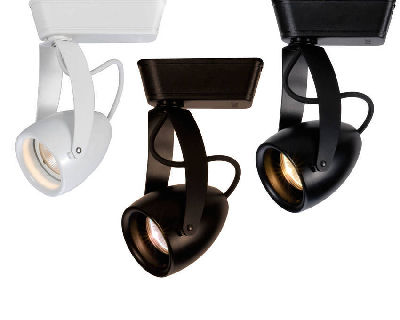

W.A.C. Lighting Company    Port Washington, NY 11050
Sep 13, 2011 Engineered from solid die-cast aluminum, Impulse Luminaires utilize multi-chip LED spot or low-voltage MR16 halogen lamps. Multi-chip technology optimizes thermal management and heat dissipation while centralizing light source with 1 replaceable 12 W LED module rather than multiple LEDs. Design enables user to change beam spreads to 24° or 32° while delivering output up to 543 lumens with CRI of 80. Measuring 7¼ x 3 1/8 x 5 6/8 in., luminaires are dimmable with electronic low-voltage dimmer.

Analog Devices, Inc.    Norwood, MA 02062-9106
Sep 13, 2011 Qualified for automotive safety applications, ADXRS800 iMEMS® Gyroscope features differential quad-beam architecture that minimizes influence of linear shock and vibration. Unit offers measurement range of ±300°/sec at 80 LSB/°/sec resolution. Sensitivity to linear acceleration is specified at 0.03°/sec/g, while vibration rectification is 0.0002°/sec/g², and noise-rate density is 0.02°/sec/√Hz at +105°C. Consuming 6 mA, gyroscope operates over temperature range of -40 to 125°C.

Anver Corp. - Anver.Com    Hudson, MA 01749
Sep 13, 2011 Featuring articulating handle with fully integrated controls and vacuum gauge, Anver VB-Series Vacuum Lifter-Tilter lets one person pick-up and load coiled products into assembly and packaging equipment. System combines electric hoist and pneumatic-powered, 90° tilter to eliminate manual bending, lifting, and twisting. Offered in 250 and 500 lb capacities, product comes with remote power station and employs 10 in. dia foam suction pad.

Greenheck    Schofield, WI 54476 0410
Sep 13, 2011 Intended for HVAC systems in commercial or institutional applications, Model RV/RVE fully conditions and controls any mixture of outdoor and return air. Configurable solution, with performance capabilities up to 9,500 cfm, features 2 in. double-wall construction and direct-drive plenum fans. Several heating - indirect gas furnace, hot water, or electric - as well as cooling options - packaged DX, chilled water, or split DX - are available, along with optional energy wheel (Model RVE).

Pro-Link, Inc    Canton, MA 02021
Sep 13, 2011 With permanent divider separating cleaning solution from rinse water, Advanced Microfiber System (AMS) Split Bucket II helps reduce cross contamination. Dual bucket system, designed for use with Pro-Link folding mop holder and Mega-Loop(TM) microfiber folding mops when used with optional roller wringer, also has integral bottom drains. Height of handles and bucket further reduce worker strain, and optional Extra Capacity Down Press Wringer lets facilities use traditional wet mops.

PrimeTest Automation    Boca Raton, FL 33487
Sep 13, 2011 Customizable leak test system verifies components and complete assemblies of mobile communication devices are properly sealed against air and water infiltration. Reliant upon precise fixturing and custom LabVIEW software with specialized test algorithms, solution records results so manufacturing process can be certified to quality control guidelines. System can be customized to handle range of applications and enabled to produce various reporting data and documentation.

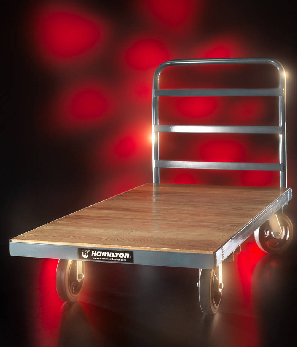

Hamilton Caster & Mfg. Co., The    Hamilton, OH 45011 4087
Sep 13, 2011 Providing 2,000 lb capacity, Model PB1108 features 2 x 1 ½ x 3/16 in. all-steel frame and 1 in. kiln-dried hardwood deck, which muffles noise and protects load from damage. Heavy-duty industrial cart uses 8 x 2 in. moldon rubber tired wheels with ball bearings that minimize required starting forces to prevent operator fatigue and back strain.

Daimer Industries Inc    Woburn, MA 01801
Sep 13, 2011 Wheel-mounted for portability, Vapor-Flo® 7940 Pressure Washers are powered by 4.0 hp motor and are capable of high-pressure cleaning to 2,175 psi with cold water or hot water up to 79.4°C. Units are housed in powder-coated steel and designed to work with 50 Hz, 3-phase, 440 V electrical environments. Exhaust-canceling design makes washers suited for applications in food and beverage operations, hospitality, casinos, and nursing homes.

Ultrasonic Power Corp.    Freeport, IL 61032
Sep 13, 2011 As complete, self-contained systems, Gunsonic HG 1206 and LG 3606 include all hardware and accessories needed to completely clean and lubricate firearms: basket, lid, lubrication tank, detergent, lubricant, and parts dryer. Construction of included Vibra-Bar® transducers provides complex resonance of 40-90 kHz, which produces Simultaneous Multi-Frequency® that virtually eliminates undesirable standing waves. Generators provide consistent ultrasonic cleaning power throughout cleaning bath.

GAO FiberOptics Inc.    Toronto   Canada
Sep 13, 2011 Designed to plug into Ethernet SFP port of Cisco switch or router, Series C015PB01 is used in pairs to transmit/receive signals on one fiber strand using 2 wavelengths. Hot-pluggable, RoHS-compliant 1000Base-BX units have transmit power of -3 to -9 dBm and receive power of -1 to -21 dBm. Using standard simplex LC connectors for fiber cable connection, transceivers provide transmission distance up to 10 km over 9/125 micron single mode fiber at max data rate of 1.25 Gbps.

Sly Process Systems LLC    Strongsville, OH 44136
Sep 13, 2011 Super Duty PET crystallizing system consists of agitated crystallizing hopper, electric or gas air heater configured to deliver required heating BTU, and optional cyclone dust collector. System monitors level and temperature of resin in top of hopper and automatically regulates speed at which material moves through hopper to ensure every pellet or flake is crystallized before discharge. Generally, system will automatically compensate for variations in process without operator intervention.

Electro Standards Laboratories    Cranston, RI 02921 3403
Sep 13, 2011 Used for measurement and control of dual-channel LVDT measurement fixtures, Model 4215-L Smart Indicator combines 2 simultaneous sample LVDT channels, print capabilities, and RS232/485 serial communication. It provides all necessary excitation and signal conditioning as well as plug-and-play TEDS-Tag Auto LVDT identification. In addition to analog outputs, limit switching, and 2-line display, features include fully bipolar range 999,999 display, 24-bit resolution, and 0.05% linearity.

Electro Standards Laboratories    Cranston, RI 02921 3403
Sep 13, 2011 Connected directly to standard strain gage-based load cell, extensometer, or pressure sensor, Model 4325B-GUI simultaneously generates 10 V analog output and serial digital output for connection to PC. Unit compensates for transducer nonlinearities using 6-point calibration capability. With integrated electronic tags, TEDS-Tag Auto Load Cell Identification feature allows device to automatically select correct sensor calibration and analog output for scaling for connected transducer.

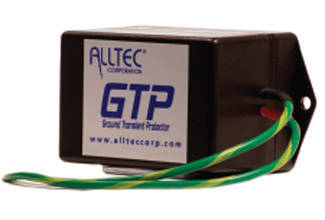

Alltec Corporation    Canton, NC 28716
Sep 13, 2011 Operating like check valve for equipment level electronics, Ground Transient Protector inhibits surges from looping back through ground conductor to damage sensitive equipment such as circuit boards, controllers, and data storage devices. Unit installs in series with ground wire, directly into device that needs protecting. Passive filter works by slowing damaging rise and fall time of transient voltage waveform rather than clipping it off, controlling frequency rather than amplitude.

Caron Products & Services, Inc.    Marietta, OH 45750 0715
Sep 13, 2011 Creating ultra-stable conditions for cell culture, Oasis 6404 can precisely suppress and control oxygen concentration down to 1%. Unit includes IR sensor, tri-zone heating design, and overnight decontamination cycle with drying phase that eliminates cabinet wipe-down. Available in 115 V, 60 Hz or 230 V, 50/60 Hz, Oasis 6404 provides 6 ft³ capacity in benchtop or stackable format. Incubator has polished stainless steel interior with covered corners and antimicrobial powder-coated exterior paint.
