Advanced Micro Peripherals    New York, NY 10001
Apr 04, 2013 Capable of capturing up to 8 live NTSC/PAL/RS170 video inputs, AVC8000nano is suited for UAV-based video capture, real-time situational awareness, law enforcement, crime scene recording, and asset or traffic monitoring. Captured video can be scaled, cropped, and positioned using intuitive software controls. In addition, captured video can be streamed continuously to system memory for immediate processing or local display or to disc storage.

CamdenBoss Ltd    Mildenhall   United Kingdom
Apr 04, 2013 Designed for cabling, telecommunications, IT, and industrial installations, CamRack-QX series includes five 580 mm wide models with depth and height measurements of 421 x 384 mm (6U), 421 x 517 mm (9U), 521 x 651 mm (12U), 521 x 784 mm (15U), and 621 x 917 mm (18U). Features include quick-release door with tempered, smoky safety glass; removable side panels; and drilled plastic blanking covers for cable entry. Max recommended load capacity is 45 kg.

Vaunix Technology Corporation    Haverhill, MA 01835

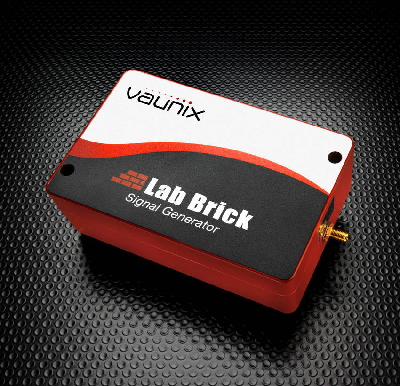

Apr 04, 2013 Featuring aluminum construction, Lab Brick LMS Series meets demand for defined frequency bands through 4 GHz, specifically 70-450, 250-1,500, 600-3,200, and 1,000-4,000 MHz with output power options of +10, +13, and +20 dBm, depending on model. USB-compatible, synthesized units feature 100 µs switching time and 100 Hz frequency resolution, with no additional DC supply voltage. Advanced features include phase-continuous linear-frequency sweeping and selectable internal/external 10 MHz reference.

PennEngineering® (Penn Engineering)    Danboro, PA 18916
Apr 04, 2013 Comprising Type HSCB™ captivating screw and Type HSL™ spring mated to Type HSR™ broaching receptacle nut or standoff, PEM® Heat Sink Mounting System securely attaches heat sinks to circuit boards while providing firm and constant contact to chip component. System integrates audible click feature to prevent over tightening during installation, accommodates slight expansion and contraction of joint components without damaging circuitry, and allows for removal of heat sink if necessary.

Siemens AG    Munich D-80333  Germany
Apr 04, 2013 Featuring CP 1542-5 communication processor that enables connection to Profibus networks, Simatic S7-1500 supports Profibus-DP master and slave functions according to IEC 61158/61784 as well as S7 routing. Security functions have been extended in CP 1543-1 communication processor used to connect to Industrial Ethernet networks; one provides additional encryption of data communicated to controller. In addition to access protection functions, CP 1543-1 offers stateful inspection firewall.

Siemens AG    Munich D-80333  Germany
Apr 04, 2013 Featuring IP67/IPx9K protection rating, 4 x 5 mm MDS D117 may be used from -25 to +100°C and suits tool identification applications as well as use with small workpiece carriers. ISO 15693-compliant transponder, fitted with 112 byte EEPROM, is configured for 13.56 MHz (RF) frequency range and can be used at read/write distance of 5 mm from reader. Plastic housing can be glued flush with metal, ensuring protection from mechanical influences in hostile industrial environments.

Yokohama Tire USA    Fullerton, CA 92831
Apr 04, 2013 Made with orange oil and silica, BluEarth AE01 eco tires promote fuel efficiency in small to medium cars. Orange oil replaces some petroleum content formerly in rubber while also keeping tire compound soft and flexible at micro level. Tires work just as well in cold and wet conditions when rubber traditionally hardens and starts to lose grip. Additional features include low rolling resistance and multitask shoulder grooves for even wear.

Pulse Electronics    Trevose, PA 19053
Apr 04, 2013 Offered in sizes from 7.6 x 7.4 x 6.4 mm to 21.7 x 21.5 x 12.5 mm, Round-Wire Coil Surface Mount Power Inductors range from 0.3–50 µH with current rating up to 70 A. Models PG0871NL, PG0702NL, PG0926NL, PH0936NL, and PG1083NL have unconnected third pin that distributes weight and balances 3 terminals during mechanical vibration. Flattened leads serve as pad, making coil self-leaded. Inductors are used as energy storage devices and filters in POL regulators and as DC/DC converter output inductors.

Vizrt Ltd    Bergen 5011  Norway
Apr 04, 2013 With Virtual SloMo tool, Viz Libero 5.5 uses advanced image-based algorithm to generate ultra-slow motion footage, up to 1,500 fps, rather than relying on high-speed camera systems. Program also integrates with Grass Valley K2 Summit media server and K2 Dyno replay system, both of which are used in studio and remote sports production environments. In addition, Viz Libero 5.5 adds in-game 3D virtual sports toolsets geared to motorsports, tennis, cricket, and field hockey as well as Australian football.

Avalue Technology Inc.    Chung Ho City, Taipei   Taiwan
Apr 04, 2013 Measuring 430 x 300 x 43 mm, ENA-7180-25 is powered by Intel® D2550 Dual Core, 1.86 GHz processors and equipped with 2 SODIMM sockets. It supports up to 4 GB DDR3 800/1,066 SDRAM and provides range of I/O and storage options. Measuring 430 x 406 x 43 mm, ENA-7180-61 is powered by Intel Core™ i7/ i5/ i3 Processors and Intel® H61 Chipset. This server has two 240-pin DIMM sockets that support up to 16 GB DDR3 1,066/1,333 SDRAM. One 3.5 in. HDD bay is standard.

Baumer Ltd.    Southington, CT 06489 1534
Apr 04, 2013 Suited for data transmissions implemented on utility vehicles, cranes, and industrial trucks, MAGRES series supports solid and blind-hollow shaft options and provides 12-bit single-turn and 16-bit multi-turn resolution with analog output by 12-bit D/A transducer. Non-contact, wear-free, magnetic sensing resists effects of dirt, dust, condensation, and temperature fluctuations. Encoders are available with voltage outputs from 0–10 V or 0.5–4.5 V or with current output from 4–20 mA.

Larson Electronics, LLC    Kemp, TX 75143
Apr 04, 2013 Offering built-in magnetic or permanent mounting base options, SLEDB-5-M LED strobe light incorporates solar panel and internal batteries. This 4 in. tall product, which can run endlessly on 4–5 hr of daily sunlight, is suited for use as warning or barricade light as well as other off-grid applications. If there is no sunlight for several days, operators can charge beacon via included 12 V vehicle charger.

For-A    Cypress, CA 90630
Apr 04, 2013 Featuring separate main unit and control panel, Model HVS-XT100 comes with 8 HD/SD-SDI inputs and 4 outputs, while Model HVS-XT110, offering integrated design, includes 12 HD/SD-SDI inputs and 6 outputs. Switchers provide frame synchronization, multi-viewer capability, re-sizing engine, 2.5D wipe effects, DVE, and keyer with chroma key. With 2 freely assignable Keyers and DSKs channels, operators can use AUX to expand range of production when displaying video on monitor other than main system.

Kemet Electronics Corp.    Greenville, SC 29606

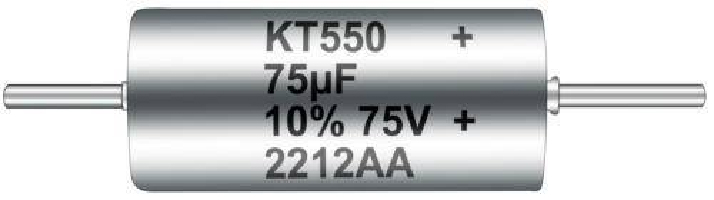

Apr 04, 2013 Featuring solid internal construction for optimal shock and vibration capability, T550 Polymer Hermetic Seal Series offers capacitance from 75–120 µF and max operating temperature of +105°C. Benign failure mode makes products suited for high voltage power management applications such as buck boost converters, filtering, hold-up capacitors, and other high ripple current applications. Typical markets include alternative energy, industrial/lighting, telecommunications, and defense and aerospace.

Crystek Corp.    Fort Myers, FL 33913
Apr 04, 2013 Operating from 5,685–5,780 MHz with tuning voltage range of 0.3–4.7 Vdc, Model CVCO55CXT-5685-5780 features typical phase noise of -102 dBc/Hz at 10 KHz offset. Coaxial-based VCO exhibits output power of 0.0 dBm into 50 Ω load with supply of +5.0 Vdc and current consumption of 25 mA max. Housed in 0.5 x 0.5 in. package, USA-made device minimizes Pushing and Pulling to 1.5 MHz/V and 0.5 MHz, respectively. Second harmonic suppression is -30 dBc typical.

BIG Kaiser Precision Tooling, Inc.    Hoffman Estates, IL 60192

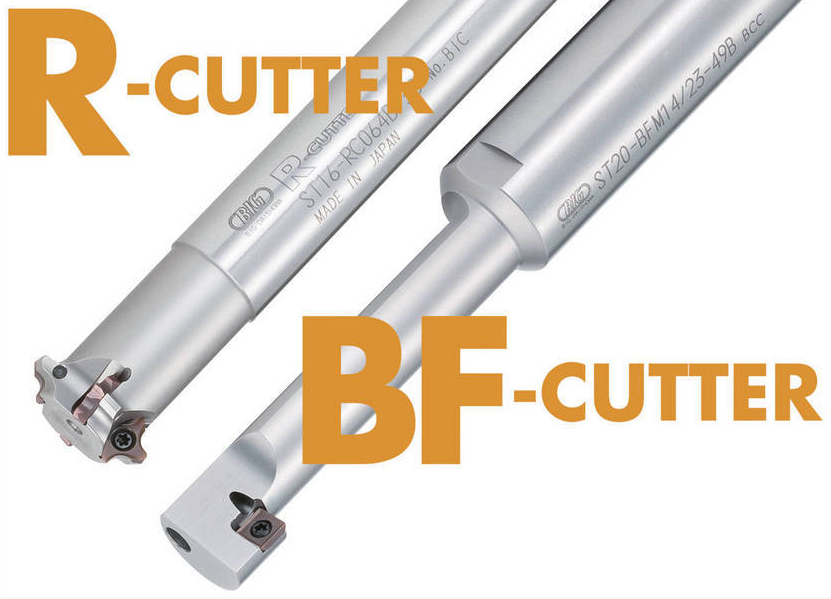

Apr 04, 2013 Offered in single- and 4-insert designs, BIG Daishowa R-Cutter front and back radius chamfering mill features rake angles that reduce cutting resistance and minimize burr generation. Coated carbide insert design allows for 4 indexes and is available with radii of .02–.16 in. Designed for back spot facing of cap bolt holes (sizes M6–M16), BIG Daishowa BF-Cutter features offset design and square indexable insert with 4 indexes. Coolant-through capability helps increase tool life.

Hypertherm, Inc.    Hanover, NH 03755 0010
Apr 04, 2013 Available for Kaliburn Spirit and ProLine series plasma systems, Centricut quick disconnect torches feature 2-piece torch technology that facilitates and accelerates torch switching as well as consumables changeout. Optimized gas and coolant flow promote performance and reliability. Coupler ring promotes operator grip on torch, allowing for tight connection between torch head and base, and dust seal keeps metal chips and other debris from collecting on coupler threads.

Photron USA, Inc.    San Diego, CA 92126

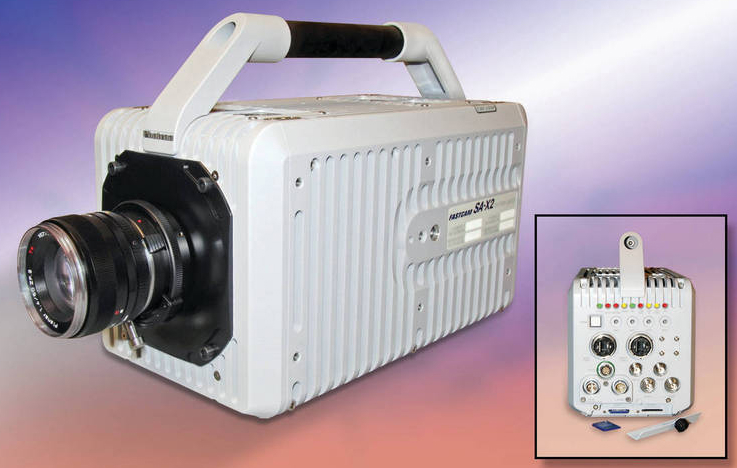

Apr 04, 2013 Fastcam SA-X2, 20 µm² pixel CMOS sensor can capture up to 13,500 fps at 1,024 x 1,000 (12-bit) megapixel resolution; SA-X2 Model 1000K can capture up to 1,000,000 fps at reduced resolution. Along with dual SD card storage, camera offers ability to partition available memory to accommodate simultaneous downloading and recording. Shutter time of 293 ns enables imaging of high-velocity events without motion blur, and dual-Gigabit Ethernet interface enables image download rates of 8 GB/min.

Newport Corporation    Irvine, CA 92606
Apr 04, 2013 Available in sizes from 1 x 1 ft to 3 x 6 ft, precision-grade (PG) optical breadboards feature constrained layer modal damping that minimizes torsional and bending modes. Sealed mounting aids containment and clean-up of spills or retrieval of small objects, while 3/16-inch steel triple-core interface honeycomb design helps reduce weight while promoting stiffness and dynamic rigidity. At 2 or 4 in. thick, breadboards offer surface flatness of <±0.004 in. over 2 ft².

KRAIBURG TPE Corp.    Duluth, GA 30096
Apr 04, 2013 Part of DW Series Compounds, THERMOLAST® K material used for O-ring in metal filter from EMME GI PLAST s.n.c., ensures flawless filtration of water in pipes and guarantees safe contact with drinking water. Growth of mold and bacteria is inhibited without addition of irritating or even poisonous chemicals. Available from 55 Shore A, DW Series compounds comply with all important drinking water standards, even when they are colored. In addition, thermoplastic elastomers repel dirt and lime.
