Pass & Seymour/Legrand    Syracuse, NY 13221
Nov 01, 2011 Designed to meet NED® requirements, Isolated Ground GFCI Receptacle minimizes electrical interference from building's ground system. Product range, which includes 15 and 20 A tamper-resistant duplex receptacles, is specifically designed to protect computers and other electronic equipment. Hospital Grade models are also available. Constructed of impact-resistant thermoplastic, receptacles feature LED trip indicator and SafeLock(TM) Protection for power shut-off if protection is compromised.

Touchstone Semiconductor    Milpitas, CA 95035
Nov 01, 2011 Consuming 27 µA at no-load, +2.5 V Models TSM6025A and TSM6025B exhibit initial output voltage accuracy of less than 0.2% and output voltage temperature coefficient of 15 ppm/°C. Output stage is stable for all capacitive loads to 2,200 pF and is capable of sinking and sourcing load currents up to 500 µA. Supply current is not affected by changes in applied supply voltage. Available in 3-pin SOT23 package, ICs are pin-compatible and spec-identical to Maxim Integrated Products' MAX6025A/B.

UNIST, Inc.    Grand Rapids, MI 49512
Nov 01, 2011 Coolubricator(TM) MQL (Minimum Quantity Lubrication) systems are available with Pulse Generator Adjustment upgrade, which features anodized aluminum knob with knurled grip and clearly marked pulse rate settings. Molded nylon base incorporates reference mark and is designed for retrofit of existing pulse generators. Upgrade facilitates adjustment of positive displacement pump cycle rate and enables settings on Coolubricator(TM) to be changed without screwdriver.

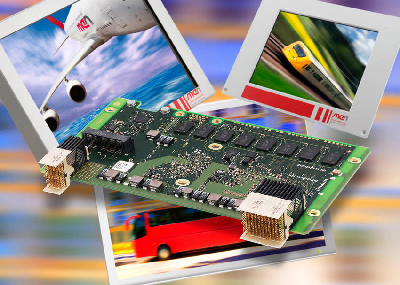

MEN Mikro Elektronik GmbH    Nurnberg 90411  Germany
Oct 31, 2011 Combining 1.5 GHz AMD Embedded G-Series T52R processor with AMD Radeon HD 6310 GPU, Model SC24 supports up to 2 x 2 DisplayPort interfaces with max resolution of 2 times 2,560 x 1,600 and 2 times 1,920 x 1,200 or 4 times 1,920 x 1,200. Board is equipped with 1-4 GB DDR3 SDRAM and supports 9 USB 2.0, 2 Ethernet channels, 3 PCI Express, 5 serial interfaces, HD audio, 1 SATA, and various GPIOs. Operating from -40 to +85°C, SBC is suited for panel or box PCs in mobile markets.

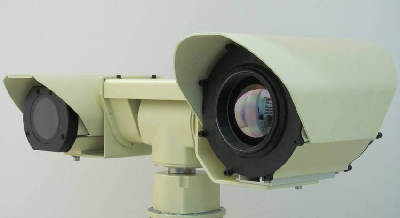

ESC BAZ    Kibbutz Einat 48805  Israel
Oct 31, 2011 With zoom options of 15-100 mm, 25-150 mm, and 25-225 mm, Layla® delivers continuous video from narrowest to widest field of view, without losing target, in complete darkness. Two DSPs provide 2-channel simultaneous video inputs, ensuring video image stabilization. Additional built-in digital interface enables integration with CCD day camera. Able to withstand all weather conditions, Layla is suited for 24/7 surveillance in areas of homeland, border, critical site, and perimeter security.

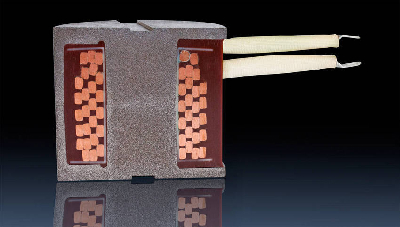

SMP Sintermetalle Prometheus GmbH & Co KG    Graben-Neudorf   Germany
Oct 31, 2011 Available for frequencies up to 200 kHz and currents up to 1,000 A, SMP Chokes are installed at inverter's input, where they provide power recovery, and at inverter's output, where they act as filter chokes. Encapsulated design ensures that components emit only low-intensity stray fields, which allows other components to be placed in close proximity without magnetic interaction. Offered in sizes from 36-300 mm diameter, RoHS-compliant chokes operate up to 180°C.

Sprint Electric Ltd    Arundel East Susse BN18 0BE  United Kingdom
Oct 31, 2011 Using 3-phase supply power to provide controlled DC field current, QLX works with armature controller for field control functions. Model range spans currents from 12-2,250 A, with full digital control and nominal communications facilities. Supplied in 5 frame sizes, products offer Field Reversal and Auto Field Weakening for high-power fields as well as built-in Standby Field mode. Digital functions include field bus options such as Profibus, DeviceNet, CanOpen, Modbus TCP/IP, EtherNet.

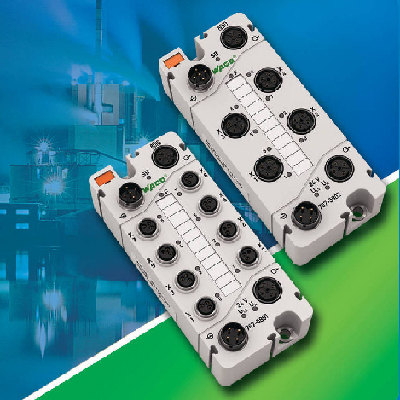

WAGO Corp.    Germantown, WI 53022
Oct 31, 2011 Configurable channel-by-channel, IP67 SPEEDWAY Model 767-5801 with 8 x M8 connectors and Model 767-5802 with 4 x M12 connectors run in direct input, direct output, or mixed DIO modes. Modules record binary signals from sensors, proximity switches, and control actuators, and provide parameterization of filter, inversion, substitute value strategy, manual mode, and online simulation. Units can be configured with two 1 kHz counters with event, gateway time, or pulse duration modes.

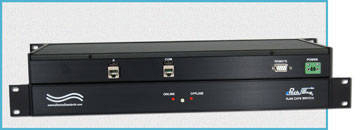

Electro Standards Laboratories    Cranston, RI 02921 3403
Oct 31, 2011 Certified for Cat6 compliance, Model 7372 allows users to connect 2 separate devices via Online or Offline connection, eliminating need to plug and unplug cables. Single-channel data switch utilizes shielded RJ45 connectors and switches all 8 pins of RJ45 interface. Transparent to data speed and format, switch can be controlled via front panel pushbutton or remotely via Contact Closure commands. Unit retains last switch position in even of power loss and continues to pass data.

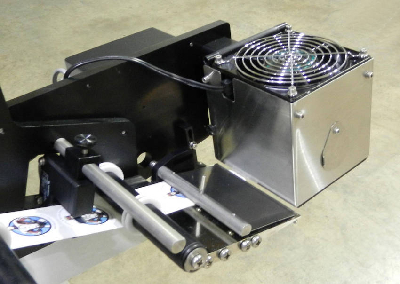

ID Technology Corp.    Fort Worth, TX 76106
Oct 31, 2011 Available with standard blow-on module, Model ST1000 uses fan to create low-pressure, high-volume vacuum that holds label in place, on grid, until application. High-pressure jet of air, through controlled pattern of tubes, then blows label onto product. Tubes can be arranged in variety of patterns to accommodate label shapes from .5 x .5 up to 4.5 x 4.5 in. Positioned from top or side, applicator can be placed in direction of product travel, reversed to product travel, or 90° to product travel.

Thermo Fisher Scientific    Waltham, MA 02454
Oct 31, 2011 Intended for use by laboratories, Dense Storage system combines 1 mL Thermo Scientific Nunc CryoBank tubes with 13 x 13 tube dividers, and Nunc(TM) CryoBoxes. Standalone tube separators can also be retrofitted to existing CryoBoxes for additional flexibility, and optional 2D barcodes on Nunc CryoBank tubes enable tracking and traceability. To facilitate manual handling, CryoBank Picker Pen has been designed to fit into top of each tube to uncap or move it between racks.

Guyson Corporation of U.S.A.    Saratoga Springs, NY 12866
Oct 31, 2011 Featuring 36 x 60 x 36 in. chamber, customized Model 7 allows one user to change positions to reach all aspects of 5 ft long component or 2 people to blast simultaneously. Each work station has view window and independently adjustable blast nozzle, and top-hinged upper section accommodates loading of taller components. In addition to safety interlocks on all doors, features include stainless steel shot collection, cyclone media reclaimer, and dust collector.

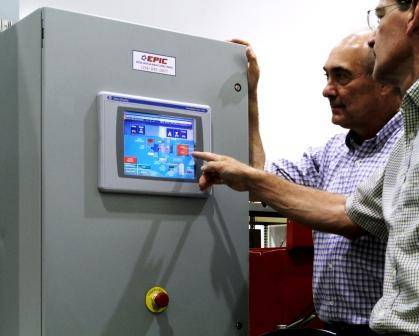

EPIC Systems, Inc.    St. Louis, MO 63129
Oct 31, 2011 Supplied under one part number, pre-fabricated Insta-Panel Control System is pre-tested for reliability and is engineered to facilitate connections with manufacturing facility processes. Industrial PLC control system is equipped with HMI, operator interface, NEMA 4 enclosure, CompactLogix processer, I/O, and power supply. Additional room is available for expansion and future upgrades.

U E Systems, Inc.    Elmsford, NY 10523
Oct 31, 2011 From leak survey, Ultratrend DMS(TM) can create reports that, along with providing compressed air leak information, also break down gases such as carbon dioxide, nitrogen oxide, and sulphur dioxide. Data measurements are based on state electricity profiles by Energy Information Administration; Office of Coal, Nuclear, Electric and Alternative Fuels; and U.S. DOE. Report offers detailed monthly survey of data, as well as global annualized summary of leak volume, and potential cost savings once fixed.

Miller Fall Protection    Franklin, PA 16323
Oct 31, 2011 Addressing various safety-at-height needs, Miller EPIC(TM) ULTRA Barrier System combines guardrail, toeboard, and steel mesh barrier into one unit. OSHA-compliant system uses precast sockets, clamps, and anchored components for base attachments and adjustable posts for upright supports. Designed with closed-return for optimal debris containment, product is suited for unprotected roof edges, leading edge decks, elevator shafts, floor hatchways/chutes, and floor or wall openings.

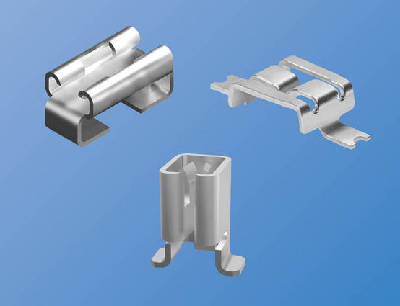

Keystone Electronics Corp.    Astoria, NY 11105
Oct 31, 2011 Available in vertical, horizontal, and through-board blade entry types, Surface Mount Automotive Blade Fuse Clips secure fuses in place even after multiple insertions. Units accept standard style ATO and ATC fuses, low profile Mini No. 891 or ATM-LP fuses, as well as Mini and ATM series of Mini Auto Fuses. Made of brass with tin nickel plate, clips feature voltage rating of 500 Vac and current rating 15-30 A.

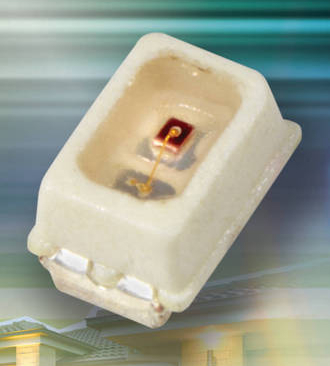

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Oct 31, 2011 Utilizing AllnGaP technology, VLMx233.. series are offered in super red, red, amber, soft orange, and yellow and deliver 280-1,400 mcd depending on color. High-intensity LEDs, supplied in 2.3 x 1.3 x 1.4 mm package, provide low thermal resistance junction/ambient of 480 K/W and power dissipation up to 130 mW, which enables drive currents up to 50 mA. Products also provide ±60° angle of half-intensity and luminous intensity ratio per packing unit of less than 1.6.

DigitalPersona, Inc.    Redwood City, CA 94063
Oct 31, 2011 Designed to meet and exceed FIPS 201 PIV Image Quality Specification, U.are.U® 5100 Series produces 500 and 1,000 dpi fingerprint images in ANSI and ISO/IEC standard formats. Optical technology has hard glass, IP64-rated imaging surface that is sealed against dust and liquids. As finger approaches sensors, blue landing lights help guide user for accurate scans. Measuring 52 x 31.4 x 15.8 mm, embeddable biometric modules are suited for voting, benefits-checking, and micro-finance applications.

Ekahau, West Coast    Saratoga, CA 95070
Oct 31, 2011 Suited for healthcare deployments, manufacturing plants, and retail environments, Model A4 detects Wi-Fi network signals and signals emitted by IR location beacons. Beacons can be placed in areas where micro-zone accuracy is required or where Wi-Fi coverage is not adequate. Offering 5 year battery life, tag includes optical tamper sensor that sends alerts if tag has been removed. Two configurable buttons can be used to send alarms or notify users of events, such as asset availability.

SuccessFactors, Inc    San Mateo, CA 94404
Oct 31, 2011 Part of SuccessFactors BizX Business Execution Suite, SuccessFactors Learning provides comprehensive reporting and analytics that help drive optimal business outcomes and offer insight about state of talent and talent development initiatives. SuccessFactors iContent provides content distribution and management in cloud, as a service, to manage digital learning assets. Powered by SuccessFactors Jam, SuccessFactors Social Learning brings Facebook- and YouTube-like experience to corporate learning.
