FZTech, Inc    New Taipei   Taiwan
Apr 03, 2012 Employing 4 Cree LEDs, MR16-05 series accepts 12 V AC/DC input, runs on 5 W, and allows for illumination from front and back of spotlight. Body enhances heat dissipation, which ensures long life, and unit does not produce any UV, IR, or heat emissions. Suited for discreet installation, series offers luminous flux of 380 (±10%) or 450 (±10%) lm, CCT of 3000K or 6000K, and CRI of greater than 80 (WW) or or 75 (CW). Choice of beam angle includes -30° and 45° options.

SNC Manufacturing Co., Inc.    Oshkosh, WI 54902
Apr 03, 2012 Available in models from 50 Va to 5 KVa, Global Control Transformers provide operator safety by delivering stable output voltage while accommodating momentary current inrush that occurs when electromagnetic devices are energized. Single-phase units include pre-wired primary and secondary fuse blocks mounted on top. Backed by UL, CSA, cULus, and CE agency approval, transformers are available with temperature classes adjustable by Va to meet customer requirements.

Coherent Inc., Laser Group    Santa Clara, CA 95054-1112
Apr 03, 2012 Delivering over 24 W of output power at 355 nm, Paladin(TM) Advanced 355 24000 provides TEM00 beam with M² less than 1.2, beam pointing stability of less than 20 µrad/°C, long term power stability of less than ±2%, and low noise characteristics of less than 1% rms from 10 Hz to 2 MHz. Mode-locked, diode-pumped solid-state laser maximizes throughput in digital patterning of any-layer HDI PCBs employed in fabrication of miniaturized devices, such as smartphones and tablet PCs.

ILX Lightwave Corp.    Bozeman, MT 59771 6310
Apr 03, 2012 Featuring digital PID control loop, 60 W Model LDT-5940C achieves temperature stability of less than ±0.003°C with output current noise and ripple less than 2 mA rms. Unit incorporates preset PID values and auto-tune PID mode that automatically determines optimal PID values. With linearized thermistor sensor mode, controller can achieve ±0.2°C accuracy over temperature range of -30 to 85°C with 10 KW thermistor. USB 2.0 and IEEE 488.1 GPIB interfaces enable remote operation.

TRU-Vu Monitors, Inc.    Arlington Heights, IL 60004
Apr 03, 2012 Measuring 22 in. with 16:10 aspect ratio and 178 x 178° viewing angle, Model MM-22C is suited for applications ranging from near-patient monitoring and endoscopic systems to surgical operating rooms. Widescreen color LCD offers both digital and analog video inputs as well as rear 100 x 100 mm VESA mounting hole pattern.

Advantech    Fremont, CA 94539
Apr 03, 2012 As all-in-one system, HIT-W181 serves multiple intelligent service and healthcare applications. This 18.5 in., 16:9 flat panel terminal is rated to IP65 and supports diverse options: 2.0 MP camera, WiFi, VOIP, barcode reader, RFID, NFC, MSR, touch panel, and fingerprint reader. Powered by Intel® Atom(TM) processor, fanless solution supports CFAST for high-speed storage, measures 4.8 cm thick, and resistive touch or PCT multi-touch panel can be customized with programmable function keys.

Tiger-Vac Vacuum Cleaners    Dania, FL 33004
Apr 03, 2012 Featuring explosionproof, single venturi design, Model SS-35L EX is constructed of 304 stainless steel with detachable recovery tank and polyliner bag that provides safe disposal of recovered contaminated dusts. HEPA filters capture 99.995% of debris, down to and including 0.3 microns. Pneumatically operated system comes in 2 versions: Manual Filter Shaker or Manual Reverse Purge (with cartridge), both of which are available with Teflon® coat, with ground continuity.

Frigel    East Dundee, IL 600118
Apr 03, 2012 Installed in customer's facility, microprocessor-based Model PMR serves as interface between equipment and Internet. Digital display shows main operating temperature as well as descriptive alarm messages, and comes with ergonomic keypad that offers access to control screens and menus. Via web, PMR enables technicians to identify problems and resolve them using features that control fan speed and monitor ambient temperature, pump pressure, flow, reservoir levels, valve, and filter pressure.

IBASE Technology Inc.    Taipei   Taiwan

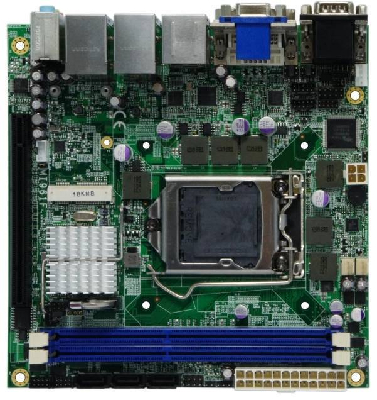

Apr 03, 2012 Supporting 2nd Gen Intel® Core(TM) i7/i5/i3 Pentium®/Celeron® processors, Model MI961 is equipped with 2 DDR3 DIMM 16 GB memory. Its iSMART technology provides EuP/ErP power saving function as well as auto-scheduler function for timing start/shutdown. In addition to 8 USB 2.0 ports, 2 USB 3.0 ports, 4 serial ports, and 3 SATA II ports, board provides dual Gigabit Ethernet, connections for HDMI, DVI-D, and CRT, plus PCI-E x16 and Mini PCI-E x1 slots for expansion.

Keithley Instruments, Inc.    Cleveland, OH 44139 1891
Apr 03, 2012 Optimized for testing diodes, FETs, and IGBTs, Model 2657A High Power System SourceMeter® Instrument can source and sink up to 180 W of DC power at up to 3,000 V. Unit's 6½-digt measurement engine enables 1 fA current measurement resolution to support low-leakage requirements of power semiconductor devices. Model 2657A provides choice of digitizing or integrating measurement modes for characterizing both transient and steady-state behavior, including rapidly changing thermal effects.

Auralex Acoustics    Indianapolis, IN 46256
Apr 03, 2012 Composed of nine 8 x 8 in. beveled squares, SonoFlat(TM) Grid panels measure 2 ft x 2 ft x 2 in. and are made from Studiofoam®. Product offers mid- and high-frequency absorption as well as aesthetics designed to compliment studio and home theater environments. Available in charcoal coloring, panels are made with melamine-free formula and will not crumble with age.

Akro-Mils, A Myers Industries Co.    Akron, OH 44301
Apr 03, 2012 Removable and reusable, Slope-It(TM) Bin Inserts improve visibility and accessibility of supplies by keeping them close to front of 30224, 30230, and 30240 AkroBins®. Snugly fitting 15° slope inserts direct parts to front of bin without impeding normal hanging or stacking capabilities of bin. Tight-fitting wiper seals on insert edges prevent parts from migrating underneath, while textured surface minimizes appearance of scratches and helps contents move forward.

Future Technology Devices International Ltd.    Hillsboro, OR 97124-6499
Apr 03, 2012 As USB-to-RS232 level full-handshake UART cable with male DB9 connector, 10 cm long Chipi-X supports USB 2.0 Full Speed operation with data transfer rates from 300 bps to 250 kbps at RS232 voltage levels. Both 512 byte receive and 512 byte transmit buffers utilize buffer smoothing technology, enabling sustained data throughput. FTDI FT231XS USB-to-UART interface IC handles USB protocol, and FT3243S transceiver IC deals with RS232 level voltage conversion. ESD protection is standard.

Hillcrest Laboratories, Inc.    Rockville, MD 20850
Apr 03, 2012 Freespace® MotionEngine(TM) for Mobile optimizes performance of motion sensors found in smartphones and tablets, including accelerometers, magnetometers, and gyroscopes. Accurate sensor fusion enables precise tracking of phone's motions and surroundings that can be applied to context awareness applications. With Freespace Gesture Recognition Engine, users can perform motion gestures to accomplish simple tasks. Program additionally supports augmented reality, gaming, and pedestrian navigation.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055

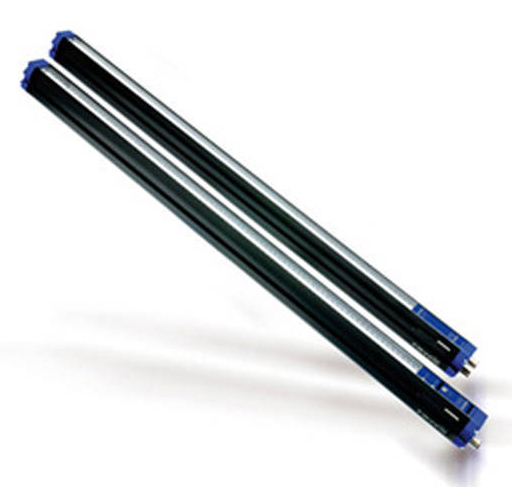

Apr 03, 2012 Suited for applications that range in height or dimensional measurement in automatic material handling, DS2 series covers controlled heights from 15-250 cm, including 5 m operating distances for 6 mm resolution versions or 10 m for 25 mm resolution versions. Measurement configuration can be manually set due to internal dip-switches or via GUI from remote PC. Along with PNP, 0-10 V outputs, and serial RS485, features include stand-alone operation once program is loaded on flash memory.

Dytran Instruments, Inc.    Chatsworth, CA 91311
Apr 03, 2012 Used for vibration monitoring of rotating machinery and other equipment, low-profile model 3059A has thru hole 1/4-28 mount and radial 2-pin MIL-C-5015 connector. Design incorporates ceramic shear sensing element in stainless steel housing, and sensor can be turned 360° prior to being secured to aid installation. Available with sensitivity of 100 mV/g, hermetically sealed unit has low-end frequency response of 0.5 Hz and is internally case isolated to avoid EMI/ground loop interference.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Apr 03, 2012 Respectively taking 4-20 mA input signal to control valve stroke of linear and rotary valves, compact Series 195 and 295 Smart Positioners feature LCD display. Air consumption levels are near zero, without reducing performance, and auto calibration function ensures accuracy. With HART® communication protocol as standard, both series allow factory settings to be configured as needed.

Larson Electronics, LLC    Kemp, TX 75143
Apr 03, 2012 Designed for portability and reliable operation, WAL-QP-2X-25 quad-pod mounted portable light tower can be deployed or broken down for transport within minutes. Adjustable mast can be raised to 14 ft and lowered to 7 ft, while 2 independently adjustable (vertically and horizontally) light heads provide 17,500 lm and can illuminate up to 6,400 ft² areas. Constructed of steel, product offers power configuration options for use with standard voltages as well as 12 and 24 Vdc power sources.

Safety Technology International    Waterford, MI 48327
Apr 03, 2012 Capable of monitoring up to 4 sites, STI-V34104 sounds tune or prerecorded, programmable voice message upon trip. There are 10 tones/tunes and 53 selectable words in English or Spanish available for creation of custom, 4-word max message. Featuring 1,000 ft range (line of sight), receiver can be mounted on wall or sit on table and also has 4 LED zone indicators, 12 Vdc power supply, as well as low-battery and connection supervision. Voice prompts are also offered for programming.

Jackson Systems LLC    Indianapolis, IN 46203
Apr 03, 2012 VCS Ventilation Control System improves residential indoor air quality (IAQ) by introducing fresh air through intake damper, controlled by VCS MCU logic panel, and decreasing VOCs. Meeting ASHRAE 62.2 standard requirements, this fresh air control system is designed for facilitated installation and offers single-adjustment setup. Status LEDs and Damper Closed override switch are standard, and options are available for exhaust fan control and remote Damper Open override.
