Paragon Software Systems, Inc.,    Dallas, TX 75240
Dec 06, 2011 With User Defined Feasibility Checks, Route Optimization Software ensures that planned transportation schedules are realistic and practical by allowing users to apply their own business constraints. Option can be used to ensure that all deliveries are completed before collections are scheduled, certain customers always go on same route; certain delivery types are always completed before others; or specific customers are always first on route due to unloading difficulties.

Thermo Fisher Scientific    Waltham, MA 02454
Dec 06, 2011 Accommodating both vapor- and liquid-phase storage, CryoExtra(TM) Containers are vacuum-insulated, stainless steel vessels that minimize top-to-bottom temperature variation. Lid and neck design, combined with advanced temperature monitoring, helps prevent temperature fluctuations that occur due to lid openings. Microprocessor-based LN2 level control ensures that liquid nitrogen levels are tightly controlled, while de-fog function allows push-button sample identification.

Danaher Motion/Portescap    Radford, VA 24141
Dec 06, 2011 Able to adapt to closed loop control systems, HM series includes 42 and 57 mm frame sizes each with short stack, one stack, or 2 stack design. Windings can be customized to satisfy application requirements, and several optional encoder mounting features are available. Depending on stack length, HM 42 mm motors provide holding torque to 65 oz-in., and HM 57 mm motors deliver 330 oz-in. max. RoHS-compliant series can serve as drop-in replacement in industrial and medical hybrid applications.

Ensinger, Inc.    Washington, PA 15301
Dec 06, 2011 Available in .062, .093, and .125 in. thicknesses, Penn Fibre' thin gauge TECANYL® PPO sheet is made from Sabic Noryl EN 265 resin and supports continuous use temperatures exceeding 220°F. Another thickness, 0.40 in., is also available, with 50 sheet minimum, and standard sheet size is 24 x 48 in. All sizes exhibit minimal moisture absorption, impact strength, and electrical insulating properties. Chemical degradation from water, salt solutions, acids, and bases is also minimal.

Sensortechnics Inc.    Dublin, CA 94568
Dec 06, 2011 Featuring MEMS construction which integrates micro-flow channel and analog CMOS signal conditioning within silicon sensor chip, LBA Series is suited for differential pressure flow measurement where pressure drop across flow element is measure of volumetric flow rate. Sensors offer 0.01% resolution with dynamic range greater than 10,000. Immune to dust and condensation, sensors can be used with long connecting tubes and input filters without recalibrating or correcting output signal.

AZ Displays, Inc.    Aliso Viejo, CA 92656 1498
Dec 06, 2011 Suited for such applications as industrial controls or handheld devices, ATM0350D7-T has built-in 4-wire resistive touch panel with viewing angle of +40°/-60° (U/D) and +60°/-60° (L/R). Antiglare surface makes displays suitable for use under light reflective conditions, and nominal display mode is white transmissive. Display consists of a-Si TFT active matrix driver element TFT with QVGA resolution of 320 x RGB x 240 pixels and dimensions of 76.9 x 63.9 x 4.0 mm.

Keyence Corp.    Itasca, IL 60143
Dec 06, 2011 Combining functionality of laser scan micrometer, machine vision system, and optical comparator in single device, Model TM-3000 is available in 3 sensor head sizes and can utilize 2 transmitter-receiver pairs simultaneously. Because system works in 2 dimensions, it can measure up to 16 points within measurement area. In addition to 15 measurement modes and 8 auxiliary modes, device includes position correction function, which automatically orients test part prior to measurement.

Sauer-Danfoss    Ames, IA 50010
Dec 06, 2011 Measuring just 183.5 mm long, Model DDC20 allows installation in space-constrained, light-duty OEM equipment. Male slipper design minimizes friction on both piston and bore of cylinder block, optimizing fuel efficiency and extending oil life. Valve plate design brings noise down to 78.5 dBa while operating at 200 bar and 2,000 rpm. With optional loop flushing and bypass valves, machine or load can be moved without rotating pump shaft or engine.

Aremco Products, Inc.    Valley Cottage, NY 10989
Dec 06, 2011 Based on titanium diboride, Graphi-Coat(TM) 623 inhibits oxidation of most commercial grades of graphite to 2,000°F. Two-part, water-based, non-volatile material is applied using brush, roller, dip- or spray-processing. Typically air set for 1-2 hr at ambient temperature then cured in-situ or in 10-15 min at 1,300°F, coating protects graphite crucibles and fixtures used in metallurgical casting processes as well as graphite electrodes used in arc-melting furnaces.

Industrial Magnetics, Inc.    Boyne City, MI 49712
Dec 06, 2011 Supplied in hard case, 12 piece Pull Test Kit includes various ferrous test pieces, air gap spacers, polarity tester, Magna View green sheet, ruler, and hand-held or digitally calibrated scale. Magnetic pull strength testing can be performed on magnets with round or flat surfaces and on either permanent or electromagnetic circuits. Kits may be used as part of regular QC program or to compare 2 similar looking magnetic devices.

L-Com, Inc.    North Andover, MA 01845
Dec 06, 2011 UPMA-LEADS and UPMB-LEADS parts are available with mounting option that allows use of side-flange to mount USB jack. Supplied with mounting hardware, products provide long wire leads for custom wiring through panels/enclosures. Jacks provide mounting options for product designs where there is not enough room above or below jack to mount connector. Parts feature 30 µin. gold plating on contacts and 24 AWG UL1007 style tinned copper leads.

Columbia Lighting    Greenville, SC 29607
Dec 06, 2011 Part of createchange® series, Serrano Luminaire features 3-element diffuser that combines performance-optimized center optic with 2 lenticular side lenses to provide batwing distribution. Two center lens options are available to customize aesthetic. Operating with variety of controls, luminaire has hinged optical system that offers tool-less, below-ceiling access to lamps and ballast. The wiHUBB enabled option permits seamless integration with Hubbell Building Automation's wireless mesh network.

H & F Manufacturing Corp.    Ivyland, PA 18974
Dec 06, 2011 Designed as exact match to metal R-Panel profile, Ultra R-Panel survives harsh weather, impacts, as well as corrosive chemicals and liquids. Heavy-duty panel, designed for new or retrofit siding or roofing applications for commercial, industrial, and residential structures, comes in clear, white opal (45% LT), and soft white (85% LT) versions. With noncombustible flame spread rating of 6, all versions are engineered to maintain color stability and light transmission.

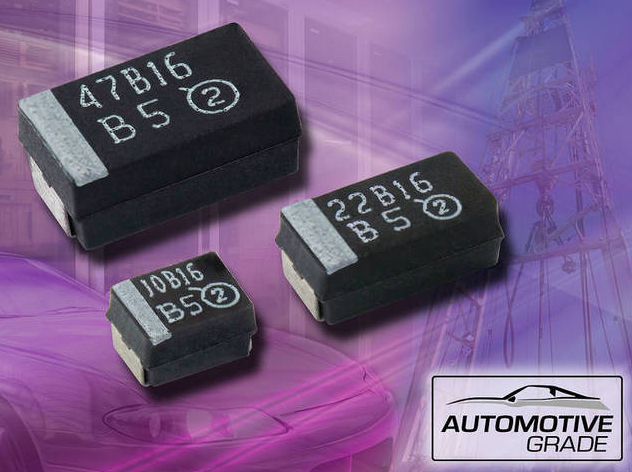

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Dec 06, 2011 Operating from -55 to +175°C with 50% voltage derating, TH4 HI-TMP® TANTAMOUNT® capacitors are AEC-Q200-qualified and come in molded package in 3 standard EIA-535BAAC case codes: B, C, and D. Capacitance ranges from 10-47 µF over voltage ratings from 6.3-16 Vdc, with capacitance tolerances of ±10% and ±20%. Suited for automotive and industrial applications, 100% surge current tested products comply with RoHS directive 2002/95/EC and are available with tin or gold terminations.

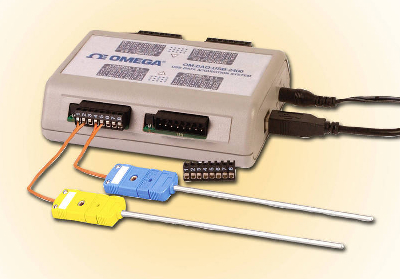

Omega Engineering, Inc.    Stamford, CT 06907
Dec 06, 2011 Compatible with USB 1.1 and USB 2.0 ports, OM-DAQ-USB-2401 Series is user programmable for Type J, K, T, E, R, S, B, and N thermocouples as well as voltage inputs from ±30 mV to ±10 V, FS. Unit features 8 differential or 16 single-ended analog inputs and 24-bit resolution with up to 1,000 samples/sec throughput. Powered by USB port or external DC power supply, module includes Windows software, drivers for custom programming, and hardware for benchtop, DIN rail, or wall mounting.

EAO Switch Corp.    Milford, CT 06460
Dec 06, 2011 Designed to alert users to system malfunction from any angle, Series 56 Flashers can be illuminated in range of LED colors, including red, green, blue, yellow, and orange. Front ring can be chrome or plastic and is also offered in various colors. Environmentally sealed to IP67 at front and IP65 at rear, pushbuttons operate in extreme conditions ranging from -49 to +176°F. Applications include public transportation, public lifts and elevators, and roadside emergency telephones.

TDK-Lambda Americas Inc.    San Diego, CA 92154
Dec 06, 2011 Supplied in 2 x 4 x 1 in. package and rated to 65 W, convection-cooled MWS65 series operates from universal 90-265 Vac input and includes 5 models with nominal outputs of 5, 12, 15, 24, or 48 Vdc. All outputs are user-adjustable by ±10%, and flat efficiency curve reaches up to 89% from 20-100% load. Consuming less than 0.3 W power under no-load conditions, series offers 4 kVac reinforced input to output isolation and 1,500 Vac output to ground isolation.

GOEPEL electronics LLC    Austin, TX 78759
Dec 06, 2011 Boundary Scan option for Rohde and Schwarz TSVP, based on open cPCI and PXI architecture, allows more opportunities for assemblies with limited test access. Based on PXI components involving peripheral signal of Unit Under Test, integration provides users with combination of functional/in-circuit test in automatic production process. Simultaneously, users have access to test and programming technologies such as Processor Emulation Test, FPGA Assisted Test, and Core Assisted Programming.

GOEPEL electronics LLC    Austin, TX 78759
Dec 06, 2011 Consisting of modular IPs for control of chip-embedded instruments, ChipVORX® Model Libraries enable FPGA-assisted test of clock signals and measurement of frequencies directly in system application. Models also enable verification of impulses, indeterministic signal changes, or stuck-as O/1 faults. While control for automated production test is executed within framework of test program, graphic panels are also available for interactive debugging.

Geometric Technologies    Scottsdale, AZ 85260
Dec 06, 2011 Addressing needs of programmers and machinists looking to learn usability-optimized 2.5D machining CAM software, CAMWorksXpress offers seamless single-window integration within SolidWorks as well as features required for efficient parts machining. Automation tools, such as feature-based machining, and model associativity reduce required programming time, while design changes in SolidWorks automatically update toolpaths to minimize rework.
