Di-Com Business Systems Ltd.    Grand Rapids, MI 49504
Dec 02, 2010 Featuring Prior auto-query option, DCMSYS router enables medical professionals to immediately populate PACS with all relevant prior studies relating to particular patient, making information directly available to doctor or radiologist. Administrator is able to set up pre-fetching parameters from any integrated system, and trigger to provide Priors can be based on scheduled orders, any other HL7 message, or receipt of DICOM studies. Software integrates with any RIS, HER, or EMR system.

FANUC FA America Corp.    Hoffman Estates, IL 60192
Dec 02, 2010 Offering part program management and Ethernet interface, 30i/31i-P model B supports increased hit rates that result from high speed of punch control cycles as well as 32/20 max controlled axes and 24/4 max simultaneously controlled axes. Up to 8 MB nonvolatile memory stores up to 4,000 large nested part programs, and slots are also provided for ATA or CF memory cards for another 2 GB. In addition to USB storage devices, CNC can accommodate Fast Data Server for up to 4 GB Flash and 100 GbE connection.

Heidenhain Corp.    Schaumburg, IL 60173-5337
Dec 02, 2010 Available in various hollow shaft diameters, Series RCN 2000/5000/8000 provide position and speed control through use on rotational axes. Encoders use single-field scanning principle with optical filtering to produce optimal scanning signals. In addition to evaluation electronics with diagnostic functions, units include plug-in cables with quick disconnect at encoder. Axial and radial deflection behavior, along with torsional rigidity of stator couplings, maximize mounting tolerances.

ECAF Technology Inc.    Xindian 231  Taiwan
Dec 01, 2010 Installed between display stands and display monitor, Model DSVC-200 is suited for noise-sensitive environments such as museums and libraries. To prevent damage to OS when content is frequently read or written from or to same disk, content is stored in SD card, and operating system is installed in Compact Flash® card. Content can be updated through Internet remotely or directly from USB device. Equipped with lockable door, Model DSVC-200 prevents unauthorized access to CF.

KAPCO (Kent Adhesive Products Co.)    Kent, OH 44240
Dec 01, 2010 Custom 80 Solutions service can custom coat and laminate range of materials on 81 in. coater to produce specialized adhesive-coated and top-coated materials with low minimum orders. Service can produce rolls, sheets, parts, and subassembly products for manufacturers. Suitable for paper, film, foam, foil, and non-woven materials, service offers R&D capabilities for new product development and product improvements.

Vecow    Taipei   Taiwan
Dec 01, 2010 Multifunction MP/ME series Data Acquisition Cards offer synchronized analog measurements and control channels on PCI/PCIe interface. Cards have maximum 1 MS/sec speeds with 32 analog inputs, 2 analog outputs, 48 digital I/O lines, and 2 counters with 32-bit resolution. Included timing control logic allows simultaneous waveform generator and analog sampling. Units can also deliver high-speed, bidirectional data transfer and perform concurrent analogy, digital, and counter operations.

AAEON Technology Inc    Taipei   Taiwan
Dec 01, 2010 Measuring 115 x 165 mm, EPIC-QM57 features Intel® QM57 chipset and two 204-pin SODIMM sockets to support 8 GB of DDR3 800/1066 memory. PCI-104/PCIe-104 connectors and Mini Card slot are provided to allow expansion. For high-speed network communications, board supports Intel® 82577LM and Intel® 82574L chipsets, which provide 2 Gigabit Ethernet ports. For video support, EPIC-QM57 can show simultaneous displays through CRT and 24-bit dual-channel LVDS LCD connectors at 1,920 x 1,200 resolution.

IBASE Technology Inc.    Taipei   Taiwan
Dec 01, 2010 Measuring 207.8 x 224.7 x 70 mm, I-VC5 multifunctional in-vehicle computing system supports dual display for digital signage purposes outside car for advertising, or within car as in-vehicle computer screen. Rugged unit is resistant to shock and vibration, operates in temperatures from 0-60°C, and supports 12 and 24 V power inputs. It includes 8 serial ports attached with 2 screws for anti-vibration, as well as VGA and LVDS display interfaces, removable 2.5 in. HDD tray, and gigabit LAN.

K-Sun    Somerset, WI 54025
Dec 01, 2010 Suited for those who need to design and print pressure-sensitive labels on-demand and in-house, Green Machine® label, heat-shrink tube, and bar-code thermal-transfer printer incorporates hot key support and PEELGUARD® electronic tape trimmer. Printer works with MaxiLabel® Pro v3.0, which lets users create ANSI safety, industrial, and general symbols as well as import custom images. Add-on symbols libraries cover Laboratory/Medical, Electrical, and Homeland Security industries.

PREMO Group    Barcelona   Spain
Dec 01, 2010 Featuring range starting as low as 4 mA, accuracy of 0.2%, and linearity of 0.1%, HCT-2000LF closed-loop Hall Effect current transducer is tolerant to noise and disturbance and designed for full mechanical and functional compatibility with industry standards. Input supply symmetrical voltage accommodates power supplies from 15-24 V, while electronics and hall effect sensing components are optimized for high availability operation. Current offset can be trimmed and compensated by software.

Epoxies Etc.    Cranston, RI 02921-3407
Dec 01, 2010 Designed to cure at room temperature, 2-component 20-2125 Potting, Encapsulating, and Casting Resin cushions and protects sensitive electronic components while imparting very little stress on components during cure or thermal cycling. Hardness can be modified by changing mix ratio of Polyol and Isocyanate. Moisture-resistant with low toxicity, product can be used in wet environments and minimizes employee exposure to dangerous chemicals.

Westermo    Stora Sundby   Sweden
Dec 01, 2010 Comprised of Ethernet switches, media converters, and PoE switches, i-line is optimized for machine building, building/factory automation, and CCTV surveillance applications. All are DIN rail mountable and use industry-grade components. Configurable relay triggers alarm signal for port or power events, and dual 24 Vdc power screw terminal inputs accommodate applications where secondary power source is used to maintain system integrity. IP31 aluminum alloy enclosure is standard.

Manncorp    Willow Grove, PA 19090
Dec 01, 2010 Suited for high-mix assembly applications, dual-head Model MC-392 features ball screw X-Y drive and closed-loop servo control with linear encoding for placement accuracy of 30 µm, 3 Sigma. Unit is available in in-line configuration with up to 96 feeders or as stand-alone unit with space for 160 feeders. Equipped with Cognex®-based vision system, Model MC-392 enables on-the-fly alignment of any SMD from 0.4 x 0.2 mm to 16 x 14 mm, including CSPs and µBGAs.

Dapra Corporation    Bloomfield, CT 06002
Dec 01, 2010 Suitable for 1¼ in. dia and above, RHINO-CARB(TM) HFDEH inserts fit current Toroid cutter bodies, are CNC-pressed, and enable aggressive metal cutting. Thickness lends to strength, while design maximizes metal removal rates and heat-absorption. High-positive cutting edge suits stainless steels, high-temperature alloys, and gummy materials, and stronger edge optimizes chiploads, shock absorption, and tool life. Also, positive top rake reduces cutting forces and torque.

Warsaw Chemical Co.    Warsaw, IN 46581
Dec 01, 2010 Formula 578 Flash Foam offers rich lather with optimized lubricity that enables foam, cloth, and brushes to glide over vehicle surfaces. Suited for use in short tunnels and in-bay rollovers where accelerated and complete rinsing is required, quick-rinsing friction detergent combines foaming and cleaning properties in non-corrosive and reclaim-compatible product that may be applied via foamers, central soapers, and prep guns.

Dwyer Instruments, Inc.    Michigan City, IN 46361

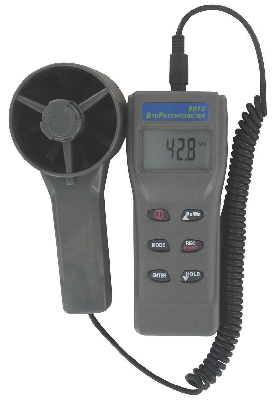

Dec 01, 2010 Equipped with 1.7 in. display, Model 8912 measures air velocity, air volume, temperature, humidity, and BTU. Unit includes data hold, RS-232 interface setting, and ability to record Minimum, Maximum, and Average readings on single point. Operating on 4 AAA batteries, Model 8912 can record and average up to 2 hours of data while displaying continuous running average. Meter is suited for HVAC inspection, energy audits, and balancing applications.

AutomationDirect.com    Cumming, GA 30040-9905

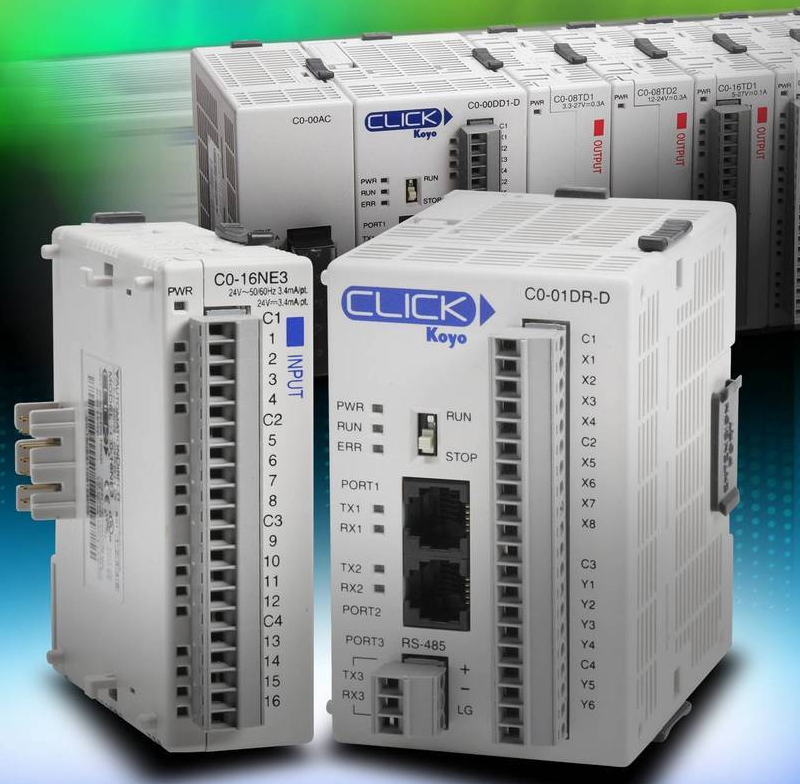

Dec 01, 2010 CLICK micro brick PLCs include standard CPU units that feature 8 discrete inputs and 6 discrete outputs, available in 4 combinations of built-in I/O types. In addition to 2 RS-232 RJ12 communication ports, units are equipped with one RS-485 communication port and feature RTC and battery backup for internal SRAM. Battery is available separately and allows data to be stored for up to 5 years. Downloadable software provides tools, layout, and interactivity needed for program development.

Unify Square, Inc.    Bellevue, WA 98007
Dec 01, 2010 PowerView v3.0 helps global enterprises optimize UC investments through Microsoft Lync Server 2010 adoption as well as integrate monitoring with billing and chargeback information. Scalable performance dashboard includes data warehouse for Lync Server 2010 and Office Communications Server 2007 R2 and transforms raw transactional data to provide reports on enterprise-wide communications that correlate to organizational hierarchy and different geographical topologies.

MAZeT GmbH    07745 Jena   Germany
Dec 01, 2010 Suited for sensors with current output, MDDC 4-channel signal amplifier converts small input currents across high bandwidth and dynamic range and digitizes them on chip via transimpedance amplifier. Transimpedance is independently programmable digitally for each channel above 5 bits in 16 stages via SPI communication interface. Device features conversion time of 1 µsec/channel and sampling rate of up to 100 kS/sec for all 4 channels. MDDC also includes 12-bit A/D conversion on-chip.

Barco N.V.    Kortrijk   Belgium
Dec 01, 2010 Built with ATI FirePro(TM) 3D technology, MXRT Series is compatible with DisplayPort interface standard and supports both OpenGL and DirectX functionality. Models MXRT-5400 and MXRT-7400 can drive 3 displays with one PCIe slot, making them suited for PACS workstations combining 2 diagnostic displays with third monitor for patient lists or 3D viewing applications. Model MXRT-2400, suited for set-ups where low-profile workstation is needed, can drive two 5 megapixel displays at full refresh rates.
