Meggitt (Maryland), Inc.    Germantown, MD 20876

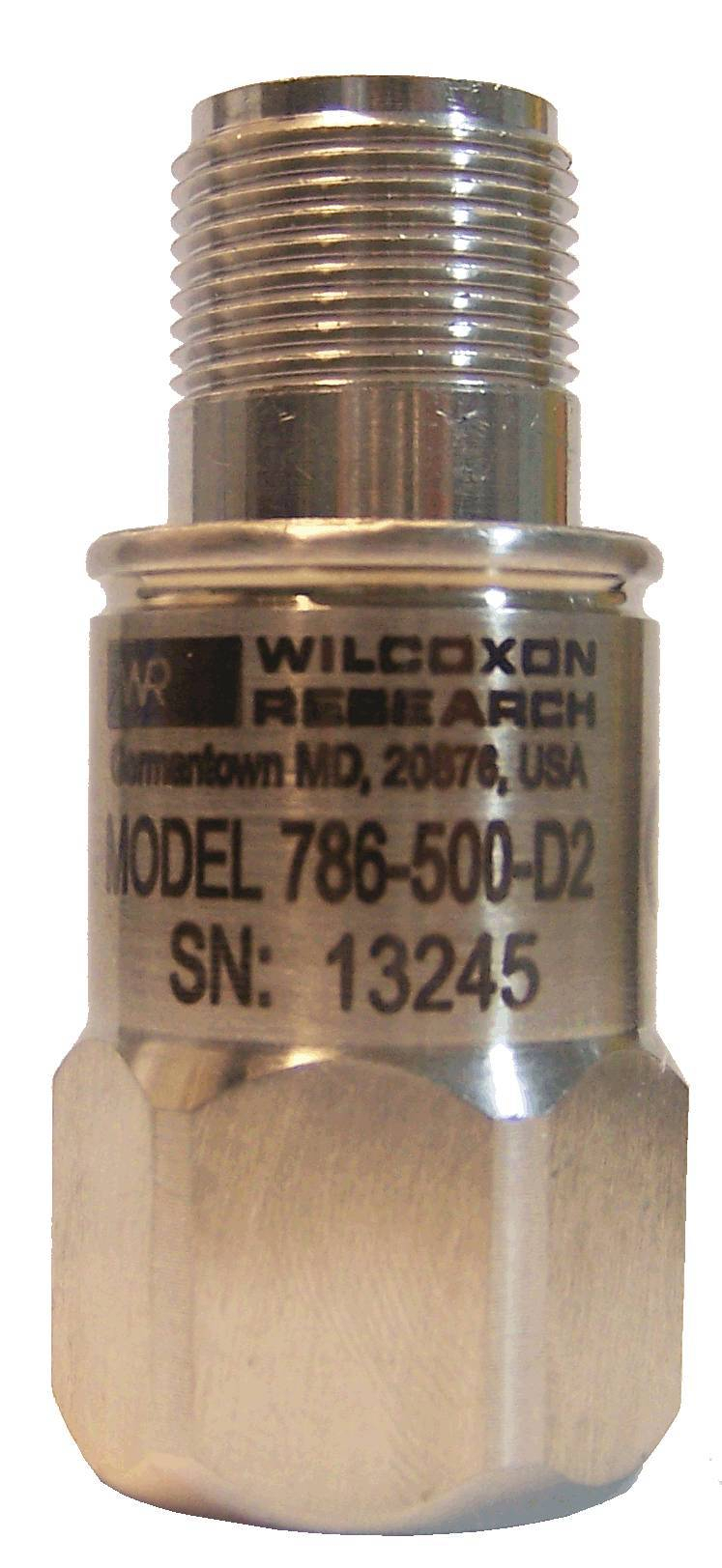

Jan 12, 2012 Used for machinery health monitoring, 786-500-D2 houses 500 mV/g sensing element with 5% sensitivity tolerance coupled with ±3 dB frequency response range that covers 0.2-14,000 Hz. Output overcomes data collector noise that can mask peaks at low frequencies, while sensitivity promotes detection of low level vibrations in high-speed applications. Along with CSA approvals for Class I Div 2/Zone 2 areas, multipurpose sensor has 10 g FS acceleration range and broadband noise floor of 250 µg.

Konica Minolta Sensing Americas, Inc.    Ramsey, NJ 07446
Jan 12, 2012 Compliant with RoHS directive, Model CM-3700A measures reflectance of opaque objects and transmittance of transparent or translucent solid materials. Unit enables degree of UV in illumination to be controlled with 400 nm UV cutoff filter, which is inserted into instrument's illumination light path. Sample holder design enables measuring center of A4-sized sample, while damper provides soft close to protect samples from being damaged and to eliminate unwanted spring back.

Cognex Corp.    Natick, MA 01760 2059

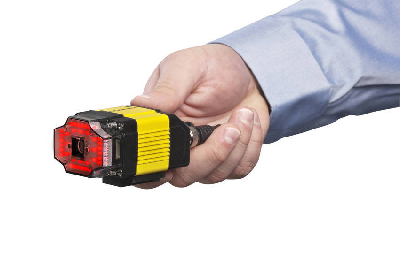

Jan 12, 2012 Featuring resolutions of 800 x 600 and 1,280 x 1,024, respectively, DataMan® 300 and 302 include 1DMax+(TM) algorithm incorporating Hotbars technology, which uses texture to locate barcodes at any orientation, and then extracts high-resolution 1D signals for decoding. With 2DMax+(TM) algorithm, fixed mount readers can handle poorly marked or extremely damaged 2D matrix and DPM codes. Controllable, field changeable lighting modules allow user to create best possible lighting for part.

JVC Professional Products Company    Wayne, NJ 07470
Jan 12, 2012 Powered by Falconbrid LSI chip and ½ in. CMOS imager with 8.3 million active pixels, GY-HMQ10 can output 4K images to monitor or projection system in real-time. Camera captures, records, and plays video images, delivering 3,840 x 2,160 footage at 24p, 50p, or 60p. Using MPEG-4 technology and variable bit rate H.264 codec operating at up to 144 Mbps, camera records up to 2 hr of 4K video to SDHC or SDXC memory cards. HD image cropping, zoom lens, and touch LCD monitor are standard.

XP Power    Sunnyvale, CA 94085

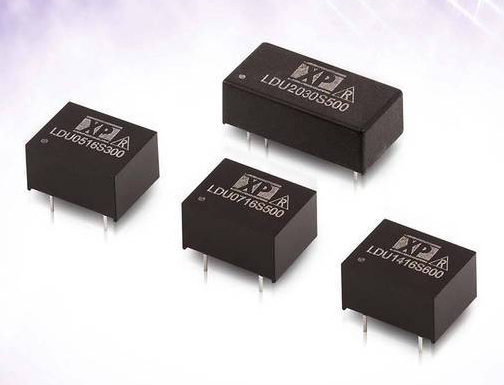

Jan 12, 2012 LDU series exhibits typical efficiency of 93% for 5, 7, and 14 W output models and 95% for 20 W devices. While LDU20 series provides up to 700 mA output current, LDU05/07/14 series has max output of 1,000 mA. All DC input constant current LED drivers have remote on/off control input and accommodate input from 7-30 Vdc, which needs to be at least 2 V higher than output. Dimming options include 2 analog methods - voltage or resistance - and PWM input signal.

Binder-USA, LP    Camarillo, CA 93012

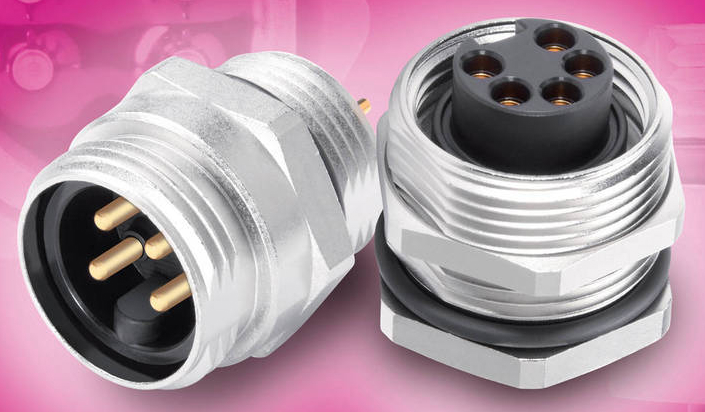

Jan 12, 2012 Series 820 and 870 include 7/8 in. panel-mount connectors with dip solder contacts. With dip solder contacts, connectors can be mounted to PCB board. Suited for power supplies, Fieldbus, and Ethernet applications, receptacles are available in male and female versions with 2+PE, 4, and 4+PE gold-plated contacts. Front- and rear-mountable positions allow receptacles to be mounted from back or front of panel. All versions have UL approval and IP67 rating.

Casella USA    Amherst, NH 03031
Jan 12, 2012 Incorporating digital technology, CEL-630 has single measurement range up to 140 dB, with no set-up adjustment required when obtaining and viewing different noise parameters. Audio recording allows user to annotate measurements, while Data Markers allow information to be tagged during measurement and marked when downloaded with corresponding audio captured. For unattended noise monitoring, event capture can be triggered from pre-set decibel level threshold.

CRAIC Technologies Inc.    San Dimas, CA 91773
Jan 12, 2012 With kinetic spectroscopy package, 20/20 Perfect Vision(TM) UV-visible-NIR Microspectrophotometer can monitor full range spectra of microscopic sample area over time and plot results. Kinetic microspectroscopy feature allows creation of 3D maps in which X and Y are spectrum and Z is time domain. Analysis of samples can be done by absorbance, reflectance, and even optical emission. Applications range from biological time resolved analysis to measuring degradation of LEDs over time.

FSR Metal Products    West Paterson, NJ 07424

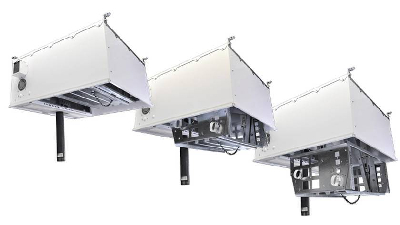

Jan 12, 2012 Suitable for conference centers, schools, and meeting facilities, Model CB-224 has pull-down 4 RU cage with gas spring-assisted ball bearing slide and 2 RU of angle-adjustable rack mounting surfaces on either end of cage for patch panels. Each side of box has edge-protected bundled cable inlet cavity, filled with flame retardant foam seal. Available with or without pole-mount and smart electronics, box comes equipped with 5 internal outlets, 1 external outlet, and fan.

Omega Engineering, Inc.    Stamford, CT 06907
Jan 12, 2012 Suited for troubleshooting electrical circuitry and measurements in industrial control, Model HHM8229 combines temperature, relative humidity, sound, light, and digital multimeter in one unit. Device can perform measurements of AC/DC voltage and current, resistance, frequency, duty, and capacitance as well as continuity and diode test. Handheld portable meter features backlit LCD, auto power off, and audible/visual illuminated warning for correct input jack connections.

MAG IAS, LLC    Erlanger, KY 41018
Jan 12, 2012 Formulated for machining titanium, hardened steels, and superalloys, CYCLO COOL® 900 and 5000 series are comprised of additive-free synthetic concentrates with near-neutral pH formulas. Both coolants are clear in use, promoting visibility in cutting zone. While low-foaming CYCLO COOL 900 series suits high-pressure, through-tool delivery systems up to 2,000 psi, CYCLO COOL 5000 non-staining anionic synthetic cutting fluid suits applications with delivery pressures of 300-400 psi.

MAG IAS, LLC    Erlanger, KY 41018

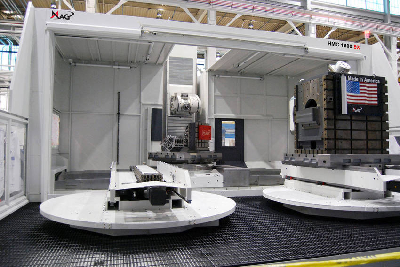

Jan 12, 2012 Providing 5-axis cutting capability, HMC 1250/1600 Series offers 8 spindle options, including 6,000 and 8,000 rpm tilt spindles with +90/-120° A-axis travel and high-torque 1,918 lb-ft spindle for hard-metal cutting. Machine features 75-133 hp spindle power, 7,870 lb Z-axis thrust, max work-zone swing of 118 in., and 33,000 lb pallet load capacity. With linear scale feedback in X, Y, and Z axes, machine provides 0.0003 in. positioning accuracy and 0.0002 in. repeatability.

Cree, Inc.    Durham, NC 27703

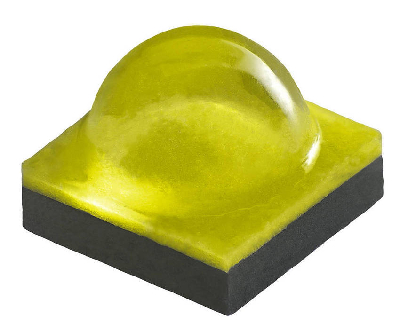

Jan 12, 2012 Leveraging silicon carbide technology, XLamp® XB-D LED delivers up to 139 lumens and 136 lumens/W in cool white, or up to 107 lumens and 105 lumens/W in warm white, both at 350 mA and 85°C. Device features 1 A maximum drive current, low thermal resistance of 6.5°C/W, and wide viewing angle of 115°. LED is suited for lighting applications where high lumen density and compact light sources are required.

Larson Electronics, LLC    Kemp, TX 75143

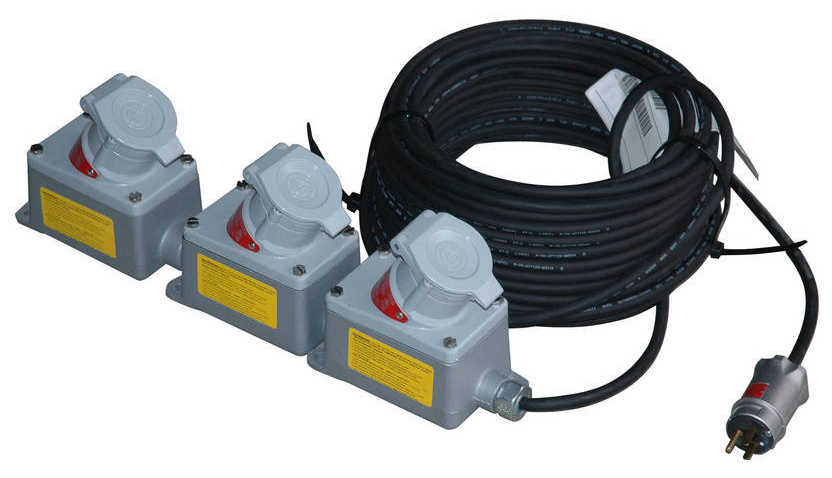

Jan 12, 2012 Providing safe method for connecting multiple devices from one power source in Class 1 Division 1/2 and Class 2 Division 1 hazardous locations, Magnalight EPEXC-3X-100 features 100 ft long, chemical- and abrasion-resistant, 14/3 SOOW explosion-proof cord mated with 3 explosion-proof aluminum receptacles and one standard T style explosion-proof plug. Twist lock receptacles, rated 20 A, are of 3-pole, 2-wire configuration and also accept non-explosion proof NEMA 5-20R or 6-20R plugs.

General Atomics Aeronautical Systems, Inc.    Poway, CA 92064
Jan 12, 2012 Available as field retrofit for main landing gear, trailing arm extends utility of Predator® B/MQ-9 Reaper UAS by delivering increase in landing weight capacity at full FAR descent rate of 10 ft/sec. Solution also offers growth path to increase gross takeoff weight (10,500 lb vs. 11,700 lb), full rejected takeoff brake system at growth maximum weight of 11,700 lb, as well as provisions for automatic takeoff and landing capability and ABS field upgrades.

OpenPeak Inc.    Boca Raton, FL 33486
Jan 12, 2012 Compatible with iOS and Android smartphones/tablets, SECTOR(TM) helps organizations provide and enforce application authorization, authentication, accounting, and usage policies as well as control how applications interact with corporate networks in bring-your-own-device environments. Mobile workspace management application can be deployed as stand-alone work/personal Personal Information Management (PIM) container solution or in conjunction with SANCTION(TM) device management platform.

Aculab    Milton Keynes MK1 1PT  United Kingdom
Jan 12, 2012 Prosody X DSP-based telephony resources platform is available in 1U, 19 in. chassis, providing alternative to DSP boards for developers needing E1/T1 trunk interfaces to PSTN and SIP trunking connections to IP networks. Enterprise model offers 4 E1/T1 trunks and 2 DSPs. Also, 1U chassis facilitates virtualization of telephony-based application software. Functionality can be used to create range of telephony-based applications for enterprises and service providers.

Spreadtrum Communications Corp.    Sunnyvale, CA 94085
Jan 12, 2012 Designed with 40 nm CMOS silicon, SC9610 integrates multiple communication standards - multiband TD-LTE and TD-SCDMA as well as quad-band EDGE/GPRS/GSM - into single-chip design. Solution is specifically designed for communication standards in use in China, supports multiple bands, and achieves respective downlink and uplink speeds of 100 and 50 Mbps. Furthermore, product supports 5, 10, 15, and 20 MHz channels and 2x2 MIMO.

Synaptics    Santa Clara, CA 95054
Jan 12, 2012 Supporting up to 12 in. touchscreens with tracking of 10 or more fingers, ClearPad(TM) 7300 is designed for tablet market, including Google Android and MS Windows 8 devices. Singular ASIC architecture enables size and weight minimizations in tablet design by reducing internal space and power requirements. Touch controller silicon and SignalClarity(TM) Technology promote tracking accuracy and finger separation as well as environmental and electrical noise immunity.

ViXS Systems Inc.    Toronto M2J 1R3  Canada
Jan 12, 2012 Optimized to work with XCode® Multi Stream HD Transcoding SoC network media processors, XConnex 1000 integrates power amplifier, low noise amplifier, and transmit/receive switch. Device supports 425-1,650 MHz frequency range, MoCA Band A-D, Band E, and Band F frequencies and specifications for transmission over existing coax infrastructure. Transceiver co-exists with video and broadband services of Telco, cable, and satellite service providers.
