LMC Workholding    Logansport, IN 46947-7006

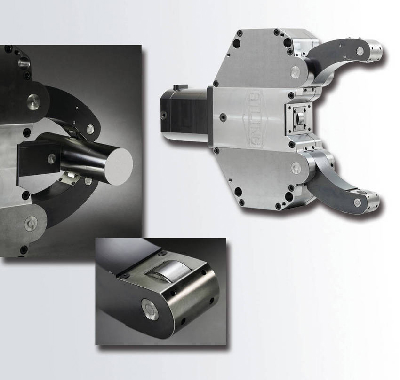

Nov 29, 2011 Constructed with cast iron housing and hardened moving parts, Atling AX Series is equipped with roller wiper seals to prevent chips from entering housing. Series includes 11 standard sizes with clamping ranges of 6-70 mm to 450-870 mm. Units include swing away levers, automatic lubrication, stroke control, check valve, and air barrier as well as water flush system to prevent chips from coming in between rollers and workpiece.

AXIOMTEK Co., Ltd.    Taipei   Taiwan
Nov 29, 2011 Featuring 1U rack mountable design, Model NA-550 supports up to 26 Gigabit Ethernet ports through PCIe interface and up to 6-group LAN bypass segment to ensure stable network connection. Device is based on Intel® Xeon® processor E3 series with Intel® C206 chipset and provides 4 DDR3 1333 MHz non-buffer non-ECC/ECC DIMM sockets up to 16 GB memory. Three front-accessible expansion slots allow developers to configure PCIe LAN modules based on solution requirements.

Kontron Modular Computers GmbH      Germany

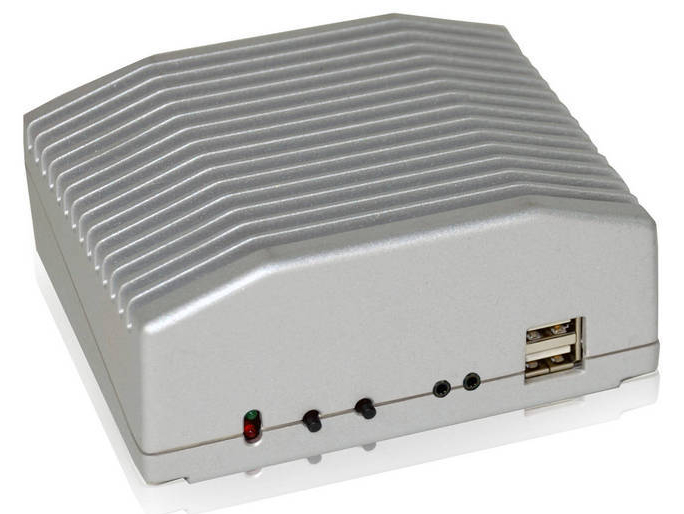

Nov 29, 2011 Supplied as application-ready platform in completely sealed, 122 x 99 x 53 mm, aluminum housing, MICROSPACE MPC-pONE supports scalable processing power from 1.1 GHz Intel® Atom(TM) Z510 CPU up to 1.6 GHz Z530. System incorporates Intel USW15W Controller Hub, provides up to 2 GB system memory, and housing has enough space to integrate optional 500 GB 2.5 in. HDD or 40 GB SSD. Supplied as standard, connectivity is fostered via DVI, Gigabit Ethernet, and USB 2.0 interfaces.

Strontium Americas, Inc    Fremont, CA 94538
Nov 29, 2011 Featuring 1,600 MHz operating speed, 8 GB DDR3 memory modules are fully downward compatible with 1,333 MHz and run at 1.5 V. ROHS-compliant products, certified for Apple products, are built to JEDEC specs and come in single-, dual-, and triple-channel kits. Featuring aluminum head spreader that optimizes heat dissipation, modules help users who need to work with large data sets.

E-Switch Inc.    Brooklyn Park, MN 55428 1514
Nov 29, 2011 Offering choice of 10 or 16 positions, RDM Series features contact resistance of 80 mW, insulation resistance of 100 MW min at 250 Vdc, and dielectric strength of 250 Vac for 1 minute. Contact rating is 42 Vdc, 100 mA switching and 42 Vdc, 400 mA non-switching. Operating from -60 to 125°C, switch comes with gold contacts and has life expectancy of 25,000 steps.

Sodick    Schaumburg, IL 60173
Nov 29, 2011 Featuring respective X, Y, and Z travels of 23.7, 15.8, and 20 in., AG600LH helps large-part manufacturers accommodate tall workpiece capacities. Linear motors on X, Y, U, and V axes allow Wire EDM to machine at maximum speeds without any backlash or lost motion. Along with glass scale feedback, additional features include Super Jet Annealing High Speed AWT, ceramic components, and energy saving circuit.

Vero Software Limited    Gloucestershire GL50 3AW  United Kingdom
Nov 29, 2011 Featuring capabilities for HM Waterline, HM Rib Machining, and Helical passes, Machining STRATEGIST v13 generates optimum HSM roughing and finishing CNC toolpaths for office and shop-floor environments. CAD-independent solution can work with data from all major 3D modeling systems and supports VISI 19. In addition to optimized machining algorithms, solution offers CAD interfaces are aligned to Parasolid v24, SolidEdge ST4, and Catia v5 r21.

Brüel & Kjær    Norcross, GA 30071-1588
Nov 29, 2011 Comprised of sound level meter, sound intensity software, and sound intensity probe, 2270-G can assess power and location of noise sources. Battery-operated, portable system provides on-screen camera pictures of measurement object and displays colored sound power contours over image. Operated by one person, solution uses phase-calibration technique that enables all measurements to be made using one spacer between 2 microphones on sound intensity probe, covering 50 Hz to 10 kHz range.

HMS Industrial Networks, Inc.    Chicago, IL 60607
Nov 29, 2011 Using Anybus® Wireless Bridge, industrial Ethernet-based equipment can be connected via wireless technology and protocols such as Profinet, EtherNet/IP, and Modbus TCP can be bridged over distance up to 400 m. Wireless transmission is made via Bluetooth or WLAN technology. By connecting industrial devices and networks over wireless link, bridge enables users to create connections through hazardous areas, hard-to-reach locations, or moving installations where cables are not desirable.

Sumner Mfg. Co.    Houston, TX 77088 4036
Nov 29, 2011 Designed to secure ¾-6 in. diameter pipe to standard vee head pipe stands, Hold-E steel frame pipe clamp is equipped with quick release button that allows welder to open and close gripping arms in seconds. After positioning ram, few turns of feed screw secures pipe or tubing to jack stand. Measuring 10.31 x 2.12 x 15.75 in. in stored position, clamp is suitable for holding pipe during flange fit-up or when fabricating pipe with branches.

Sumner Mfg. Co.    Houston, TX 77088 4036
Nov 29, 2011 Designed for use with 2-14 in. diameter stainless pipe, Inflatable Weld Purge Dams create reduced oxygen weld chamber where it is critical to avoid oxidation in weld. Units are constructed using primary and secondary inflatable dam at either end that are covered with heat- and spark-resistant double-stitched Proban® cotton and connected with 12-14 in. armored stainless steel spinal hose. Dams are suitable for welding exotic metals such as stainless, duplex, or titanium.

Schaefer, Inc.    Hopkinton, MA 01748
Nov 29, 2011 Measuring 5.5 x 12.75 x 19.5 in., AEP-5000 Series provides 5,000 W of power while accommodating space-constrained installations. Clean output, with less than 3% THD, is suited for powering sensitive loads and improving AC equipment performance. Available input configurations include 24, 48, 110, and 220 Vdc, while outputs are available in regulated 115 or 230 Vac, 50/60 Hz versions. Efficiency is rated up to 94%, depending on model, and EMI is minimized to Class B standards.

Birchwood Casey    Eden Prairie, MN 55344 2138
Nov 29, 2011 Accommodating manufacturers that require same-day black finishing of small lots, mini BK-LC products enable safe, in-house blackening of parts and achieve durable satin black finish. LUMICLAD® process, which utilizes one heated dip-tank and does not require electrolytic current, forms black oxide coating on aluminum. Process works on all cast and wrought aluminum alloys, forming smooth, black, 1.5 micron thick finish that adheres tightly to aluminum substrate without any rub-off.

Bulbrite    Moonachie, NJ 07074
Nov 29, 2011 Available in 3 styles with 3 levels of brightness ranging from 29-72 W, 3-Way Eco Halogen A19 Series projects soft white light and maintains full light output during course of life. True Daylight Eco Halogen A19 Series, designed with neodymium glass to filter out unpleasant yellow hue associated with incandescent bulbs, projects light similar to sunlight while minimizing glare and fatigue. All Eco Halogens are dimmable and last up to 1,000 hours.

Meyda Tiffany    Yorkville, NY 13495
Nov 29, 2011 With total height ranging from 51-76 in. and 7.5 in. width, Caged Mini Pendant is designed with hand finished Timeless Bronze hardware surrounding Amber Mica shade. Transitional design fits into any interior decor and is suitable for hallways and corridors in residential, hotel, and commercial applications. Custom sizes, styles, and colors are available, as well as energy efficient lamping options.

DeVilbiss Automotive Refinishing    Swanton, OH 43558
Nov 29, 2011 Accommodating needs of automotive aftermarket refinishing industry, FINISHLINE® 4 (FLG-4) spray gun is designed for enhanced atomization and available with multiple fluid tips. Waterborne-compatible product, which features anodized finish and steel components, delivers soft uniform spray patterns. Precision machined air caps and fluid nozzles provide consistent quality finish.

Barrier Plastics, Inc.    Rancho Santa Margarita, CA 92688

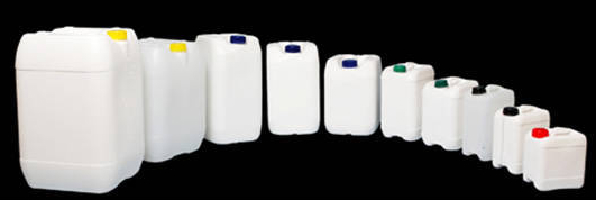

Nov 29, 2011 Offering alternative to fluorinated HDPE or metal packaging, Baritainers® are effective due to combination of Quoral® Barrier Resin and process that stretches Polyamide into thin lamellas in Polyethylene matrix. Nylon barrier does not break down so material stays contained and package stays intact. UN Classification X rated, impact resistant, and stackable Jerry cans come in 4, 5, 10, and 20 L sizes. F-Style Bottles and Cylinder Round Bottles are also available in various sizes.

Vishay Precision Group    Malvern, PA 19355
Nov 29, 2011 Supplied in 1206/2010/2512 chip sizes, VSMF series 10 W to 125 kW resistance range, with tolerances to ±0.01%; power ratings to 400 mW at +70°C; and ability to withstand ESD to at least 25 kV. Flexible terminations, offering strain relief for increased reliability, eliminate problems of cracked substrates and board delamination. Additional characteristics include 1.0 ns rise time, thermal stabilization time of less than 1 sec, and current noise of 0.010 µVrms per volt of applied voltage.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143

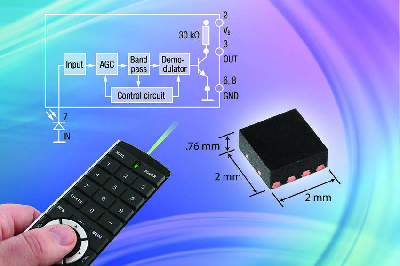

Nov 29, 2011 Offered in 2 x 2 x 0.76 mm QFN package, Series VSOP383 and VSOP584 process IR remote control signals from discrete photodiodes. Units feature narrow band-pass filter for 36 and 38 kHz carrier frequencies and intelligent automatic gain control to suppress disturbances from light sources. Manufactured using CMOS technology, Series VSOP383 and VSOP584 operate from -25 to +85°C with supply voltage range of 2.7-5.5 V and supply current of 0.35 mA and 0.85 mA, respectively.

Dumore Corp.    Mauston, WI 53948
Nov 29, 2011 Powered by DM30 permanent magnet motor in voltages from 12-240 Vdc, Series DR250 provides continuous output torques to 250 lb in. Single reduction worm drive gear motors feature steel and bronze gear train, offering OEMs quiet operation in UL Recognized design. Built in USA, units are suited for battery or AC powered lifting and moving applications, such as wheelchair lifts, welding wire feeds, cranes, winches, hoists, and conveyors.
