Hendrickson International    Woodridge, IL 60517-4904
Jul 01, 2002 HENDRICKSON TIRE INFLATION SYSTEM (HTIS) maintains inflation to specified level. System detects low tire pressure and alerts operator via warning light. It then directs air when said tire dips below predetermined pressure level. Air travels from supply tank through air lines inside axle to wheel-ends. Rotary union allows air to flow from non-rotating axle spindle to rotating hubcap fitting. Hoses connect from hubcap tee to tires.

Measurement Systems International, Inc. (MSI)    Seattle, WA 98168 4660
Jul 01, 2002 Handheld MSI-9750 RF Remote Digital Weight Indicator logs on to CellScale® networks with simple one-button network and/or channel changes. It works as full-featured terminal, providing direct access to weight and user entered data. It has backlit, transflective LCD, alphanumeric keypad with 7 control and 6 user-programmable keys, antenna with effective range of 500 ft indoor and 1,000 ft outdoor, comm port, audible alarm, and real-time clock that supports date/time stamping.

Oriental Motor U.S.A. Corp.    Torrance, CA 90502

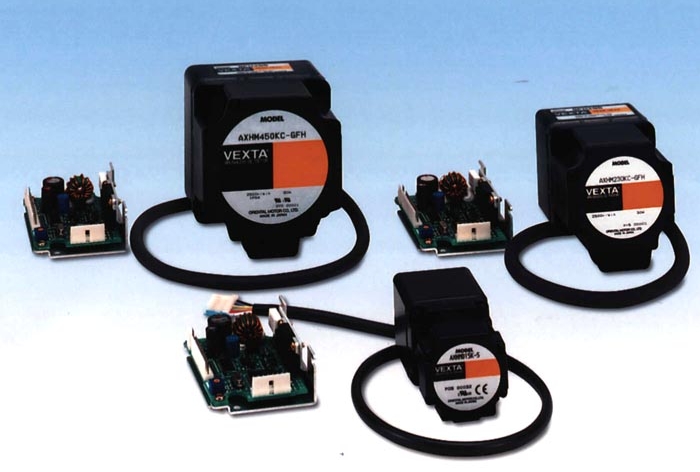

Jul 01, 2002 Round-shaft Model AXH015K-A 15 W, 1.65 in. sq. brushless dc motor achieves constant torque of 7.1 oz-in. over full-speed range. AXH Series motor and driver package provides speed regulation of ±1% over speed range of 100 to 3000 rpm. Maximum gearmotor continuous torque ranges from 2 lb-in. for Model AXH015K-5 up to 17.7 lb-in. for Model AXH015K-100. Series is UL and CUL approved and meets CE EMC directive. It is also available with pre-assembled gearheads.

Optimet (Optical Metrology, Ltd.), An Ophir Optronics Co.    Danvers, MA 01923
Jul 01, 2002 Periscope extension for Conoprobe can measure inner profiles and surfaces of pipes, tubes, and cylinders. When two Periscopes are used, pipe wall thickness can be measured. Accessory is available in lengths up to 20 in. ConoProbe makes non-contact measurements of machine parts and tools; plastic and rubber industrial molds; and other components, regardless of reflectivity of surface.

GSI Lumonics    Northville, MI 48167

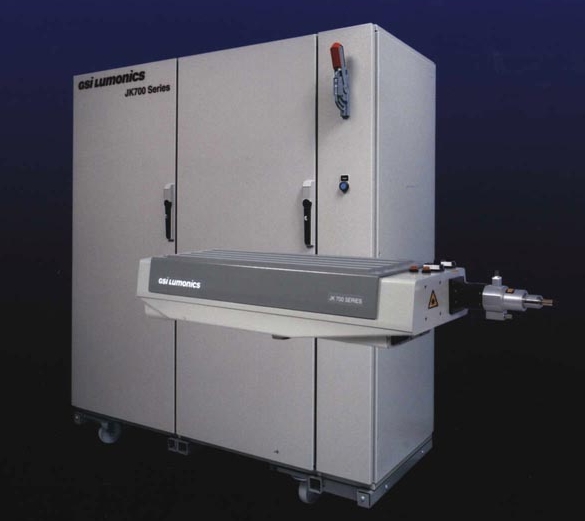

Jul 01, 2002 Pulsed laser Series JK700TR employs TR Technology, which uses twin-rod oscillator design to increase efficiency and decrease heat input into laser rods. Suitable for welding, drilling, and cutting applications, lasers include power supply which enables peak powers up to 10 kW. Features include Luminator fiber optic cabling, updated optics, and optional GUI for access to system functionality and status.

AMETEK Solidstate Controls    Columbus, OH 43085
Jul 01, 2002 Model 4500mkII+ offers all features and performance ratings of Model4500mkII, and includes fully integrated touch panel and stainless steel junction box. Touch panel features backlit LCD display, controls for instrument set-up, and indicators for System OK, Alarms, and Calibration in Progress. Suitable for industrial applications that demand flue dust emissions compliance monitoring, unit has TUV and US EPA approvals. Modbus communications and two analog outputs are standard.

Kato Engineering, Inc.    Mankato, MN 56002 8447

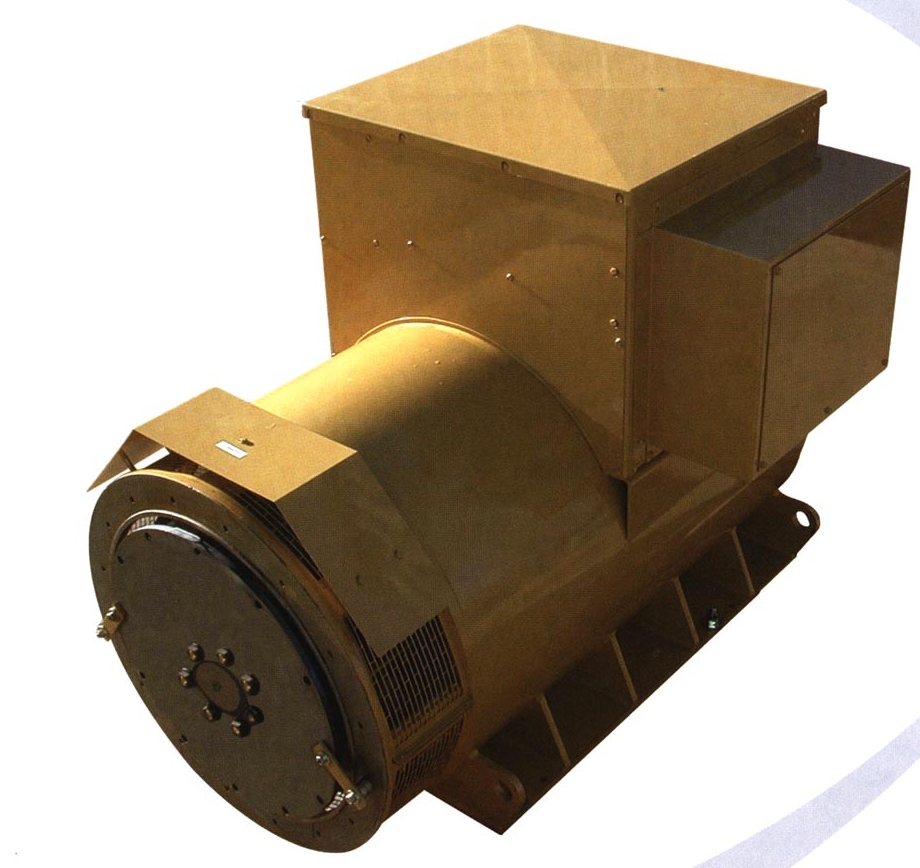

Jul 01, 2002 Packaged generator line can be used for commercial and industrial applications. Generators are available from 200 to 2500 kW in 4-pole, 1800 rpm machines in 4-frame diameters, and from 200 to 1750 kW, 3 phase, in 6-pole, 1200 rpm machines in 3-frame diameters. All standard 50 and 60 Hz 3-phase voltages are available up to 3300 V at 50 Hz and 4160 V at 60 Hz. Single-phase models are also available.

Smith, T.M., Tool International Corp.    Mount Clemens, MI 48043 1065
Jul 01, 2002 Nylon sleeve in tool holder locking fixture protects ground steel taper shanks from being damaged when tools are mounted or removed. Locking fixtures can also be used to eliminate on-spindle tool changes that can cause damage to high-speed spindles. Fixtures are available in 30, 40, 45, and 50 CAT taper sizes, as well as all HSK A and C tapers. One set of sleeves is included with each fixture.

Chromalox    Pittsburgh, PA 15238

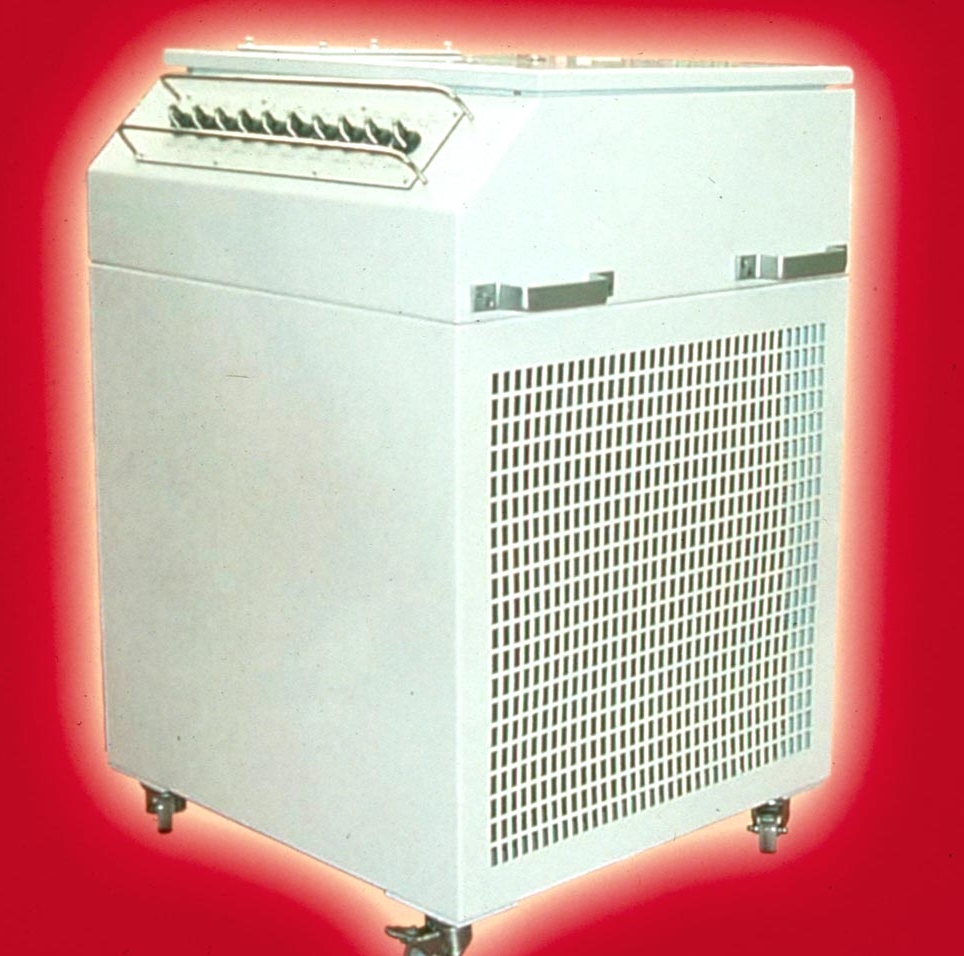

Jul 01, 2002 Load bank provides energy dissipation for sources generating from 1 kW to multi-megawatts of power, in voltages from 12 Vdc to 780 Vac or dc. AC unit is available for 50, 60, or 400 Hz line frequencies. Applications include testing diesel generators, braking resistors for traction or inverter drives, base loading of remote or standby power plants, battery discharge testing, and UPS testing.

ASG, Div. of Jergens, Inc.    Cleveland, OH 44110

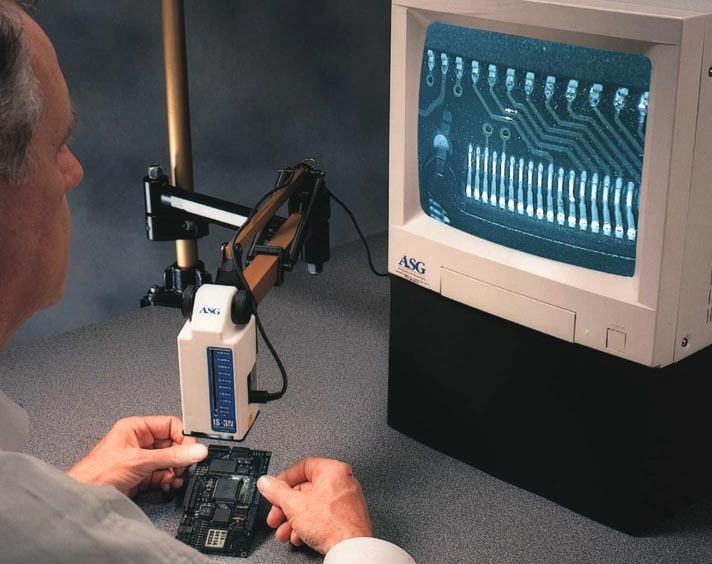

Jul 01, 2002 IS-3N and IS-3L Ergonomic video inspection stations permit upright seating and eye-level observation via video monitor or computer when inspecting small parts through microscope. IS-3N offers variable magnification up to 450x; IS-3L offers variable magnification up to 230x. CCD camera, lens, and white LED are built into microscopes. Camera captures 270,000 pixels of full color. Options include video monitor, boom stand, and frame grabber.

Martin Engineering    Neponset, IL 61345 9766

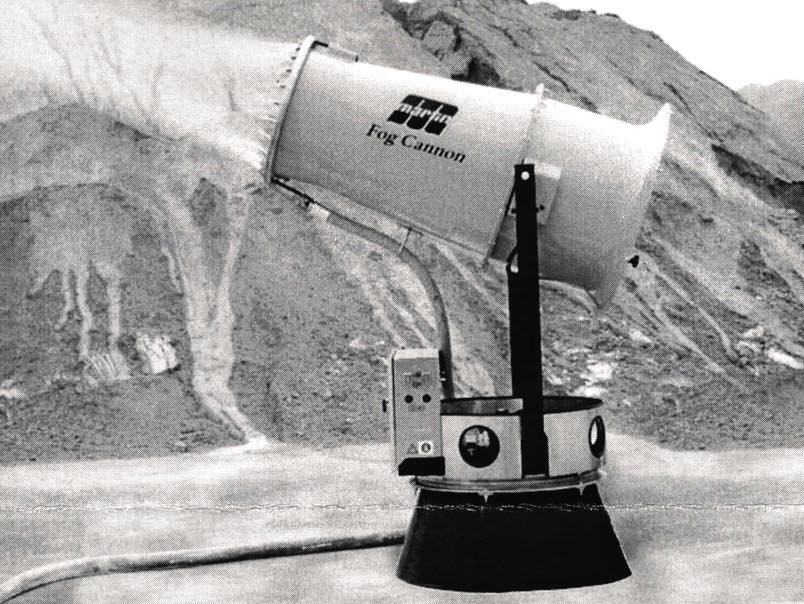

Jul 01, 2002 Fog Cannonâ„¢ provides jet of air, water, and additive mist to provide dust control over bulk material handling sites such as stockpiles, reclaims, railcar dumps, and blasting sites. Fan and plug-free nozzles propel 77 to 110 micron particles in mist that agglomerates airborne solids and prevents escape of fugitive dust. Depending on model, it projects mist up to 800 ft, suppressing dust in areas up to 1 million sq ft. System can be used with water alone.

Prab Conveyors    Kalamazoo, MI 49003

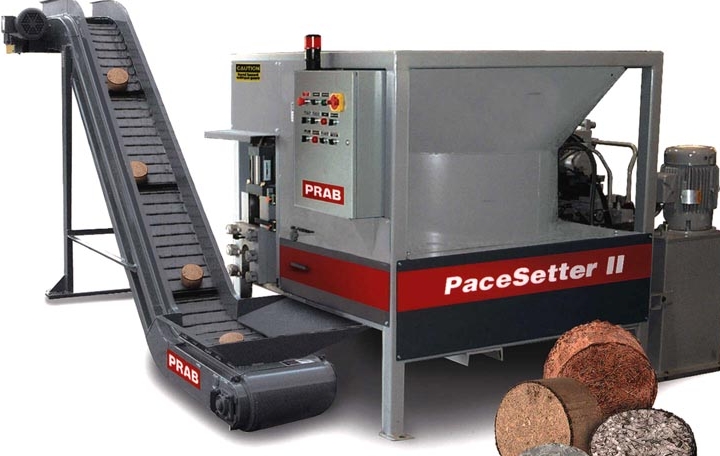

Jul 01, 2002 Compact PaceSetterâ„¢ Series II is available in 5 capacity ratings up to 6,400 lb per hr of aluminum. It transforms metal chips, fines, turnings, bushy metal scrap, and sludge from aluminum, cast iron, steel, brass, or copper into dense, dry briquette pucks. System also recovers cutting oils and coolants for re-use, saving money and reducing environmental liabilities. Briquetter system includes conveyors, dumpers, crushers, and tramp metal separators.

ITT Flygt Corp.    Trumbull, CT 06611

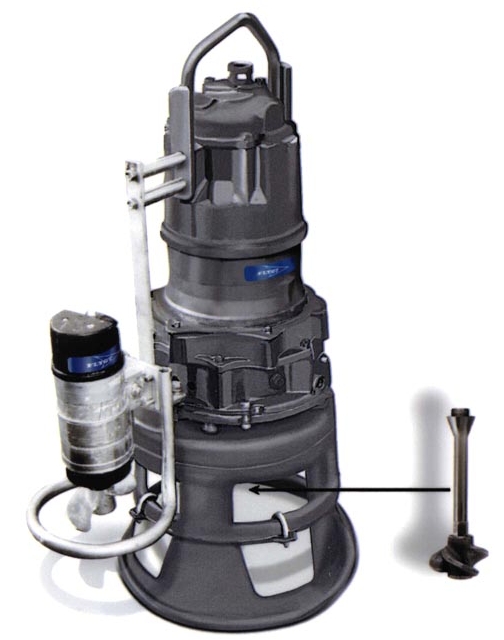

Jul 01, 2002 Model 5100 heavy-duty, submersible pump develops up to 130 ft of head and delivers up to 1,400 GPM through its 4 in. discharge. Suitable for use where solid granules are present and can erode pump parts, unit's hydraulic design eliminates need for over-trimming impellers. Impellers feature backvanes to reduce pressure on outer mechanical seals. Motor offers sensors to warn against high temperatures and stator leakage.

Steadfast Equipment    Mill Creek, WA 98012
Jul 01, 2002 Disposable rotary drum filter is only 6 in. dia by 7 in. long. It consists of polycarbonate outer shell and housing made from porous UHMW Polyethylene (15-45 micron sieve). Drum is 3 in. dia by 4.5 in. long with surface area of 42.4 in², and effective filtration area of 14 in². Filter offers slurry-processing rates of 1 to 3 Lpm and batch processing capacity of 900 L if continuously operated for 8 hr period.

Agie USA, Ltd.    Davidson, NC 28036
Jul 01, 2002 Production Cell consists of gantry style, Agietron Advance CNC die sinker; Mikron VCP600 vertical machining center; and System 3R Workmaster robot. Large axis travels accommodate variety of die/mold applications. PC based Windows 98® control utilizes icon driven menus. Advanced Power Generator assures polished finishes without additives. System 3R loads and unloads workpiece pallets using 300 deg swivel range.

Amacoil Inc.    Aston, PA 19014

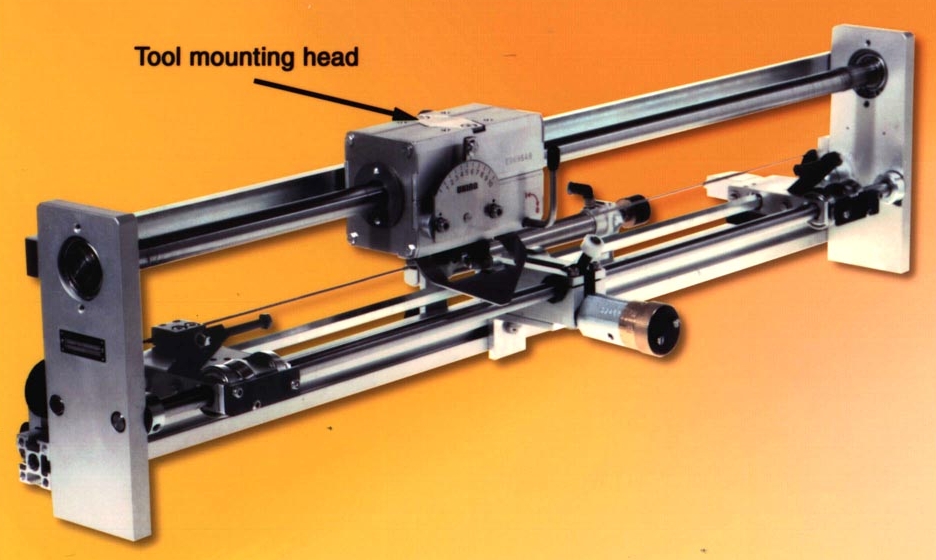

Jul 01, 2002 Linear Drive Assembly requires no programming and has mechanically triggered controls. As system operates, ratchet lever is actuated when linear drive passes by, causing end stops to automatically move apart or together in increments relative to dialed-in value. Rolling ring drive in assembly runs on smooth shaft and provides up to 800 lbs of axial trust. Travel speed is up to 13 ft/sec at constant rpm, over distances up to 16 ft.

Direct Safety Company    Tempe, AZ 85281
Jul 01, 2002 Polypropylene Coveralls provide protection from non-hazardous dirt, grime, and other dry particulates. Fabric is lightweight and breathable for comfort. Coveralls are suitable for use in construction sites, manufacturing facilities, food processing plants, and maintenance clean-up. They are not for use in asbestos/lead abatement. Available sizes include M, L, XL, 2X, and 3X.

Eraser Co., Inc., The    Syracuse, NY 13221

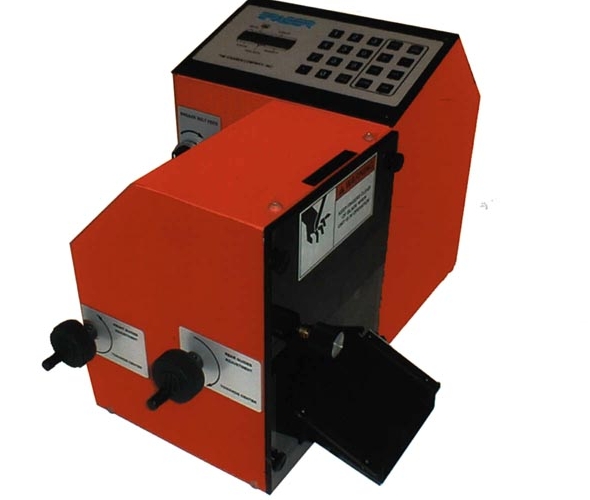

Jul 01, 2002 MMC100 cuts round or flat material up to 3.94 in. wide and .63 in. thick. It is microprocessor-controlled and can be programmed to cut any length with 1% or better tolerance. Programmable for up to 10 batches and 3 fixed feed rates, MMC100 is rated to cut up to 7,200, four in. pieces/hr. With max cutting force of 600 lbs, it can cut copper wire and cable, silver solder, power cords, cellophane, fiberglass sleeving, latex, fabrics, hosing, and tubing.

Pactiv Corp.    Lake Forest, IL 60045
Jul 01, 2002 Microfoam® Cohesive Packaging has coating that seals to itself to instantly form highly protective package. It consists of closed-cell polypropylene foam in nominal thickness of 1/16 or 1/32 in., with layer of polyethylene film, kraft paper or linerboard laminated to foam. Because cohesive seal is destroyed when contents are opened, both structures offer tamper-evidence.

Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675
Jul 01, 2002 Microprocessor-based Model 6634C conditions and displays vibration data from rotating machinery. It accepts inputs from single-ended differential piezoelectric or Isotronic® accelerometers, velocity coils, or remote charge converters. Full-scale ac and dc output ranges are programmable to represent acceleration, velocity, or displacement. Programming is via front panel keyboard or optional RS-232 serial interface. Up to 10 setups can be stored.
