Agilent Technologies, Inc.    Santa Clara, CA 95051
Jul 19, 2002 E7333A DOCSIS Protocol Analyzer enables functional analysis of upstream and downstream protocols by acquiring signals and decoding media access control messages within wide RF dynamic range. It offers up to 16 MB of downstream and 8 MB of upstream acquisition memory. Flexible trigger generation can provide analog triggering signals for physical layer measurement instrumentation. E7333A is controlled with PC and supports DOCSIS 1.0 and 1.1 specifications.

Rockwell Automation / Allen-Bradley    Bloomington, MN 55438
Jul 19, 2002 Bulletin 900-TC controllers feature easy-to-view LED displays, multi-function control, plus auto-tuning and self-tuning capability. They are offered in 5, 3, and 2 amp relay contacts and 12 Vdc fixed voltage outputs to drive solid-state relays. Dual 4-digit LED displays on front panel allow operators to instantly compare process and set point values. Multi-function keypad enables users to program and monitor temperature control parameters.

Leuze electronic, Inc.    New Hudson, MI 48165

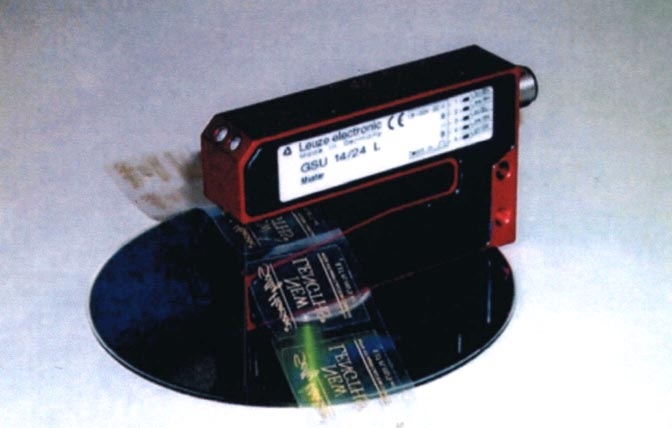

Jul 19, 2002 GSU 14/24 ultrasonic fork sensor can detect foil on foil, foil on paper, paper on paper, metallized foil, thin metal foils as well as clear, metallic, and conductive ink labels. It offers PNP or NPN outputs and light or dark switching. Outputs and adjustments are made by push button, remote teach-in feature. GSU comes housed in rugged anodized aluminum body with protection rating of IP67 making it suitable for label detection in most environments.

Syspro Group    Costa Mesa, CA 92626
Jul 19, 2002 XML-based IMPACT Encoreâ„¢ e.net solutions extends functionality of IMPACT Encore Enterprise Resource Planning solution. It helps businesses maintain closer ties with customers and suppliers by facilitating business-to-business trading. IMPACT Encore e.net is delivered as library of business objects that can be configured and used as required. They are suited for deployment in web services environment.

Caterpillar, Inc.    Peoria, IL 61629
Jul 18, 2002 Models 318C L and 315C LN each produce net power of 125 hp (93 kW) using 6-cylinder, turbocharged Cat® 3055T diesel engine. LN version features transport width of 8 ft 6 in. when equipped with 20 or 24 in. shoes. L version has transport width of 9 ft 3 in. with 24 in. shoes. Both models use open-center, 2-pump hydraulic system with automatic boom and swing priority. Maximum digging depth is 20 ft 9 in., and maximum reach is 30 ft.

Caterpillar, Inc.    Peoria, IL 61629
Jul 18, 2002 BH30 and BH30 w backhoes are designed for use with Cat® Skid Steer Loaders and Multi Terrain Loaders. Each feature frame that allows unit to be shifted manually to left or right of center. Side shift length for BH30 and BH30 w is 33 in. and 39 in., respectively. Each backhoe model has 180° boom swing to enhance digging capabilities in tight spaces. Left and right vertical stabilizers level machine and hold it in position while digging.

Leica Geosystems Inc.    Norcross, GA 30092
Jul 18, 2002 Horizon enables users to work with 3D coordinate measurement data. Users can selectively drop and drag measurements, as well as view, verify, report, and edit data in real-time. Laser trackers, theodolites, and other measurement instruments can be set up wherever necessary for quick online verification of 3D object data. Software can import digitized point data from virtually any source, and accurately processes all data formats. Horizon works exclusively with AutoCAD® Mechanical 6.

Linx Technologies, Inc.    Grants Pass, OR 97526

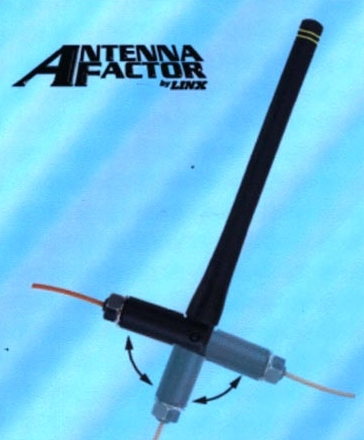

Jul 18, 2002 PML 902-928 MHz, 1/4 wave antenna is attached by placing its base through 1/4 in. hole in product and securing with nut or by threading it into PEM-style insert. Antenna is fed through base with RG-174 coax cable, which may be soldered directly to board or attached using 50-ohm connector. Base features articulating joint for 90° tilt.

Fluid Components Intl.    San Marcos, CA 92069 5115
Jul 18, 2002 Elbow Process Conditioner makes 90° turn to isolate flow disturbances, reduce swirl, and develop highly symmetrical, repeatable flow profile with minimal pressure loss at inlet to process equipment. It replaces last pipe elbow upstream of pump or valve. Elbow has anti-swirl and inclined vortex generating profile correction tabs. They project from inside pipe surface to generate vortices that accelerate and amplify natural pipe effects.

Fairchild Semiconductor    South Portland, ME 04106
Jul 18, 2002 FDS6572A and FDS6574A N-channel, 20 V MOSFETs can replace 30 V parts in Point-of-Load (POL) power supplies. SO-8 packaged devices also work in other low voltage power management applications, especially where low gate drive voltage is requirement. Low threshold voltages allow low R_DS(ON) to be achieved with very low gate voltage. This is needed for secondary side regulators where available gate drive voltage can actually be below output voltage.

ITT Flygt Corp.    Trumbull, CT 06611

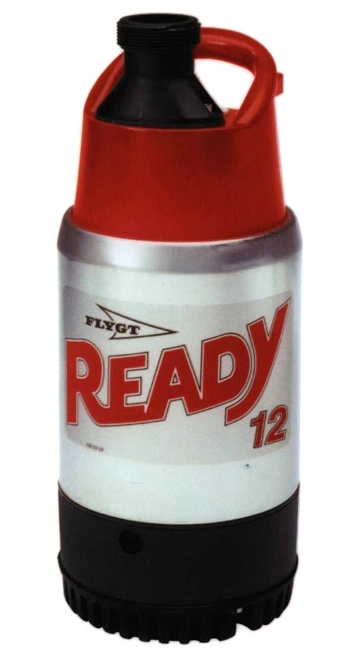

Jul 18, 2002 Ready 12 portable, 1.4 hp pump employs abrasion resistant thermoplastic polyurethane impeller. Its non-corrosive, stainless steel motor housing and shaft, along with its synthetic material body permits pumping of liquids ranging in pH from 3 to 9. Features include two independent mechanical seals running in non-toxic lubricant and class F motor. Unit weighs 25 lbs, has 7 1/4 in. dia, and can reach 65 ft of head.

Extech Instruments Corp.    Nashua, NH 03063
Jul 18, 2002 Programmable 200 W output offers resolution to 1 mV and 1 mA. Model 382280 supplies outputs to 40 V and 5 A as well as two fixed outputs of 5 and 3.3 V. Features include backlit LCD that displays voltage and current, selectable voltage or current modes, and dual output terminal. Over Voltage/Current protection offers programmable 0 to 60 second delay timer. Memory stores and recalls 120 test setups.

Russelectric, Inc.    Hingham, MA 02043
Jul 18, 2002 Model 2000 PLUS can control operational functions of Russelectric ATSs. Microprocessor-based control system allows remote monitoring using open-architecture communications protocol through Modbus RTU communications network or Ethernet (with converter) and reports all key power data by means of serial communications. Control samples voltage and current simultaneously for all phases to ensure accuracy under low power or large waveform distortion conditions.

NDC Infrared Engineering    Irwindale, CA 91706 2089

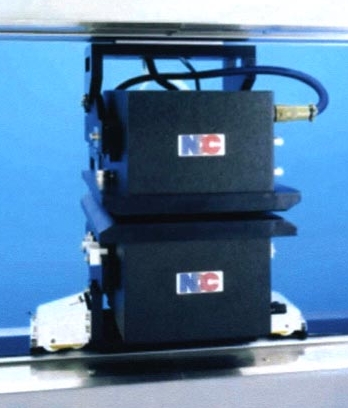

Jul 18, 2002 Model NDC 312 X-ray transmission sensor incorporates precision regulated power supply for output. Energy flux from X-ray tube can be focused for optimum streak resolution. Sensor's output control strategy provides measurement stability. Model 312 is available in two versions: high-resolution 312N suits applications requiring profile control, and ultra-low-noise 312W. Sensor suits plastics extrusion and textile applications.

ConProTec Inc.    Salem, NH 03079 2060

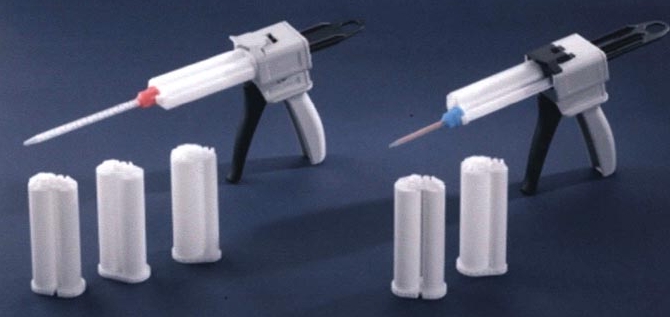

Jul 18, 2002 MIXPAC® S SYSTEM offers dispensing of 1:1, 2:1, 3:2, 4:1, and 10:1 volumetric ratios within one dispenser. Cartridge design incorporates separate cylinders and attachment flange. Interface with separated outlets between cartridge and mixer or cap eliminates possibility of cross contamination and avoids plugged cartridges. Color-coding system helps users identify appropriate cap and mixer combination.

Alpha-Core, Inc.    Bridgeport, CT 06608
Jul 18, 2002 O-Core uses silicon steel strip, gradually pointed towards end. Transformers wound on O-cores are 15% smaller in size and weight than toroidal transformers. Available with power ratings from 20 to 1200 VA, 50-60 Hz operation, O-cores use grain-oriented silicon steel. With fully rounded edges, transformer does not require epoxy fluidizing or injection molded core jackets, and can be insulated by Mylar or Nomex tape.

J. W. Winco, Inc.    New Berlin, WI 53151

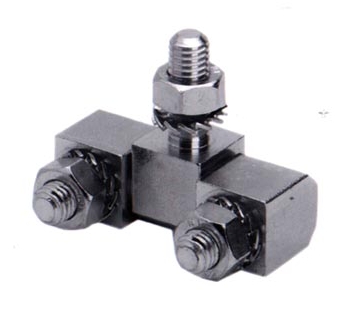

Jul 18, 2002 Steel Zinc-Plated Hinge is available in 2-part lift-off or 3-part solid versions. Steel and zinc-plated hinge body, hex nut, and serrated washer have blue passivated finish while hinge pin and washers are brass and nickel-plated.

Alliance Scale Inc.    Canton, MA 02021

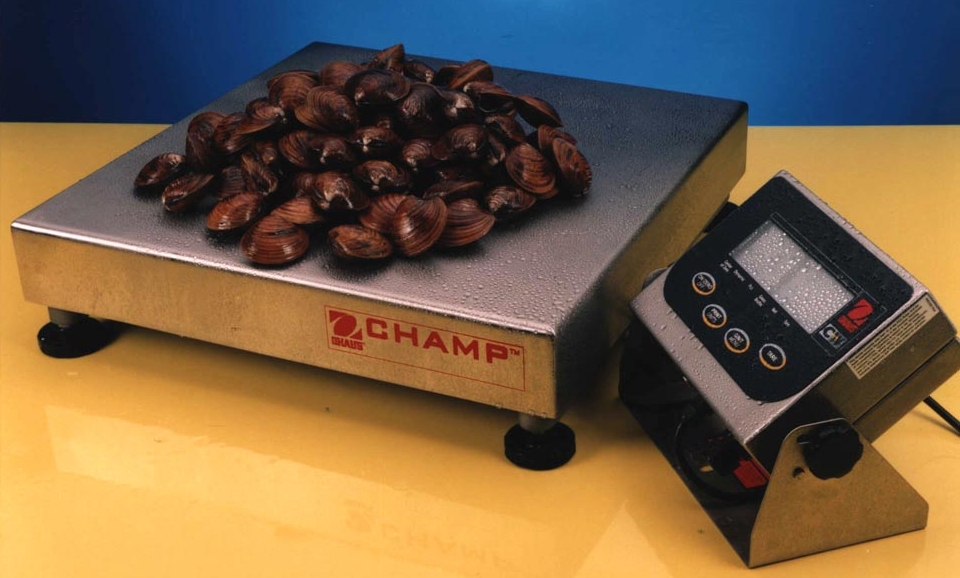

Jul 18, 2002 CHAMPâ„¢ IP65 Bench Scale has stainless steel platform, frame, and indicator with sealed membrane keypad and backlit LCD display suitable for table, wall, or column mounting. Designed for food processing and other applications requiring frequent washdowns, scale weighs in lb, g, oz, or kg units, provides legal for trade resolution, and has RS-232 computer interface. It comes in 5 models with capacity x readability from 25 x 0.002 lb to 500 x 0.05 lb.

National-Spencer, Inc.    Wichita, KS 67201 0057

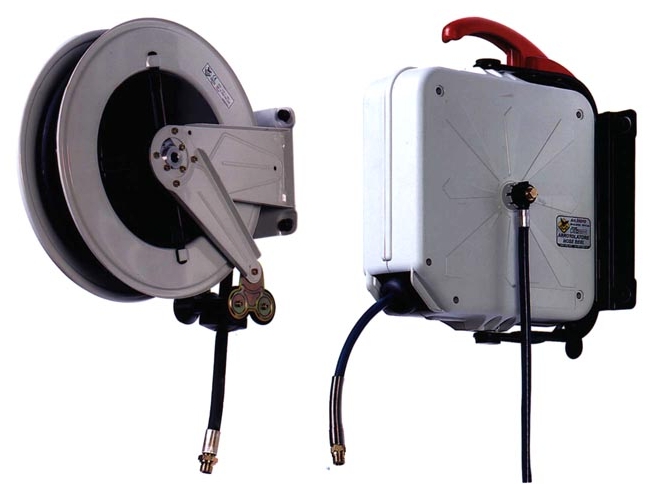

Jul 18, 2002 RAASM Model 1461 Open Hose Reel is suitable for oil applications and offers heavy duty construction. Hose stop and 1/2 in. dia x 50 ft long hose are included. Model 1459 Closed Hose Reel swivels for convenience and is designed for air and water transfer. It includes bayonet coupling, mounting bracket, outlet swivel joint and 3/8 in. x 33 ft service hose with hose stop.

Almco, Inc.    Albert Lea, MN 56007 2751
Jul 18, 2002 Model XLR-22 automated, continuous, through-feed machine features round-bowl design and is used for deburring and finishing metal parts. Radius channel is 22 ft long and 8½ in. wide, assuring constant media mass depth and media action. Time cycles from 4 to 8 min with variable amplitude and vibrations per min offer flexibility. With parts automatically loaded into machine at specific metered intervals, XLR-22 is suitable for in-line applications.
