Interroll Corp.    Wilmington, NC 28405
Jul 24, 2002 Series 1100 combines polypropylene or acetyl plastic bearing housings and stainless steel balls with variety of lightweight tube materials for free-rolling, corrosion-proof conveyor applications. Bearings offer double labyrinth seal to protect against dirt and dust, and may be washed or steam cleaned at temperatures up to 150°F without damaging roller. Tubes are available in .62, .75, .78, 1.12, 1.18, and 1.90 in. diameters.

Bussmann Div. Of Cooper Industries    St. Louis, MO 63178

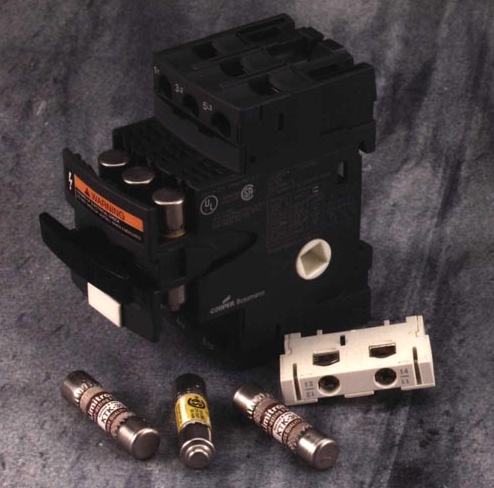

Jul 24, 2002 Optima® OPM-NG modular fuse holder features 45 mm design which matches 32 A IEC motor circuits. Integral DIN-rail spring allows for easy installation. Low-profile handle is part of integral fuse carrier that acts as built-in fuse puller. Auxiliary contact block provides status indication of fuse carriage position. Comb-style busbar provides fast line side wiring. Holder is padlockable and dual-wire rated. It accepts 10 x 38 or class CC fuses.

Pressure Systems, Inc.    Hampton, VA 23666

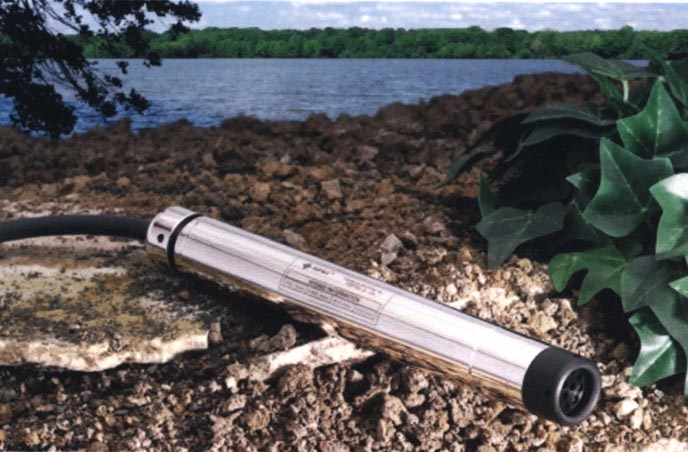

Jul 24, 2002 Series 510 smart KPSI(TM) hydrostatic level sensor operates at 1,200, 2,400, or 4,800 baud with accuracy of ±0.10% TEB. Pressure ranges extend from 0-5 psig through 0-100 psig. Package is comprised of welded 316 SS construction and cable seal system. Series is 100% datalogger compatible and is suitable for remote environmental and process monitoring applications where battery-powered operation with minimal current drain is required.

Electroswitch Electronic Products    Raleigh, NC 27604

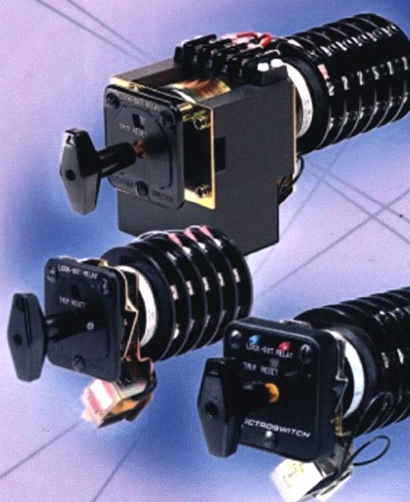

Jul 24, 2002 Series 24 Type WL-2 and WL Lock-Out Relays feature manual-, electric-, or self-reset capability. Manual-reset LORs have nominal trip speed of less than 8 msec. Electric- and self-reset models are available in standard-speed (12 to 15 msec) or high-speed (8 msec or less) trip configuration. Maximum of 10 decks can be stacked in one relay, providing 2 N/O and 2 N/C contacts per deck. Contacts are rated at 60 A for 1 min and 30 A for continuous current.

Lacrossse Rainfair Safety Products    Racine, WI 53401-1647
Jul 24, 2002 Tracer Gear combines reflective material with unique application pattern for visibility and safety, even in low light and at night. Complete selection of protective outerwear is engineered for any weather condition, including rainwear with elastic inner sleeves to keep arms snug and dry during overhead work. Applications include road construction, airport tarmacs, and dock work.

VersaLogic Corp.    Eugene, OR 97402

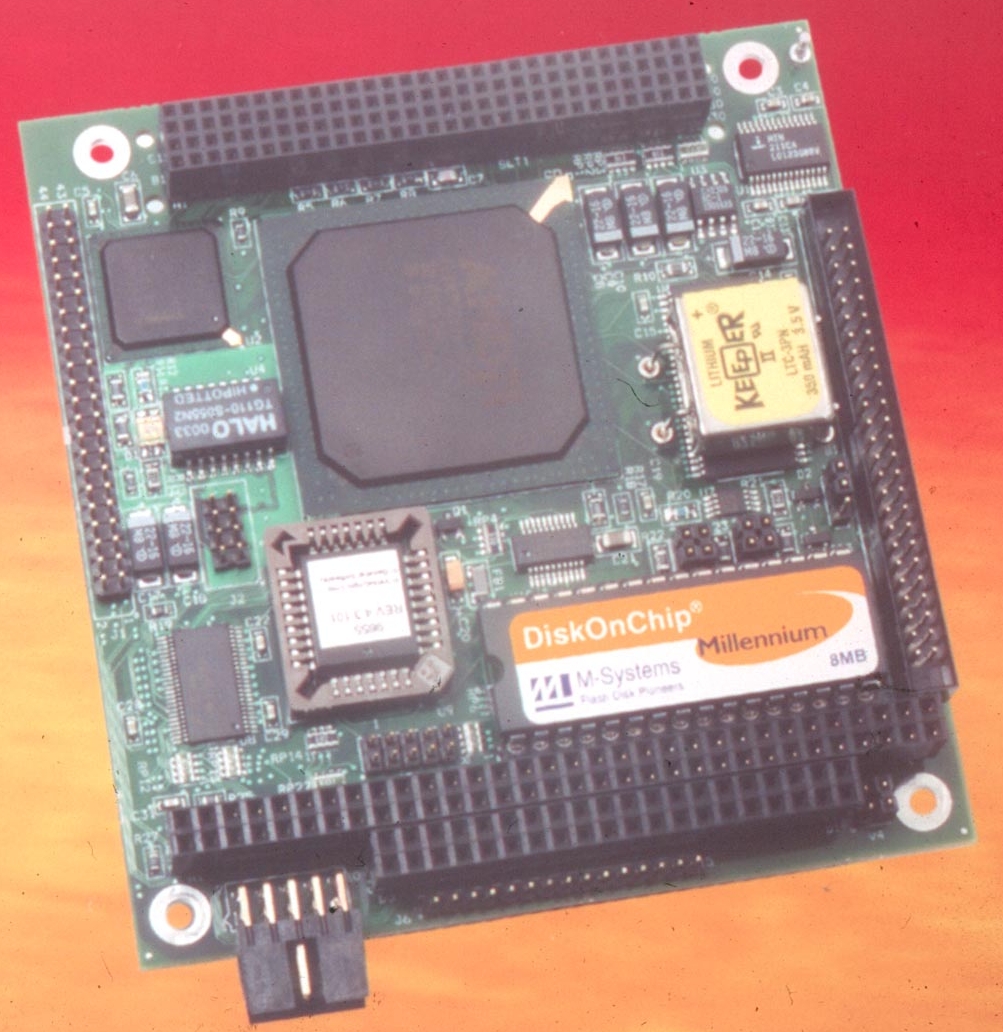

Jul 24, 2002 Bobcat PC/104-Plus operates in temperatures from -40 to +85°C. It uses Elan SC520 CPU, 586 processor running at 100 MHz. Features include 10/100 Ethernet, 64 MB of system RAM, and DiskOnChip flash socket. Standard I/0 includes floppy, IDE, and 4 COM ports (2 RS-422/485). Re-programmable BIOS has embedded features for OEMs. Board is software compatible with Windows, QNX, Linux, and RT-Linux.

I-Bus/Phoenix    San Diego, CA 92123

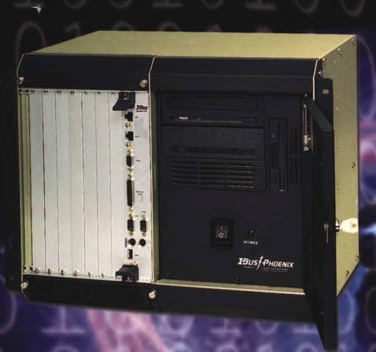

Jul 24, 2002 eFUZION-8U platforms are available with Windows NT 4, Windows 2000, and Red Hat Linux 7.2. eFUZION-8U/CEP 8-slot platform is suitable for OEM/VAR branding. It offers Pentium® III 700 MHz single board computer, CD-ROM, floppy, and up to 80 GB IDE hard drives. eFUZION 8U/CES Sun-based platform features CP 2060 Ultra SPARC IIe single board computer, Solaris 8 CD 6 with full I/O hot-swap support, CD-ROM, 400 W AC power supplies, and up to 36 GB SCSI hard drives.

I-Bus/Phoenix    San Diego, CA 92123

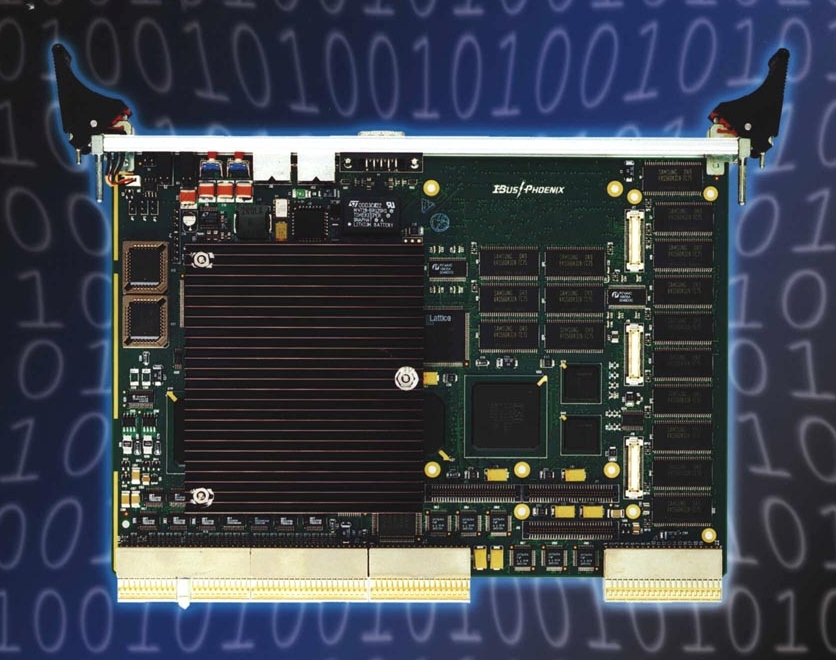

Jul 24, 2002 IBC 2400 CompactPCI 6U single-board computer features Sun Ultra SPARC IIe-based 64-bit processor operating at 500 MHz. It supports up to 2 GB of main memory and 14 MB of user Flash memory. Unit occupies either single master or peripheral I/O slot in standard CompactPCI chassis and supports full I/O hot swap. It auto-senses and operates as CompactPCI system slot or non-system slot SBC. Standard keyboard, mouse, and COM ports are provided on front panel.

Druck, Inc.    New Fairfield, CT 06812

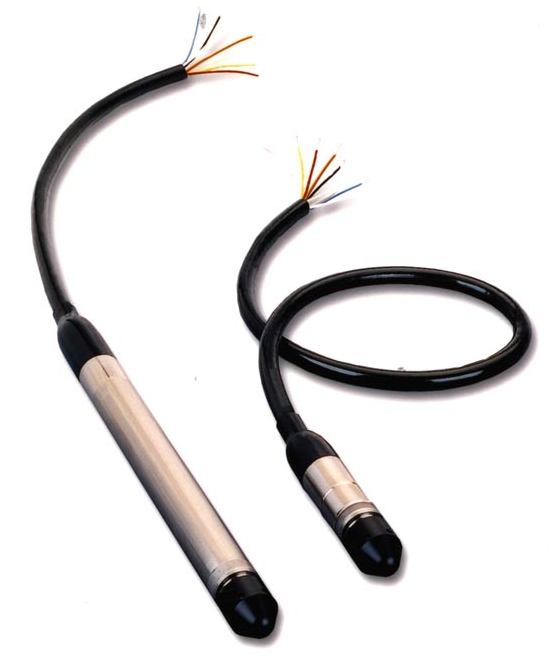

Jul 24, 2002 Suitable for industrial level measurements in liquid control applications, PDCR/PTX 1830 Series offers FS operating ranges from 1 to 900 psi with choice of electrical format. Its 4-wire transducer variant, PDCR 1830, offers FS scale signal of up to 100 mV, while transmitter variant, PTX 1830, is a standard 2-wire, 4 to 20 mA device. Its integral lightning surge arrestor protects against raised ground potentials.

Microstar Laboratories, Inc.    Bellevue, WA 98004-3039

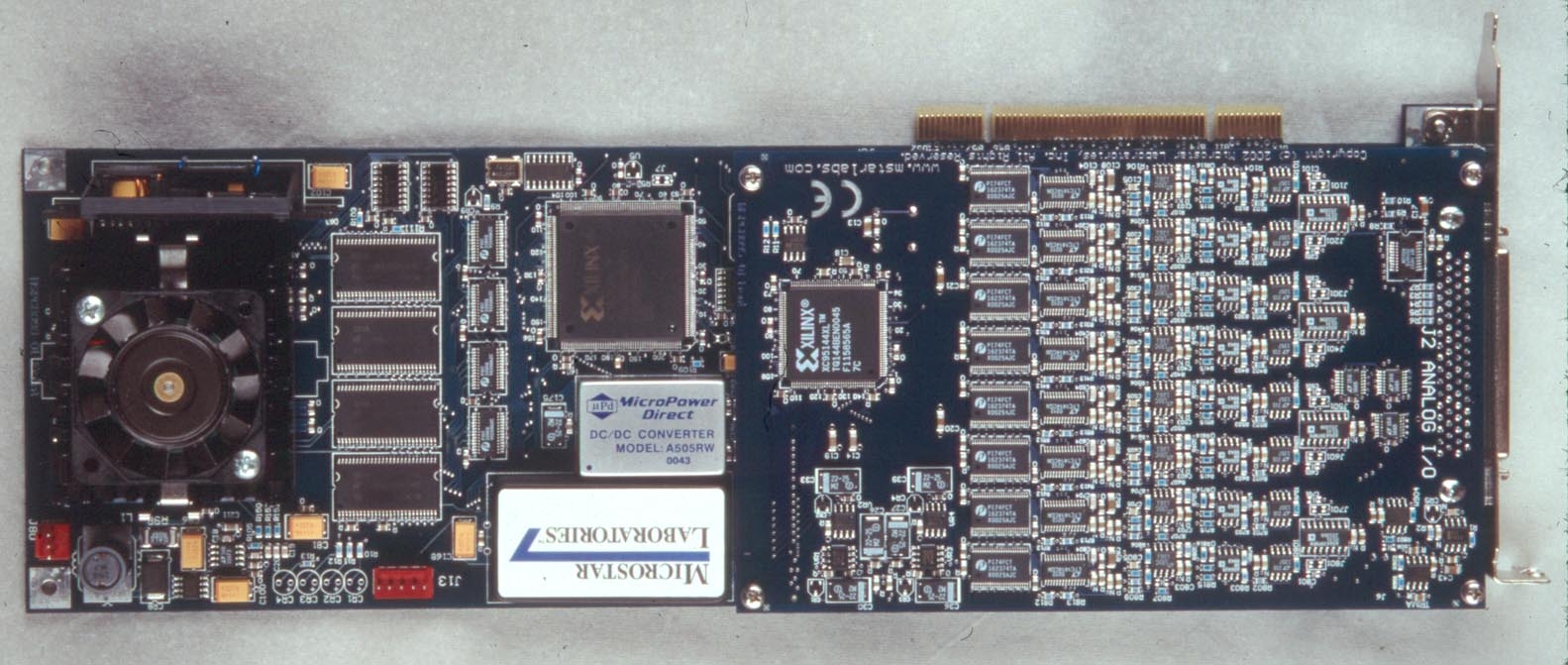

Jul 24, 2002 Sixteen channel DAP 5400a/626 has 128 MB data buffer and 8 onboard A/D converters that can acquire 1250k 14-bit resolution samples per second simultaneously. Onboard operating system allows real-time work under Windows along with user interface in Visual Basic, LabVIEW, or other software free from PC-related delays. Real-time functions include software triggering, data reduction, filtering, FFT, and order analysis.

Nanomotion    Ronkonkoma, NY 11779
Jul 24, 2002 ST Series provides motion control for linear or rotary devices. Suitable for motion in nanometer range, it operates at speeds up to 250 mm/sec, provides 1.5 N of force, and is available in standard and vacuum compatible configurations. Motor offers unlimited travel and no intrinsic magnetic field. It is suited to applications in semiconductor, fiber optic, electronics, and general assembly manufacturing equipment.

EFD Inc., Solder Paste Group    Lincoln, RI 02865
Jul 24, 2002 SolderPlus with WS421 flux offers aggressive flux chemistry that provides suitable bonding strength for mechanical assembly applications. Available in lead-free and tin/lead solder paste alloys, it is prepackaged in EFD syringes for precise application with automatic dispensing equipment. Solder paste works successfully on hard-to-solder materials such as stainless steel 304 and 316, Nichrome, and oxidized surfaces.

Rexnord Industries, LLC    Milwaukee, WI 53214
Jul 24, 2002 Series 320 dyamic disc brakes come in 3 sizes. Size 1.2 has static torque rating of 3 lbs-in. and is available with mounting bolt circle of 2.5 or 2.62 in. Size 1.8 has static torque of 7 or 15 lb-in, and comes with 2.125 in. bolt circle as well as 3.5 in. bolt circle, with or without 2.5 in. register for 42C frame motors. Size 2.8, with 35 lb-in. static torque, is available with 3.5 in. bolt circle. Armature-actuated brake design is direct-acting, with 2 moving parts.

Draeger Safety, Inc.    Pittsburgh, PA 15230
Jul 24, 2002 DragerSensor XS-2 O₂ sensor features temperature and pressure compensation, and 3-electrode design for specificity to oxygen. It offers measuring range of 0 to 25% by volume and may be used in low-oxygen applications such as inerting. Sensor is suitable for measuring oxygen in chemical, petrochemical, utilities, and any confined space entry applications.

">

Samtec, Inc.    New Albany, IN 47151 1147
Jul 24, 2002 EHF Series double row surface mount ejector headers on .050 in. pitch are available in 7 pin counts from 10 through 50 pins. Mated height is .445 in. above board. EJH Series surface mount and through-hole ejector headers on .100 in. pitch come in 6 double-row pin counts from 10 through 50 pins, with mated height of .665 in. EHT Series surface mount, through-hole and right-angle ejector headers for 2 mm pitch assemblies provide profile of .480 in.

Electroswitch, Unit Of Electro Switch Corp.    Weymouth, MA 02188 2913
Jul 24, 2002 Series 24 features manual, electric, or self-reset capability. They offer multiple decks and contacts and selection of trip and reset coils. Maximum of 10 decks can be stacked in single relay, providing up to 40 independent contacts rated at 60 amps for 1 minute and 30 amps for continuous current in range of 125-250 Vdc or 120-600 Vac. All Series 24 LORs are offered with built-in coil monitoring and fault signal detection indication.

ESAB Welding & Cutting Products    Florence, SC 29501
Jul 24, 2002 Expert Motion Plasma Variable Bevel Angle System is fully programmable and used to accurately cut plate material in parts that have beveled and straight cuts. Servo motors control single plasma torch in 3 axes: tilt, rotation, and vertical height. Head is always perpendicular to direction of travel because of automatic rotation control. Along with on-the-fly beveling, system features automatic switching between arc voltage and tactile sensor torch height control.

RGF Environmental Systems    West Palm Beach, FL 33404
Jul 24, 2002 Thermo Ox Series 3 Dry Chamber Flash Wastewater Evaporator eliminates need to haul wastewater and problems of corrosion and slurry removal. It leaves dry ash in coated ceramic chamber, utilizes any BTU of wastewater for fuel savings, and can use used oil as fuel. Fully automatic unit is suitable for machinery coolants, PCB waste, textiles, heavy equipment, and machinery coolants.

Bettcher Industries, Inc.    Vermilion, OH 44089
Jul 24, 2002 EdgeKingâ„¢ Precision Scissor Sharpener features industrial-duty capacitor start motor with lifetime lubricated and sealed ball bearings. Vacuum ready design ensures clean work area with little or no airborne dust, while sealed on-off switch keeps out dust and eliminates related failures. Spring-loaded arm and blade guide ensures uniform grinding on all blades - even curved blades or those up to 16 in. long. Blade holders include 1 fixed at 25° and 1 adjustable to 55°.

Prem Magnetics Inc.    McHenry, IL 60050
Jul 24, 2002 SMI-4 Series consists of 18 parts with inductance values ranging from 10.0 microhenries @ 3.63 A to 820.0 microhenries @ .38 A. Tolerances for inductance values is 20% for 10.0 to 47.0 microhenry values and 10% for 56.0 to 820.0 microhenry values. With pads solder-masked to core, inductors can be IR or vapor phase soldered directly to printed circuit board. Typical dimensions are .390 x .354 x .213 in. high.
