EFD Inc., Solder Paste Group    Lincoln, RI 02865

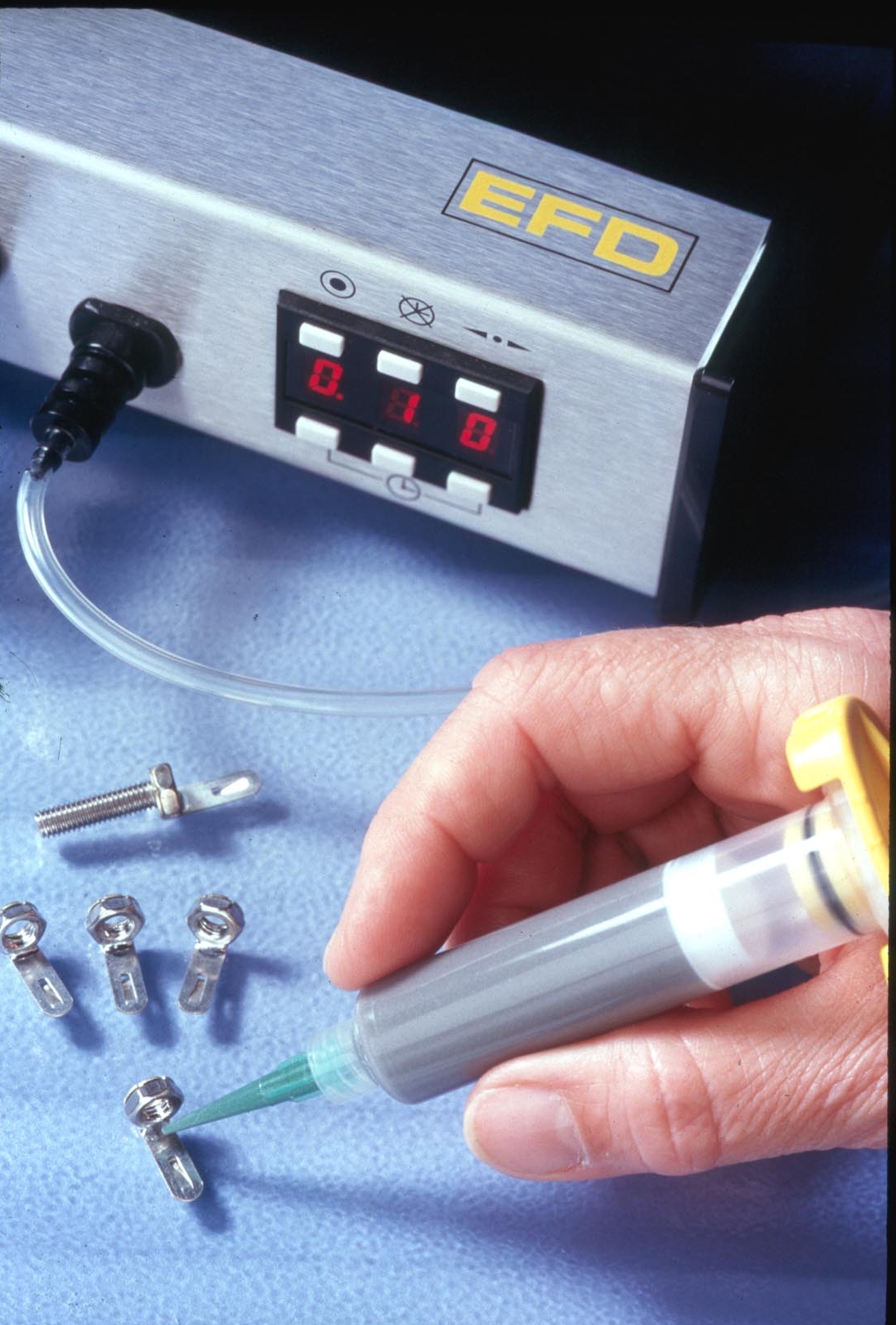

Jul 24, 2002 SolderPlus with WS421 flux offers aggressive flux chemistry that provides suitable bonding strength for mechanical assembly applications. Available in lead-free and tin/lead solder paste alloys, it is prepackaged in EFD syringes for precise application with automatic dispensing equipment. Solder paste works successfully on hard-to-solder materials such as stainless steel 304 and 316, Nichrome, and oxidized surfaces.

Rexnord Industries, LLC    Milwaukee, WI 53214
Jul 24, 2002 Series 320 dyamic disc brakes come in 3 sizes. Size 1.2 has static torque rating of 3 lbs-in. and is available with mounting bolt circle of 2.5 or 2.62 in. Size 1.8 has static torque of 7 or 15 lb-in, and comes with 2.125 in. bolt circle as well as 3.5 in. bolt circle, with or without 2.5 in. register for 42C frame motors. Size 2.8, with 35 lb-in. static torque, is available with 3.5 in. bolt circle. Armature-actuated brake design is direct-acting, with 2 moving parts.

Draeger Safety, Inc.    Pittsburgh, PA 15230

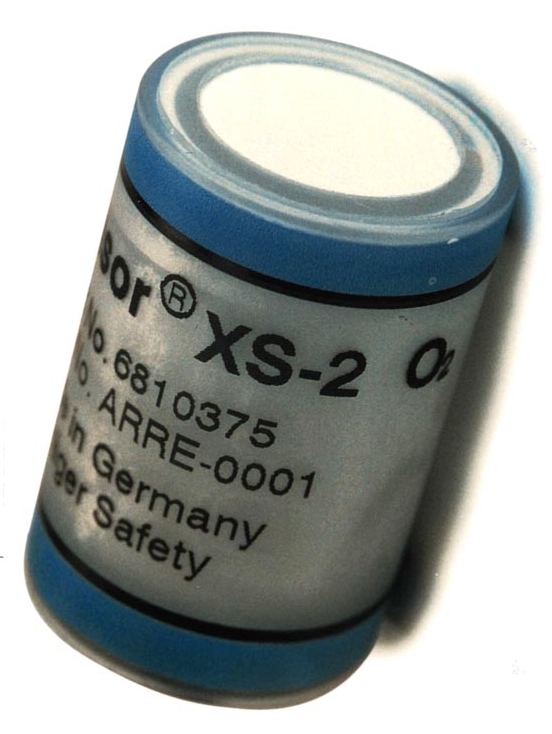

Jul 24, 2002 DragerSensor XS-2 O₂ sensor features temperature and pressure compensation, and 3-electrode design for specificity to oxygen. It offers measuring range of 0 to 25% by volume and may be used in low-oxygen applications such as inerting. Sensor is suitable for measuring oxygen in chemical, petrochemical, utilities, and any confined space entry applications.

">

Samtec, Inc.    New Albany, IN 47151 1147

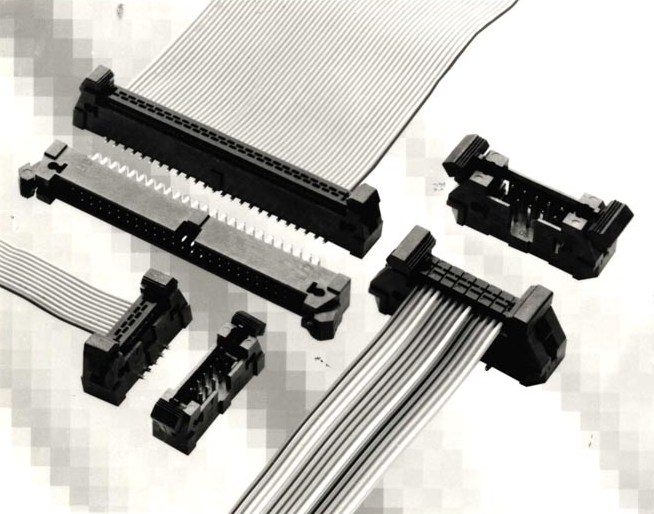

Jul 24, 2002 EHF Series double row surface mount ejector headers on .050 in. pitch are available in 7 pin counts from 10 through 50 pins. Mated height is .445 in. above board. EJH Series surface mount and through-hole ejector headers on .100 in. pitch come in 6 double-row pin counts from 10 through 50 pins, with mated height of .665 in. EHT Series surface mount, through-hole and right-angle ejector headers for 2 mm pitch assemblies provide profile of .480 in.

Electroswitch, Unit Of Electro Switch Corp.    Weymouth, MA 02188 2913

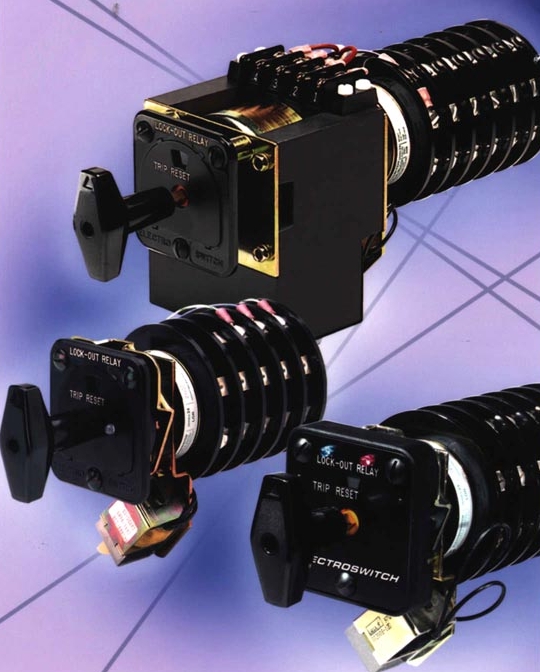

Jul 24, 2002 Series 24 features manual, electric, or self-reset capability. They offer multiple decks and contacts and selection of trip and reset coils. Maximum of 10 decks can be stacked in single relay, providing up to 40 independent contacts rated at 60 amps for 1 minute and 30 amps for continuous current in range of 125-250 Vdc or 120-600 Vac. All Series 24 LORs are offered with built-in coil monitoring and fault signal detection indication.

ESAB Welding & Cutting Products    Florence, SC 29501

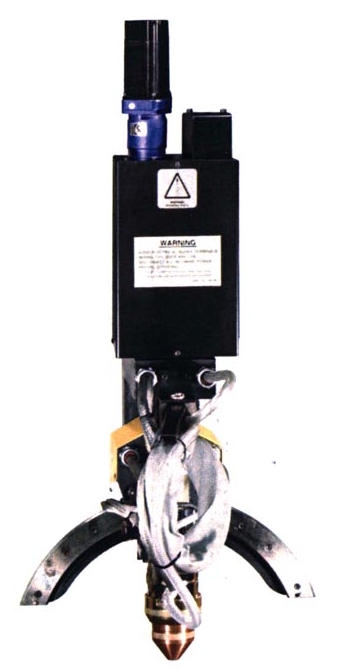

Jul 24, 2002 Expert Motion Plasma Variable Bevel Angle System is fully programmable and used to accurately cut plate material in parts that have beveled and straight cuts. Servo motors control single plasma torch in 3 axes: tilt, rotation, and vertical height. Head is always perpendicular to direction of travel because of automatic rotation control. Along with on-the-fly beveling, system features automatic switching between arc voltage and tactile sensor torch height control.

RGF Environmental Systems    West Palm Beach, FL 33404

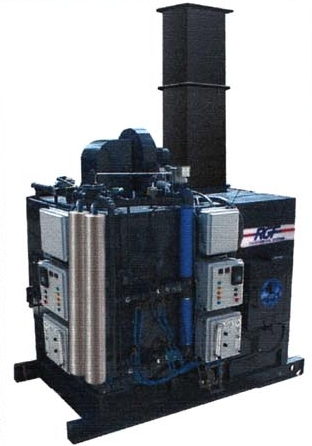

Jul 24, 2002 Thermo Ox Series 3 Dry Chamber Flash Wastewater Evaporator eliminates need to haul wastewater and problems of corrosion and slurry removal. It leaves dry ash in coated ceramic chamber, utilizes any BTU of wastewater for fuel savings, and can use used oil as fuel. Fully automatic unit is suitable for machinery coolants, PCB waste, textiles, heavy equipment, and machinery coolants.

Bettcher Industries, Inc.    Vermilion, OH 44089

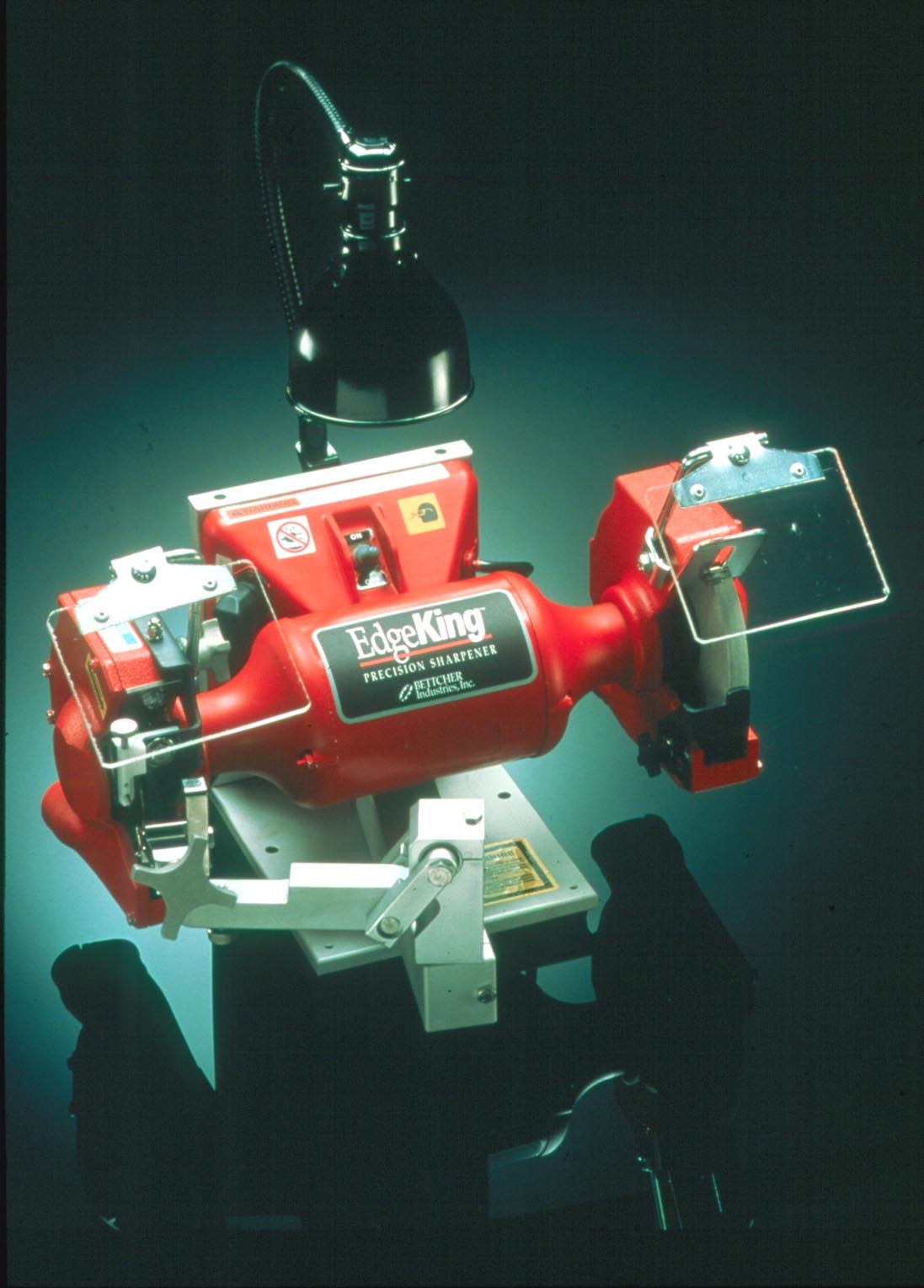

Jul 24, 2002 EdgeKingâ„¢ Precision Scissor Sharpener features industrial-duty capacitor start motor with lifetime lubricated and sealed ball bearings. Vacuum ready design ensures clean work area with little or no airborne dust, while sealed on-off switch keeps out dust and eliminates related failures. Spring-loaded arm and blade guide ensures uniform grinding on all blades - even curved blades or those up to 16 in. long. Blade holders include 1 fixed at 25° and 1 adjustable to 55°.

Prem Magnetics Inc.    McHenry, IL 60050

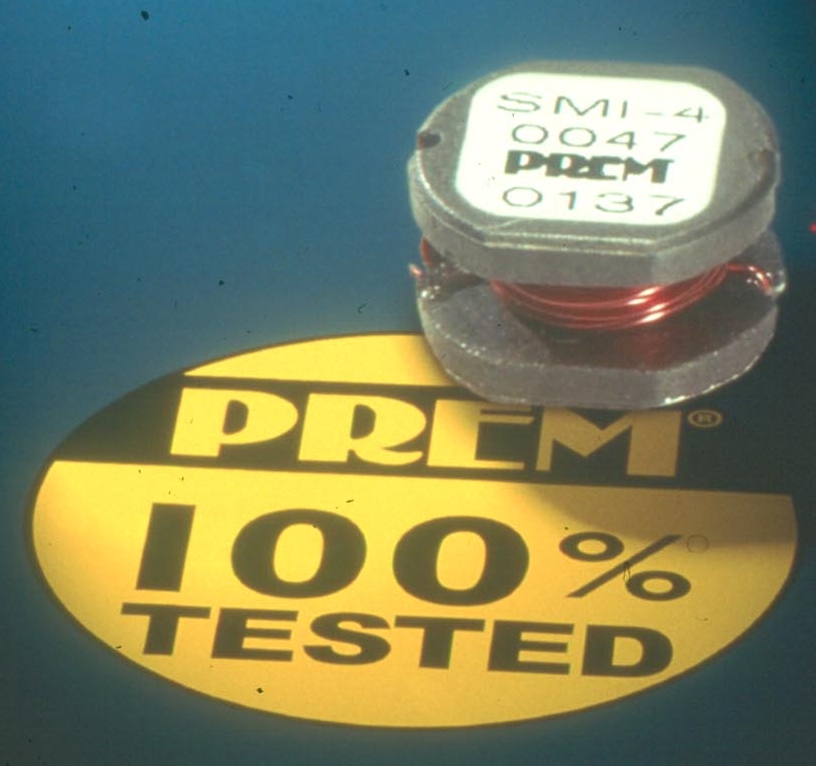

Jul 24, 2002 SMI-4 Series consists of 18 parts with inductance values ranging from 10.0 microhenries @ 3.63 A to 820.0 microhenries @ .38 A. Tolerances for inductance values is 20% for 10.0 to 47.0 microhenry values and 10% for 56.0 to 820.0 microhenry values. With pads solder-masked to core, inductors can be IR or vapor phase soldered directly to printed circuit board. Typical dimensions are .390 x .354 x .213 in. high.

Kimble-Kontes    Vineland, NJ 08362-1502

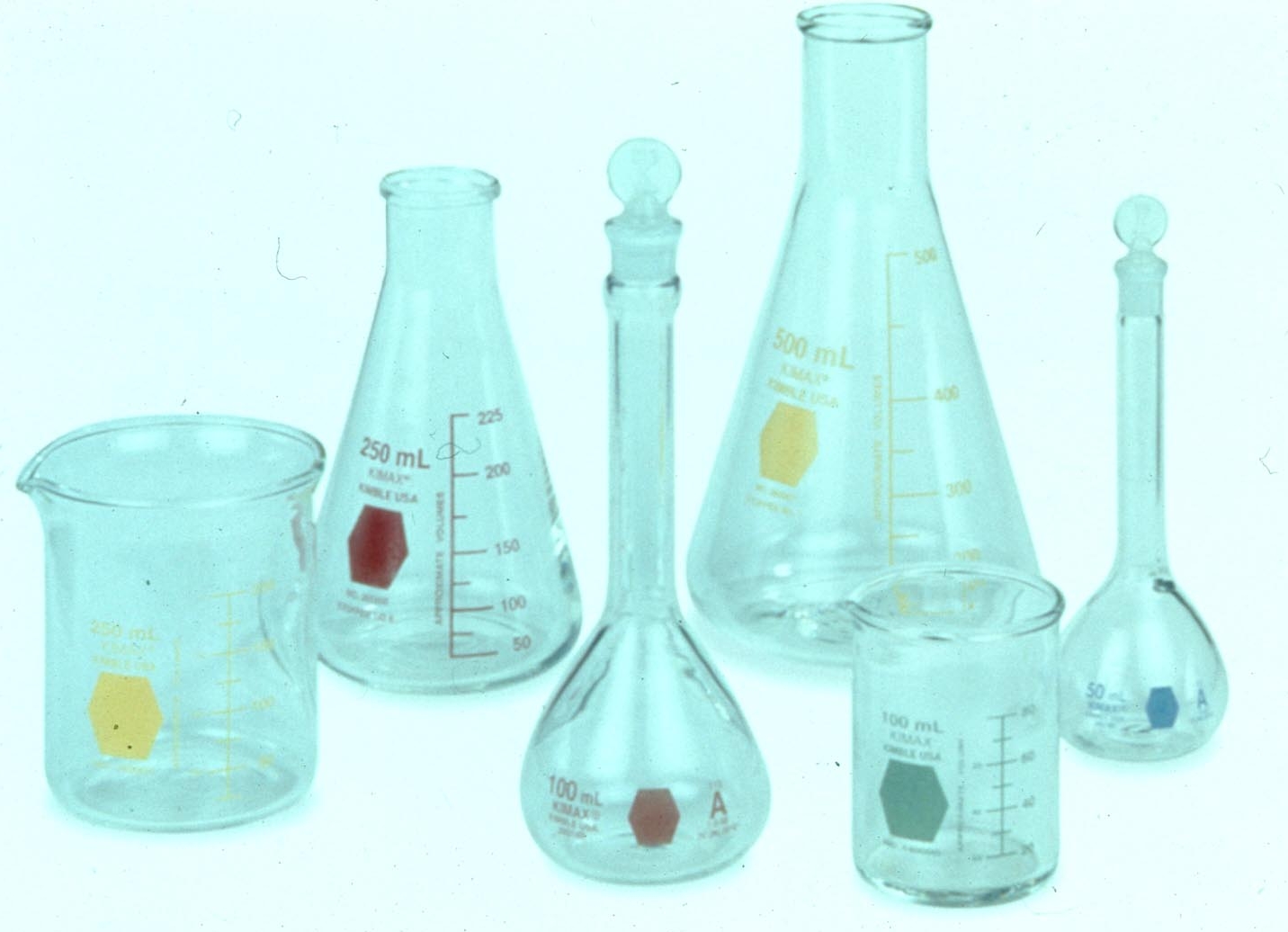

Jul 24, 2002 Colorwareâ„¢ low form beakers, Erlenmeyer flasks, and volumetric flasks are fabricated from KIMAX® KG-33 Glass and printed with durable color ceramic enamel graduations and matte marking spots. They are designed and fabricated according to appropriate ASTM specification for each class of product. Colors include Sunny Yellow, Raging Red, Bright Blue, and Cool Green.

Radio Frequency Co., Inc.    Millis, MA 02054

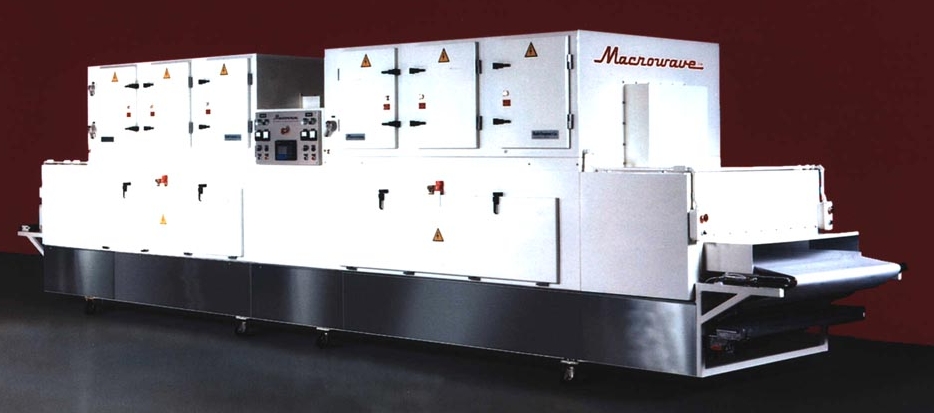

Jul 24, 2002 Macrowave OmniTherm Fluidic Dryerâ„¢ lowers moisture content of temperature sensitive materials to levels as low as 200 ppm without overheating surfaces of particles. It employs temperature and humidity controlled air or special gas to fluidize material being conveyed through radio frequency (RF) energy field. Suitable for continuous in-line operations, dryer can be used for drying, crystallization, and solid-stating of temperature sensitive polymers.

RC Electronics Inc.    Santa Barbara, CA 93117 3110

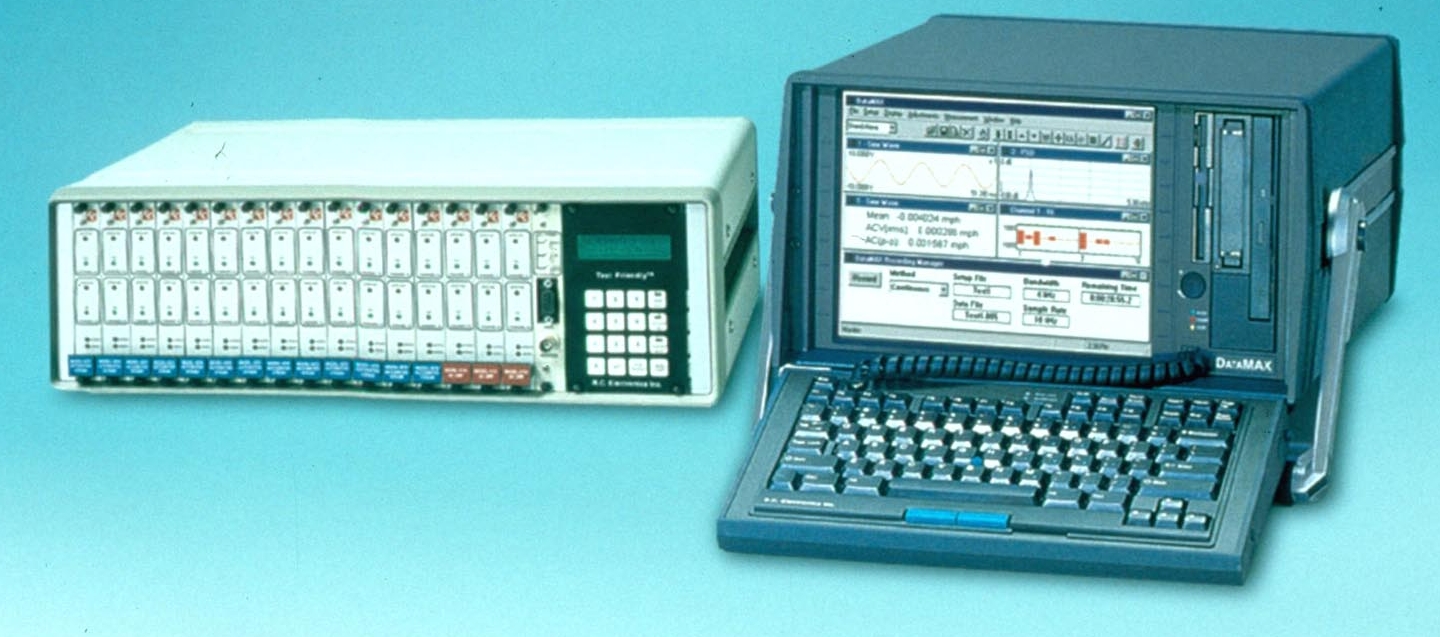

Jul 24, 2002 DataMAX II/4000 interface allows users to operate/program multiple 4000 chassis from one operating point. It gives end users access to data recording parameters, who can translate 4000 module settings into DataMAX II calibration settings. Signal conditioning parameters can be saved as part of test sequence and downloaded for automated test setup. Interface provides 90 kHz bandwidth synchronous data recording with all 4000 signal conditioning modules.

Hannay Reels, Inc.    Westerlo, NY 12193 0159

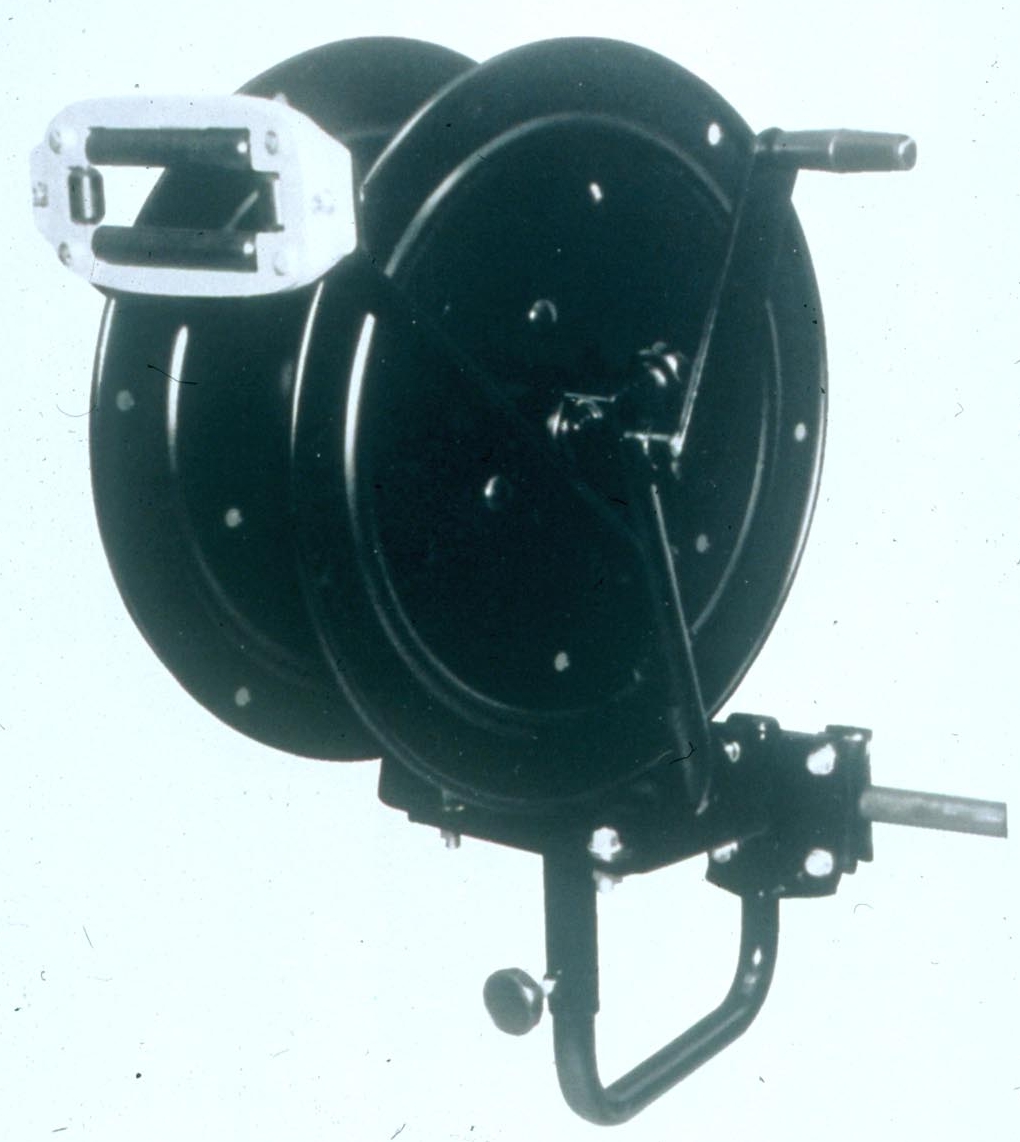

Jul 24, 2002 Constructed of 12 and 16 ga steel, with black powder coat finish, PW Series reel mounts to almost any pressure washer. Rated for pressures up to 4000 psi, it handles product temperatures from 20 to 250°F. Its 1/2 in. schedule 80 pipe hub delivers flow rates of more than 12 gpm at 15 fps. Features include adjustable split-bearing brake assembly, captive hose-guide roller assembly, and direct crank rewind, with permanently attached crank.

Nord Gear Corp.    Waunakee, WI 53597

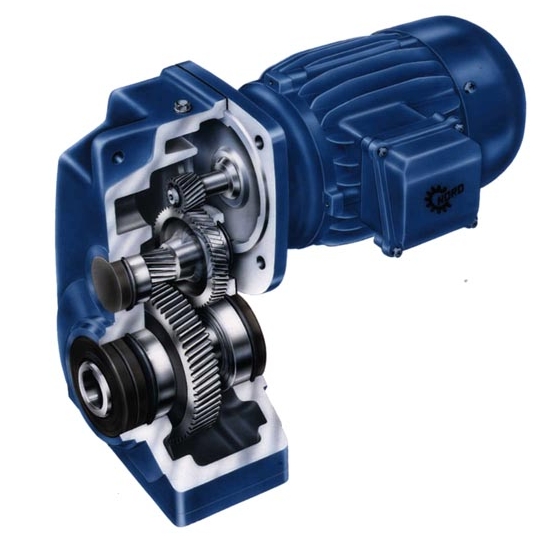

Jul 24, 2002 Clincherâ„¢ Parallel Shaft-Mount Gearbox SK 12382 triple-stage geared motor is available with either solid or hollow output shaft. Construction features include UNICASEâ„¢ one-piece housing, gearing designed to AGMA CLASS 13 standards, Quadrilipâ„¢ oil sealing system, and autovent sealing. Operational efficiency is rated at 98.5%. Power ranges from 15 to 200 hp, output speeds vary from 8.7 to 62 rpm, and gear ratios range from 69:1 to 202:1.

Trion Industries, Inc.    Wilkes Barre, PA 18702 6997

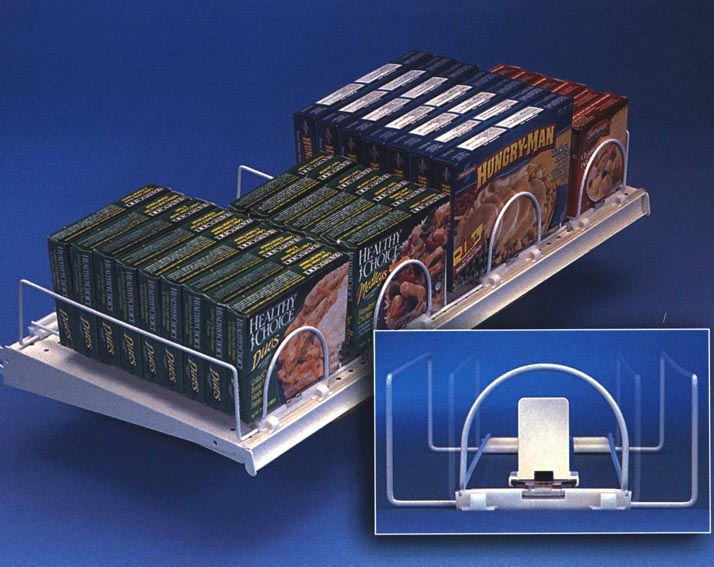

Jul 24, 2002 Expandable Wire Tray System adjusts from 5 to 12 in. wide, and is designed for use on standard shelf, wire shelf, or as table-top display. Open design promotes air circulation and sheds dust and dirt. Powder-coated galvanized wire offers long life in harsh environments. System can be ordered as stand-alone, single-facing units; pre-assembled multiple interlocking units, for one-piece installation; or as components.

Oriental Motor U.S.A. Corp.    Torrance, CA 90502

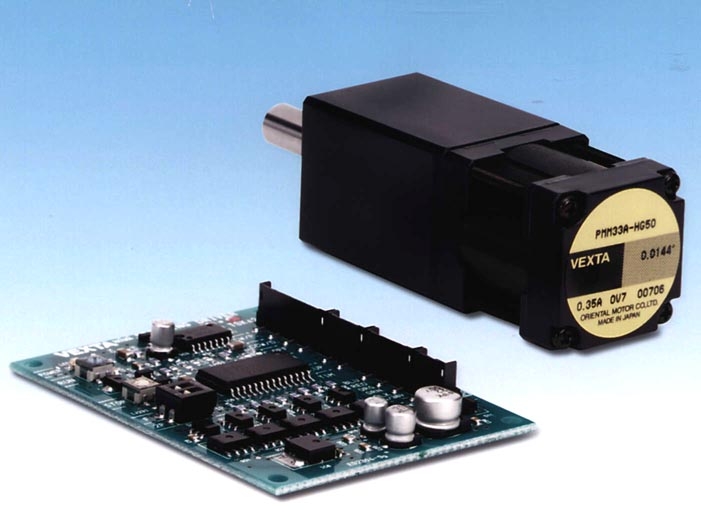

Jul 24, 2002 Miniature PMC Series 5-phase hybrid system includes printed-circuit driver board and miniature harmonic drive. Motors have zero-backlash harmonic gearheads in 50:1 (PMC33A1-HG50) and 100:1 (PMC331A1-HG100) gear ratios. Basic step angle performance reaches 0.0072° for 100:1 ratio. PMC33A1-HG50 produces 160 oz-in at 25 rpm using thin driver with 24 Vdc and 0.35 A per phase input. PMC33A1-HG100 produces 284 oz-in at 30 rpm with thin driver by applying input of 36 Vdc and 0.35 A per phase.

Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675

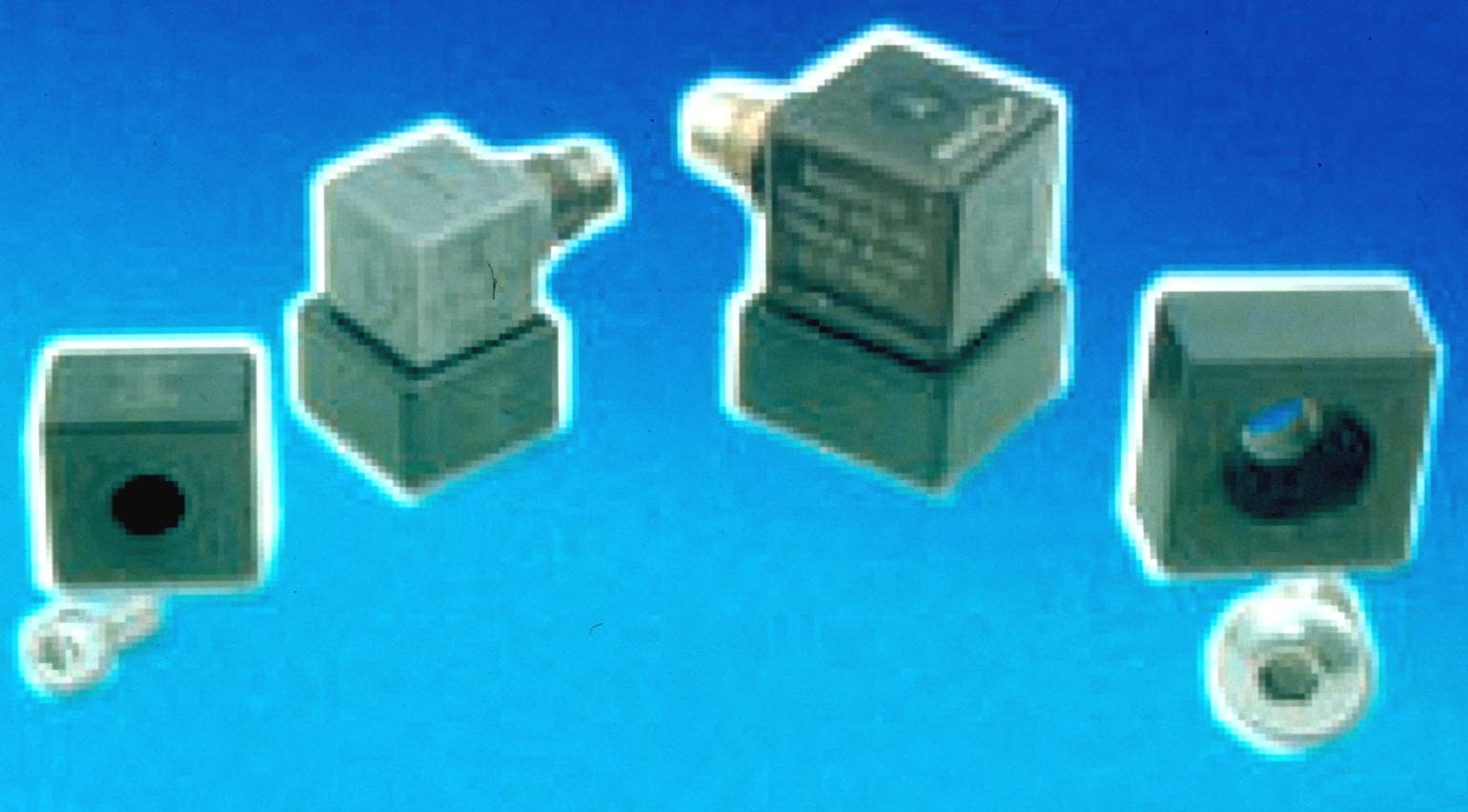

Jul 24, 2002 Accelerometer Thermal Isolator (ATI) enables low-impedance output accelerometers to operate on test surfaces with high temperatures. It is constructed from 0.325 in. thick, amorphous polymer that is characterized by low thermal conductivity, chemical resistance, and natural flame resistance. Maximum service temperature is +171°C. Accelerometer can be mounted to thermal isolator via cap screw.

Power Transmission Options, Ltd.    North Canton, OH 44720

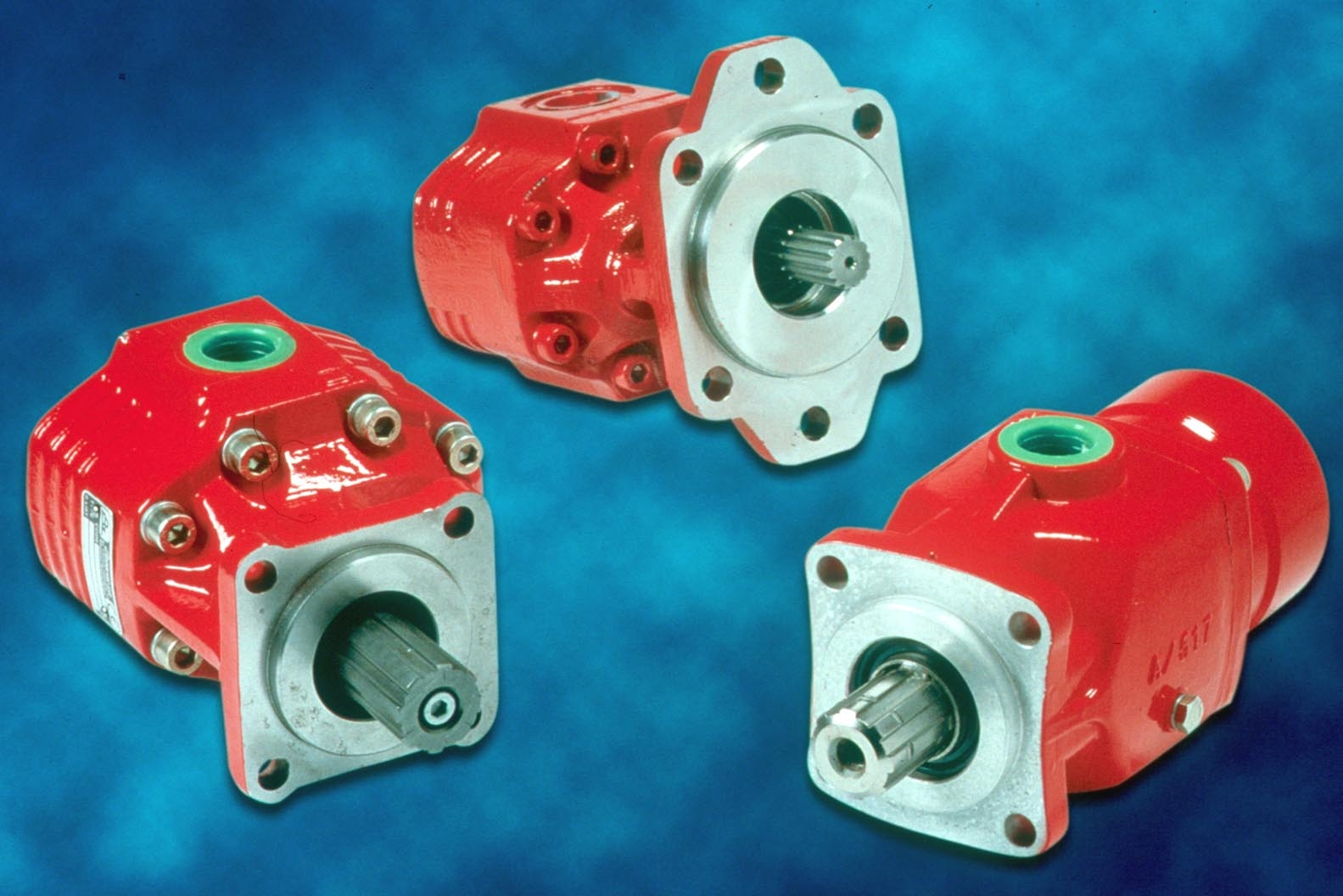

Jul 24, 2002 Gear pumps range from 2800 to 4600 psi while piston pumps produce up to 5000 psi. Dowel-pinned pumps are bi-rotational and available in both DIN and SAE shaft configurations. SAE and metric hose connections are also available. Gear pumps are available from 300 to 3000 rpm and piston pumps run up to 1500 rpm.

Madison Cutting Tools, Inc.    Providence, RI 02940 6307

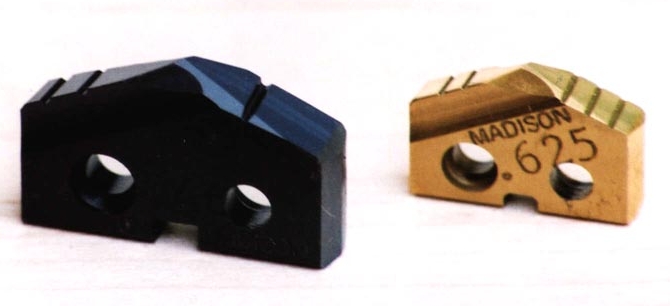

Jul 24, 2002 Tru-Lok spade drilling system is offered in variety of straight shank, flange-type, and Morse-Taper shanks. Holders include quick change, back piloted, and combination drilling/secondary operation bars. Inserts ranging from 1/2 to 1 3/8 in. diameter are available in several grades of carbide and CPM high-speed steel, and in most common coatings.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055

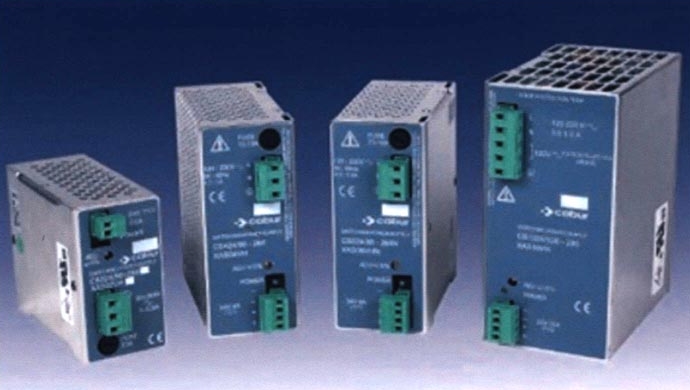

Jul 24, 2002 Switching power supplies are universal auto-ranging, meaning same part can be used with 110 or 220 Vac inputs. Primary switched units are available from 5 to 480 W. Power supplies rated 24 Vdc are offered in versions ranging from 1 to 20 A output. Universal auto ranging AC input voltages are either 90 to 264 Vac 1-phase or 340 to 480 Vac 3-phase. All have input and output overload and short circuit protection and are housed in fully enclosed touch-safe enclosures.
