TRUMPF Inc.    Farmington, CT 06032
Aug 05, 2002 VectorMark® VMc 4 solid state, diode-pumped laser marking system offers integrated power supply and cooling system, self-contained design, and single-phase 115 V connection. Motor-driven Z-axis allows automatic adjustment of focal distance. System's two-tiered, Windows®-based operating system enables operator to select messages to be marked on workpiece and to import images. Variable data can be generated automatically. OS also integrates and automates marking processes.

TRUMPF Inc.    Farmington, CT 06032
Aug 05, 2002 TKA 300-0 machines all kinds of contours, straight and round. Around corners, users can cut either 45° angle or radius edges. Chamfer length can be preset using manually- adjustable setting wheel and locked to desired dimension. Maximum chamfer length is 0.125 in., mild steel. Unit includes twin-blade tool system and vibration dampening. Three-way reversible cutter inserts and 45° chamfers are interchangeable.

Spence Engineering Co., Inc.    Walden, NY 12586-0230
Aug 05, 2002 Condensate Commander Pumps feature 125, 200, or 250 psig ASME cast steel tanks for operating pressures up to 250 psi at 400°F. Normally compressed, stainless steel, single spring float mechanism is located outside flow of condensate. Pumps are suitable for removing difficult media such as high temperature condensate and corrosive fluids from remote or hazardous locations without electricity. Configurations include customized piping, SS tanks, and skidded recovery stations.

LIS Warehouse Systems    Charlotte, NC 28273-5542
Aug 05, 2002 Dispatcher-WMS notifies user when specific events happen or when expected events do not occur as planned, so that action can be taken. Alerts can be sent to other systems within business, making automatic resolution of logistics problems possible without human intervention. Evaluation screen pops up after each delivery so users can measure and report on supplier performance. Interface Painter allows mapping of data from host and other systems to Dispatcher-WMS.

Adept Technology, Inc.    San Jose, CA 95134
Aug 05, 2002 Self-contained, pre-engineered amplifier and motor packages are pre-configured to work with Adept SmartControllerswhich are based on IEEE-1394 (FireWire®) technology. Kits contain 1 SmartAmp with matched AC servo motor and absolute encoder, 1 amplifier mounting bracket, and documentation. Based on SmartAmp technology, Servo Kits provide plug-and-play servo compatibility and can be daisy-chained to single controller.

ATI Technologies, Inc.    Thornhill, ON L3T7N6  Canada
Aug 05, 2002 FIRE GLâ„¢ X1 is suitable for artists, developers, and engineers who want to create and refine digital photo-realistic renderings. It has 8 parallel rendering pipelines, giving creators ability to preview finished scenes in real time. System offloads complex data calculations from CPU, and runs under Linux, OpenGL®, and DirectX®. Its 128-bit pipeline architecture makes it possible to compile higher level shaders from digital content creation software.

Honeywell, Inc., Industrial Automation & Control    Phoenix, AZ 85023
Aug 05, 2002 DOC3000® v3.4 provides electronic database management and documentation of Honeywell's TPS and TDC 3000® process control systems, PLCs, Communication Link Module (CLM), Logic Manager (LM), and Tricon Safety Manager Module (SMM). Tag cross-references can be exported to tab-delimited text file. Data Directory provides summary of tag information. DOC3000 is available as standalone application or in network environment with unlimited users.

Zero Surge Inc.    Frenchtown, NJ 08825
Aug 05, 2002 Unlike fixed clamping level devices which do not activate during brownouts, Spectrum WVRâ„¢ features dynamic clamp for instantaneous response to surge current and voltage. This provides protection against surge damage during brownout conditions.

Rymic Systems, Inc.    Huntsville, AL 35802
Aug 05, 2002 Model 2436 multi-function data acquisition module expands ability to remotely monitor and control assets over Internet by providing 24 differential 16-bit analog inputs, 4 single-ended 16-bit analog outputs, and 8 optically isolated digital I/O points. It is available with 10 V or 4-20 mA current for analog I/O channels, and 200 V isolation is provided for digital I/O channels. Unit includes auto-calibration, internal DC/DC converter and regulator, and simultaneous sampling.

Adept Technology, Inc.    San Jose, CA 95134
Aug 05, 2002 AdeptVision sAVI consists of SmartController CS with vision interface board and ObjectFinder 2000 locator tool. It identifies objects and patterns based on geometric shape, resulting in robustness to clutter, lighting variations, image degradations, and occlusions. AIM VisionWare application software supports programming development and interfacing to cell I/O and factory information systems. Adept V+ real-time, multi-tasking operating system can handle up to 28 simultaneous program tasks.

Adhesives Research, Inc.    Glen Rock, PA 17327
Aug 05, 2002 ARclad® 9031 (black) and ARclad® 516 (amber) are clear polyester films double-coated with aggressive pressure-sensitive adhesive. They adhere to surfaces such as silicone release papers, polyester, polyethylene, polypropylene, plastic and high-slip films, cloth, nonwovens, and specialty papers and boards. Tapes are conformable and provide quick-stick performance for splicing even when running at top line speeds.

apps4biz, Inc.    Andover, MA 01810
Aug 05, 2002 Transportation and Warehousing apps4biz® utilizes application service provider (ASP) approach, which allows companies that ship and store freight to access real-time information about status of their goods via Internet browser. Users can see their deposition at any point in time and determine if they are being received, warehoused, or shipped to 3rd parties.

TopTrack    Columbia, MD 21045
Aug 05, 2002 TopTrack helpdesk management and tracking software is a web-based tool that automates operations and reporting for IT helpdesks. It can help IT helpdesks improve their on-time problem resolution rate by handling trouble ticket initiation, status reporting, and workload management. TopTrack provides reports on variety of parameters related to IT support function that can be tabulated and graphed to provide complete picture of departmental status.

Freedom Applications Ltd.    Cleveland, OH 44112
Aug 05, 2002 Access Manufacturing Management Overlay fills gap between accounting packages and ERP/MRP systems. Modules manage financials, checkbook, A/R and A/P; generate purchase/sales/work orders; store customer/vendor histories and record events; and track production through shop floor data entry and engineering files. Software also generates bills of materials, routers, parts catalog, shipping/receiving/QC logs; maintains inventory; creates sales/productivity reports, and stores employee information.

HellermannTyton    Milwaukee, WI 53224
Aug 05, 2002 TSRP raceway system is UL listed for power up to 600 V, and ULc listed in Canada for up to 300 V. Made from UL 94V-0 rated, non-flammable PVC, it has latching mechanism for tamper resistance, sturdy walls, secure fittings to accommodate various installation requirements, and adhesive backing to ease installation before permanent mounting. Applications include research centers, factories, and offices.

Walter USA, Inc.    Waukesha, WI 53188
Aug 02, 2002 Color Select system codes inserts according to their composition and characteristics. It uses ISO standard plus additional identifications and colors for chip breaking geometries, use, and applications. New models include Non-ferrous inserts in rose color; Hard Material inserts in anthracite or purplish-black color; and bi-color Tiger.tec, in black and gold. Tiger.tec's top surface is coated in wear-resistant A1203 for cast and ductile iron applications.

Square D Co.    Raleigh, NC 27611
Aug 02, 2002 POWERBUS 225 Low-Amp Busway is designed to specifications, built, and then tested at plant, so end-users avoid complicated conduit bending, working, and then reworking on job site. Rated at 225 or 100 A, it is suitable for use where conduit and cabling are typically installed. Bus makes it easy for user to relocate equipment such as workstations, small machinery, refrigerated display cases, and lighting.

Vespo Marketing Associates, Inc.    Thompson Ridge, NY 10985

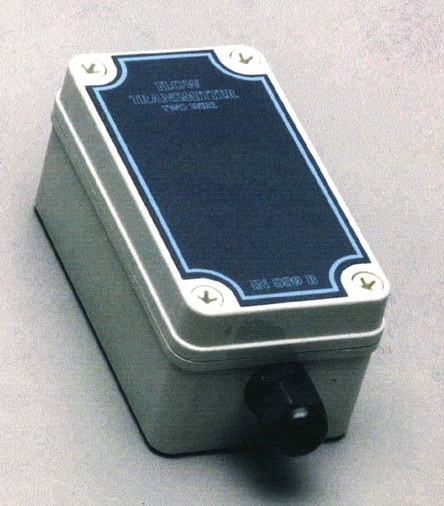

Aug 01, 2002 IN-889B Loop Powered Transmitter, for use with flow transducers, provides calibrated signal for accurate flow measurement of liquids. Voltage input signal from flow transducer is amplified and converted into 4-20 mA current. First 4 mA of current is used to power transmitter. DIP switches provide means of calibrating transmitter into required engineering units. IN-889B is offered in DIN-rail mount or IP67 polycarbonate case.

Wavetek Meterman Test Tools    Everett, WA 98206-9090

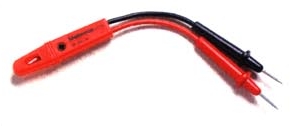

Aug 01, 2002 VT201 provides safe, non-contact detection of voltages from 70-440 Vac. Loud chirping changes pitch based on probe's proximity to ac voltage source. VT102 tests 2- and 3-wire ac outlets. Four neon lights indicate voltage from 110-460 Vac. VT101 also tests 2- and 3-wire outlets. Neon light indicates voltage from 90-500 Vac. ST102 tests GFCI breakers for proper wiring and operation and is for use on 110 to 125 Vac. ST101 confirms proper wiring and operation of ac socket and is for use on 110 to 125 Vac.

Handling Specialty, Inc.    Niagara Falls, NY 14304 0279

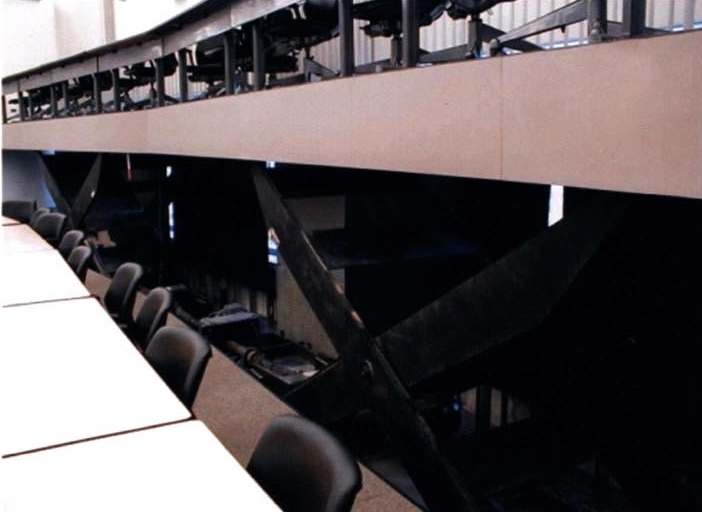

Aug 01, 2002 Model LTSA70-75X multi-lift riser system, comprised of 5 electro-mechanical lift units, offers zero creep and dynamic capcity of 15,000 lbs. Completed travel of lifts is 14, 28, 42, 56, and 70 in. on lifts 1 through 5 respectively. Riser is 56 in. long by 659 in. wide, and is controlled by single PLC unit.
