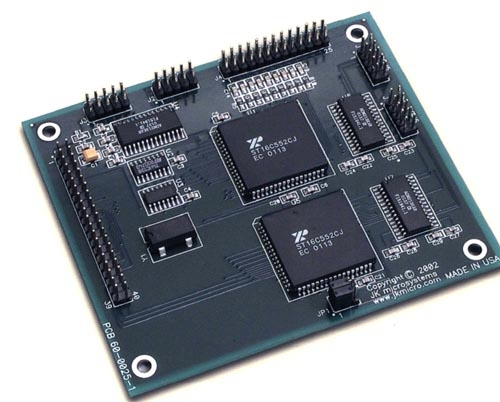

JK Microsystems Inc.    Davis, CA 95616
Jul 25, 2002 4Serial/Parallel board is for use with LogicFlex controller. Powered by 25 MHz Intel 386Ex microprocessor, LogicFlex offers over 40 digital I/O lines, 10Base-T Ethernet port, Xilinx in-circuit programmable CPLD, 512 K SRAM, and 512 K Flash memory. For multiple serial port applications, 4Serial/Parallel board provides flexibility of adding 4 serial ports and parallel port, allowing system to interface up to 6 serial devices.

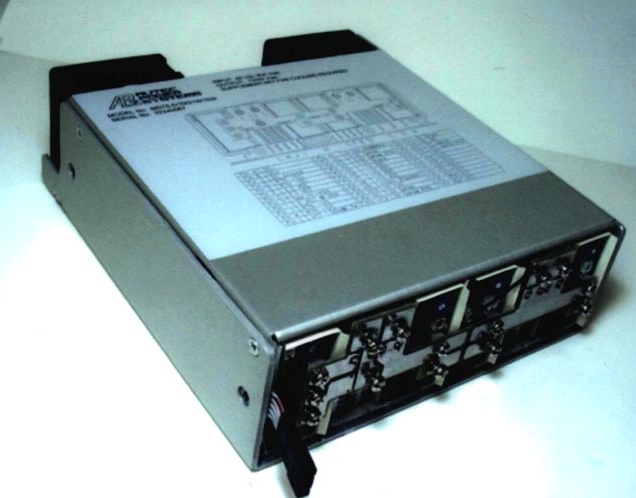

Autec Power Systems    Simi Valley, CA 93065
Jul 25, 2002 Model MD5 and MD7 Series of 500 to 750 W converters have 36 to 75 Vdc input and are offered in 23 different modules ranging from 2 to 48 V. Each module is isolated and can be connected in several ways to achieve required output. Up to 6 individual power-supply modules fit in single enclosure. Units measure 5 x 8 x 2.5 in. for 500 W models, and 7.5 x 9 x 2.5 in. for 750 W models. Operating temperature is 0 to 50 deg C.

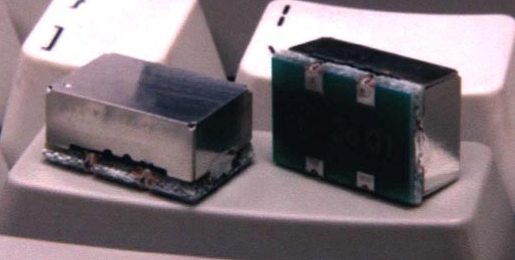

M-Tron Industries, Inc.    Yankton, SD 57078
Jul 25, 2002 M5001/M5002 series (Clock Oscillator) and M5003/M5004 series (VCXOs) offer differential LVPECL/LVDS outputs. Clock oscillators and VCXOs provide frequency stability as low as +/-10 ppm. Both devices are packaged in surface-mount platform that is pin-for-pin compatible with 4- and 6-pin, ceramic, J-lead, 9 x 14 mm product families. Enable/Disable outputs with enable high is available, as well as 3.3 or 5.0 V operation.

Shimadzu Scientific Instruments, Inc.    Columbia, MD 21046
Jul 25, 2002 BioMini is capable of nucleic acid analysis, protein quantitation, and spectrum measurement. Nucleic acid module provides quantitation methods for double- and single-stranded DNA, RNA, and standard Warburg-Christian. On-board protein methods include Lowry, UV, BCA, Bradford, and K factor. DNA companion programs assists in calculation of molecular weight and molar extinction coefficients. Flexible sample compartment accommodates accessories and cuvettes.

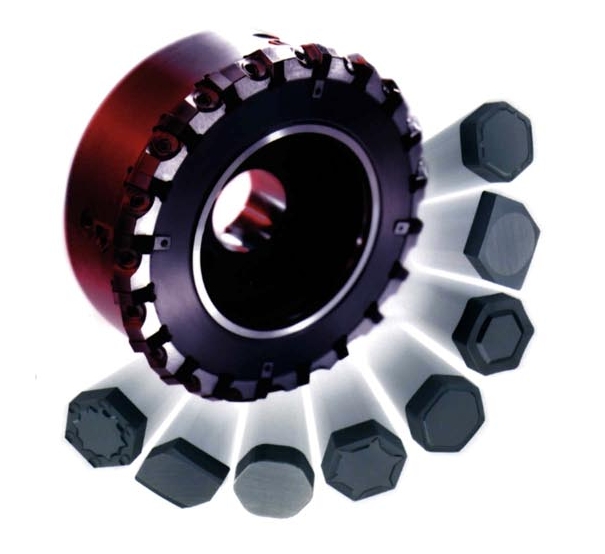

Valenite, Inc.    Madison Heights, MI 48071 9636
Jul 25, 2002 M750 Milling System, with silicon-nitride ceramic and coated-carbide grades, offers 2 milling cutter bodies in 6 diameters from 3.94 to 12.40 in. for 45° lead angle roughing and 30° lead angle roughing, roughing/finishing, and fine finishing. Number of inserts per cutter vary from 10 to 46, depending on design. Eight double-sided, hexagonal-insert styles are available in 6 different roughing and wiper top form geometries.

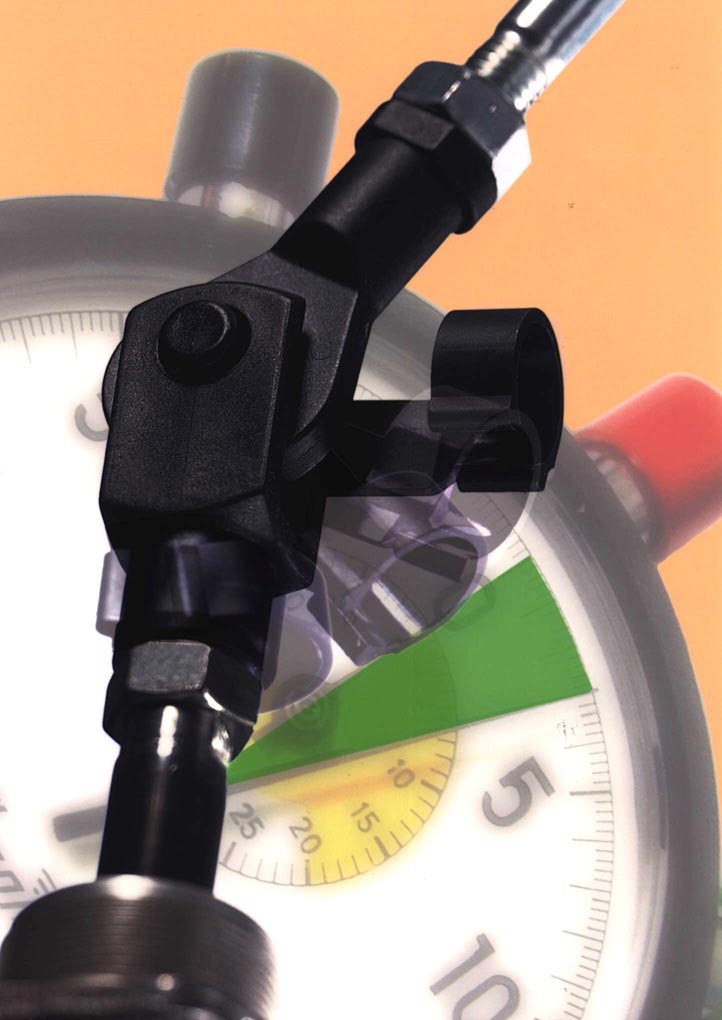

Igus, Inc.    East Providence, RI 02914 0349
Jul 25, 2002 igubal® E-Series polymer clevis joint, connecting rods, and snap rings provide complete connection made of engineered polymers. Polymer construction absorbs vibration and provides tensile strength suitable for chemical- and moisture-present environments. Clevis joint is available in 6 sizes from 10/32 to 1/2 inch as well as in 18 metric sizes from 5 to 30 mm dia. Connecting rod is available with snap ring option in 9 metric sizes, with inner diameters from 5 to 20 mm.

Igus, Inc.    East Providence, RI 02914 0349

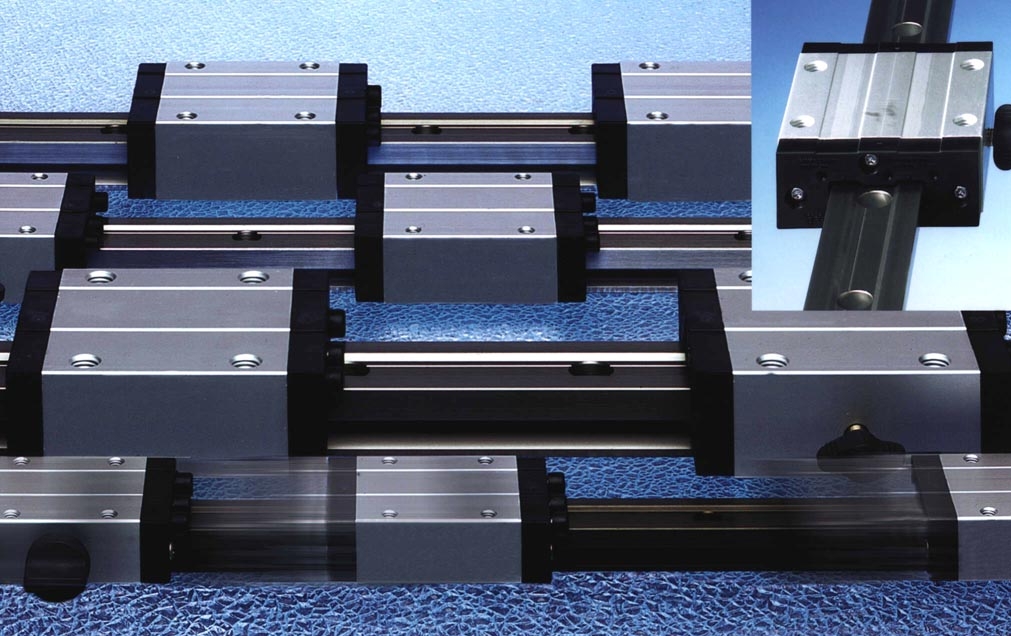

Jul 25, 2002 DryLin® T provides maintenance-free alternative to standard linear ball guides. Its self-lubricating design utilizes glide pads made of iglide® J polymer material. It is suitable for applications involving wood and metal chips, lint, dirt, and dust. It also suits environments with frequent washdown, because no external lubrication is required.

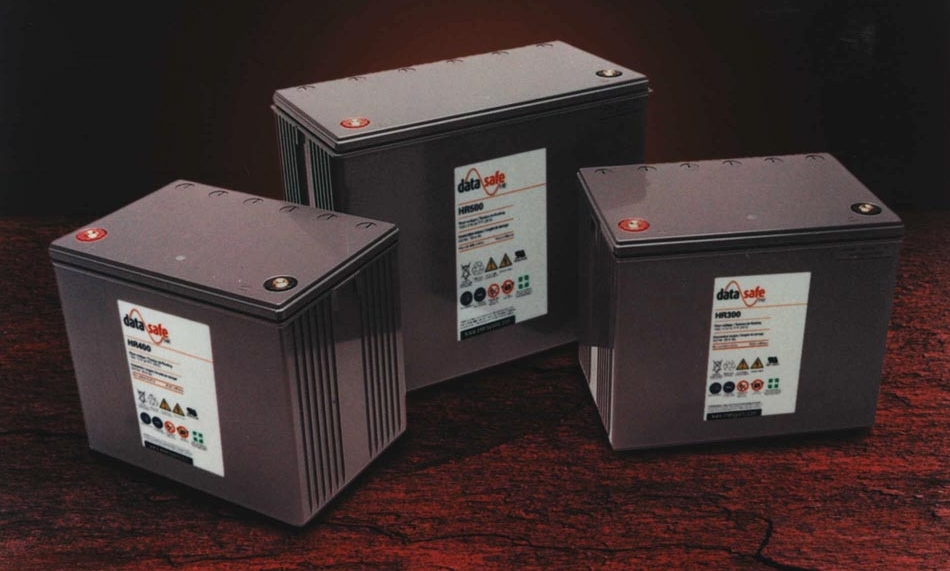

EnerSys, Inc.    Reading, PA 19612-4145
Jul 25, 2002 Datasafe HR series valve-regulated lead-acid (VRLA) batteries provide threaded brass post inserts and positive and negative grids of lead-calcium-tin alloy. Batteries utilize gas recombinant VRLA technology to minimize gas evolution during charging and discharging. Flame retardant ABS case material with ribbed walls and lids provide protection against shock and vibration, flame arrestors are built into each cell, and covers are bonded to containers using leak-proof heat seal.

Bio-Chem Valve Inc.    Boonton, NJ 07005
Jul 25, 2002 Pinch valves offer inertness similar to isolation valves with straighter, no-clog flow path. They are available in normally closed or normally open position or in 3-way configuration for fluid switching. Valves accommodate tubing from .010 to .875 in. ID. They aid in purging waste lines containing aggressive, particulate-laden solvents, corrosives, reagents, or other liquids.

Carl Zeiss Microimaging, Inc.    Thornwood, NY 10594-1939

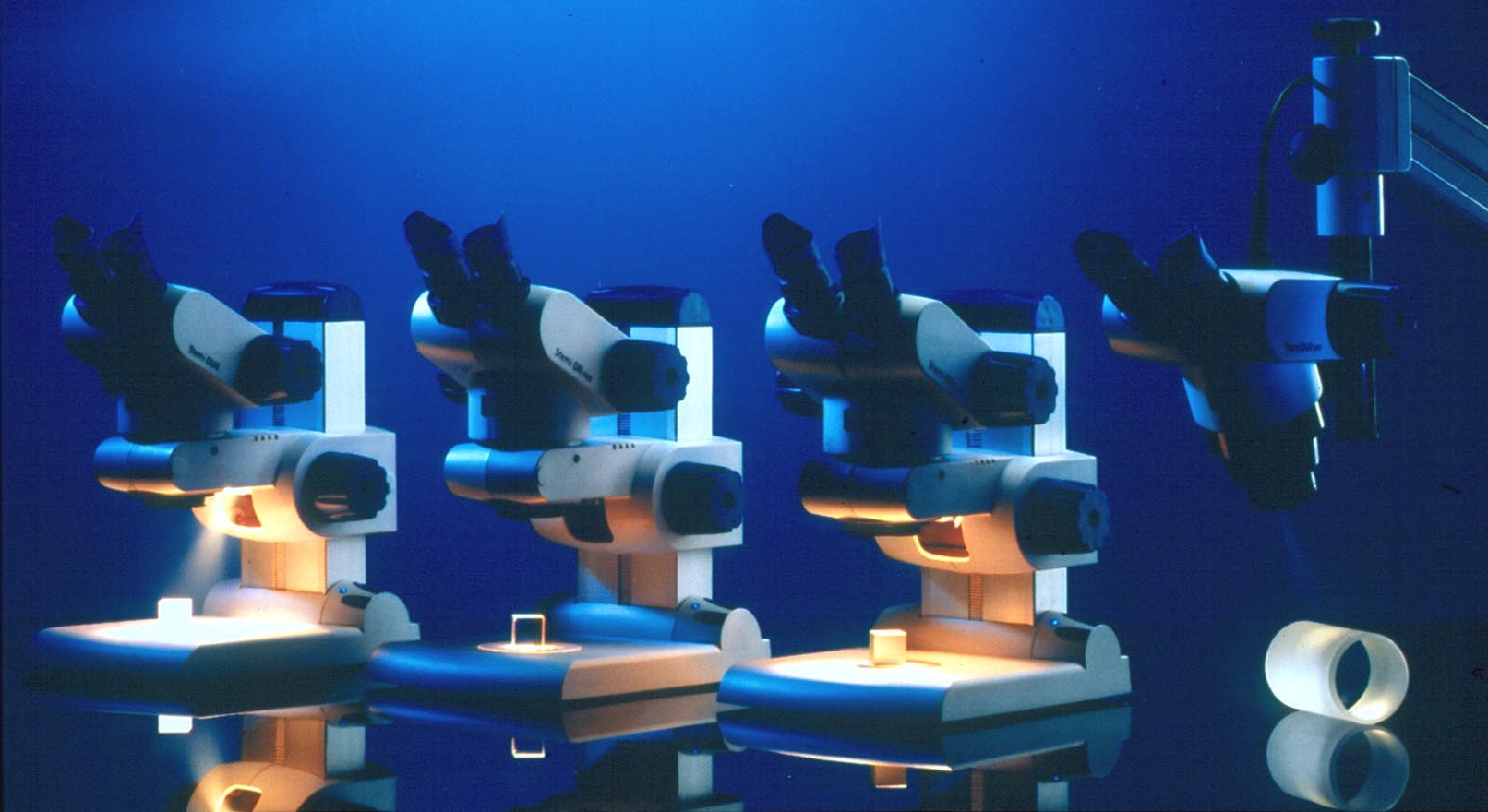

Jul 25, 2002 Stemi DR 1040 and Stemi DR 1663 switch between reproducible, standard magnifications. Stemi DR 1040 units have 10x overview and 40x detail magnification, while Stemi DR 1663 units have 16x and 63x magnification. Stemi DV 4 (Double Lens Vario, zoom factor 4) units offer continuous zoom system that delivers images from 8x overview to 32x detail view. Stemi DV4 SPOT units have fiber-optic cold light illuminator that illuminates specimen at near-right angle.

Contech    Goddard, KS 67052
Jul 25, 2002 Sheet- or roll-fed die-cutting system is suitable for sheet or web production. Printed paper goes through heated over-laminate unit, then receives under-laminate of magnetic material. Optically registered die-cutter cuts out product. Finished product is knocked out of web at knock-out station, conveyed to operator, and remaining matrix is scrap cut. Product can also be left in web, sheeted into sheets of product, and stacked.

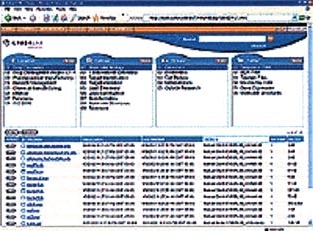

Scientific Software Inc.    Pleasanton, CA 94588
Jul 25, 2002 Web-based CyberLAB Knowledge Engineering System(TM) v2.1 provides truly scalable architecture allowing CyberLAB users to globally deploy system across their enterprise. It enhances organization's compliance with US FDA Part 11 requirements for electronic records and electronic signature. Oracle users benefit from integrated search engine that enables sophisticated queries and data mining. Version 2.1 provides support for Kanji characters.

Pearson Packaging Systems    Spokane, WA 99224 9048
Jul 25, 2002 B240 uses servo-driven Parallel Motion to achieve speeds up to 24 bags/min. Bag opening and bag inserting steps overlap, so each step executes more slowly than would be required if they were sequential. Mandrel provides positive bag placement in boxes, cases, or other shipping containers. Available in stainless steel or painted steel, B240 runs tube stock, pre-perfed and sealed bags, or gusseted bags. Pneumatic Model B160 is offered for speeds up to 16 bags/min.

Equinox Systems Inc.    Sunrise, FL 33351 6709
Jul 25, 2002 SST-4P/LP low-profile universal serial adapter connects up to 4 ports to 1 bus slot in server. Built-in 15,000 V surge suppression on every pin of every port eliminates vulnerability to blown ports from electrical spikes. EquiView Plus management software provides intuitive interface that makes it easy to manage all connected serial ports from one screen.

Tesa Tape, Inc.    Charlotte, NC 28209
Jul 25, 2002 Double-sided tesa 4968 UPVC film tape secures air bags within protective covering until activated. tesa sleeve, with solid fleece cover, encloses cables. tesa BodyGuardâ„¢ is a protective film that can be applied to every painted surface of vehicle, and is primarily suited for transit applications. tesa Glassguardâ„¢ protects all glass components of vehicle. Tear-resistant tesa 4308 is designed for in-line repair painting. Easy Cover® Auto combines film, paper, and tape into one product.

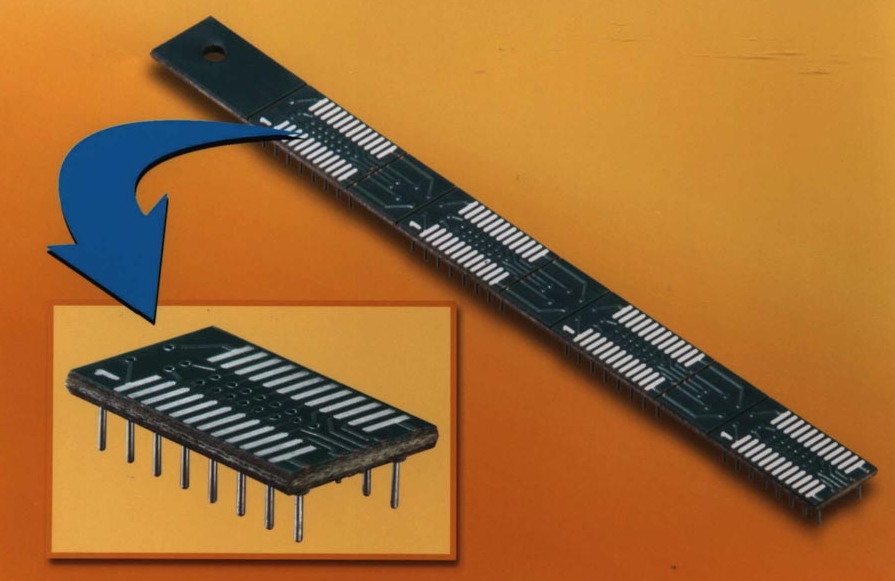

Aries Electronics, Inc.    Bristol, PA 19007-6810
Jul 25, 2002 Series 350000-HT lead-free Correct-A-Chip adapter enables users to upgrade from DIP devices to SOJ or SOIC devices with no PCB rework or redesign. It is offered on .300, .400, and .600 in. centers with 14, 16, 18, 20, or 24 pins. PCB is .062 in. Polyimid, rated at 260°C, with copper traces on both sides. Pins are 360 1/2-hard brass alloy with tin-nickel plating.

Micrel Semiconductor Inc.    San Jose, CA 95131
Jul 25, 2002 MIC5239 micropower low-dropout regulator provides keep-alive voltage for power-sensitive applications. It features low quiescent current of 23uA and input voltage range of 2.3 to 30 V. Regulator is stable with ceramic or tantalum output capacitor, and capable of providing up to 500 mA of operating current. Fixed output voltages include 5.0, 3.3, 2.5, and 1.8 V. Unit is offered in thermally enhanced power SO-8, power MSOP-8, and SOT-223 packages.

Bell & Gossett    Morton Grove, IL 60053
Jul 25, 2002 MiniBoosterâ„¢ is offered in 1- and 2-pump packages, with simplex capacities from 20 to 110 gpm at boost of 20 to 55 psig, and duplex capacity that can reach 220 gpm. Both automatically adjust to system requirements, stopping during periods of low demand and restarting upon drop in system pressure. Close-coupled pumps have stainless steel casing and internals. Open, drip-proof motors range from 1.5 hp through 5 hp.

PennEngineering® (Penn Engineering)    Danboro, PA 18916
Jul 25, 2002 With captive-screw design, self-clinching panel fasteners are suitable for attaching metal panels as thin as .036 in. They are available in two types: with knurled knobs (Type PF13(TM)) and without (Type PF14(TM)). Both complete spring-loaded panel fastener assemblies are offered with choice of three screw lengths and thread sizes from #4-40 through 1/4-20 and M3 through M6.

Interroll Corp.    Wilmington, NC 28405

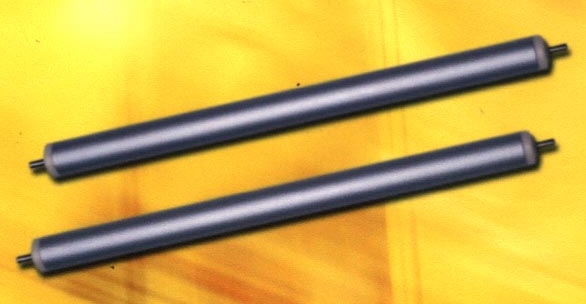

Jul 24, 2002 Series 1100 combines polypropylene or acetyl plastic bearing housings and stainless steel balls with variety of lightweight tube materials for free-rolling, corrosion-proof conveyor applications. Bearings offer double labyrinth seal to protect against dirt and dust, and may be washed or steam cleaned at temperatures up to 150°F without damaging roller. Tubes are available in .62, .75, .78, 1.12, 1.18, and 1.90 in. diameters.
