American Lewa, Inc.    Holliston, MA 01746 1455

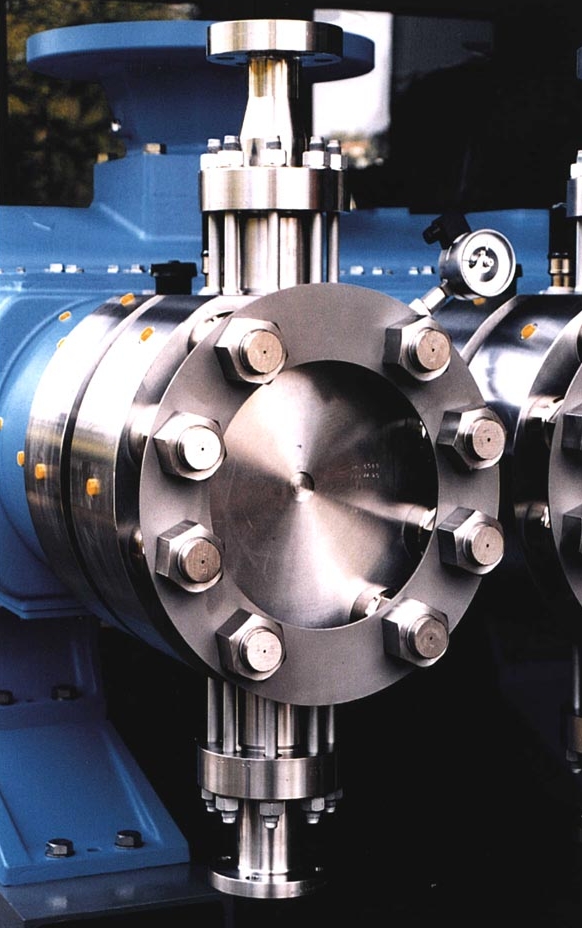

Jul 29, 2002 Series M800 Pump Head features PTFE sandwich diaphragm, which is freely oscillating with position control that allows handling of difficult fluids. Capable of flow rates to 265 gpm and discharge pressures up to 11,600 psi, pump head is safe against high suction pressure due to full diaphragm rear support. There are no perforated support plates in operating chamber. Unit incorporates hydraulic drive with packless sealing plunger, and can operate up to 20,000 hours.

One Stop Systems    Escondido, CA 92029

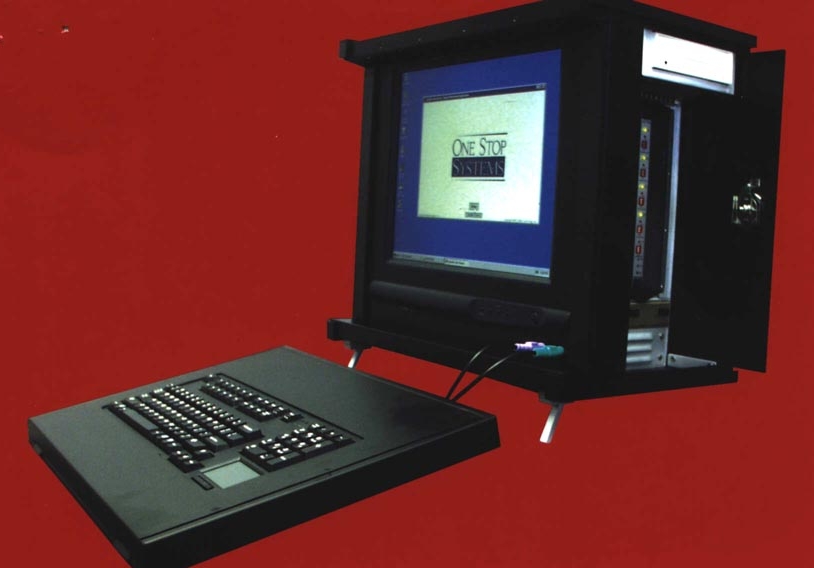

Jul 29, 2002 CompactPCI Portable Workstation supports up to 8 CompactPCI slots and is designed for applications where stand-alone computing system is required for diagnostics and monitoring. Its 6U card cage is encased in black anodized aluminum housing that includes 17 in. flat panel display and detachable keyboard. Workstation features two 5 1/4 in. drive bays, dual hot swappable fan canisters, and 300 W power supply. It can be carried by self-retracting handle.

Viking Pump Inc., A Unit Of IDEX Corp.    Cedar Falls, IA 50613 0008

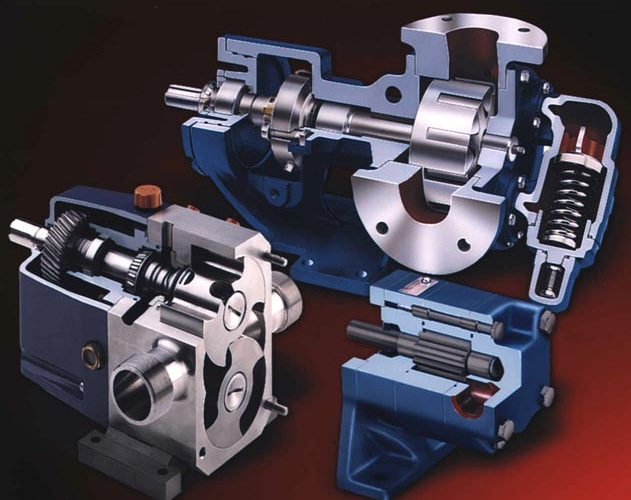

Jul 29, 2002 Using gear and lobe principles, positive displacement pumps provide near-constant flow rate regardless of changes in system pressure or viscosity. They handle fluids with viscosities from 28 to 2,000,000 SSU and offer reversible direction of flow. Internal gear pumps offer capacities from 1.5 to 1,500 gpm at pressures to 250 psi. Rotary lobe pumps utilize non-contacting lobes in bi-wing and multi-lobe designs. They offer capacities to 820 gpm at pressures to 400 psi.

Caldwell Group, Inc., The    Rockford, IL 61109

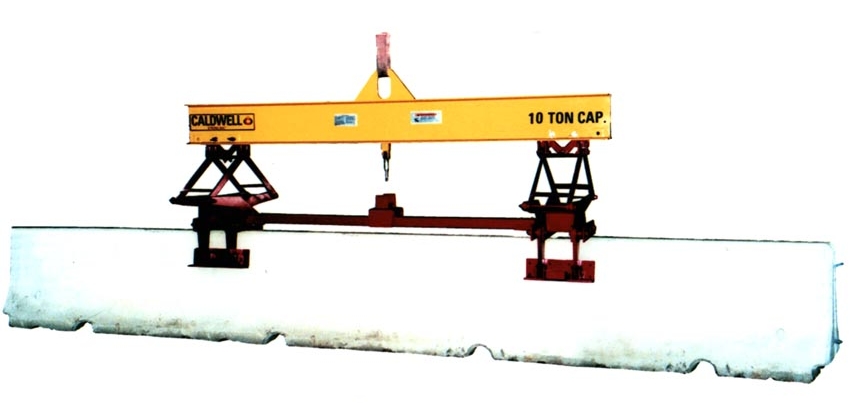

Jul 29, 2002 Extended Barrier Grabs handle barriers with widths from 6 to 12 in. at the top and, with Extending Kit, handle barriers up to 40 ft in length. Low-headroom lifting beam and 2 barrier grabs bolt together to handle barriers up to 29,000 lbs. Lifters conform to ASME B30.20 standards.

Computer Conversions Corp.    East Northport, NY 11731

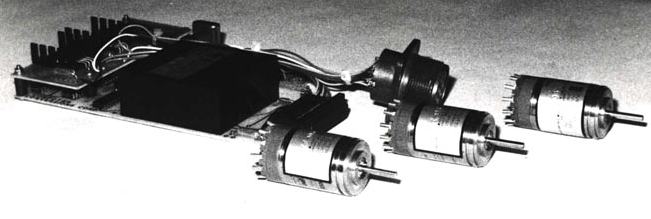

Jul 29, 2002 Multiplexed, scaleable, absolute encoders convert up to 16 shaft inputs to BCD or binary information, corresponding directly to shaft angle with accuracy of ±1 pt. in 3600. Suited to severe electrical (EMI) and physical environments, encoders accomplish channel selection via binary address. Any output scale factor desired can be provided. Data outputs are TTL compatible, and data transfer and data hold lines interface to microprocessors and programmable controllers.

Precision Industrial Automation, Inc.    Cincinnati, OH 45209

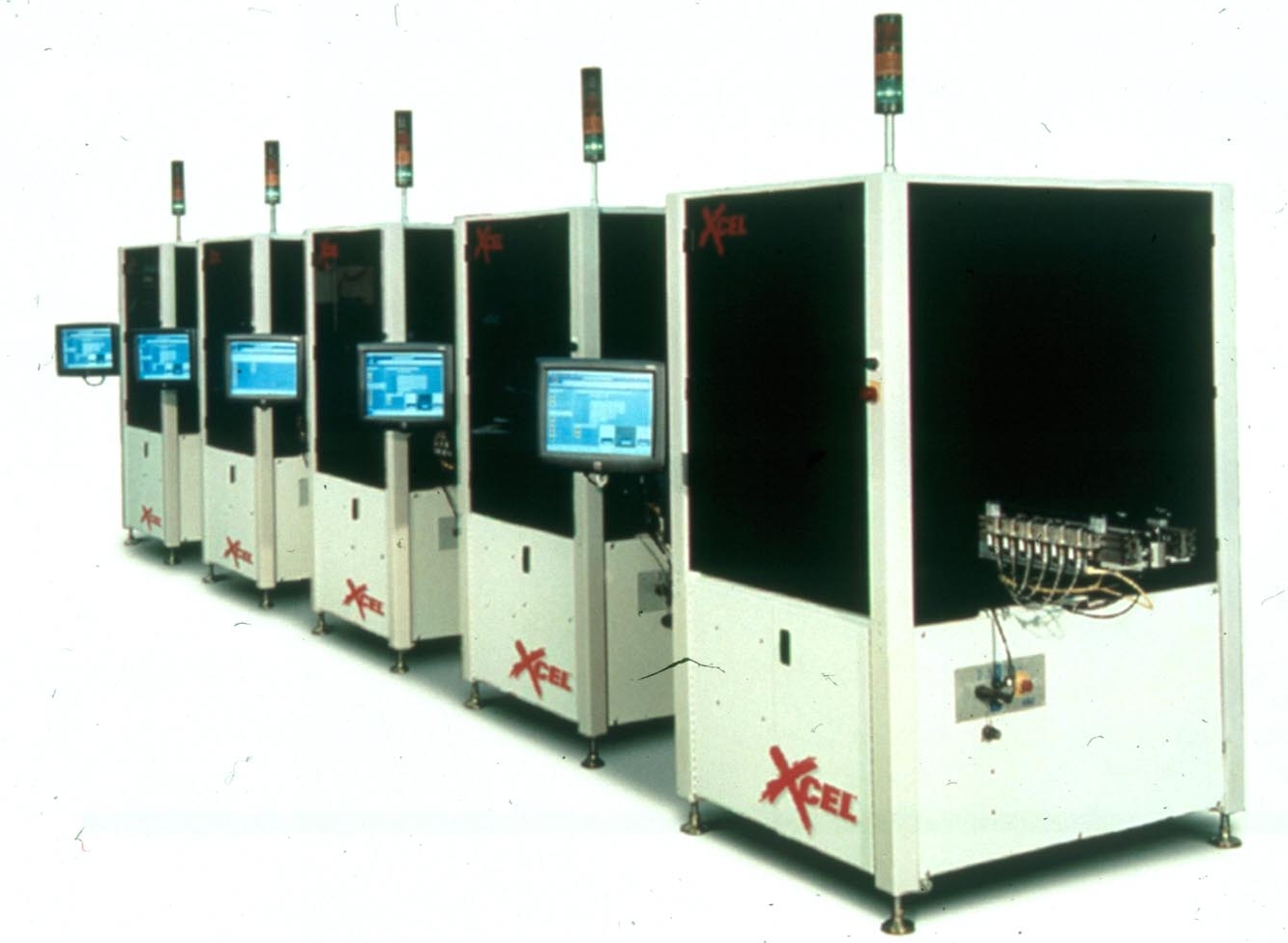

Jul 29, 2002 Xcelâ„¢ offers construction and electrical controls and identical Human-Machine Interface (HMI). Reconfigurable and reusable, it communicates with plant Factory Information Systems (FIS). Xcel reads bar codes on parts and determines processes and tooling within 100 msecs. It includes Adept Cobra Series Robot, PC touchscreen interface, and SMEMA interface. It offers semi-automatic or automatic operation with manual or auto loading and unloading.

Diagraph Corp.    St. Charles, MO 63304

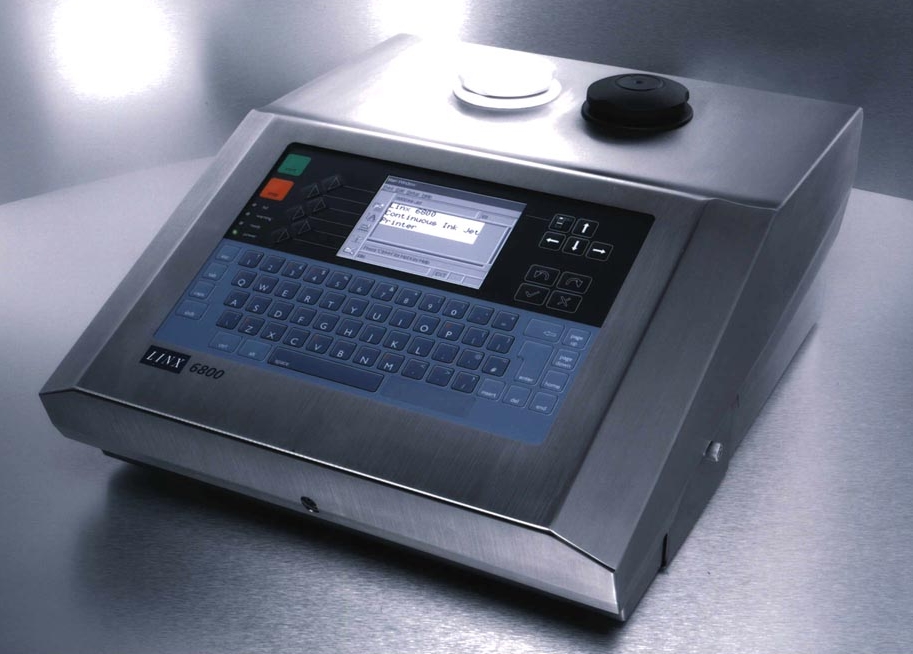

Jul 29, 2002 LINX 6800 small-character, continuous ink-jet system offers user interface, which provides icon-based operating environment. Two-level interface utilizes LINX positive feel QWERTY keypad and 1/4 size black-on-white VGA screen. Power-down switch automatically turns off power when unit completes cleaning and shutdown routines. Printhead design incorporates integral temperature sensors. Available printheads include ULTIMA and MIDI.

C & D Technologies    Mansfield, MA 02048-1151

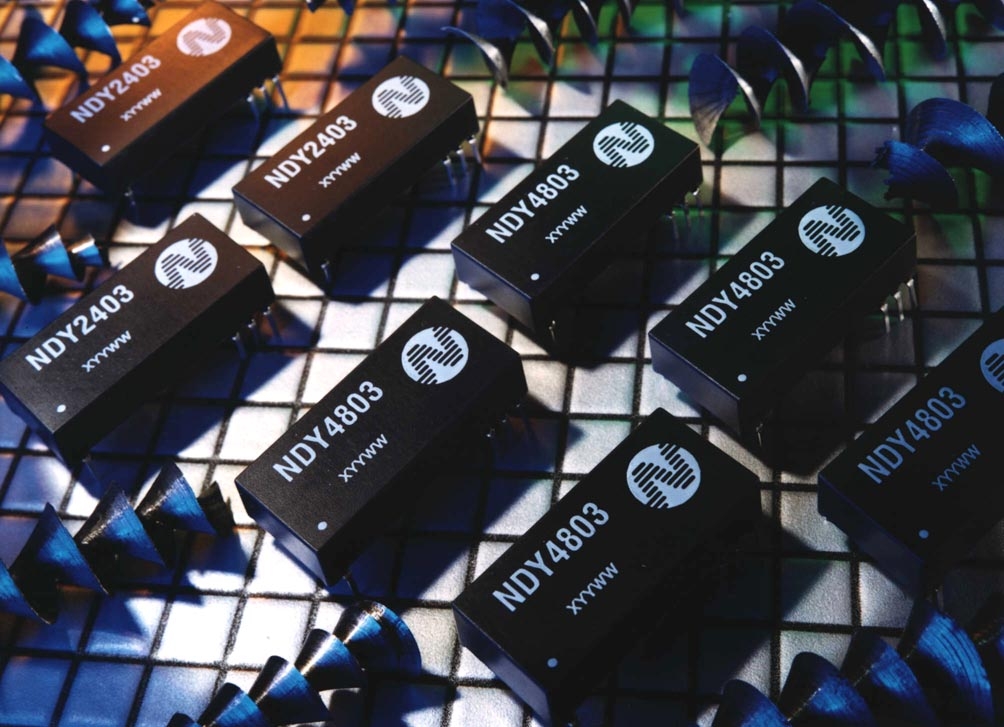

Jul 29, 2002 NDY2403 and NDY4803 converters provide single, regulated 3.3 V output and have input-to-output isolation rating of 1 kVdc. NDY2403 can handle input voltage from 18 to 36 V, while NDY4803 is suitable for input voltages from 36 to 72 V. Each will deliver full 3 W output at temperatures from -40 to +85°C without heatsink. Typical load and line regulation for each device is rated at 0.6% and 0.05% respectively, while max ripple and noise ratings are 180 mV (peak-to-peak).

McGill Electrical Product Group    Rosemont, IL 60018
Jul 29, 2002 Model 5330 emanates soft, glare-free fluorescent lighting that is energy-efficient. Measuring only 22 in. long, it is effective in tight, restricted spaces. Light has impact-resistant plastic outer lamp that remains cool, and has no exposed metal parts. Hinged hooks permit fast set-ups and take-downs. Model 5330 is offered with 4, 8, and 15 W lamps. It is UL Listed and meets OSHA requirements.

Adhesives Research, Inc.    Glen Rock, PA 17327
Jul 29, 2002 ARclean® 8971 ultra-low outgassing, acrylic acid-free bonding tape has permanent adhesive on one side and strippable adhesive on reverse side. ARclean® 8988 acrylic acid-free, ultra-low outgassing bonding tape features 2 mil clear polyester film carrier. It is protected with dual non-silicone polyester film release liner system. ARclean® 8921 non-silicone polyester film release liner is designed for use with pressure-sensitive adhesive coatings.

Executive Manufacturing Technologies Inc.    London, ON N6A 5P2  Canada
Jul 29, 2002 WatchDog v1.0 integrates Manufacturing Intelligence(TM) software VisualPlant(TM) with customer's Enterprise Resource Planning system (ERP) such as SAP to automatically initiate event based, predictive maintenance work orders. It provides prognostic analysis of potential failures, and increases productivity by removing manual entries of critical maintenance of production data into ERP systems.

Innovative Support Services    Troy, MI 48083 2837
Jul 29, 2002 Vega CNCs interface with both point to point, 2 axes DeVliegs and full contouring 3/4 axes DeVliegs. Both are PC-based and designed to integrate both manual features of machine while adding automatic features. Full 3D CNC programming is available for 3/4 axes machines. Units feature pushbutton jog interfaces, manual tapping, programmable cycles, mirroring, scaling, and tool length and cutter diameter compensation.

Autosplice    San Diego, CA 92121
Jul 29, 2002 Pins with Solderball Pinâ„¢ technology automatically adjust for coplanarity variances as high as .015 to .020 in. Designed with copper peg on one end and solderball on other, they can be inserted into daughter-card PCBs, which is then placed onto motherboard PCB and reflow soldered. Their tapered peg design assures insertion and consistent seating on daughter-card PCB. Integrated insulator collar prevents unwanted wicking of solder along length of pin.

Molecular Bio-Products Inc.    San Diego, CA 92121
Jul 29, 2002 FLIPR Liberty 384 well tips fit Molecular Devices FLIPR workstations with 384 Liberty or Type B head. Tips are available as clear 30 microliter tips, sterile or non-sterile, with ART (Aerosol Resistant Tip) barrier technology.

Bioproducts, Inc.    Warrenton, OR 97146
Jul 29, 2002 RNase AWAY completely removes RNase, DNase, and DNA contamination from laboratory work surfaces and equipment such as pipettors, bench tops, glass, and plastic ware. Instantly ready to use, it leaves no residue when used as directed. It is available in 250 ml, 1 liter, and 4 liter sizes as well as in refillable 475 ml spray bottles.

Druck, Inc.    New Fairfield, CT 06812
Jul 26, 2002 Sensor Calibration Module (SCM) enables users to source low voltage for transducer or transmitter excitation and read back mV, V, or mA output from sensor. Supplied pressure setpoint and electrical output are displayed on screen simultaneously. SCM can be retrofitted into company's DPI 515 calibration system and is accessed via 15-way, D-type connector. Multi-way connecting cable, terminated with 4 mm female connectors, is supplied along with probes.

Rotex, Inc.    Cincinnati, OH 45223 1845

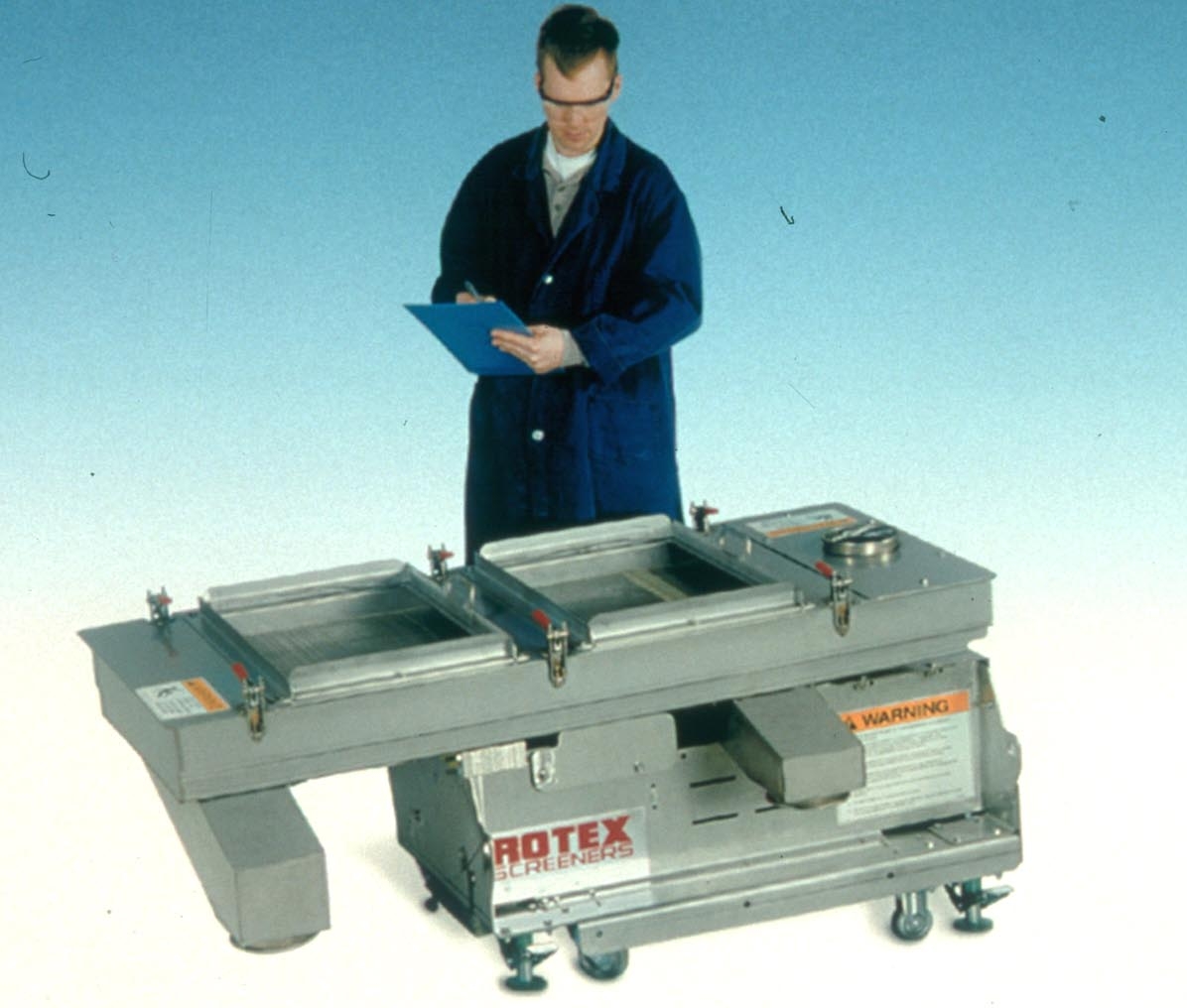

Jul 26, 2002 Plastic Pellet Screeners are offered in models with capacities up to 3,000 PPH and 5,000 PPH. They utilize horizontal, gyratory/reciprocating motion, and Dual Velocity drive with positive displacement stroke to achieve removal of oversize and longs. Long pellets remain flat on screen deck and cannot upend or pass through screen. Final product can be up to 99% free of longs 3/8 in. to 2 in. Screeners feature installed height of 27 in.

Arista Corporation    Tustin, CA 92780-2137

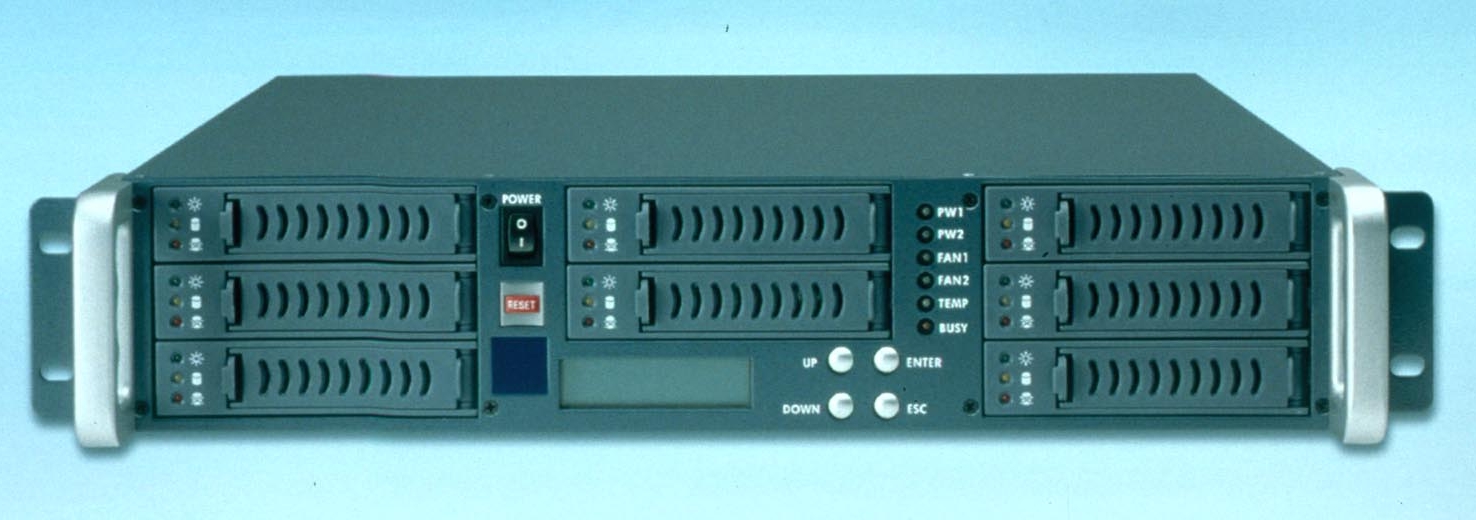

Jul 26, 2002 i-RAID 3000 Series Integrated Drive Electronics, Redundant Array of Independent Disks system is available in desktop, 2U, or 4U configurations. It can have Hard Disk Drive (HDD) failure without impacting existing data. Failed drive can be rebuilt with no interruption to host. i-Raid 3000 is processed by Intel 960 RN 64-bit Reduced Instruction Set Computing (RISC) microprocessor and holds up to 8 Enhanced IDE (EIDE) ATA-66 or UDMA-66 IDE HDDs.

CRC Industries, Inc.    Warminster, PA 18974

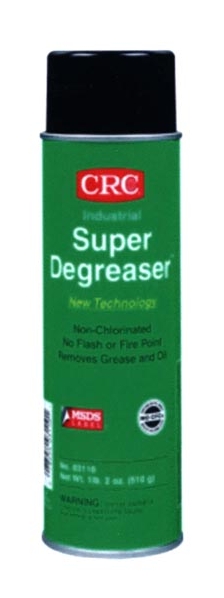

Jul 26, 2002 Super Degreaserâ„¢ is non-chlorinated, non-conductive, non-corrosive, and non-staining. It quickly dissolves grease, oil, corrosion, and sludge. Product evaporates quickly and leaves no residue. It has low toxicity and no flash or fire point. Super Degreaserâ„¢ is suitable for use on air tools, electrical components, mechanical brakes, clutches, and compressors. Sizes include 20 oz aerosol, 1 gal bottle, 5 gal pail, 55 gal drum, and 16 oz non-aerosol spray can.

Buschman, An FKI Logistex Co.    Cincinnati, OH 45246 4845

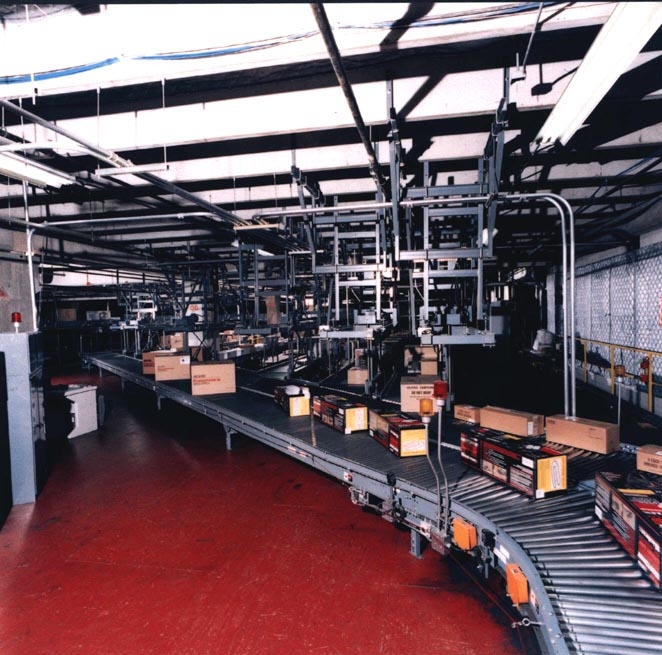

Jul 26, 2002 Photo-Eye Accuglide Plus Conveyor, operating at standard speeds of 240 fpm, provides quiet operation. It has UHMW track for roller chain, with urethane driver pad allowing for zero-pressure accumulation and smooth, continuous product flow. Non-contacting, photo-eye sensors eliminate noise created by product impact against mechanical sensors and allow rapid, damage-free handling. Sensors have no minimum weight limitations and minimum product height of only 1 in.
