ADLINK Technology Inc.    Irvine, CA 92618

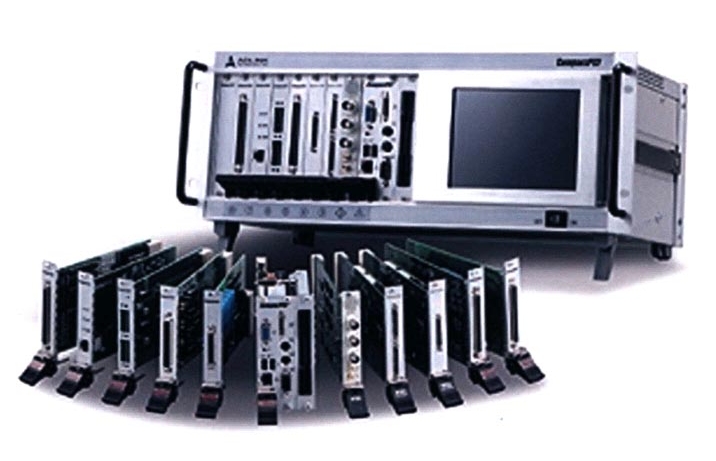

Aug 05, 2002 Series cPXIS-2100 combines 850 MHz Pentium III processing and Ethernet/USB connectivity into 19 in., rack-mount, portable or benchtop chassis-mounting unit. Chassis offers 6.4 in. TFT LCD, system controller, and seven PXI/CompactPCI I/O slots. Modules available for series offer simultaneous sampling, bundled software, and drivers for Matlab, LabView, DasyLab, and Linux systems.

Lambda Physik, Inc.    Fort Lauderdale, FL 33309

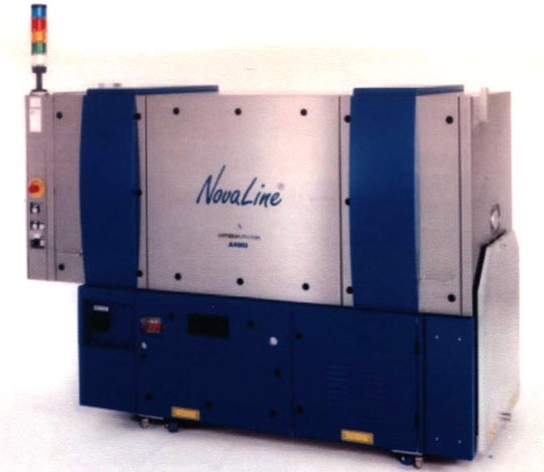

Aug 05, 2002 NovaLine® A4003 ultra-narrow-bandwidth laser is equipped with SOULâ„¢ (Single Oscillator Ultra Line-narrowed). Line-narrowing optics combined with 4 kHz repetition rate yields output power of 20 W at spectral bandwidth of less than 0.30 pm, FWHM. Spectral purity is less than 0.75 pm for 95% energy content. Unit incorporates e-Diagnostics system to support predictive/preventative maintenance, proactive monitoring, and remote connectivity.

Kaeser Compressors, Inc.    Fredericksburg, VA 22404

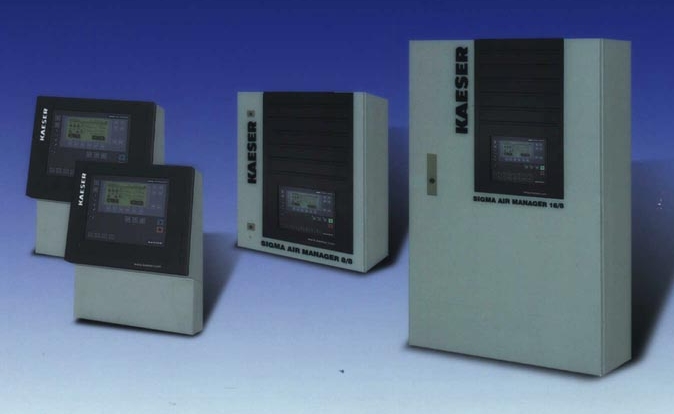

Aug 05, 2002 Sigma Air Manager provides demand-related pressure band control with operational data via HTML reports. Master air system controller provides tools to manage any system in real time, including in-depth air demand analysis. It offers integrated Internet capabilities, making air system data available from any location. It manages systems with 4 to 16 compressors by monitoring, sequencing, and analyzing compressed air system performance.

J. W. Winco, Inc.    New Berlin, WI 53151

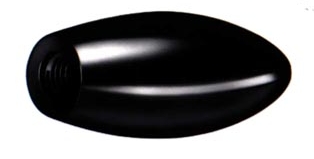

Aug 05, 2002 Elliptical shaped knobs are made of black phenolic plastic with glossy finish and molded-in thread. Knobs offer heat tolerance of 300°F, and may be used in place of ball knobs on gear lever handles.

Kernco Instruments Co., Inc.    El Paso, TX 79927 7338

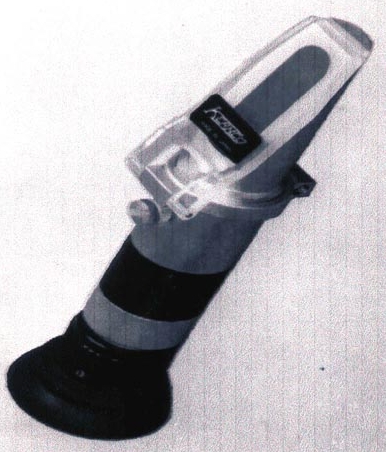

Aug 05, 2002 Model 11J16 hand held refractometer indicates specific gravity, freezing point temperature, and battery charging levels. Test requires one or two drops of sample on prism surface to read propylene glycol (-60 to +32°F), ethylene glycol (-84 to +32°F), or battery fluid (1.100 to 1.400 SG). Battery fluid scale also shows recharge, fair, and good conditions. It includes adjustable knob for calibration and rubber eyepiece guard.

Mitutoyo America Corporation    Aurora, IL 60504 9176

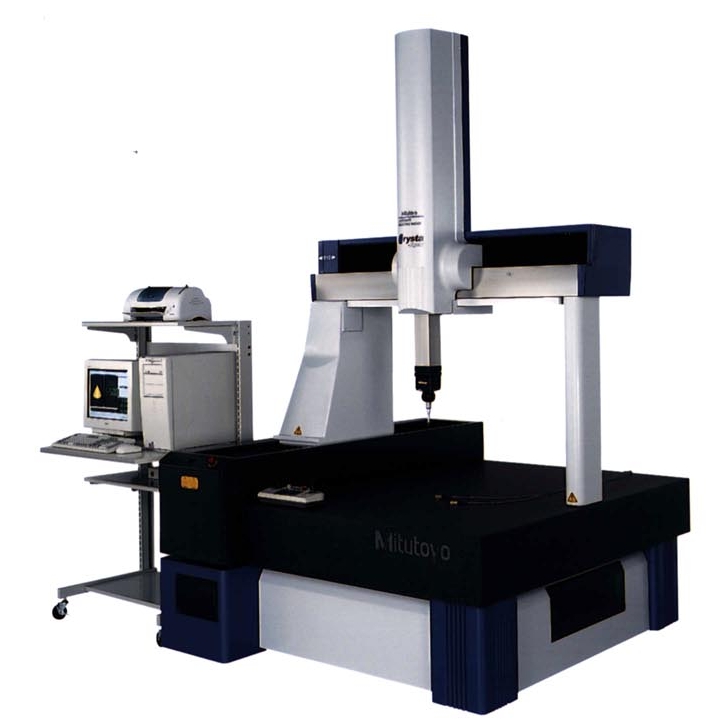

Aug 05, 2002 Crysta Apex Series 700/900 offers precision glass scales with resolution of .000004 in. CNC machinery is available in 5 models with measuring ranges from 27.76 x 27.76 x 23.82 in. (X,Y,Z) to 35.63 x 78.94 x 23.82 in. (X,Y,Z). Accuracy is rated at 2.5 + 3L/1000 micrometer (700 series) and 2.9 + 3L/1000 micrometer (900 series). Each series presents silent motion and real-time temperature compensation, with accuracy maintained at temperatures from 60.8 to 78.8°F

LMI - Laser Measurement International, Inc.    Southfield, MI 48075

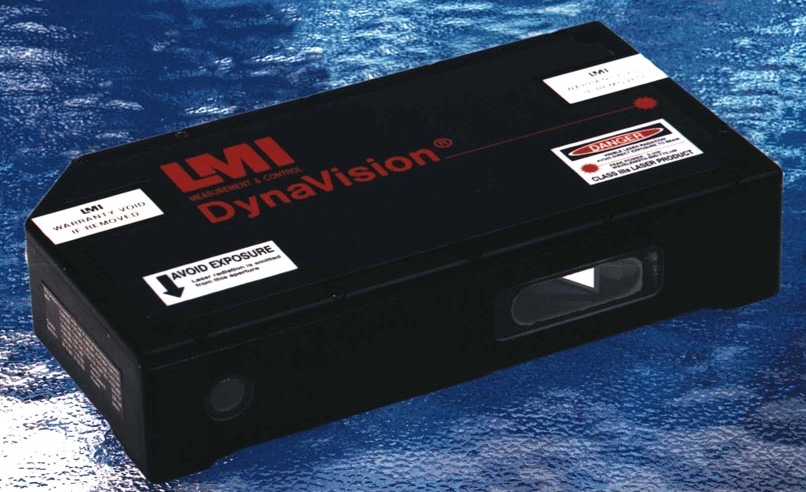

Aug 05, 2002 Using laser triangulation principles, DLS-2000 provides real-time scaleable data with 16-bit micro-controller, compensating for changes in light and target characteristics. Charged Coupled Device detector allows processing and data averaging to develop resolution down to 0.001 in. RS-485 interface permits use of PC or PLC to manipulate configuration parameters. Self-contained Class IIIa sensor features spot size of 0.12 x 0.04 in. and operating temperature of 32 to 122°F.

ExperTune, Inc.    Hartland, WI 53029

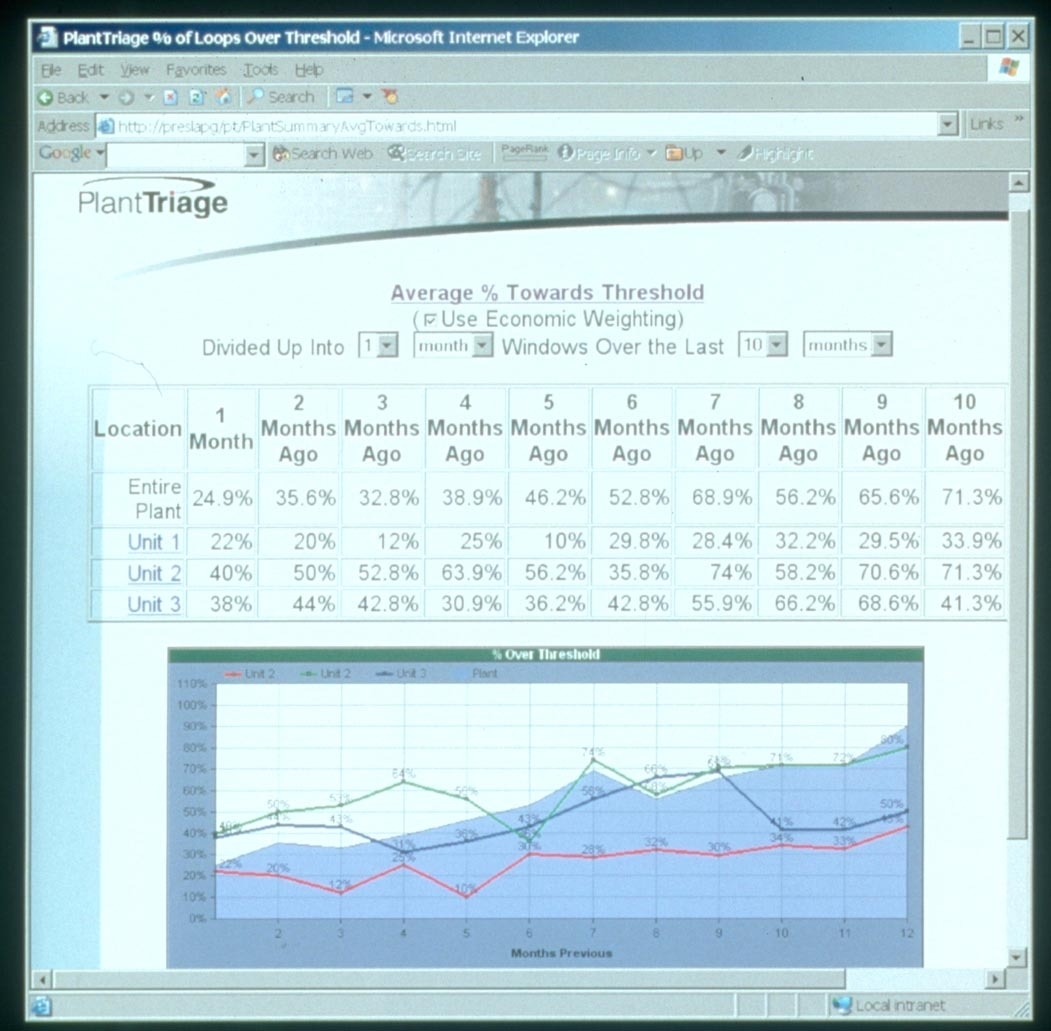

Aug 05, 2002 PlantTriage(TM) continually monitors plant and assesses its performance. It lets user prioritize, trend, or view performance of plant, unit operation, or loop via web browser. Browser based views are customizable to meet needs of production superintendent, process engineers, process control specialists, or technicians. Views include overview reports, unit operation loop performance, and economic performance evaluation report.

Ulvac Technologies, Inc.    Methuen, MA 01844

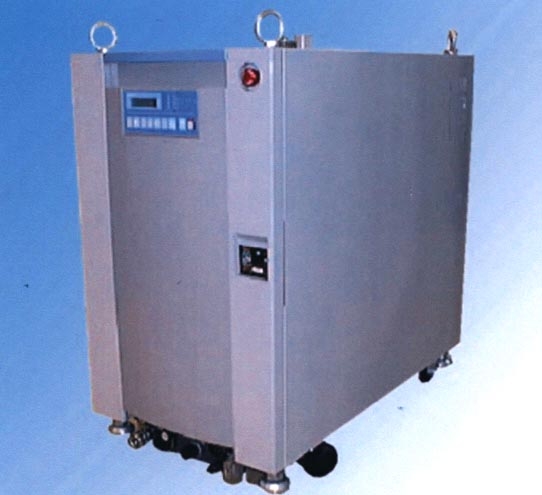

Aug 05, 2002 Inverter equipped DYM series high speed dry vacuum pump provides pumping speeds from 330 to 1,200 m³/hr. It combines company’s DR-C series dry pump and PRC-A series mechanical booster pump. Pumps are close coupled inside enclosed frame for CVD and etch applications, and unit is coated with TUFRAMâ„¢ for resistance to corrosive chemicals and wear. It has control system, RS232C interface, and handheld controller with bilingual display.

Weidmuller, Inc.    Richmond, VA 23236

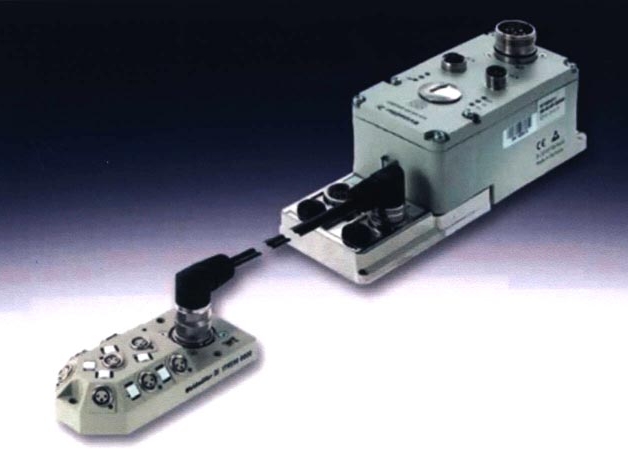

Aug 05, 2002 SAI Combi connects up to 16 I/O points to Profibus DP and CAN Open bus systems. Sensor box is rated IP 67 or NEMA 6 for harsh environments. System includes two 8-channel SAI-M8 sensor boxes with M16 circular, homerun connectors that plug into one active bus-enabled base. Sensor boxes fit industry-standard drill profile. Homerun cables are made from flexible C-Track compatible cables. Cables, cordsets, and field attachable plugs and sockets are available.

Joyce/Dayton Corp.    Dayton, OH 45401-1630
Aug 05, 2002 Metric Machine Screw Jacks consist of 10, 25, 50, and 100 Kilonewton jacks, which are roughly equivalent to 1, 2 1/2, 5, and 10 metric tons. Upright or inverted, jacks operate at full capacity whether load is in tension or compression. Units feature heat treated alloy steel worm shafts, aluminum/bronze worm gears, and tapered or ball bearings. They are offered in translating screw and keyed designs. All can be fitted with protective boot.

Broadax Systems, Inc. (BSI)    City of Industry, CA 91748

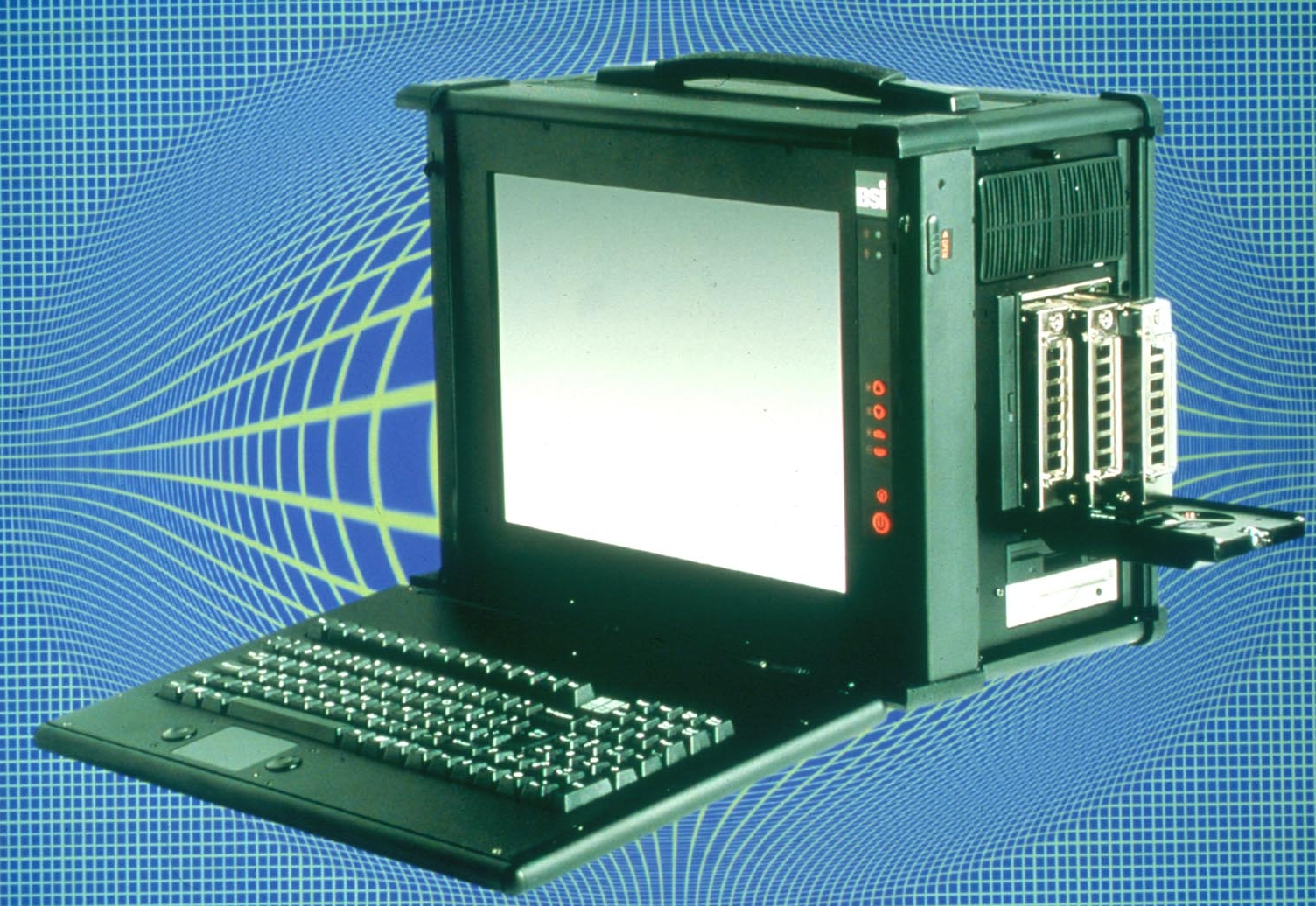

Aug 05, 2002 All-aluminum i-Link Workstation features dual Intel P3 or AMD K7 processors, GeForce 4 Ti 4200 or Ti 4600 graphic cards, up to 4 GB DDRAM, four 32-bit and two 64-bit PCI slots, full RAID compatible drives, and USB 1.1/2.0 and IEEE1394 FireWire interfaces prepackaged with editing software. Unit's 15.1 in. 1024 x 768 XGA or 15.4 in. 1280 x 1024 SXGA TFT active matrix LCD is visible in bright sunlight or rain. Fold-down detachable keyboard is NEMA-rated.

Thermadyne Industries, Inc.    St. Louis, MO 63017
Aug 05, 2002 Thermal Arc® Power-Master 500 operates with stick/lift TIG/MIG multiprocess capability. Controls include arc force for stick welding and variable inductance for fine-tuning arc to match wire type used in MIG and flux cored applications. Digital meter allows both amperage and voltage to be preset.

Graco Inc.    Minneapolis, MN 55440

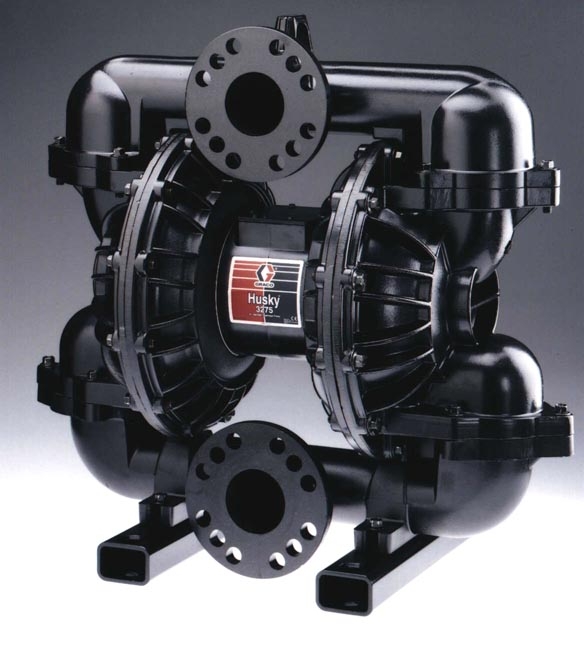

Aug 05, 2002 Huskyâ„¢ self-priming, air-operated pumps are designed for abrasive materials such as ceramics and slurries. They are offered in 1, 1 1/2, 2, and 3 in. models. Air valve with closed-center design eliminates sticking commonly experienced with spool valves. One inch through 2 inch pumps use common center diaphragm. Two inch model matches inlet to outlet dimensions of Wilden® and Aro® aluminum pumps for installation in existing applications.

ASG, Div. of Jergens, Inc.    Cleveland, OH 44110
Aug 05, 2002 CSL Series features slimline design because motors do not extend beyond width of conveyor frame. Standard belt lengths between pulleys range from 250 to 2000 mm and belt widths are 150 or 200 mm. Custom lengths and speeds are available, as are units with adjustable inclines or 90° directional change options. All include motors and drives (AC or DC, fixed or variable speed).

Eskay Corp.    Salt Lake City, UT 84116
Aug 05, 2002 E-Series conveyor is made with steel siding frames, uses one drive motor every 50 ft, and includes flat belt brake sole plate technology. It is designed for seamless integration with mini load and unit load Automated Storage/Retrieval Systems (AS/RS), carousels, sortation systems, and other peripherals.

Tork    Mount Vernon, NY 10550 2401

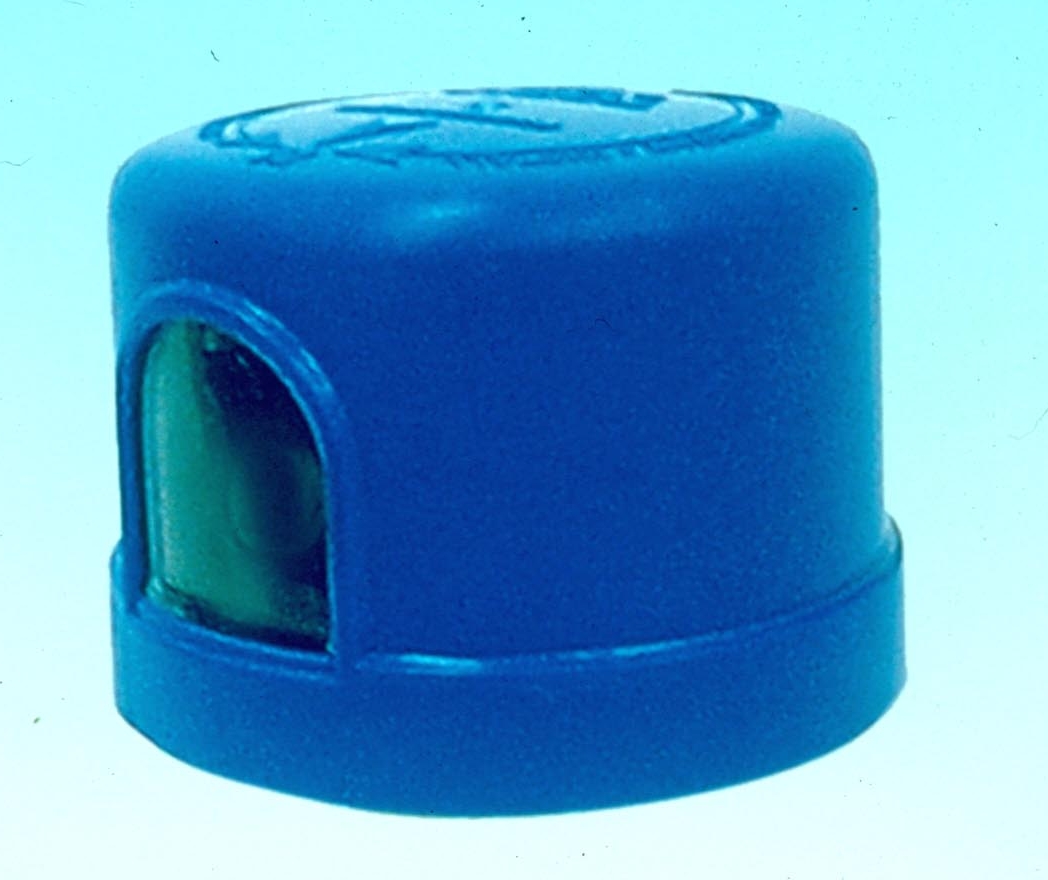

Aug 05, 2002 Model 5737TZ combines photocontrol and microprocessor timer and fits turn-lock photocontrol socket. It turns OFF at midnight and can turn back ON in early morning. Unit automatically tracks dusk and dawn times as they vary with seasons to determine midnight each day. It automatically corrects for daylight savings time and resets after power outages. Model 5717T turns OFF at various factory preset times during night. Model 5737TM turns OFF at midnight.

American Productivity Group LLC    Fairfield, NJ 07004
Aug 05, 2002 Stackbot articulating robotic arm eliminates need for PC or PLC and can load or unload 2 different pallet patterns simultaneously. It can palletize or depalletize up to 10 cases (pails, bags, bales or trays) per minute. Swap of track plate creates new pattern.

American Productivity Group LLC    Fairfield, NJ 07004
Aug 05, 2002 PL2 4-axis horizontal robotic palletizer/depalletizer can place up to 20 cases, bags, bundles, pails or trays per minute onto 2 different pallets. It can also pick up pallet and pallet and/or tier sheets, eliminating pallet and/or sheet magazines and pallet transfer magazines. Finger pick-up head enables picking unwrapped display cases or trays. Standard features include off-line programming and 3.5 in. floppy port.

Acton Research Corp.    Acton, MA 01720

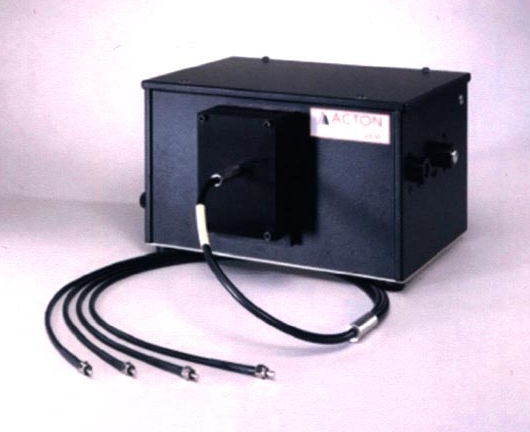

Aug 05, 2002 CCD InSpectrumâ„¢ 150, optimized for Raman imaging and spectroscopic applications, offers either single-beam or simultaneous multi-channel, optical-fiber input and provides electro-optic channel-to-channel uniformity. It offers choice of 4 TE cooled CCDs, 16-bit, 100 kHz digitization, automation and diagnostic software, and communicates through USB interface. More than 21 standard gratings install easily and may be fixed or tunable.
