Dyneon LLC    Oakdale, MN 55128
Aug 09, 2002 PFA-FLEX series ultra-high purity (UHP) PFA resin suits semiconductor processing applications that require environmental stress crack resistance. It provides chemical and temperature resistance as well as low levels of extractable ions. Flexible PFA-FLEX material is available in two grades: PFA-FLEX X 8502 UHP, with nominal 2 melt-flow index for tubing applications, and PFA-FLEX X 8515 UHP, with nominal 15 melt-flow index for injection molding applications.

Bimba Manufacturing Co.    Monee, IL 60449 0068
Aug 09, 2002 Original Line Rod Lock cylinder incorporates clamp/cam device to hold piston rod in position upon loss of air pressure. Holding forces range from 40 lbs in 3/4 in. bore cylinder to 700 lbs in 3 in. bore. Device is available in 6 bore sizes from 3/4 through 3 in. Suitable for drop prevention in various applications, Original Line Rod Lock is also suitable as failsafe device in counterbalance applications.

AD OPT Technologies Inc.    Montreal, QC H3V 1H8
Aug 09, 2002 SL5© enterprise human resources planning system works with existing attendance hardware and ERP systems. It optimizes shift deployment and human resource usage, ensures that adequate coverage is maintained, and allows managers to automate and improve operations management. Software provides extensive and comprehensive realtime information on direct labor costs. It uses open architecture based on Java technology.

Klein Tools, Inc.    Lincolnshire, IL 60069

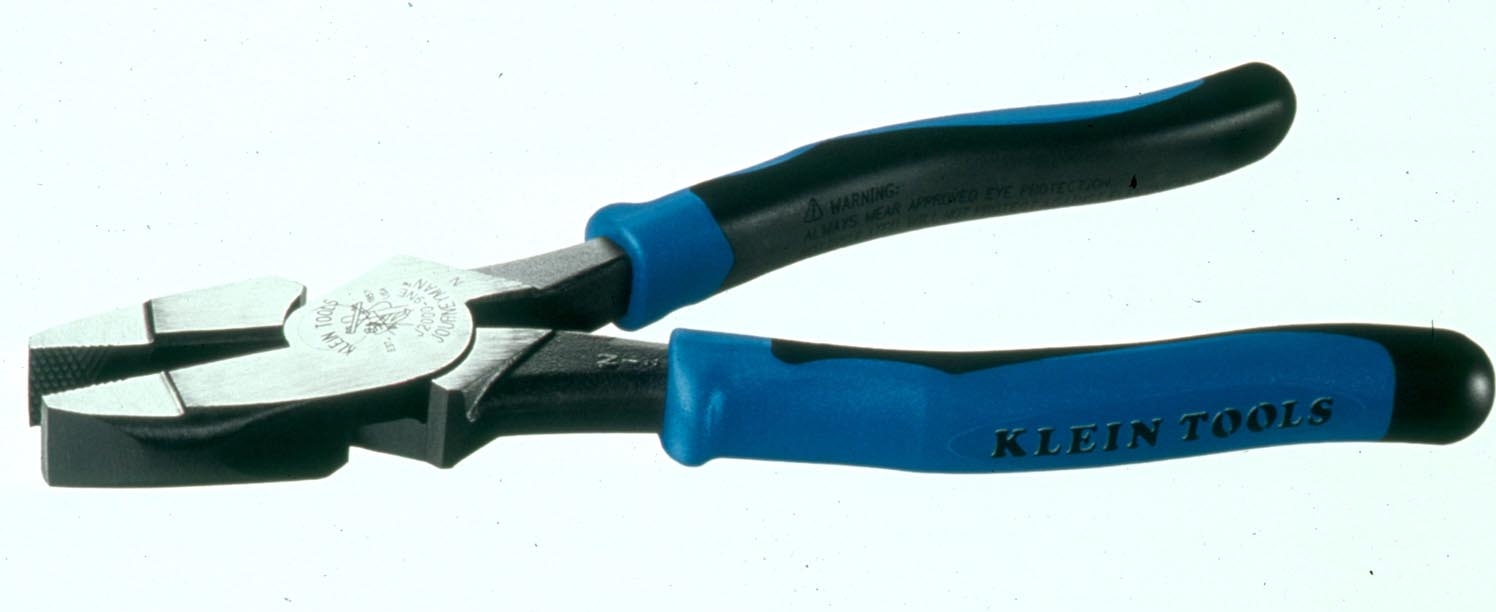

Aug 09, 2002 The 2000 Series features induction-hardened, heat-treated cutting knives, and hot-riveted joint for smooth action. NE-type side-cutting pliers are 9¼ in. long with knurled jaws and tempered handles that absorb snap when cutting wire. Diagnonal-cutting pliers are 8 in. long and have short jaws with beveled cutting edges that allow close cutting of wire. Models are offered with and without 13 deg angled head for work in confined areas.

Zebra Skimmers    Solon, OH 44139

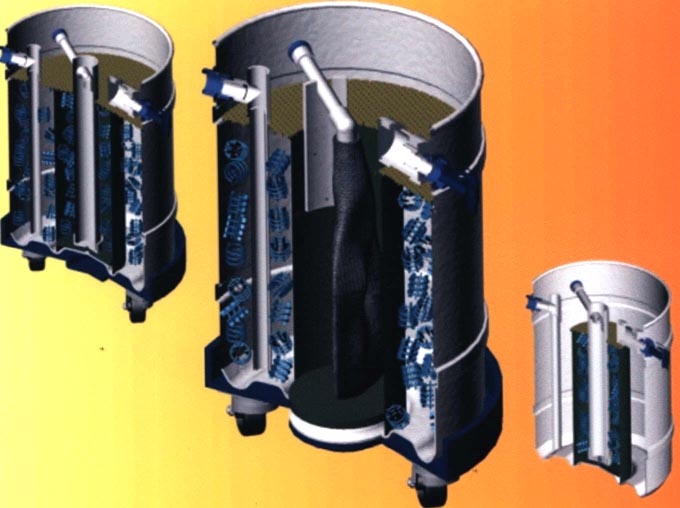

Aug 08, 2002 Muscleâ„¢ coalescing system can be customized with several options to meet machine shop needs. Regular, Plus, and Deluxe option packages are designed for portability, filtering, coalescing, improved separation, and fluctuating fluid levels. Options include: Sumpster, to remove floating oils; Coalescing Cartridge, to increase surface area; Fine Stopper, to remove floating chips and swarf; Oxygenator, to kill anaerobic bacteria; and Drum Dolly to provide portability.

ERICO    Solon, OH 44139-2631
Aug 08, 2002 Portable Rail Grinder grinds rail to clean it in preparation for CADWELD® exothermically welded connections, which bond electrical conductors to rail. Adjustable tool rest allows operator to support grinder on head of rail during use. Handle has anti-vibration padding. Ginder has maximum wheel speed of 6000 rpm. Other features include grinding wheel spacers and 360° adjustable grinding wheel guard to allow grinding in tight areas.

CyberResearch, Inc.    Branford, CT 06405 2932

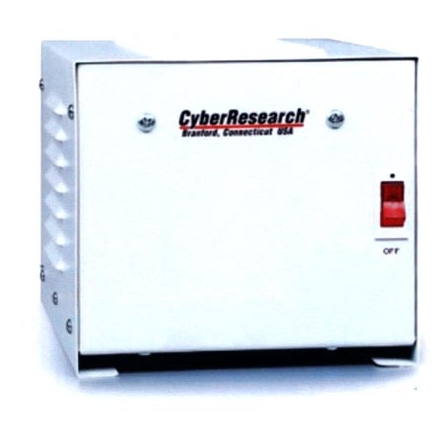

Aug 08, 2002 Lightweight SRT transformers filter out line noise and spikes, transforming noisy commercial ac power into safe, clean electrical current. They use Faraday Shield between primary and secondary windings to provide true line isolation. Three models are available, all rated for 120 Vac at 60 Hz on both input and output. They support loads up to 2.1, 4.1, or 8.3 A, weigh 13, 21, or 25 pounds, and offer 2 or 4 NEMA 5-15R receptacles.

Woodex Bearing Co., Inc.    Georgetown, ME 04548 9519
Aug 08, 2002 Engineered to suit individual applications, seals are available either partially or fully-split to speed installation and rebuilding. Seals can retrofit rotating dry powder and bulk solids processing equipment such as mixers, bucket elevators, agitators, dryers, and extruders with shaft diameters from 1/2 to 36 in. Seal materials include specialty and hardened alloys, exotic bearing grade plastics, and specialty elastomers. FDA materials are available.

NewAge Industries Inc.    Southampton, PA 18966
Aug 08, 2002 Cam-Operated Couplings are made from nylon or polypropylene, resist corrosion, and prevent mating threads from seizing. They are electrically non-conductive; resist most hydrocarbons, solvents, mild acids, and agricultural chemicals; and are made to MIL-C-27487 dimensions. Couplings are available in A, B, C, D, E, F, DP, and DC styles. Sizes for nylon version are 1/4 to 4 in.; polypropylene is 1/2 to 3 in. Metric BSPT threads or PVDF material are available.

AMETEK Process Instruments    Newark, DE 19702

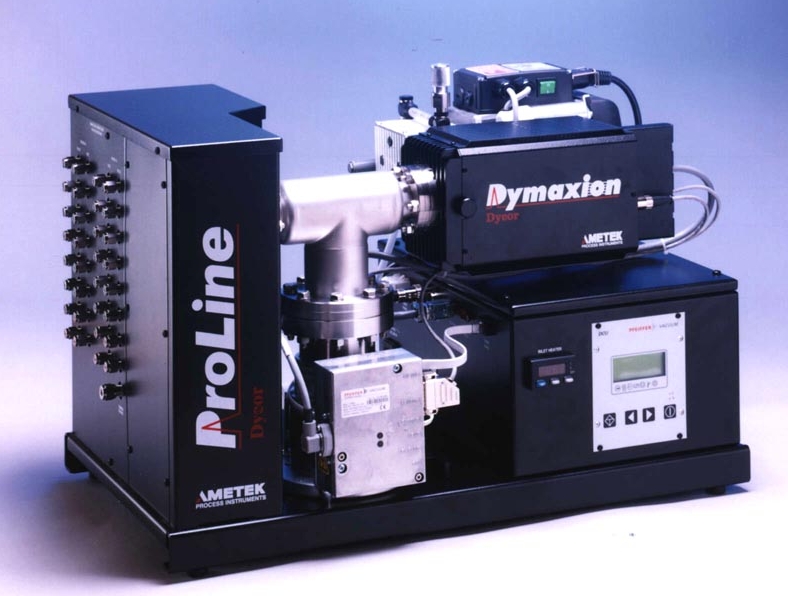

Aug 08, 2002 Compact Dycor® ProLine Series benchtop instrument is available with up to 16 inlet ports for sampling process streams and calibration gases. System includes multi-port automatic valve switching, inlet manifold, turbomolecular pumping package, and choice of closed ion source analyzers. Applications include semiconductor process gas monitoring, fermentation/bioreactor analysis, catalytic reactions, bulk gas analysis, and pilot plant process profiling.

Micrel Semiconductor Inc.    San Jose, CA 95131
Aug 08, 2002 Teenyâ„¢ MIC923 achieves 2200 V/us slew-rate with 410 MHz gain-bandwidth product (GBW), and MIC922 achieves GBW of 230 MHz and slew-rate of 1500 V/us. Intended for signal buffering, MIC922 is unity-gain stable, and MIC923 is optimized for applications with gain of 2 or greater. Both are capable of driving unlimited capacitance. Manufactured in SC-70 packaging, op amps are specified for supply voltages of +/-2.5 V and +/-9 V. PSRR is 87dB, CMRR is 83dB, and AVOL is 86dB.

Micrel Semiconductor Inc.    San Jose, CA 95131
Aug 08, 2002 MIC5249 LDO is capable of providing up to 300 mA and is designed for power-up sequencing in microprocessors. It allows user to program delay on RESET pin that alerts processor when output of LDO has reached and settled on its intended value, allowing processor to come up gradually. MIC5249 is available in tiny MSOP-8 package and comes in fixed voltages: 2.5, 2.6, 2.7, 2.8, 2.85, 2.9, and 3.0 V. Operating temperature is -40 to +125°C.

Hart Scientific, Inc.    American Fork, UT 84003 9775

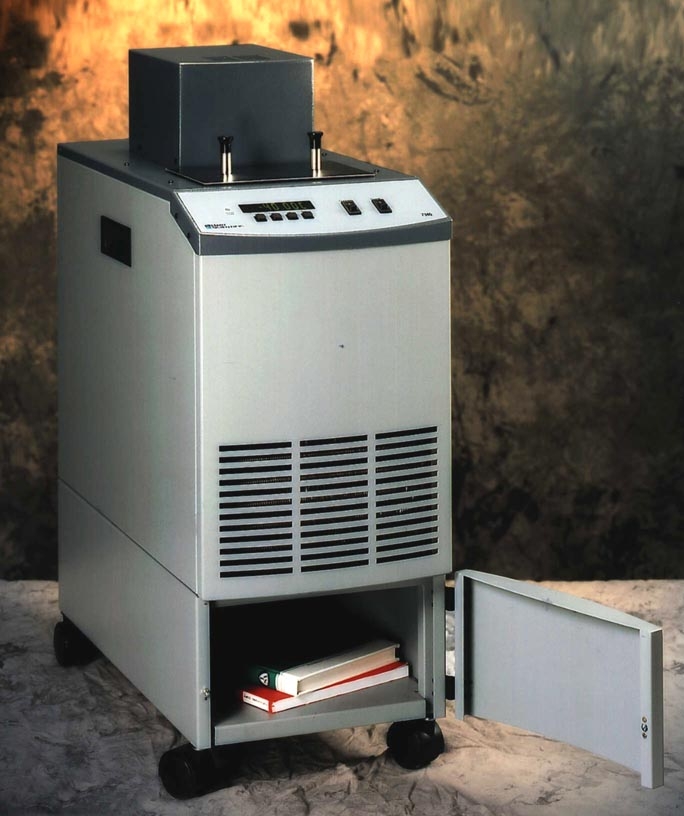

Aug 08, 2002 Model 7340 covers temperatures from -40 to 150°C, and can be used as standard for calibrating reference-grade thermometers. Unit includes RS-232 interface and Hart's Interface-it software for automating control of bath through PC. Quick drain spout is included so fluids covering different temperature ranges can be easily changed if necessary. Optional floor cart is available for mobility.

Aromat Corp.    New Providence, NJ 07974 1507

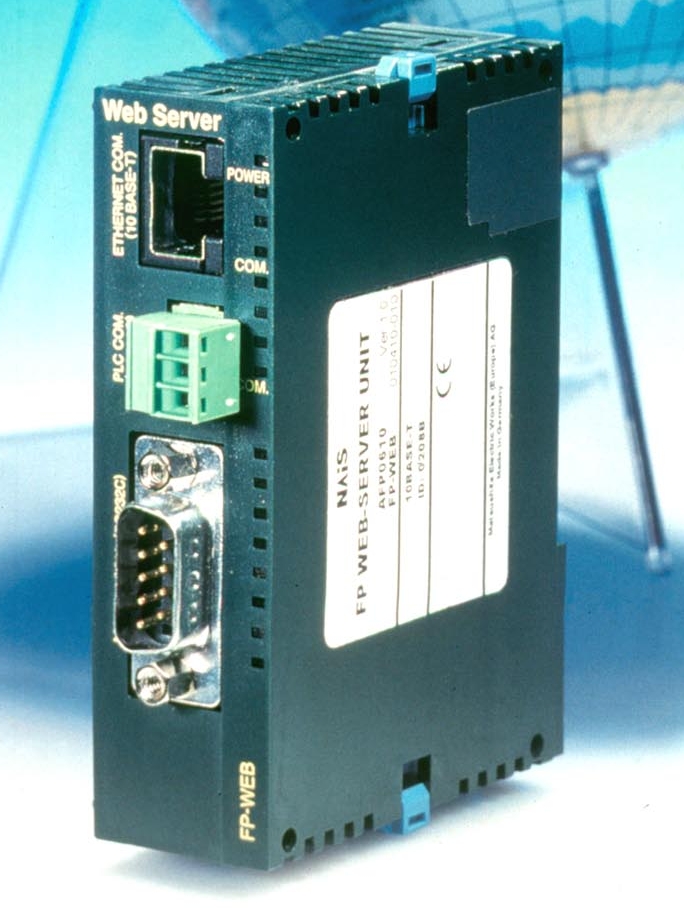

Aug 08, 2002 FP Web Server supports 10Base-T, stores HTML web pages, sends text emails, and supports transparent/PPP mode. All features except for web page development are programmable with FP Web Tool Configurator software. Unit can be used as gateway to existing LAN network or set up for modem dial-up.

Thermadyne Industries, Inc.    St. Louis, MO 63017
Aug 08, 2002 Sea Torch® Combination Torch features 1-piece body and is fully insulated electrically for safety. It weighs 4.5 lbs, is equipped with 10 ft of cable, and is bright orange for high diver visibility. Arcwater II® Combination Torch is suitable for gouging or cutting steel, stainless steel, and other metals. It converts to underwater torch by changing collets. Unit weighs 5.5 lbs and comes with 10 ft of cable. It is oxygen-free to eliminate risk of hydrogen gas pocket explosions.

Eagle Food Service, An Eagle Group Co.    Clayton, DE 19938
Aug 08, 2002 Dolly Truck consists of 4 wire shelves and 4 chrome posts, mounted on aluminum truck dolly with protective wraparound bumper. Open-wire shelf construction promotes high visibility and air circulation to reduce dust and contamination build-up. QuadTruss® shelf design provides retaining ledge for storge stability. Trucks are 69 in. high with shelf widths of 18, 21, or 24 in. and shelf lengths in 36, 48, or 60 in. Poly casters are offered in swivel or swivel/brake styles.

American Lewa, Inc.    Holliston, MA 01746 1455
Aug 08, 2002 Model EKO Solar-Powered Injection System for oil and gas wells is fully self-contained and features sealless metering pump that can inject corrosion inhibitors at up to 72 gal per day against 3,700 psi. Pump has 2 PTFE diaphragms that isolate process fluid, providing double containment with zero-leakage, run-dry tolerance, and overload protection. It requires less than 160 W of DC power, which is provided by solar panel array, battery pack, and controls.

Bio-Chem Valve Inc.    Boonton, NJ 07005
Aug 08, 2002 Dual solenoid, 3-way valve features rectangular design capable of switching on demand to allow independent operation of each inlet port. Four possible on/off configurations between normally-open and normally-closed ports include both on, both off, on/off, and off/on. Valve can be assembled on top of multiple syringes, and mounted side-by-side while functioning in traditional aspirate and dispense modes, as well as wash cycle.

Renishaw, Inc.    Hoffman Estates, IL 60192

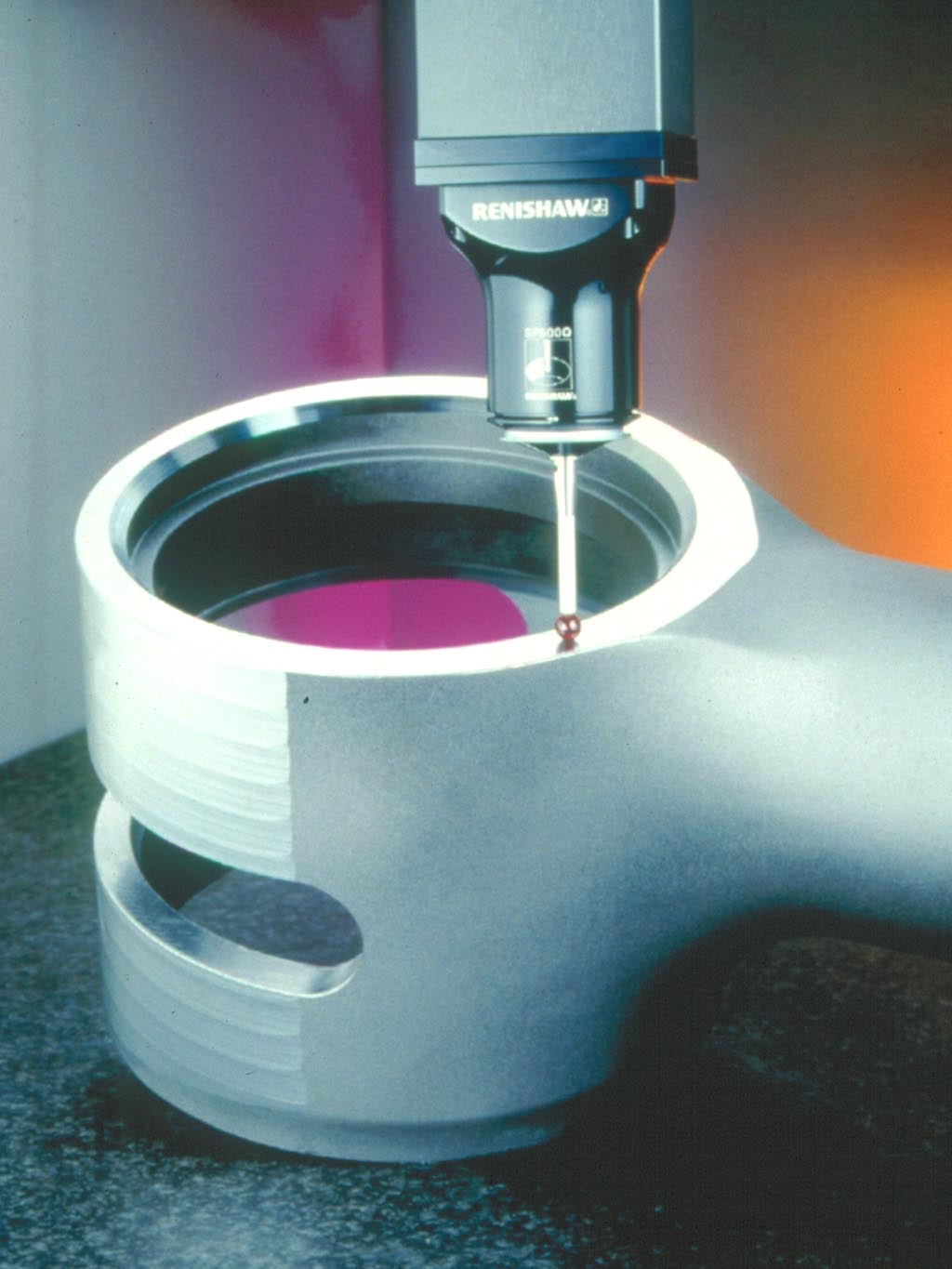

Aug 08, 2002 SP600Q is 98 mm long and mounts directly to quill of CMM. It allows rapid scanning measurements or digitizing, even around sharp corners. Stylus modules attach magnetically to kinematic mount for repeatable stylus changes without re-qualification. With wide range of styli and 0.1 micron resolution, SP600Q is suitable for part inspection and measurement, as well as scanning finely detailed molds, dies, models, or prototypes.

Zetec, Inc.    Issaquah, WA 98027 0140
Aug 08, 2002 MIZ®-21SR Multimode Tester combines eddy current and bond testing in single unit. It detects fatigue cracking, corrosion, and heat damage. MIZ®-21B Eddy Current Tester can store and recall up to 50 test configurations. User can choose 1 or 2 of 7 different eddy current display modes for clear analysis of inspected area. S-21R Bond Tester offers sondicator and resonance modes. Sondicator mode tests for disbonds or delaminations. Resonance mode provides thickness checks.
