Sumner Mfg. Co.    Houston, TX 77088 4036
Aug 08, 2002 Series 2100 can lift heavy loads up to heights of 12, 18 or 24 ft. One-piece design allows for quick fold up of legs and compact storage, without loose pins or need of tools. Load cable feeds from inside masts to winch, and away from operator for safety. Lift includes winch for ease of operation and minimum maintenance. Built-in fork extension option available.

Stellram    La Vergne, TN 37086
Aug 08, 2002 Unidrill® has UC-CCR chipbreaking geometry, suitable for drilling ductile materials such as steels, stainless steels, and cast irons in range of 0.531 to 1.000 in. dia. Corner radius reduces thermal stress, improves tool life, minimizes break-out at back of hole, and improves surface finish. Clamping system ensures precise insert location, while SC7052 CVD coating allows high feed rates at low speeds for less rigid applications and deeper holes.

Accutek Microcircuit Corp.    Newburyport, MA 01950 4054

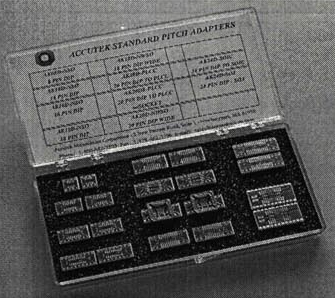

Aug 08, 2002 Adapter Kits convert surface mount IC packages such as SOIC, TSOP, QSOP, MSOP, and SOJ to pin compatible DIP modules in pin counts ranging from 4 to 48 pins. PLCC-PGA adapters work with PLCCs in 28 to 100 pin counts. Adapters utilize FR4 substrates and can be used to replace end-of-life through-hole integrated circuits. Kits are offered with gold or solder plated machined pins or phosphor bronze solder tinned flat contact pins.

Seco-Larm    Irvine, CA 92606-5012

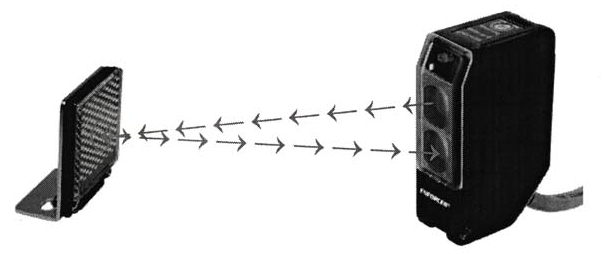

Aug 08, 2002 E-931-S35RR Photoelectric Beam Sensor includes transmitter, reflector, 2 mounting brackets, and mounting hardware. Relay energizes when object is detected in beam. Sensor features 12-240 Vdc or 24-240 Vac input power, 6 ft pre-wired cable, weather-proof construction, and Form-C alarm relay contact. Applications include: safety sensor for doors or gates; detector for small objects on manufacturing line; or entry detector for store fronts.

Aldon Co., Inc.    Waukegan, IL 60087 3218

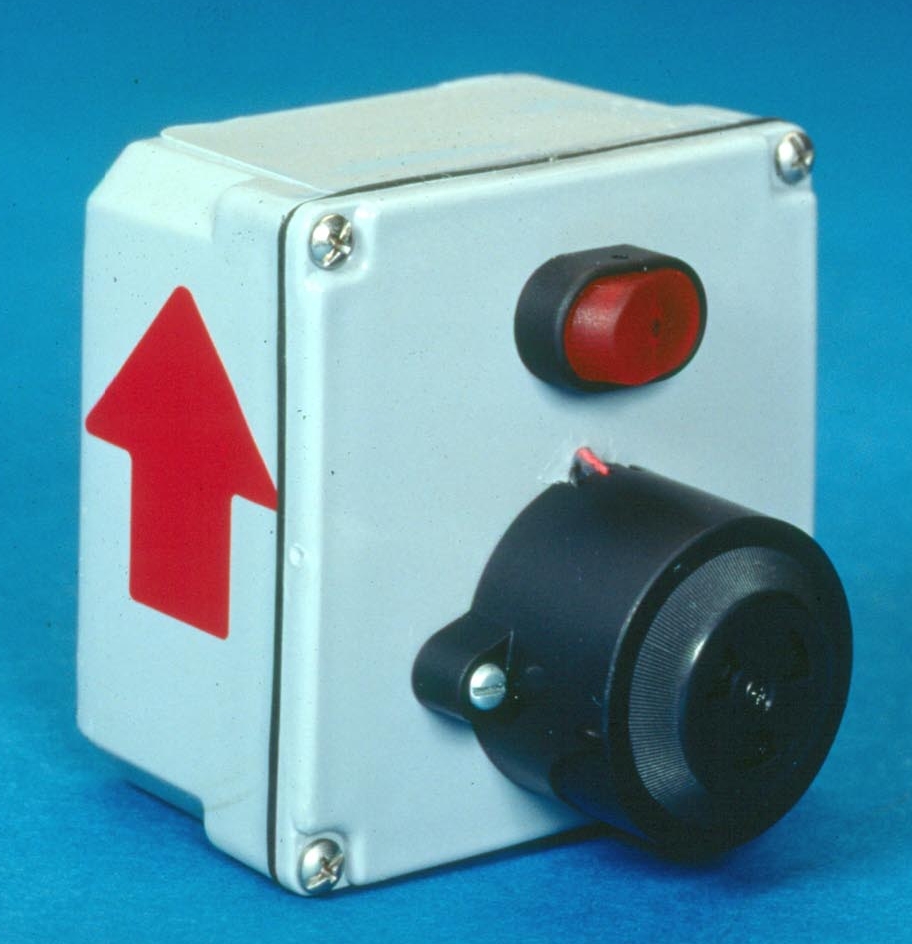

Aug 08, 2002 Mark II Railcar Motion Detector warns workers if car starts to move. Safety siren attaches magnetically to bearing cap of any freight car wheel. If wheel turns more than 10 deg in either direction, battery-powered sensor emits 90 dB 2-tone warble. Siren includes baffle to moderate sound level, and illuminated on-off switch. NEMA 4X housing is rain and dust-proof, and all hardware is corrosion-resistant. A 9 V battery provides 30 min siren life.

CDF Corporation    Plymouth, MA 02360

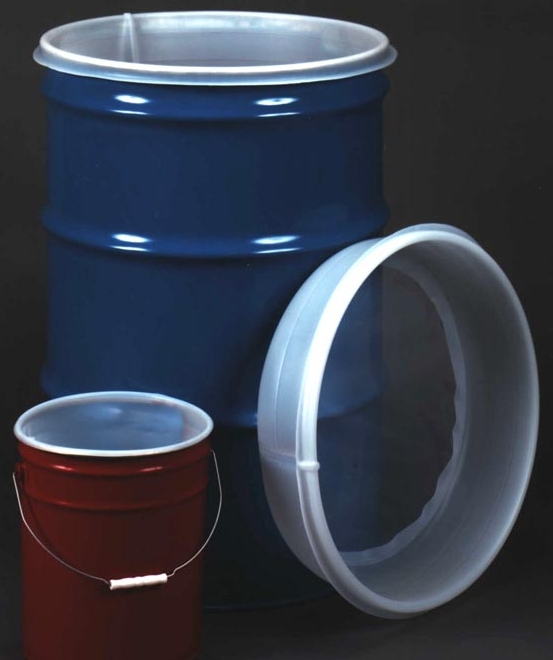

Aug 08, 2002 EZ-Strainerâ„¢, when placed atop open-head drums, separates unwanted particles from product, as product is poured. Designed with ring made from heavy duty, high-density polyethylene, its center screen is available in fine, nylon, or multi-element mesh (medium or coarse). It is ideal for removing debris from paints, coatings, silicones, or inks. Strainer also allows recycling of cleaning solutions when cleaning parts over drum.

Extech Instruments Corp.    Nashua, NH 03063
Aug 08, 2002 Passive Component Model 380193 LCR meter measures inductance from 2000.0 microH to 10,000 H, capacitance from 2000.0 pF to 10.000 mF with 0.7% accuracy, and resistance from 20.000 ohms to 10.000 Mohms with 0.5% accuracy. It has RS-232 interface, 4½ digit backlit LCD, test frequencies of 120 Hz and 1 kHz, Hi/Lo limits, and selectable parallel or series equivalent circuit. Optional Windows(TM) software provides data capture and analysis.

Enidine, Inc.    Orchard Park, NY 14127
Aug 08, 2002 Large bore HI Series hydraulic buffers have nitrogen-loaded separating piston that progressively dampens moving mass to provide minimal deceleration and force transfer to customer's mounting structure. It works at impact speeds from 6 to 200 ips over temperature range of 0 to 175°F. Applications include cargo transfer cranes, bridge crane control, foundry transfer lines, large container transfer, and transportation safety stops.

MycroSensor Technologies    Phoenix, AZ 85029
Aug 08, 2002 XTC330 transmitters measure differential pressure, level, and flow. They feature silicon-based, dual-capacitor pressure sensor and hermetically sealed pressure capsule. Units can be remotely re-ranged, calibrated, and configured via HART(TM) protocol devices, including control systems, panelboard instruments, and universal handhelds. Over 36 months, stability for absolute gauge, differential pressure and level are .03% of upper range limit and accuracy is .075% of calibrated span.

Astrodyne Corp.    Mansfield, MA 02048
Aug 08, 2002 DRM Series DIN-rail mounted enclosed switching power supplies are offered in 9 models providing single outputs from 12 to 48 Vdc. All feature integral power-good LED indicator, output adjustment potentiometer, soft-start circuitry, integral EMI filtering, over voltage and short circuit protection circuitry. Units are suitable for applications from 10 to 30 W. Operating temperature range is -10 to +60°C without forced cooling or output power derating.

Coreco Imaging    St. Laurent Quebec H4T 1V8, CD   Canada
Aug 08, 2002 Able to support JAI's CV-M77 RGB camera, Bandit-II RGB integrated VGA frame grabber utilizes progressive scan technology and provides full-frame shuttered RGB output with asynchronous reset. Acquisition control unit acquires images from RGB, video, s-video, and monochrome multiplexed cameras. Offerings include brightness, contrast, hue, saturation, and sharpness controls; programmable, 8-bit input lookup tables; 2D and 3D display rendering; and interpolated zoom and scaling.

Victrex plc / Victrex USA Inc.    Greenville, SC 29615
Aug 08, 2002 PEEK-HTâ„¢ polymer is suited for applications requiring high-temperature resistance. With glass transition temperature of 315°F and melting temperature of 703°F, semi-crystalline, unreinforced polymer offers chemical resistance and Rockwell (R-scale) Hardness of 108.2. Tested and proven in down hole and sub sea environments, it offers long-term creep and fatigue resistance over its temperature range.

Gore, W. L., & Associates, Inc., Industrial Filtration Technologies    Elkton, MD 21921
Aug 08, 2002 EXCELLERATOR® electrode assemblies and separators for Electrochemical Double Layer Capacitors (EDLCs) provide strength and dimensional stability and allow for high carbon loading. Bound directly to current collector, electrodes are available in various thicknesses, densities, and shapes in single- or double-sided electrode assemblies. EXCELLERATOR® Separators are chemically resistant to electrolytes and offer porous structures for high ionic conductivity.

Num Corp., Schneider Electric    Naperville, IL 60563 1452
Aug 08, 2002 RTCP (Rotation Tool Center Point) Function maintains rotary axes at constant angle between tool and surface to be machined. Machine also allows OEMs to set up function based on mechanical properties of users' machines. RTCP function manages all irregularly shaped offsets automatically, and keeps tool in contact with programmed point. It uses contact point as reference point in all calculations, allowing users to directly program machine using part contour and desired tool angle.

Raytek Corporation    Santa Cruz, CA 95061 1820
Aug 08, 2002 Photo Temp MX6 simultaneously takes temperature measurements and documents them with digital photographs. Temperature, location, and date/time data are superimposed on images when viewed on computer or in reports. Up to 100 temperature measurements and photographs can be taken, stored, and downloaded to PC for analysis and reporting. It has laser sight, backlit display, and 30 pre-set emissivity values. Datatemp® MX PC software is included with unit.

Genie, a Terex Company    Redmond, WA 98052

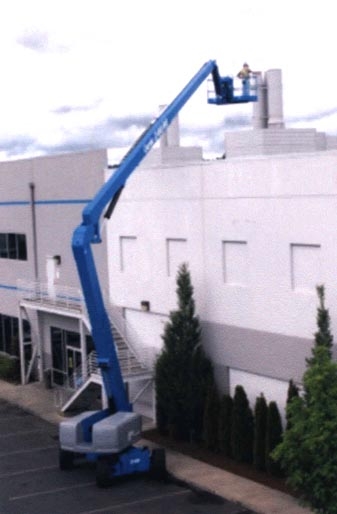

Aug 08, 2002 Z-80/60 boom has working height up to 86 ft, outreach up to 60 ft, and 29 ft up-and-over clearance. It allows operator to ascend and descend from ground to and from 80 ft with single function of primary boom. Suitable for rough or varied terrain, it has drive option combinations of 2WD or 4WD and 2 wheel or 4 wheel steer, providing ability to handle up 30% gradeability on 2WD models to 50% gradeability on 4WD. Maximum drive speed is 3 mph.

Voltek Div. Of Sekisui America Corp.    Lawrence, MA 01843 1089
Aug 08, 2002 Tough enough to suit low profile mounting applications, Volara HPT foams can also replace screws, rivets, and pumpable (caulk) adhesives in various assembly applications. Roll lengths of 4,500 ft can be produced without gauge banding, resulting in fewer roll changes for converters. HPT foams range in thickness from 0.012 to 0.075 in., and densities range from 8 to 20 lbs/ft³. Standard widths are 56 and 60 in., with custom widths available.

C & D Technologies    Mansfield, MA 02048-1151

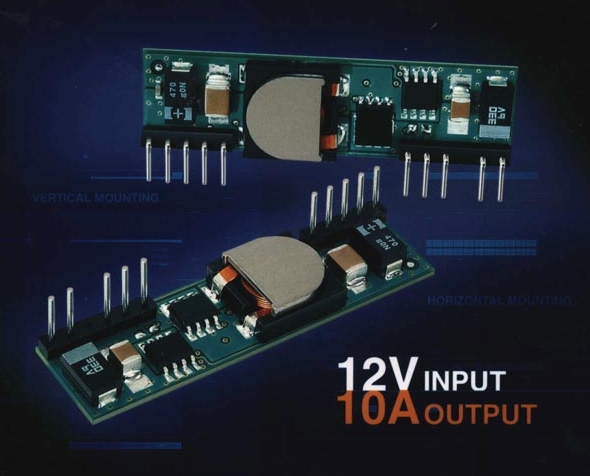

Aug 07, 2002 LSN D12 non-isolated DC/DC converters accept 12 V inputs (10.8 to 13.2 V input) and deliver 1, 1.2, 1.5, 1.8, 2, 2.5, 3.3, or 5 V outputs rated at 10 A. Single-In-Line packages can be configured in vertical or horizontal orientations. Fully synchronous, fixed-frequency buck topology delivers 96% efficiency for 5VOUT models, low noise (30-50 mVp-p), and tight line/load regulation (±0.1%/±0.25% max). All models provide full power to at least +50°C with no supplemental air flow.

ERICO    Solon, OH 44139-2631
Aug 07, 2002 Products for pedestal cabling applications include CADDY CableCat(TM) J-Hooks with 3/4, 1 5/16, 2, and 4 in. dia loops and retainers; CableCat 425 wide-base cable supports that hold up to 425 four-pair cables; and CableCat pulley for cable pulling. Signal Reference Grid Clip provides quick attachment for grounding systems.

Moore Industries International, Inc.    North Hills, CA 91343

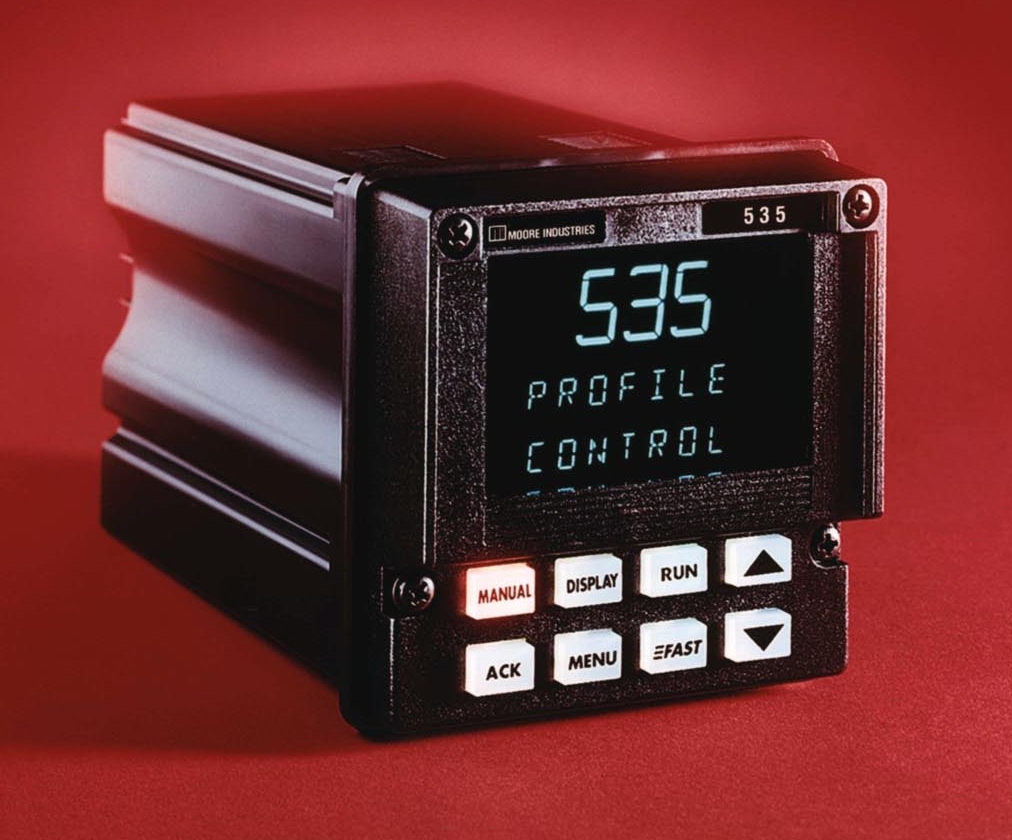

Aug 07, 2002 Model 535 1/4 DIN single loop controller can monitor and control temperature, pressure, level, and flow. PowerTune® delivers pretuning, adaptive tuning, and powerback anti-overshoot. It constantly analyzes process and makes modifications to tuning parameters for long term, stable control. Models are available with 4-20 or 0-20 mA analog control signal, alarm trip outputs, and RS-485 communications.
