Eartec Company    Narragansett, RI 02882

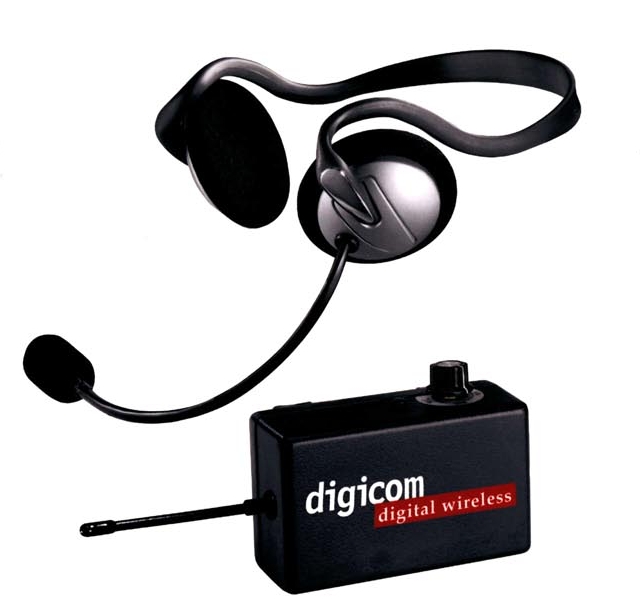

Aug 08, 2002 Digicom multi-station digital transceiver provides hands-free operation and full duplex, open line talking pattern. It is not voice activated and there are no buttons to push. Full line of lightweight and heavy duty headset options allow users to customize system for optimal use in industrial applications.

ABB Water Meters, Inc.    Ocala, FL 34478
Aug 08, 2002 AquaMaster Electronic Water Meter is designed for water utility revenue applications and is offered in sizes 5/8 to 24 in. Battery-powered units operate between 99.5% and 100.5% in normal operating range, in both forward and reverse flow. AC-powered units operate between 99.75% and 100.25%. On 2 in. size, AquaMaster measures flows as low as 0.18 gpm (AC) and 0.4 gpm (battery). Sensor and display are submersible, allowing installation where flooding occurs.

ABB Water Meters, Inc.    Ocala, FL 34478

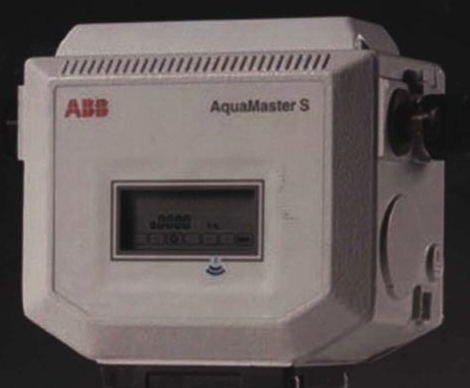

Aug 08, 2002 AquaMaster S incorporates flow, pressure measurement, and datalogging in one unit. Available in sizes from 5/8 to 24 in., portable AquaMaster S submersible Electronic Display Unit has IP68 housing that can be installed up to 650 ft from sensor. Display incorporates multi-channel, multi-variable logger that runs at two speeds simultaneously. Totalizer and tariff logger logs all volume totals and tariff reading totals and stores information for 366 days.

Transicoil Corp.    Norristown, PA 19403 5214
Aug 08, 2002 Size 5, 8, and 10 gearheads have thread mounts compatible with company's brushless dc motors. Gearheads offer all stainless steel construction for corrosion resistance and stainless steel ball bearings. Standard gearheads are available in 1 or 2 stages. Reduction ratios are available from 4:1 to 49:1 with typical efficiencies from 87% to 92%. Applications include medical devices, military actuators, aerospace actuators, pick-and-place devices, and robotics.

Bud Industries, Inc.    Willoughby, OH 44094
Aug 08, 2002 Model DC-8010 rack has panel mounting rail design that allows users to choose desired panel width. Four panel mounting rails come with cabinet. All-welded steel frame cabinets come in panel height of 78.75 in. with overall height of 84 in. Cabinet width is 27 in. and overall depth is 30.75 in. Neutral sand texture cabinet weighs 256 lbs and has 1,200 lb equipment load capacity. Cooling is accomplished via louvered front and rear doors and ventilated top.

Himmelstein, S., & Co.    Hoffman Estates, IL 60195

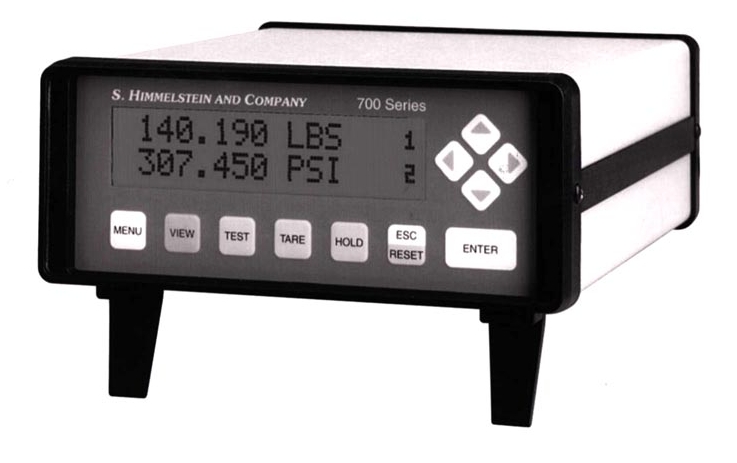

Aug 08, 2002 DC Signal Conditioner Models 708, 788, and 728 acquire, condition, display, and classify output of strain gage load cells, pressure transducers, torquemeters, and displacement transducers. Sensitivity is rated from 1 to 4.5 mV/V. Calibration in engineering units is accomplished via keypad or serial port. Built-in calibrators have absolute accuracy of 0.01%. All models provide 2000 samples/second/channel, max/min capture, analog and digital outputs, and real-time calculations.

Estimating Systems Inc.    Forestdale, MA 02644

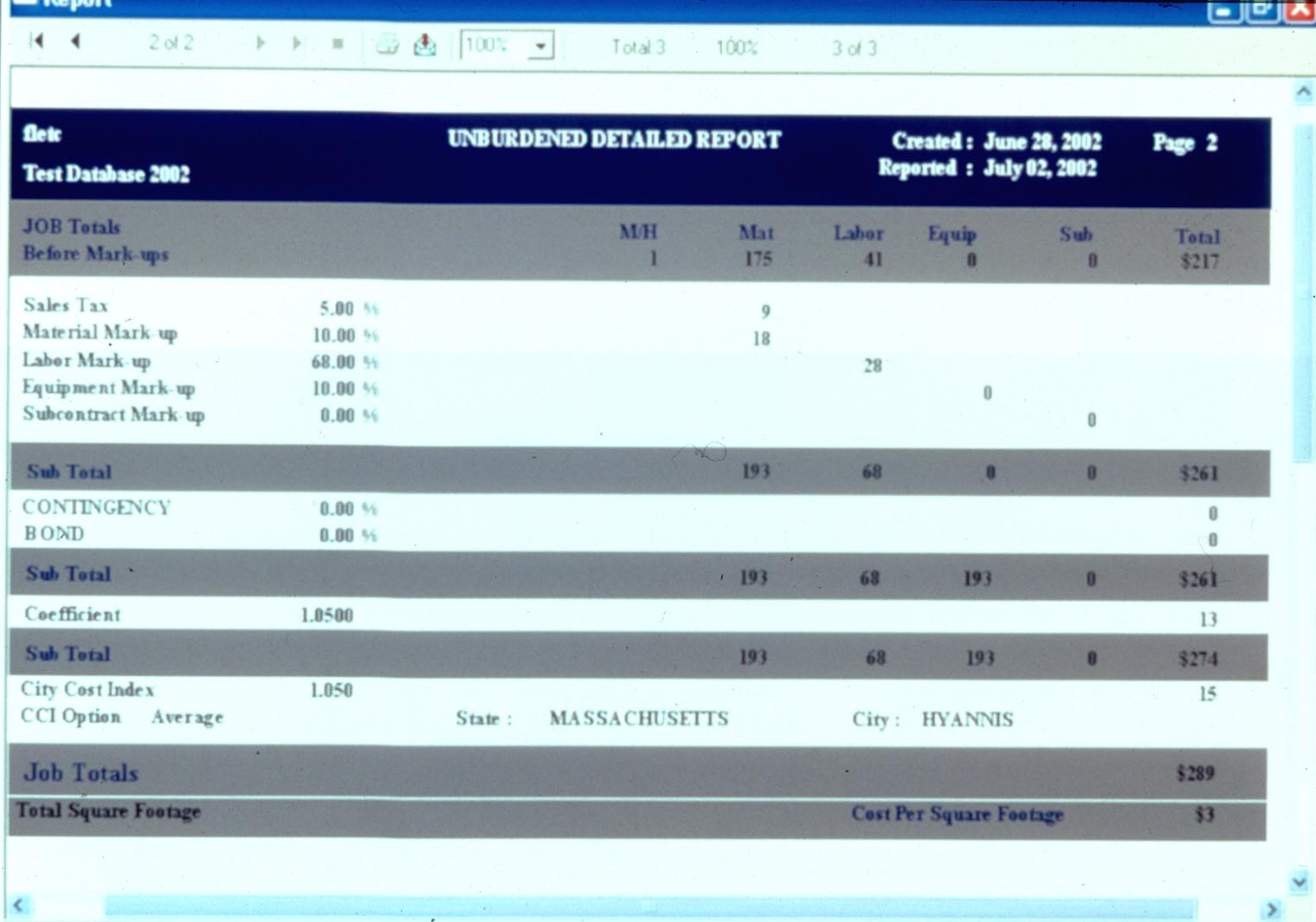

Aug 08, 2002 PULSAR software incorporates Seagate Crystal Reports, which allows users to pull reports that highlight specific information. Reports can be generated by division, sub-division, or by job site, and can break down cost by materials, total labor (with or without materials), and/or as hourly labor cost. It has reporting and query capabilities and does not require special programming. Users can modify form and content of existing reports or create unlimited new formats.

VibraSys, Inc.    West Babylon, NY 11704
Aug 08, 2002 Model B10 unbalance measuring instrument uses industrial Pentium PC with flatpanel display and Windows operating system. Available for horizontal and vertical balancing machines, its built in Ethernet connection allows remote troubleshooting and access to data from existing work stations. Unit offers speed range of 70 to 300,000 rpm and storage for up to 1,000 set-ups. Angle accuracy is rated at .1°. It comes with Touchpad and QWERTY keyboards and mouse.

Joyce/Dayton Corp.    Dayton, OH 45401-1630
Aug 08, 2002 Skillet Scissor Lift can be programmed for various speeds and precise positioning for smooth operation throughout its entire length of travel. Ball screw driven scissor lift offers accurate and repeatable positioning and is suited for lifting material with high duty cycles. Constant speed scissor lift is rated for capacities from 1,000 to 8,000 lbs with programmable duty cycles. Lift also has built-in fall protection.

ABB SSAC    Baldwinsville, NY 13027
Aug 08, 2002 Functions, features, and options for Models KSPD, KSPS, and KSPU Series of ProgramaCubeâ„¢ solid state output timing modules are programmed in software. When order is received, software function is added, so modules are readily available. KSPD is available in 11 fixed, knob, or external adjustable dual timer functions; KSPS is available in 10 fixed, knob, or external adjustable single functions; and KSPU is available in 12 single DIP switch adjustable timer or counter functions.

Sumner Mfg. Co.    Houston, TX 77088 4036
Aug 08, 2002 Series 2100 can lift heavy loads up to heights of 12, 18 or 24 ft. One-piece design allows for quick fold up of legs and compact storage, without loose pins or need of tools. Load cable feeds from inside masts to winch, and away from operator for safety. Lift includes winch for ease of operation and minimum maintenance. Built-in fork extension option available.

Stellram    La Vergne, TN 37086
Aug 08, 2002 Unidrill® has UC-CCR chipbreaking geometry, suitable for drilling ductile materials such as steels, stainless steels, and cast irons in range of 0.531 to 1.000 in. dia. Corner radius reduces thermal stress, improves tool life, minimizes break-out at back of hole, and improves surface finish. Clamping system ensures precise insert location, while SC7052 CVD coating allows high feed rates at low speeds for less rigid applications and deeper holes.

Accutek Microcircuit Corp.    Newburyport, MA 01950 4054
Aug 08, 2002 Adapter Kits convert surface mount IC packages such as SOIC, TSOP, QSOP, MSOP, and SOJ to pin compatible DIP modules in pin counts ranging from 4 to 48 pins. PLCC-PGA adapters work with PLCCs in 28 to 100 pin counts. Adapters utilize FR4 substrates and can be used to replace end-of-life through-hole integrated circuits. Kits are offered with gold or solder plated machined pins or phosphor bronze solder tinned flat contact pins.

Seco-Larm    Irvine, CA 92606-5012
Aug 08, 2002 E-931-S35RR Photoelectric Beam Sensor includes transmitter, reflector, 2 mounting brackets, and mounting hardware. Relay energizes when object is detected in beam. Sensor features 12-240 Vdc or 24-240 Vac input power, 6 ft pre-wired cable, weather-proof construction, and Form-C alarm relay contact. Applications include: safety sensor for doors or gates; detector for small objects on manufacturing line; or entry detector for store fronts.

Aldon Co., Inc.    Waukegan, IL 60087 3218
Aug 08, 2002 Mark II Railcar Motion Detector warns workers if car starts to move. Safety siren attaches magnetically to bearing cap of any freight car wheel. If wheel turns more than 10 deg in either direction, battery-powered sensor emits 90 dB 2-tone warble. Siren includes baffle to moderate sound level, and illuminated on-off switch. NEMA 4X housing is rain and dust-proof, and all hardware is corrosion-resistant. A 9 V battery provides 30 min siren life.

CDF Corporation    Plymouth, MA 02360
Aug 08, 2002 EZ-Strainerâ„¢, when placed atop open-head drums, separates unwanted particles from product, as product is poured. Designed with ring made from heavy duty, high-density polyethylene, its center screen is available in fine, nylon, or multi-element mesh (medium or coarse). It is ideal for removing debris from paints, coatings, silicones, or inks. Strainer also allows recycling of cleaning solutions when cleaning parts over drum.

Extech Instruments Corp.    Nashua, NH 03063
Aug 08, 2002 Passive Component Model 380193 LCR meter measures inductance from 2000.0 microH to 10,000 H, capacitance from 2000.0 pF to 10.000 mF with 0.7% accuracy, and resistance from 20.000 ohms to 10.000 Mohms with 0.5% accuracy. It has RS-232 interface, 4½ digit backlit LCD, test frequencies of 120 Hz and 1 kHz, Hi/Lo limits, and selectable parallel or series equivalent circuit. Optional Windows(TM) software provides data capture and analysis.

Enidine, Inc.    Orchard Park, NY 14127
Aug 08, 2002 Large bore HI Series hydraulic buffers have nitrogen-loaded separating piston that progressively dampens moving mass to provide minimal deceleration and force transfer to customer's mounting structure. It works at impact speeds from 6 to 200 ips over temperature range of 0 to 175°F. Applications include cargo transfer cranes, bridge crane control, foundry transfer lines, large container transfer, and transportation safety stops.

MycroSensor Technologies    Phoenix, AZ 85029
Aug 08, 2002 XTC330 transmitters measure differential pressure, level, and flow. They feature silicon-based, dual-capacitor pressure sensor and hermetically sealed pressure capsule. Units can be remotely re-ranged, calibrated, and configured via HART(TM) protocol devices, including control systems, panelboard instruments, and universal handhelds. Over 36 months, stability for absolute gauge, differential pressure and level are .03% of upper range limit and accuracy is .075% of calibrated span.

Astrodyne Corp.    Mansfield, MA 02048
Aug 08, 2002 DRM Series DIN-rail mounted enclosed switching power supplies are offered in 9 models providing single outputs from 12 to 48 Vdc. All feature integral power-good LED indicator, output adjustment potentiometer, soft-start circuitry, integral EMI filtering, over voltage and short circuit protection circuitry. Units are suitable for applications from 10 to 30 W. Operating temperature range is -10 to +60°C without forced cooling or output power derating.
