Nicolet Biomedical, Inc.    Madison, WI 53711 4495
Sep 09, 2002 ACCURA 50 has low-noise amplifiers, Spurious Free Dynamic Range (SFDR) of greater than 75 dB over entire bandwidth, and 12-bit 5 MS/sec digitizer that provides 16 times more resolution than 8-bit scopes. It has up to 8 MegaWord memory per channel, 0.25% accuracy, 90 dB CMRR at probe tip, auto data transfer, and remote monitoring capabilities. DataSentryâ„¢ function automatically saves, prints, or sends data via Ethernet, USB, or modem at set times or upon trigger.

Nicolet Biomedical, Inc.    Madison, WI 53711 4495
Sep 09, 2002 Odyssey XE records up to 1 MS/s on each channel and has 160 GB of storage, allowing gap-free recording at 24 MB/s for 2 hr, or for months at lower rates. Separate ADC and DSP for every channel provides phase matching, digital filtering, and intelligent triggering. Pentium III processor runs analysis software or other Windows applications, even while recording at full speed. Ethernet remote control software allows viewing of live waveforms anywhere on network.

Sola/Hevi-Duty A Business Of The EGC Electrical Group    Skokie, IL 60077
Sep 09, 2002 Drain-Breather fitting provides water drainage and continuous ventilation to minimize formation of condensation in electrical enclosures. Offered in 1/2 and 3/8 in. trade sizes, breather is machined of stainless steel. Easy to remove and install for maintenance, it is suitable for use in hazardous locations.

Toledo Transducers Inc.    Holland, OH 43528

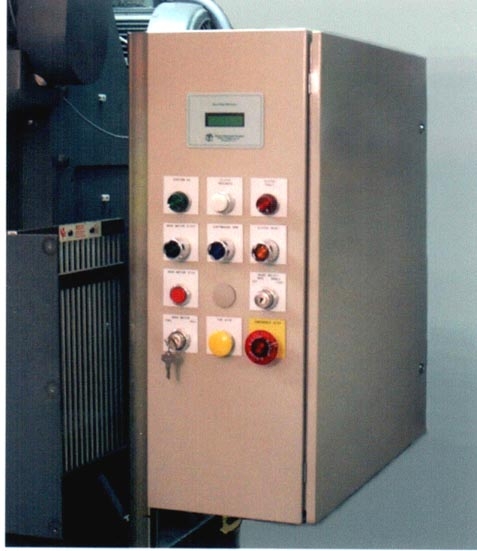

Sep 09, 2002 Press Pilot 100, 200, and 300 Series fit every type of part revolution, mechanical stamping press. Each has dual redundant processors, dual force guided clutch relays, input status diagnostics for troubleshooting and conforms to ANSI B11.1, OSHA 1910.217, and CAN/CSA-Z142-M90 standards. Model 200 has Allen-Bradley Micro-Logix processors with light curtain interface, input status LEDs, and self-diagnostics. Model 300 has SLC and PLC5 processors.

NP Photonics, Inc.    Tucson, AZ 85747
Sep 09, 2002 Scorpion Amplet MMP-HP7020 high-gain, low-noise amplifier module has 16 dB of total output power and provides up to 20 dB of gain across C-Band, while generating less than 5.5 dB of noise. Suitable for in-line metro and access applications, it offsets signal loss created by DWDM and optical conditioning devices. It has MSA-compliant footprint of 90 x 70 x 12 mm, and complies with Telcordia GR-1312.

Square D Co.    Palatine, IL 60067

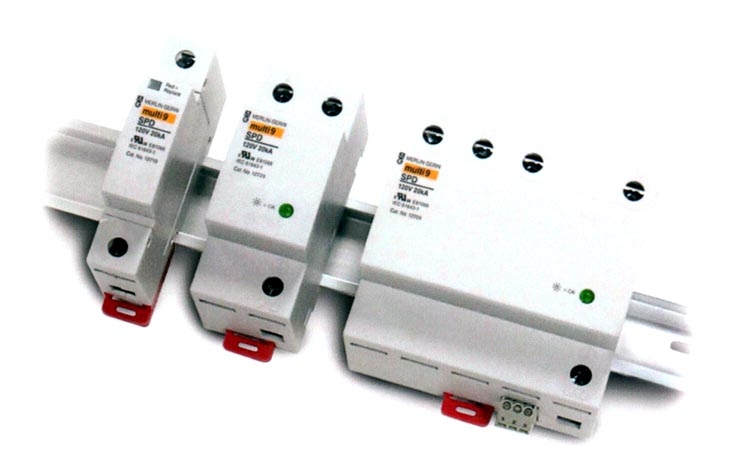

Sep 09, 2002 MERLIN GERIN® Multi 9 SPD protects terminal connected devices against transient voltages up to 80,000 A. Plug-in module enables module replacement without unwiring electrical connections. Thermal fuse protects against extreme surge currents and prevents dangerous thermal runway conditions. Surge protectors are available in one-, two- and four-pole models, and most international voltages for both single- and three-phase power systems.

Wieland Electric Inc.    Burgaw, NC 28425

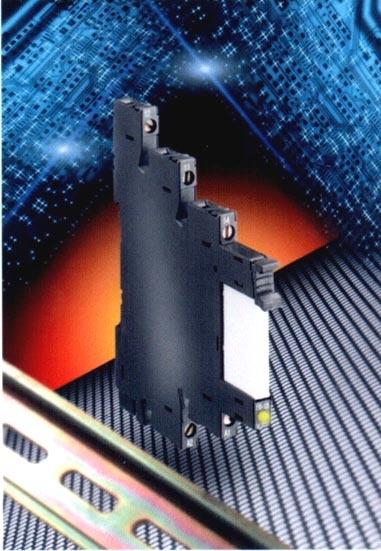

Sep 09, 2002 MOVE Series relays are 6.2 mm thick, provide signal isolation and conversion for PLCs and remote I/O systems, and are available in 12 Vdc, 24 Vdc, 110 Vac/dc, and 230 Vac/dc. Form C SPDT contact configurations are rated for 250 Vac nominal and 400 Vac maximum at 6A. Relays have built-in dc polarity protection, LED indication, screw clamp wiring, and 20-pole jumpering.

Diversitech, Inc.    Pompton Lakes, NJ 07442
Sep 09, 2002 Downdraft Tables capture dry dust from welding, grinding, deburring, sanding, polishing or cutting. They are self-cleaning and available in different dimensions. Options include backdraft hoods, welding enclosures, special grating materials, light kits, and water trays. Downdraft Tables filter air at source without operator participation.

Microscan Systems, Inc.    Renton, WA 98057
Sep 09, 2002 Scanner Mounting Arm is made of marine-grade powder coated aluminum. It features injection molded rubber ball which firmly mounts scanner to reduce movement or vibrations. Arm comes in 4 in. and 6 in. sizes. Extension joints and base plates are also available.

Roberts PolyPro, Inc.    Charlotte, NC 28273
Sep 09, 2002 Bottle Carrier Handles are for single, 2, 3, 4, and 6 packs of beverages. All offer ample space for product stickers and can be supplied with printed UPC codes. Twin Pack Carrier Applicator is 36 in. wide by 48 in. long and can easily be integrated into any production line. It provides in-line speed of up to 25 cases per minute.

Netzsch, Inc.    Exton, PA 19341
Sep 09, 2002 Overhead Filter Press separates solids from liquids, producing dry cake and clear filtrate using combination of feed pressure, filter plates and cloths. It is offered in 1000 m² to 2000 m² with operating pressures to 450 psi. Controlled tracking allows pressure to be distributed evenly throughout all plates. Press offers plate shifters outside of potential spill area, and optional automatic cloth washers for optimal dewatering procedures.

Phihong USA    Fremont, CA 94539

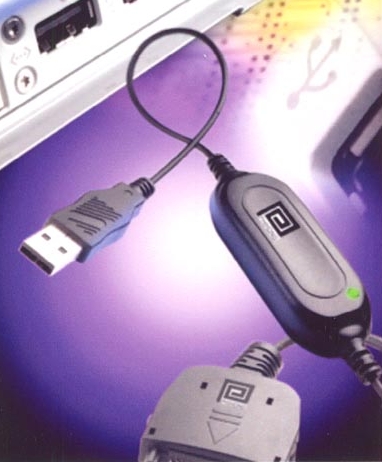

Sep 09, 2002 USB chargers, for use with PDAs, cellular phones, and digital cameras, draws power from USB socket on laptop or desktop. It then boosts or drops voltage and current to requirements of device being powered. Converter employs switching technology to maximize delivered power within allowed limits of USB specification. Current limiting and protection are incorporated to guard computer motherboards against faults or shorts.

Clippard Instrument Laboratory, Inc.    Cincinnati, OH 45239
Sep 09, 2002 Minimatic Air Regulator has 1 in. diameter plastic knob, with non-slip surface, attached to stainless-steel stem with ¼-20 threads. Minimatic Air Regulator permits pressure to be adjusted down or up as needed. Relieving version eliminates creepage of downstream pressure, while holding that pressure constant. It may be mounted with other controls on console or panel board, and on individual jigs and fixtures, as well as in control circuits.

Clausing Industrial, Inc.    Kalamazoo, MI 49007 1822

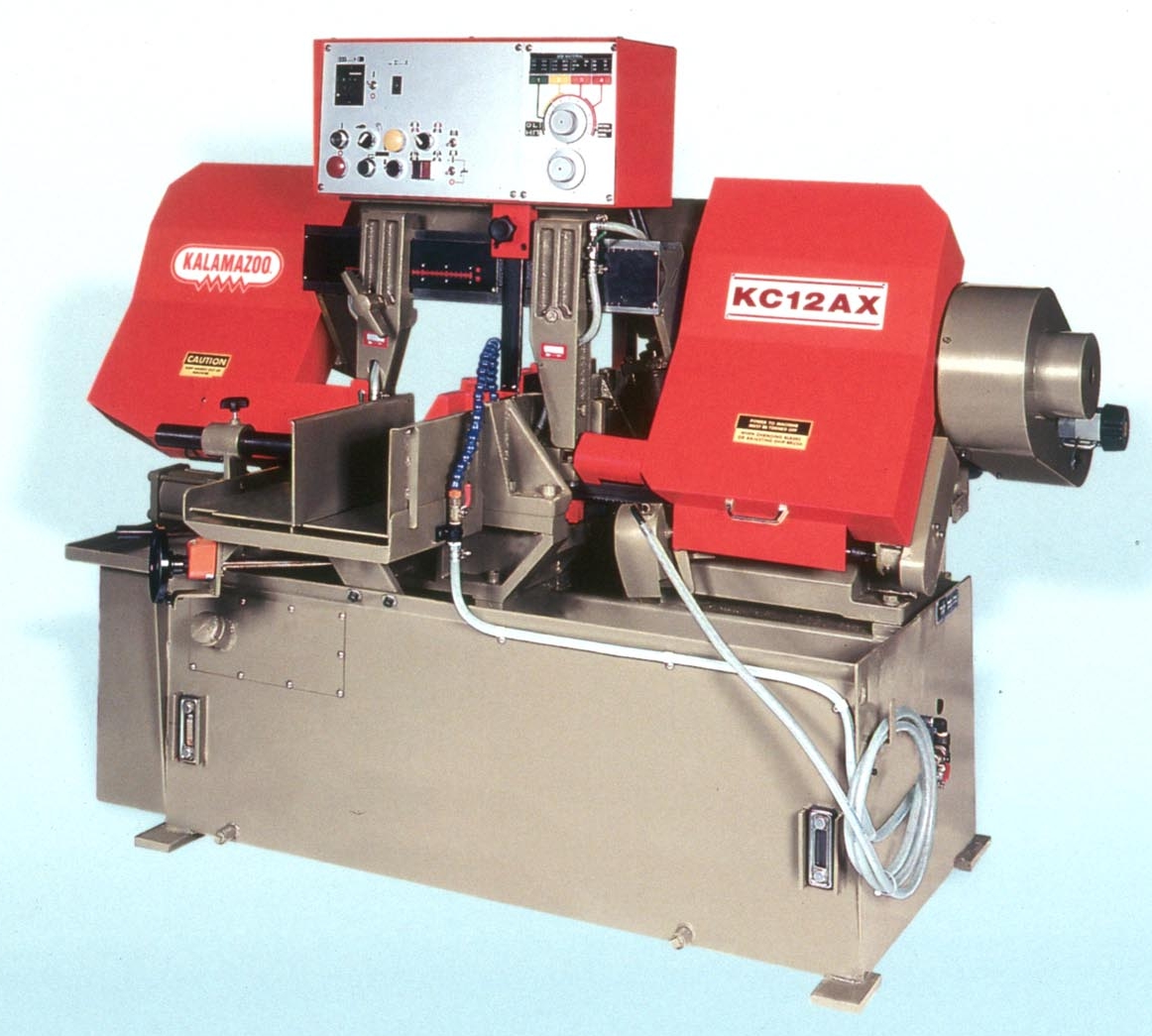

Sep 09, 2002 Horizontal 12 in. Model KC12AX provides infinitely variable blade speeds from 75 to 400 fpm. Features include LED blade-speed readout, blade breakage/stop switch, and hydraulic downfeed. Band saw has front-mounted, digital, length gauge and vise that clamps workpiece on both sides of blade. Cutting capacity at 90° is 11.8 in. round and 11.8 x 12.6 in. to 7.9 x 14.2 in. rectangular. Bundle cutting widths and heights are 6.5 to 10 in. and 2 to 8 in., respectively.

Humphrey Products    Kalamazoo, MI 49003

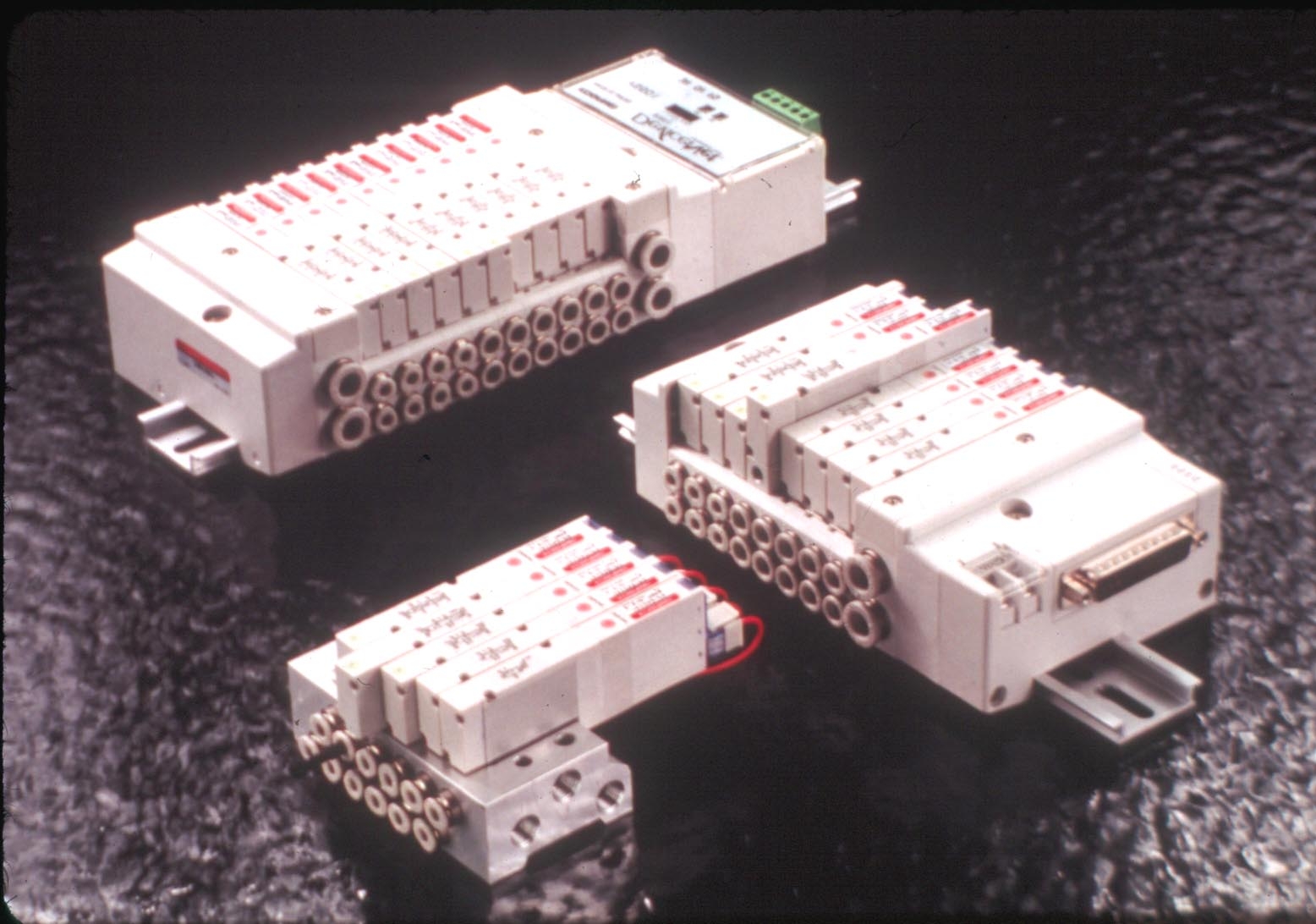

Sep 09, 2002 Series HJA 10 mm valves are available with 0.25 W solenoid in 12 models, from 2-port, 2-way configuration through 5-port, 4-way configuration. With 0.19 Cv flow rate, valves are suitable for operating up to 40 mm bore actuators. All valves have common body for subbase and manifold mounting, 1/8 in. NPT supply ports, 1/8, 5/32, and 1/4 in. cylinder ports, pressure range of 29 to 125 psig, 0.5 W power coil, and choice of 12 or 24 Vdc operation.

Emerson Specialty Motor Div., Emerson Electric Co.    St. Louis, MO 63136
Sep 09, 2002 Totally enclosed, fan-cooled (TEFC) and open drip-proof (ODP) motors include 3-phase ODP motors rated at 1 to 250 hp and general purpose, 3-phase TEFC motors rated at 1 to 200 hp. Motors include Unimount®, Hostile Duty®, Corro-Duty, and 841 PLUS®. TEFC and ODP motors in 200 to 500 hp range are also available. Motors are inverter ready, resistant to power quality problems, and equipped with ALLGUARD® motor quality system.

Conquest Global, Inc. (CGI)    Arcadia, CA 91006
Sep 09, 2002 Portable MH21 illuminators use 21 W metal-halide, high-intensity discharge (HID) lamps that produce average of 900 lumens at color temperature of 6500 K. They require 12 V to operate and have life time of 1000 to 2000 hr. Four models are differentiated by type of shutter: electronic on/off, mechanically adjustable, without shutter, or with both electronic and mechanical shutters. Illuminators measure just 4.5 x 3.2 x 2.3 in. and weigh less than 1 lb.

Henkel Loctite Corporation    Rocky Hill, CT 06067

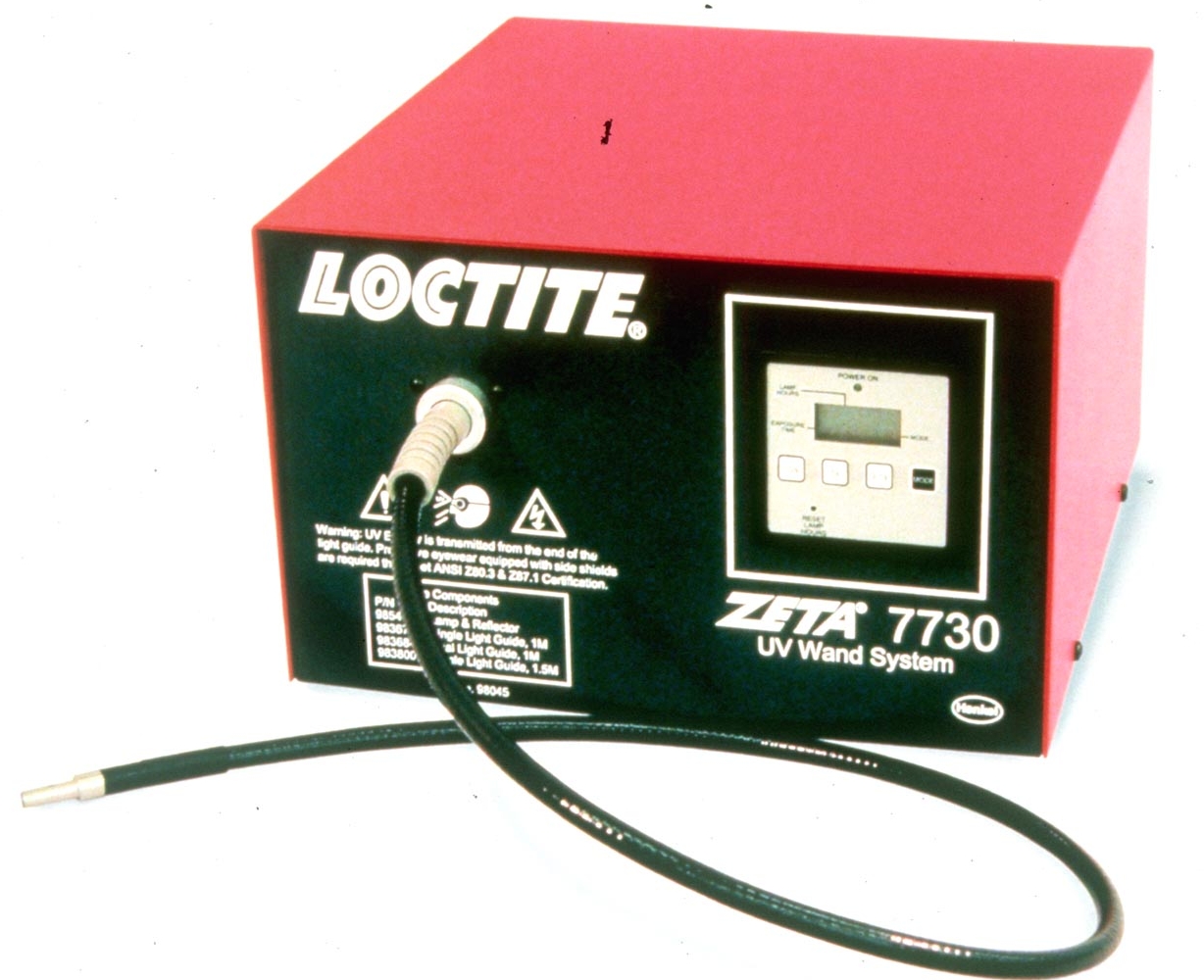

Sep 09, 2002 ZETA® 7730 offers up to 4 W/cm² of UV light at 320 to 410 nm, delivering tack-free surfaces when used for light-cure adhesives. System utilizes auto-ranging 60 to 265 Vac, 50 to 60 Hz solid-state power supply, 50 W metal-halide lamp, and liquid light guide. Typical cure area is 0.5 in. diameter. Exposure time is controlled by programmable timed mode (0 to 99.9 sec) or manual mode, where shutter remains open as long as foot switch is depressed.

Iconotech    Clinton, CT 06413
Sep 09, 2002 Thicker DCP-305 imaging film offers strength and durability, which renders long run capability. Its uniformity reduces wrinkling when wound onto print cylinder. In addition, ink lay-down is consistent, thus enhancing print clarity.

Westcott Distribution, Inc.    New York, NY 10014
Sep 09, 2002 GoatThroatâ„¢ pumps release pressures in excess of 15 psi through their pressure relief system. Able to be safely used with U.N. classified Dangerous Goods Drums, pumps have working pressure of 1 to 5 psi and produce consistent flow rates of 5 gal per min. Hand-operated pumps, safe for use with 600+ liquids, pressurize any container from 2-gal jugs to 55-gal drums. Applications include utilities, research laboratories, and chemical distribution.
