Metron Technology    Boulder, CO 80302

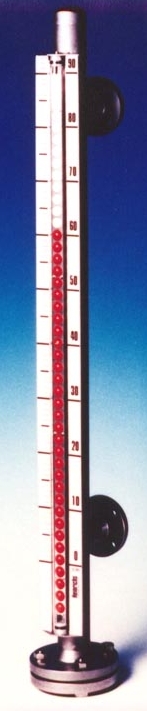

Sep 11, 2002 Offered as safe alternative to glass gauges, Model TLG Tank Level Gauge offers indicator isolated from fluid to eliminate problems of leakage, breaks, and fogging. Sampling chamber has one magnetic float and can be constructed of stainless steel, hastelloy, titanium, PVC, PVDF, and other materials. Gauge is available in any length with optional 4-20 mA transmitter and form-C switch contacts. Temperature range is -58 to +750°F.

MLR International    Fairfield, NJ 07004
Sep 11, 2002 One-piece, molded-polypropylene MOVITâ„¢ barricades are 6 ft 6 in. long, 3 ft 3 in. high, and weigh 26.5 lb. They are structurally designed to withstand loads exceeding 1,100 lbs. Units feature ANSI A10.18 certification for compression, drop, flexion, weather, and tension. They can be set up quickly and linked together without tools or additional hardware. Colors include silver, red, orange, yellow, green, and blue.

Panduit Corp.    Tinley Park, IL 60477 3091

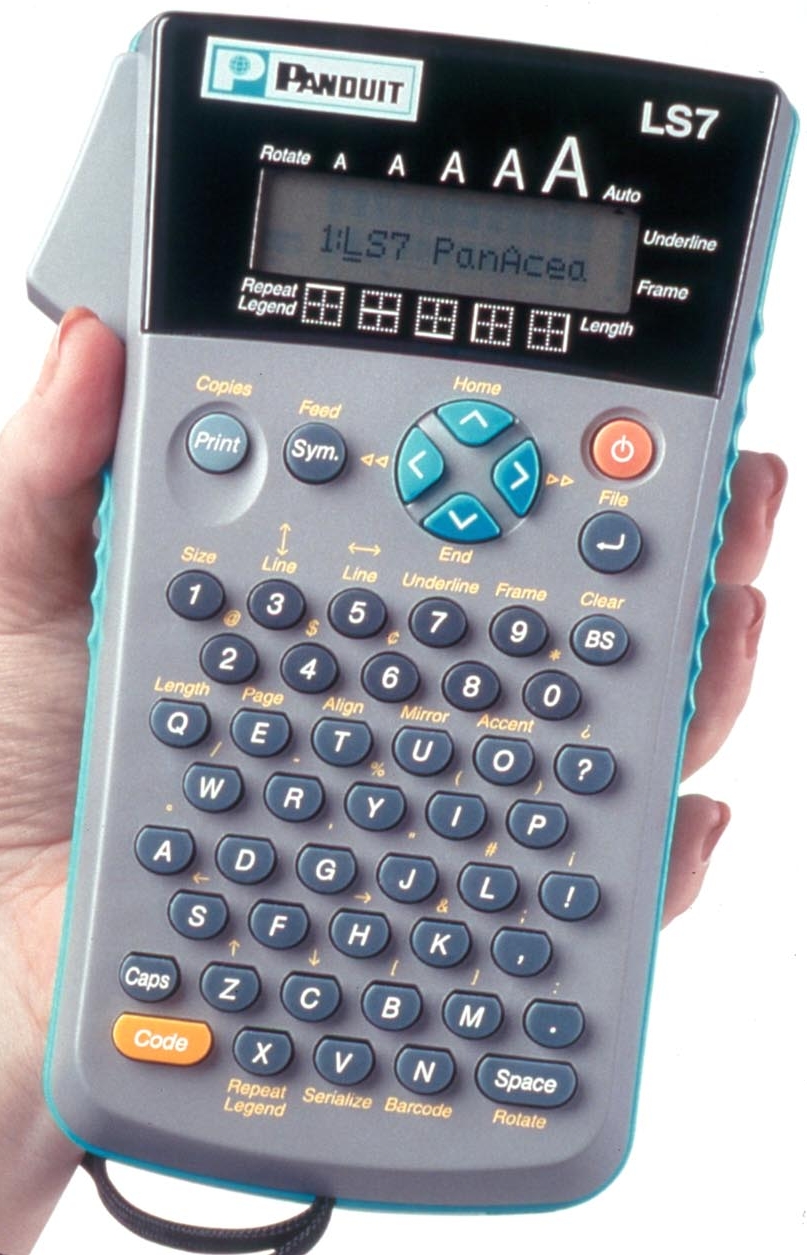

Sep 11, 2002 PANACEAâ„¢ LS7 labels wires, terminal blocks, bins, and components. It includes label cassettes for quick changing of labels. Model LS7 offers serialization, bar-code printing, auto font sizing, and file storage memory. Batteries and hardside carrying case are also included.

Sprayon Diversified Brands    Cleveland, OH 44115
Sep 11, 2002 Sprayon® Liqui-Solâ„¢ MRO lubricants, cleaners, and maintenance products offer re-useable, adjustable spray triggers. Triggers allow users to dial in specified coverage, from fan spray to pin stream. To recylce/dispose of containers, users remove (and reuse) spray trigger and recycle empty can as scrap metal or dispose of it as non-hazardous waste. Sprayon Liqui-Sol containers come in 14 or 18 oz cans and include food-grade items.

Guden, H. A., Co., Inc.    Ronkonkoma, NY 11779

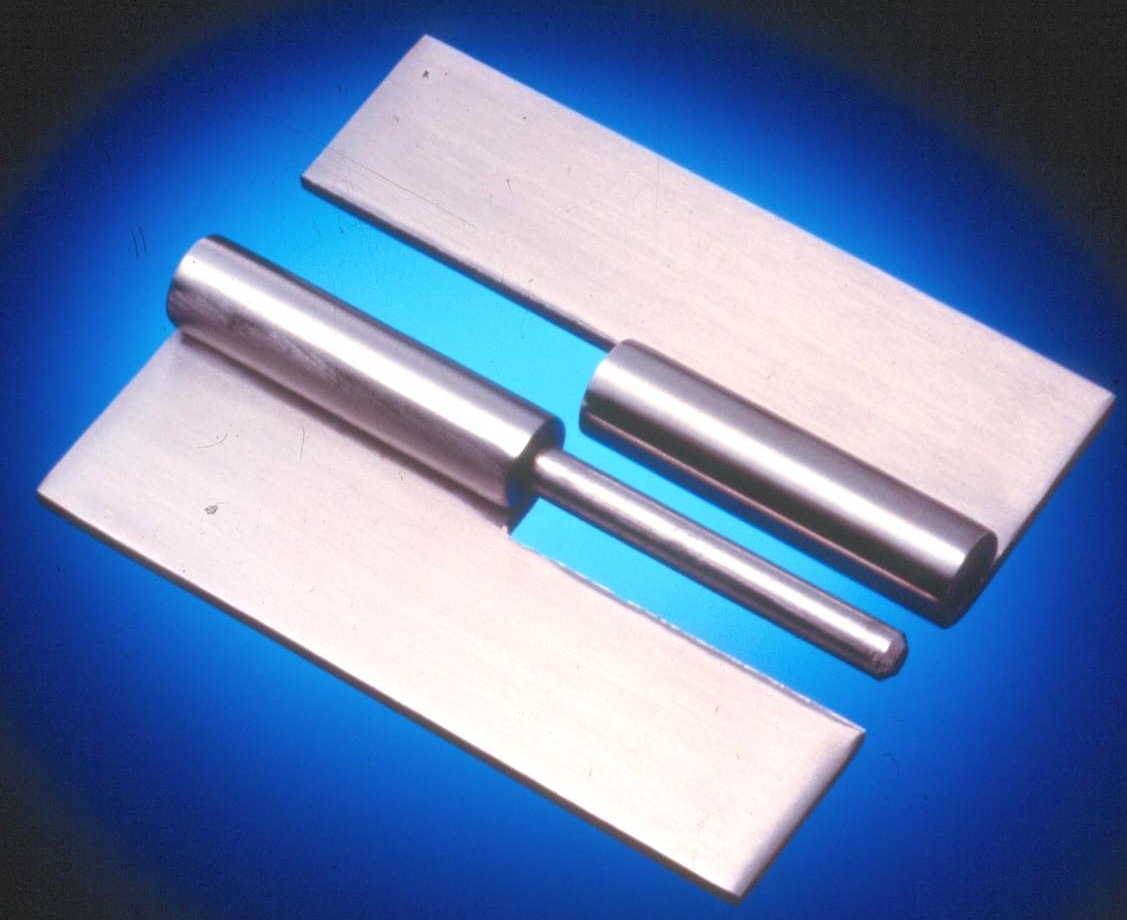

Sep 11, 2002 Industrial hinges allow cabinet, control box, and computer housing doors to be removed and replaced without tools. Hinges range from 1 1/2 to 3 in. long and 1 7/16 to 3 in. open width. Made of stainless steel and aluminum with stainless steel pins, leaf thicknesses vary from .050 to .093 in. Pins are splined for tight fit or staked in place. Mounting holes are custom punched to users' specifications.

Tap Magic, A Div. Of The Steco Corporation    Little Rock, AR 72202

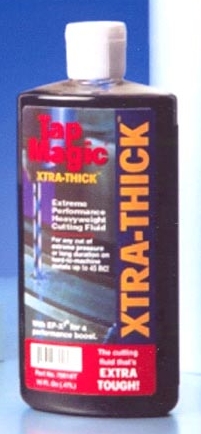

Sep 11, 2002 Tap Magic Xtra-Thick heavy-duty cutting fluid is suited for machining work on inconel, titanium, and stainless steel. Fluid eliminates work hardening and ensures single application stays with tool and work piece for cuts of long duration. Clinging action is suited for reaming, lathe, and mill work. Xtra-Thick contains EP-X3 and is offered in sizes from 16 oz to 55 gallons.

Love Controls    Michigan City, IN 46361
Sep 11, 2002 Model UPT1000 portable indicator accepts 8 different thermocouple inputs, 3 different RTD inputs, as well as current and voltage inputs in one handheld instrument. It includes ANSI mini-plug and screw type connector. Housed in extruded aluminum case, indicator can display 18 user selectable engineering units on 4½-digit backlit LCD display and offers 0.25% full scale accuracy.

Associated Spring-Raymond, Barnes Group Inc.    Maumee, OH 43537

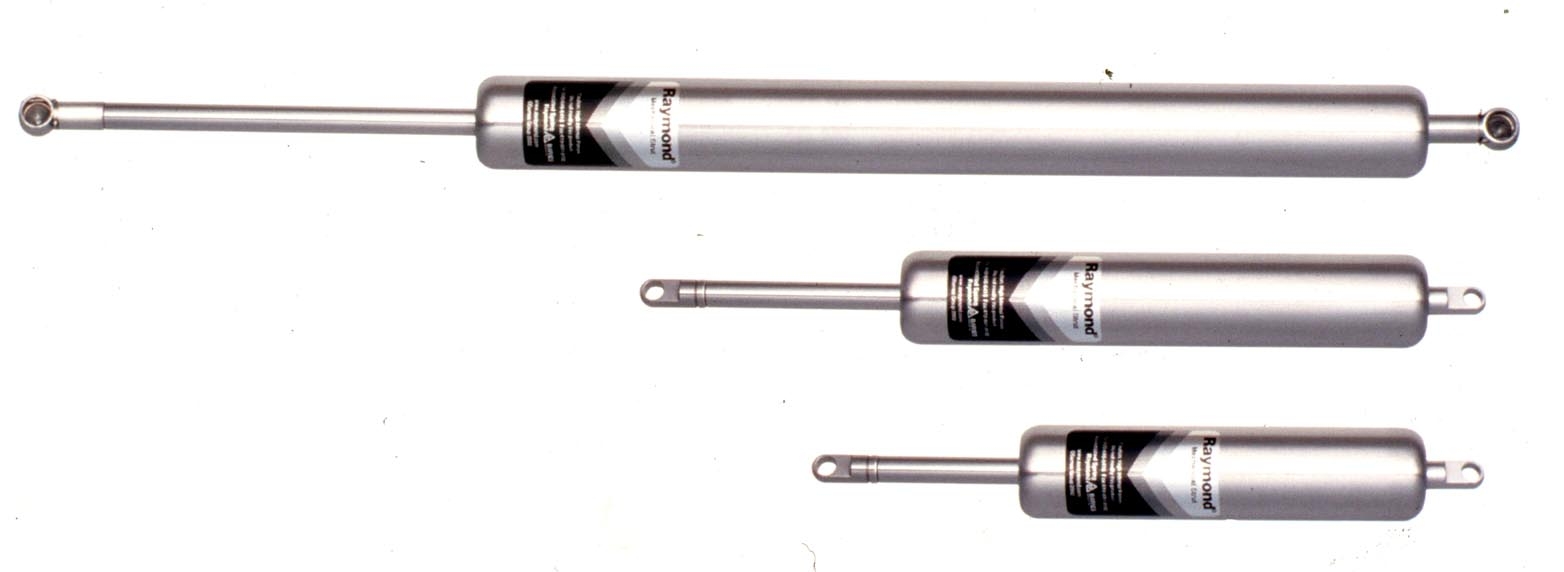

Sep 11, 2002 Standard mechanical struts feature stainless steel shell construction and springs, with M6 ends. Stroke lengths range from 2 to 5 in. with forces from 17 to 63 lbs. High load struts have stainless steel shell and high tensile carbon steel springs with M8 ends. Stroke lengths range from 1 to 4.6 in. with forces from 238 to 529 lbs. Mechanical struts withstand operating temperatures up to 400°F, and offer various end configurations, including ball, blade, or clevis ends.

InterlinkBT, LLC    Minneapolis, MN 55441

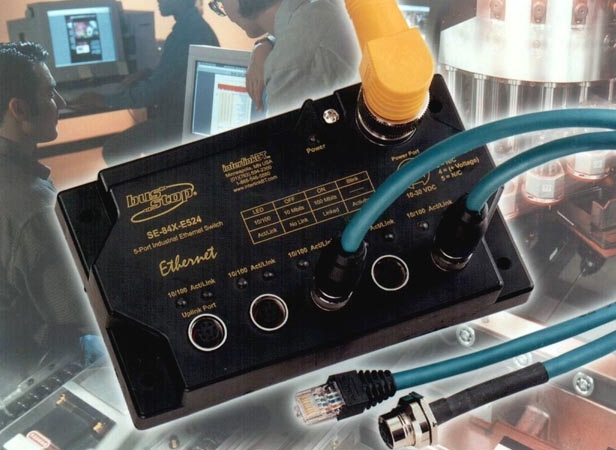

Sep 11, 2002 Industrial Ethernet(TM) Switch includes five 10/100 Mbps 8-pin eurofast® ports to segment network traffic, extend Ethernet connection distance, and convert data packets between different transmission speeds. Switch complies with IEEE 802.3 10Base-T Ethernet and 802.3u 100Base/TX Fast Ethernet standards. Housing is rated NEMA 1, 3, 4, 12, 13, and IEC IP67 allowing switch to be installed in harsh environments.

A & A Mfg. Co., Inc.    New Berlin, WI 53151
Sep 11, 2002 Series GX offers corrosion-resistant, one-piece, metal link design that eliminates need for screwed-on crossbars. It also incorporates half-shear lockouts that eliminate need for pins, snap rings, and similar lockout parts. Proper bend radius of air, hydraulic, and electric lines is maintained during repetitive motion. Carrier is available in 4 bend radii from 2.00 to 5.63 in. and in 4 widths from 2.25 to 7.00 in.

Flexicon Corporation    Bethlehem, PA 18020 8006
Sep 11, 2002 Low Profile Bulk Bag Filler offers twin-centerpost design that provides accessibility to bag hooks, eliminating need for forklift. Standard units include primary bag filling components, pneumatically retractable bag hooks, inflatable cuff, and double wall product inlet port with air-displacement outlet port. Manually adjustable fill head accommodates bags from 36 to 72 in. high. Frame is constructed of finished carbon or stainless steel.

Rockwell Automation    Milwaukee, WI 53204
Sep 11, 2002 ProcessLogix(TM) includes remote I/O communications interface module, which allows ProcessLogix and ControlLogix(TM) controllers to communicate with existing Allen-Bradley 1771 Remote I/O. System's 10/100 Ethernet bridge module can be used in conjunction with 10 Mbps products. Redundant ProcessLogix OPC Server allows OPC client machines to access redundant ProcessLogix Servers network-wide. System provides foundation fieldbus linking device and system redundancy cable.

Tra-Con, Inc.    Bedford, MA 01730
Sep 10, 2002 Amber-colored, thixotropic Tra-Bond 2170 has low viscosity of 3500 cps. It can be cured at room temperature for 24 hours or at 65°C for one hour. Capable of bonding to all types of plastics, it is suited for applications in medical, photonic, and aerospace industries. Plastics include: nylon, PVC, polyethylene, acrylic, lexan, polypropylene, kapton, and most thermoplastic substrates.

Dalton Electric Heating Co., Inc.    Ipswich, MA 01938
Sep 10, 2002 Watt-Flex® Split-Sheath Cartridge Heaters can be constructed to deliver full heat to tip, making them suitable for injection molding applications. Split-sheath construction allows each half of heater to expand independently. Continuous-coil design eliminates cold spots between sections. Standard diameters include 1/4, 3/8, 1/2, 5/8, 11/16, 3/4, and 1 in., as well as 8, 10, 12, 12.5, 15, 16, and 20 mm; in lengths from 1¼ to 72 in., and with operating temperatures to 1700°F.

Densitron Corp.    Santa Fe Springs, CA 90670
Sep 10, 2002 Model DSM4234LN stepper motor can continuously move linear pole with precision of 0.0035 mm full-step linear movement, or 0.00175 mm with half-step drive. Leadscrew nut formed in shaft has M4 hole threaded through center, which enables variable shaft lengths of any practicable size to be used. Threaded nut supports front bearing to adjust for minimum backlash. Applications include throttle settings, plotting, focusing systems or positioning in analytical test equipment.

American Fabric Filter Co.    Wesley Chapel, FL 33543
Sep 10, 2002 Custom and standard dust bags are made of felt to facilitate air flow, while filtering particles as small as 1 micron. They help collection systems perform at peak efficiency and keep work environment clean.

American Fabric Filter Co.    Wesley Chapel, FL 33543
Sep 10, 2002 Custom designed bags are air venting and provide dust control. Filtration media can be fabricated into long-wearing bags, sleeves, and covers. Fabrics/finishes are tailored to user's needs. Standard bags are also available.

Vestil Manufacturing Co.    Angola, IN 46703-0507
Sep 10, 2002 Plate Corner Guards protect pallet rack corners with ¼ in. steel plate. They are available coated with yellow powder paint finish with Safety First printed across each side. Overall size is 24 in. high at center of guard. Each side is 24 in. long and 12 in. high. Corner Guard has 4 anchoring brackets for mounting; mounting kit includes (4) ¾ x 4 in. anchor bolts. Aluminum Plate Corner Guards are also available.

Thermal Instrument Co.    Trevose, PA 19053
Sep 10, 2002 Model 62-9 with integral 9500 microprocessor electronics performs mass flow measurement of liquids and gases via its unobstructed flow tube with non-wetted sensors. Providing integral local control and display in explosion proof housing, flowmeter allows for remote mounting of electronics to distances up to 4000 ft. Flow signal linearity and temperature effects are corrected by microprocessor using operating parameter data stored in its 64K EEPROM memory.

Assembled Threading Tools Div., Greenfield Industries    Augusta, GA 30903
Sep 10, 2002 Cleveland Twist Drill Q-Cobalt screw machine length drills feature wide land parabolic flute shape, 135° notched point, and 8% cobalt construction. They can be used in any deep hole drilling application where fast cycle times are critical. Drills are offered in fractional, wire, and letter sizes with straw finish or with TiN, TiAlN, or TiCN coating.
