Haestad Methods    Waterbury, CT 06708
Aug 12, 2002 LoadBuilderâ„¢ GIS-integrated module automatically assigns and projects water demands for hydraulic modeling as based on spatial data from billing meter records, land-use information, and population estimates. Capabilities include Demand Allocation, Demand Distribution, and Demand Projection. Unaccounted-for Water Estimation assigns unaccounted-for water to entire system or to smaller areas. Reusable demand allocation templates afford one-click access to latest demand data.

Appligent Inc.    Lansdowne, PA 19050
Aug 12, 2002 Server-based SecurSign 2.0 software allows Portable Document Format (PDF) users to add digital signatures directly to PDFs, and apply standard Adobe® security features to documents at 40 or 128 bit encryption levels. It uses Adobe Raw Signature Format to create digital signatures using standard X.509 digital certificates. Software is available for Windows, Linux 7, AIX, Mac OS X, Solaris, and HP-UX operating systems.

Kontron Elektronik Corporation    Newport Beach, CA 92660
Aug 12, 2002 VMP2 VME 3U processor board is based on Motorola's MPC8245 Kahlua II microprocessor with PowerPC MPC603e core, operating at 330 MHz. Board delivers 450 Mips of performance while drawing only 5.8 W of power. It incorporates direct soldered 64-bit, 133 MHz SDRAM (up to 256 MB) featuring selectable in-line ECC controller. Dual channel programmable DMA controller provides range of mass data transmission options.

Kennametal Inc., Advanced Materials Div.    Latrobe, PA 15650-0231
Aug 12, 2002 KSSM face mills include 0, 15, and 45° lead angle cutters and inserts with substrates and coatings designed for milling steel, stainless steel, cast iron, nonferrous, and high temperature alloys. They accept square inserts that provide 4 cutting edges. Use of screws rather than clamps to lock inserts provides secure seating, which helps prevent insert breakage. KC725M universal coated carbide grade features physical vapor deposition TiN/TiCN/TiN coating.

Rockwell Automation    Milwaukee, WI 53204
Aug 12, 2002 High-density, 32-point I/O modules for FLEX I/O system are available as 24 Vdc sink input or 24 Vdc protected source output. FLEX I/O system consists of interchangeable network adapters, terminal bases, and I/O modules. It provides connectivity for 8 modules per network adapter, giving users 256 I/O channels for every adapter using 32-point modules (up from 128). Modules are suitable for applications with high volume of data monitoring and operator interface panels.

SCOTTeVEST LLC    Chicago, IL 60622
Aug 12, 2002 SCOTTeVEST Version 2.5 incorporates Technology Enabled Clothing (TEC) system, integrating aspects of technology, luggage, and apparel allowing people to discreetly hold cell phones, pagers, PDAs, and CD players. It features 22 pockets and Personal Area Network, a concealed conduit system inside lining that accommodates wires. Jacket includes hood, hidden ID holder, earbud pockets, and magnets to keep it closed. It is made from water- and wind-resistant micro-fiber.

Leica Geosystems Inc.    Norcross, GA 30092
Aug 12, 2002 LDT800 offers high point density measurements at 3000 points/sec and features measurement distance of 0 to 140 ft. It can be used to set up, measure, and inspect assembly tooling details and part mating procedures found in manufacturing operations. Open client/server interface provides customized manufacturing processes to increase speed, precision, and flexibility. Programmable interface automates inspection process from start to finish.

Handling Specialty, Inc.    Niagara Falls, NY 14304 0279

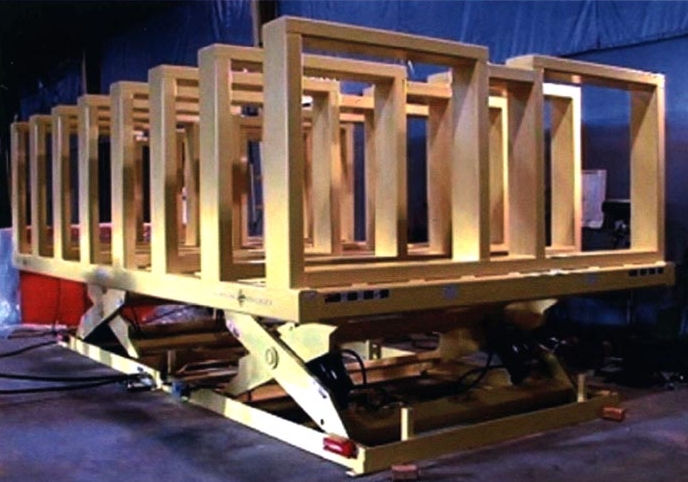

Aug 09, 2002 Model MLT30-75, for metal-strip processing, is 132 in. long and 78 in. wide, with 30 in. of vertical travel. Welded structures accumulate cut-to-length sheets of steel into pac from chain conveyors which pass over lift. Because steel is dropped from up to 10 in. above, table withstands both impact and offset loading. Once pac is fully loaded, table lowers, allowing conveyor to suspend and power it off table.

GE Company, GE Lighting    Cleveland, OH 44112

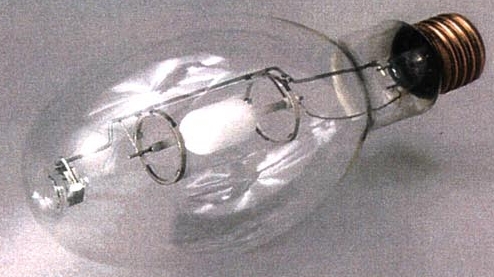

Aug 09, 2002 ConstantColor™ CMH SPXX 350 W ceramic metal halide lamp has color rendering index (CRI) of 92, compared to company’s traditional lamps with CRI of 70. This provides improved color consistency while still maintaining crisp, white light. Better color rendering makes textures and colors take on true-to-life appearance, making lamp suitable for retail, commercial, and industrial applications.

Reelcraft Industries, Inc.    Columbia City, IN 46725

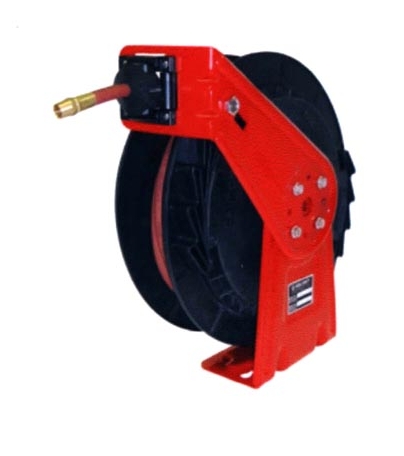

Aug 09, 2002 ReelTek consists of base and arm made from industrial-grade steel, a spool constructed of lightweight, engineered composite components, and an industrial-grade swivel. Spool contains drive spring that protects it from environment. Steel parts are individually powder-coated for corrosion resistance. Latch mechanism is mounted on arm, rather than base, making adjustments easy and assuring hose will retract onto reel when fully extended.

Span Tech    Glasgow, KY 42142

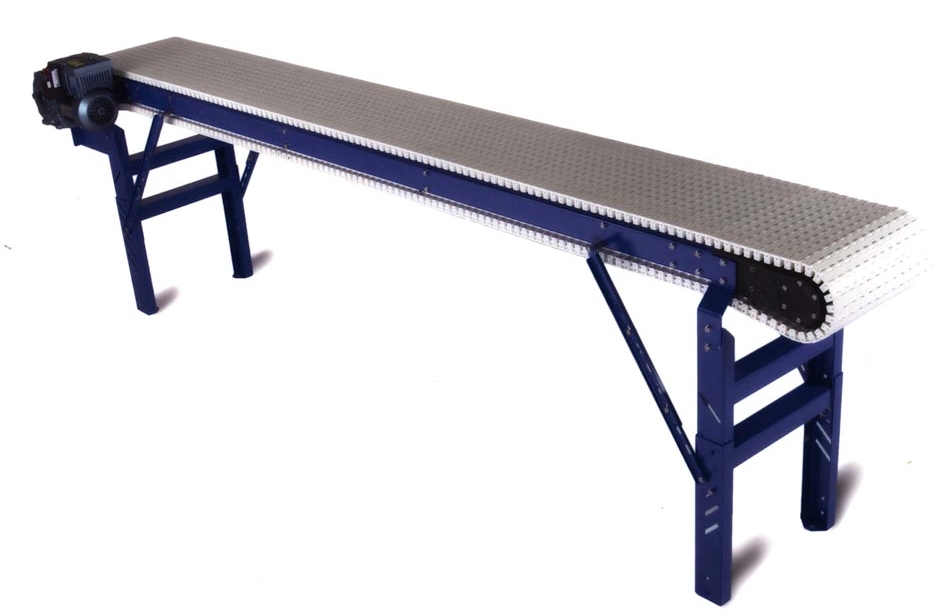

Aug 09, 2002 Whisper-Traxâ„¢ ST-PLN Straight Closed Top Conveyor is available in 12 belt widths from 7.31 to 46.28 in. and has speed range of 5 to 75 fpm, with optional speed ranges up to 400 fpm. Modular unit comes in standard lengths from 2 to 104 ft, and can handle 2.5 times load capacity of belt conveyor. ST-PLN is suitable for transporting packaged items, assembly work, and applications where users have traditionally used a belt conveyor.

Sethco Div., Met-Pro Corp.    Hauppauge, NY 11788

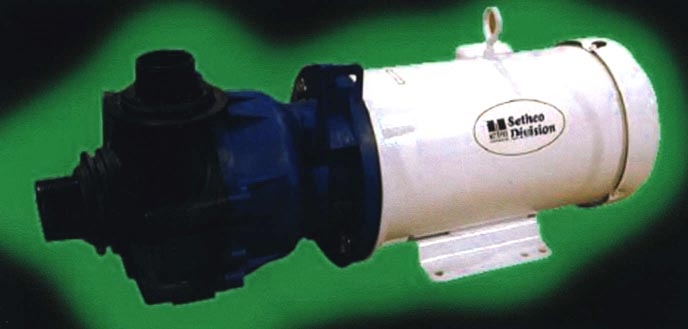

Aug 09, 2002 Self-priming pumps are available in polypropylene/PVDF or high temperature PVDF materials, making them suitable for acids, alkalies, caustics, bleaches, sea water, solvents, and other harsh environments. There is no metal contact with liquid being pumped. Power is transmitted by magnetic field from magnet attached to motor through solid body of pump to magnet attached to impeller. Pumps have no shaft seals, eliminating leaks.

Schneider Automation Inc.    North Andover, MA 01845

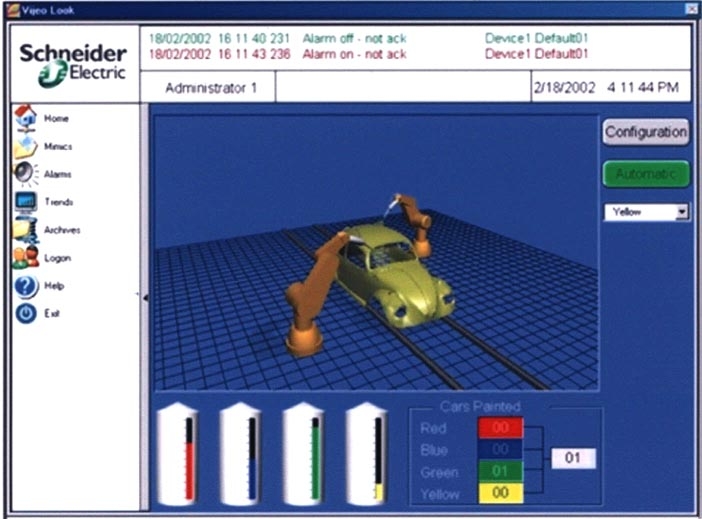

Aug 09, 2002 Telemecanique Vijeo Look® software uses OPC client/server technology and supports ADO, VBA, Active X, and Java Beans technologies. HMI software uses same graphics libraries as company's Factory Cast® software. It has animated graphics, trend charts, data logging, and supervision and monitoring package. Software is compatible with all OPC-compliant company controllers.

MGE UPS Systems    Costa Mesa, CA 92626

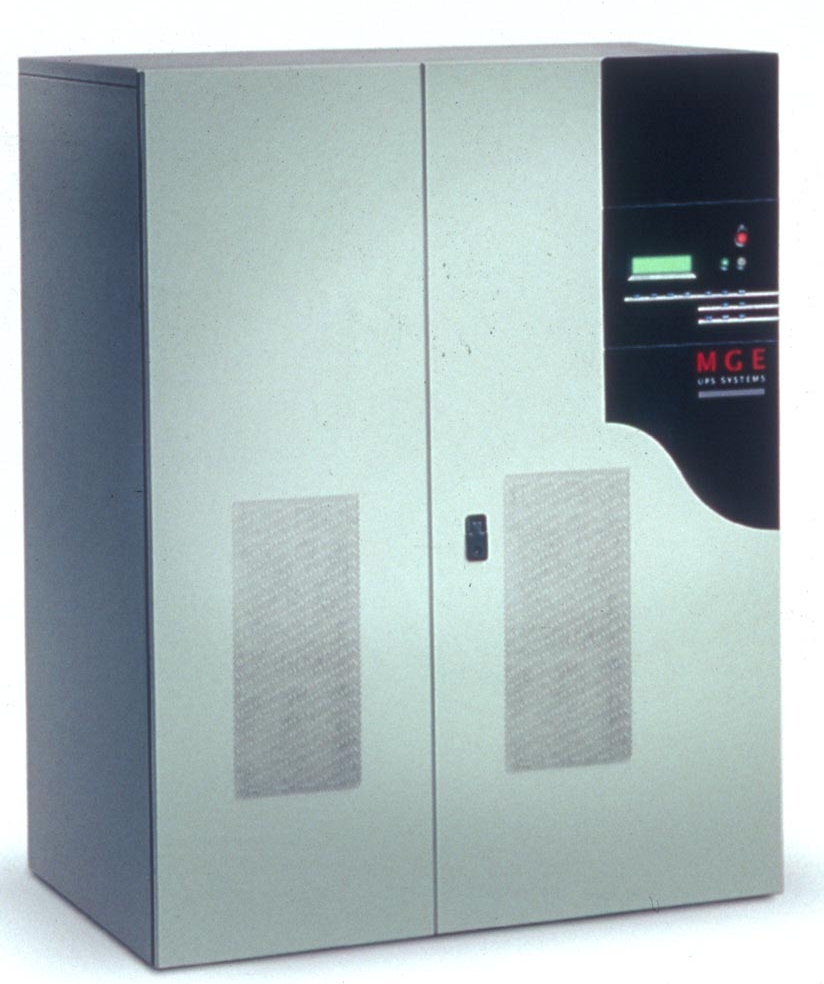

Aug 09, 2002 Galaxy PW comes in 6 scaleable models in power ratings from 100 to 225 KVA. Through automatic load testing of batteries, units can determine precise battery performance parameters and alert operators to any irregularities before they affect UPS performance. Four communication slots support SNMP, J-Bus/ModBus, TCP/IP, and RS232-RS485 protocols. Front-panel LCD display offers measurements and diagnostic messages as well as LED mimic diagram.

DeWalt Industrial Tool Co.    Hampstead, MD 21074

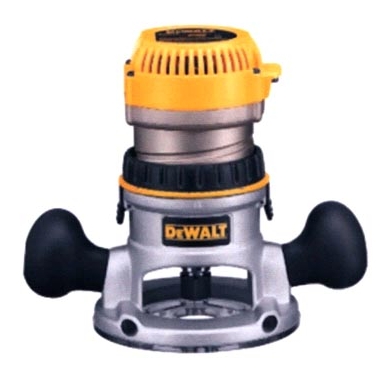

Aug 09, 2002 Model DW616K, 1¾ hp, 11 A fixed-base router, and Model DW618K 2¼ hp, 12 A electronic variable-speed, fixed-base router, with soft start and spindle lock, are offered with fixed, plunge, and D-handle modular bases. Adjustable motor cam lock eliminates need for tools to change bases or set cut depth. Micro-Fine Depth Adjustment Ring with 1/64 in. increments allows for minute depth adjustments while keeping cordset and switch in fixed position.

Gentech International    Rochester Hills, MI 48307

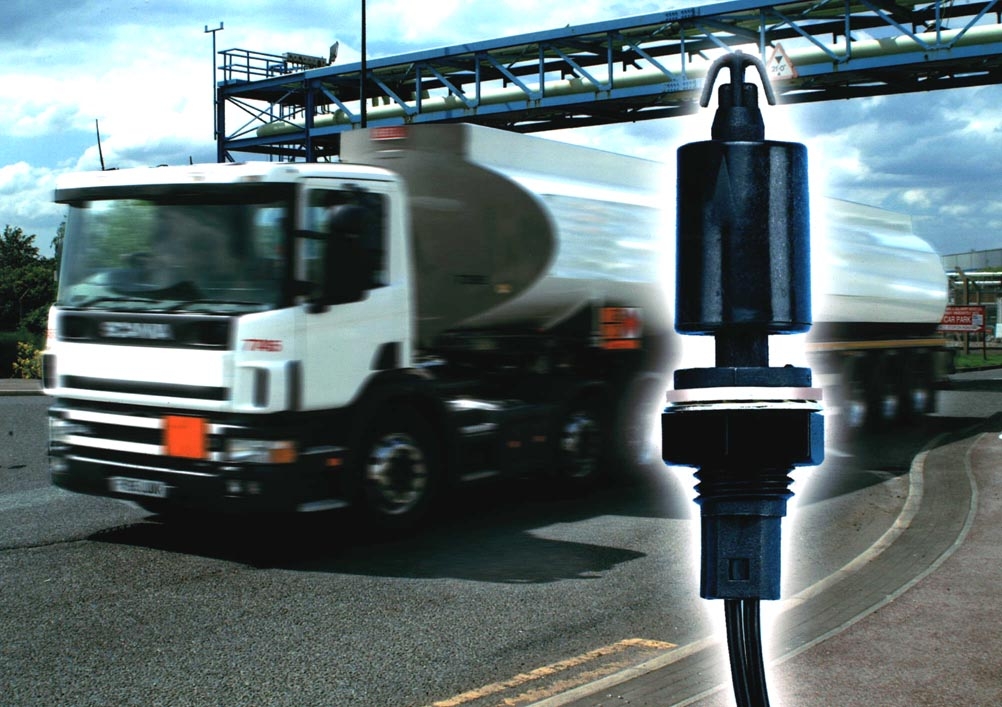

Aug 09, 2002 VS323-11N liquid level sensor solves problem of water build up at bottom of low density hydrocarbon liquid tanks and filter housings. It utilizes float with s.g. signature that discriminates between water and fuel. When mounted at foot of tank and when water collects, it forms below fuel and floatation will occur in oil to water interface. Sensor signals water build-up, which can be remedied by manually venting or pump actuation.

Scapa North America    Windsor, CT 06095
Aug 09, 2002 Ultra(TM) 613A acrylic film for component assembly and carpet attachment applications has thermoformable plastic liner that makes it suitable for use on contoured automotive components, such as interior carpet trim. It adheres to variety of surfaces including urethane foams, metals, and engineered plastics. Film has 3-mil adhesive coat weight, develops high initial wet out, and anchors to ether and esther foams. It resists chemicals, plasticizers, and high temperatures.

Himmelstein, S., & Co.    Hoffman Estates, IL 60195

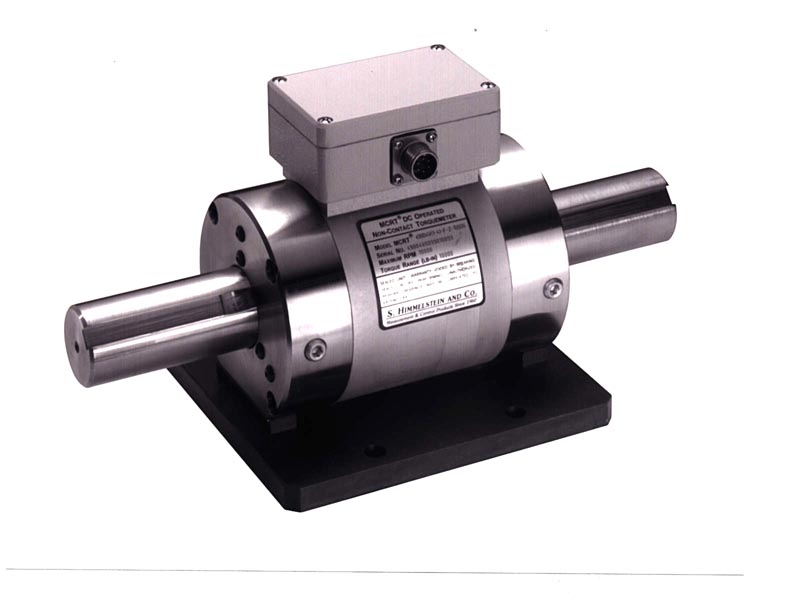

Aug 09, 2002 MCRT 79000V Series Dual Range non contact torquemeters have two ranges with independent outputs. Dual range capability eliminates need to change torquemeters when production is switched between different products. Accuracy is 0.1% of full scale, traceable to NIST, even if ratio of peak to average torque is high, such as when starting and stopping high inertia loads. Torquemeters are available in ranges from 40 to 4,000,000 lb-in.

Saelig Co., Inc.    Pittsford, NY 14534
Aug 09, 2002 FT232BM transfers serial data over Universal Serial Bus. It can be used to upgrade older RS232 serial designs to USB with minimal development and cost. It incorporates reset and clock circuits, 5V/3.3V UART output voltage, data transfer rates of up to 920 k baud for RS232, and 3,000 k baud for RS422/RS485. Royalty free drivers are available.

Vaccon Co., Inc.    Medway, MA 02053
Aug 09, 2002 Vacuum check valves work with venturi vacuum pumps and switches to seal and maintain vacuum levels. With cracking pressure rated at less than 1 in. Hg., they allow air flow in one direction only. Valves can be manually operated or automatically controlled by vacuum switch. Able to be used in any orientation, valves come in 1/4 and 3/8 in. NPT sizes and are made of chrome plated brass with plastic/metal spring.
