Omron Electronics, LLC    Schaumburg, IL 60173
Sep 16, 2002 Model 3G3PV includes built-in, on-board communication protocols of Metasys® and Apogee(TM). Inverter also offers RS-422 and RS-485 communication. Its provides 4-line engineering display, removable terminal strip, and split faceplate. Keypad can be used with access to terminal strip. High-slip braking feature slows inverter down. Model 3G3PV is available from .75 to 125 hp in 230 Vac and from .75 to 500 hp in 460 Vac. It is UL, cUL, and CE compliant.

Omron Electronics, LLC    Schaumburg, IL 60173
Sep 16, 2002 Model E3NT-L utilizes double triangulated optics and 2-part diodes to provide digitally calculated accuracy. It can sense any object, color, texture, or glossiness from any direction. Optional optic link clips onto sensor to provide programmability from computer. User can also program parameters on sensor via unit's 3-button keypad and 4-digit digital display. Model E3NT-L offers background suppression, foreground suppression, and window evaluation.

Castrol Industrial North America Inc.    Downers Grove, IL 60515
Sep 16, 2002 Alusol® A semi-synthetic metalworking fluid is formulated for machining and grinding aerospace aluminum and aerospace alloys in either large central systems or single sump applications. It is chlorine-free, yet overcomes tool wear, poor surface finish and staining. Alusol A is extremely bioresistant, and provides wetting properties for penetration at point of cut with minimal fluid drag-out. It exhibits foam control and only has mild odor.

Spraymation, Inc.    Fort Lauderdale, FL 33309-6314
Sep 12, 2002 Series 3400 DC Pattern Controller may be configured in real time or shaft encoded based with high accuracy, adjustable in 0.1 msec, 0.01 in., or 0.1 mm increments. It is suitable for use with heated and non-heated electromatic applicator heads or solenoid valves. Keyboard programming includes 4 independent channels for complex timing applications and allows storing of 26 separate sets of programming data. Shaft-encoded models provide speed compensation.

Nicolet Biomedical, Inc.    Madison, WI 53711 4495
Sep 12, 2002 Handheld Phazer plugs into USB port of PC to provide real-time analysis of noise and vibration, modal and acoustic analysis, and servo systems. It has 2 to 4 channels with 18-bit A/D converter on each channel. Analyzer provides dynamic range of 110 dB on all channels, prevents aliasing with analog and digital filters, and has 3,600 spectral lines of resolution. Optional zoom capability provides precision to 0.002 Hz across 21 kHz measurement range.

Loegering Manufacturing Inc.    Casselton, ND 58012

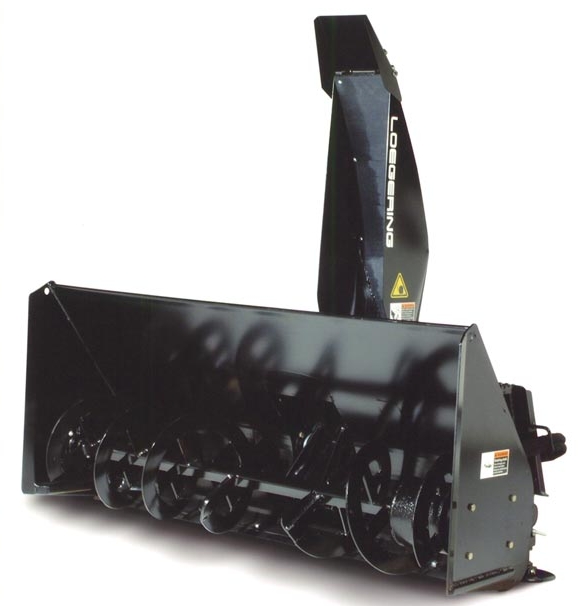

Sep 12, 2002 Models LSB48, LSB67, LSB73, LSB85, and LSB85 Extreme, with reversible augers and impellers, have intake widths of 48, 67, 73, and 85 in., respectively. Model LSB48 has a throwing distance of up to 30 ft, 14 in. auger diameter, and weighs 670 lb. Model LSB67 throws up to 30 ft, has 12 in. auger, and weighs 790 lb. Model LSB73 throws 40 ft, has 16 in. auger, and weighs 900 lb. Models LSB85 and LSB85 Extreme throw 40 ft, have 18 in. auger, and weigh 1,100 and 1,260 lb, respectively.

Contech    Goddard, KS 67052
Sep 12, 2002 Sheet-Fed Laminating/Die-Cutting system feeds sheets of foam through water-heated laminating station, laminates 2 layers of adhesive to top of material, and laminates substrate to bottom. It feeds sheets to optically registered die-cutter, which cuts out final product. Product is removed from matrix by knockout station onto side-exiting conveyor. Matrix is sheeter cut to conveyor for waste disposal. System uses PID loop to control tension.

THK America, Inc.    Schaumburg, IL 60173 5340
Sep 12, 2002 Type SBK ball screw achieves maximum feeds of 120 m/min and permissible DN value of 160,000. Utilization of Caged Technology prevents ball-to-ball contact and associated friction, and allows balls to smoothly circulate in tangential line. Cage also acts as reservoir for lubricants, eliminating need for external lubricating system. Optional wiper ring acts as barrier to prevent foreign matter and swarf from entering nut interior.

Shimadzu Scientific Instruments, Inc.    Columbia, MD 21046

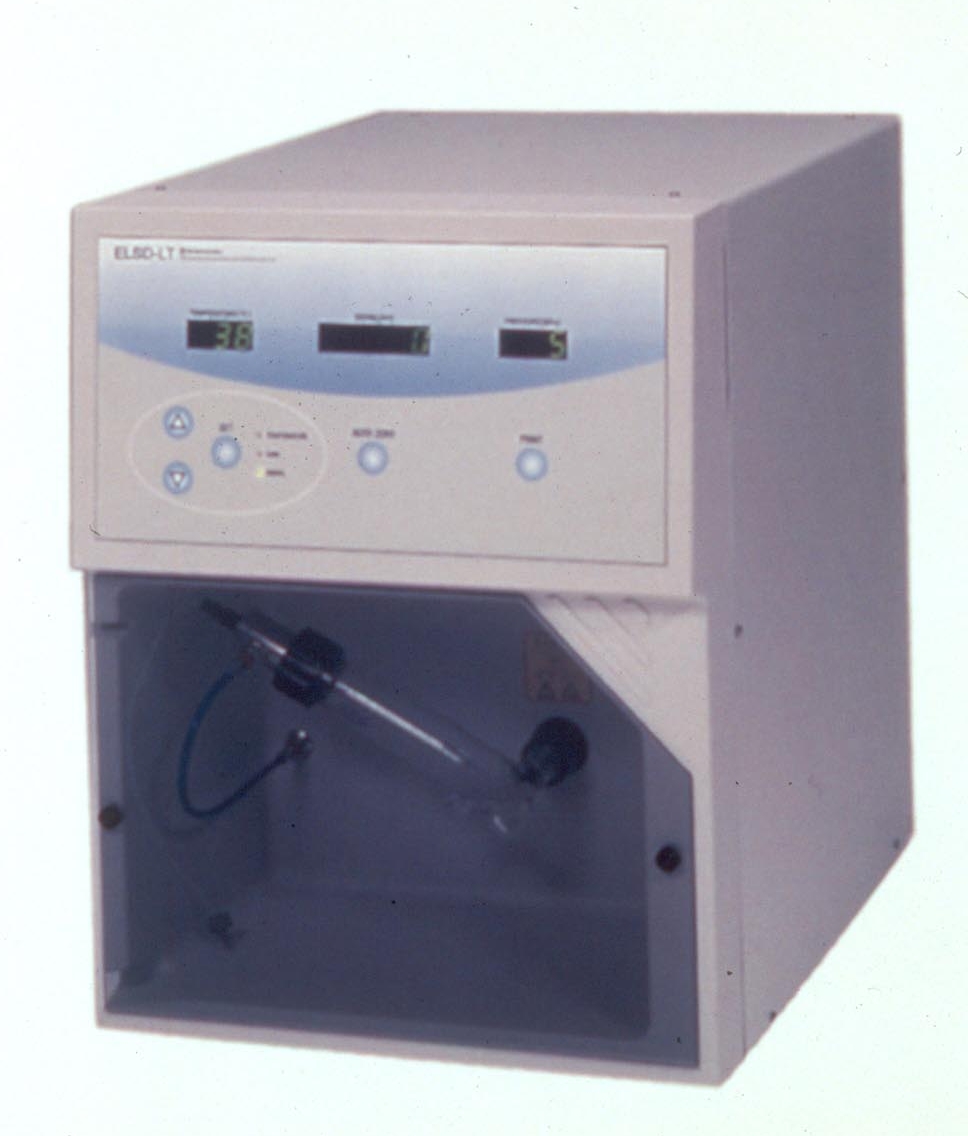

Sep 12, 2002 Low Temperature Evaporative Light Scattering Detector (ELSD-LT) enables user to see all sample components, even semi-volatile compounds, down to high picogram level. Cell design reduces band broadening while single-mode, low-temperature operation optimizes sensitivity for those analytes easily missed due to high evaporation temperatures. Unit is suited to drug discovery, natural products development, combinatorial chemistry, and food and beverage applications.

Xuron Corp.    Saco, ME 04072 1840

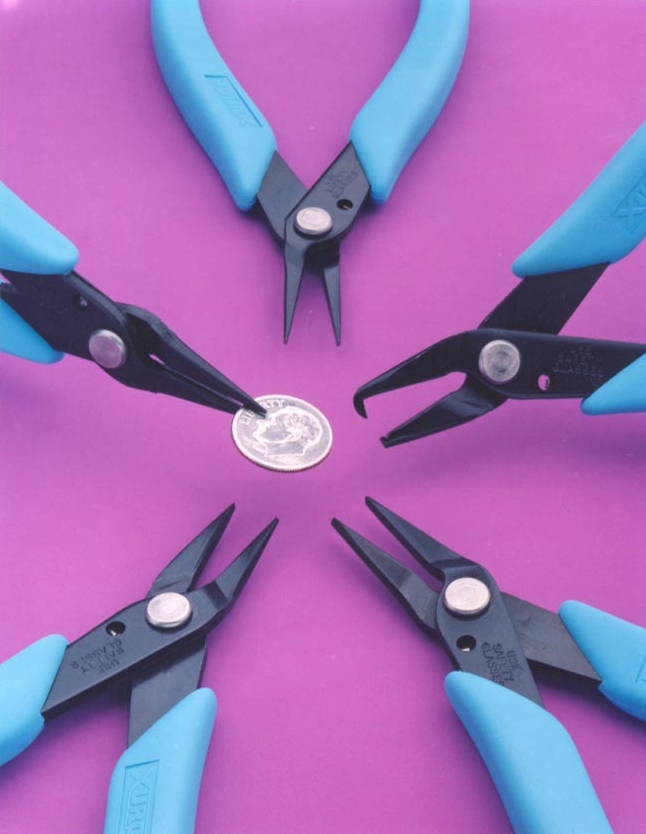

Sep 12, 2002 Precision Pliers include Model 450 Tweezernoseâ„¢ which combines the precision to pick up human hair and the strength for wire forming; Model 485 Longnose with outside edge radius for bending and forming; Model 488 Roundnose which transitions to elliptical shape; Model 489 Combination tip with one flat and one round tip; and Model 496 Split Ring Plier that opens ring and holds it to simplify installation. Non-slip Xuro-Rubberâ„¢ cushions grips and black finishes eliminate glare.

Eberhard Mfg. Co. Div. Of The Eastern Co.    Cleveland, OH 44149
Sep 12, 2002 Adjustable rotary latches feature automotive style and feel. Four base models are available, with broad selection of sizes, features, and options to meet various applications. Strikers and adjustable mounting brackets, as well as dozens of actuator options, are also available.

REP Corporation    Bartlett, IL 60103-8146

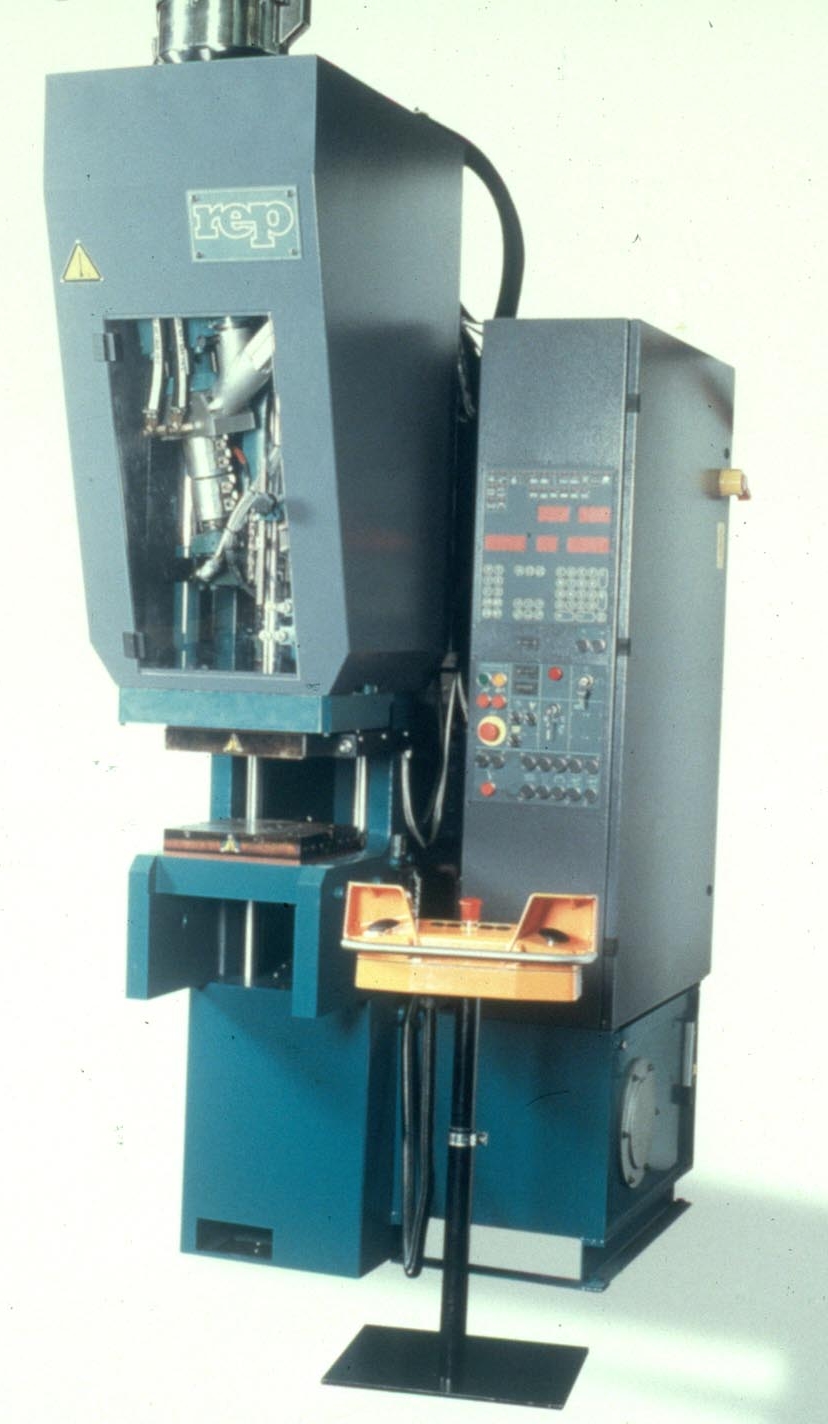

Sep 12, 2002 Standard injection press has 4½ oz shot capacity, 30 ton clamp, and 11.81 x 11.81 in. platens. Integral input hopper loads granulated or pelletized raw materials directly to extruder screw intake. On smaller injection head unit, additional cylinder mixes materials at variable frequency to ensure complete screw chamber fill. On some models, hot oil control is replaced with electric band heaters, which heat injection unit to 250°C with independent multi-zone control.

Rockford Systems, Inc.    Rockford, IL 61109 2695

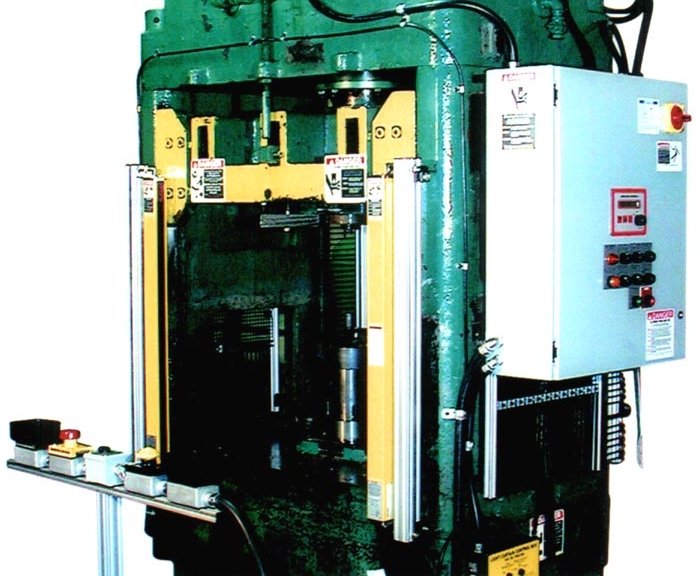

Sep 12, 2002 Solid-state SSC-500, with presence-sensing device initiation (PSDI), is suitable for hydraulic presses and press brakes. It includes light-curtain interface, user-programmable static inputs, stroke and batch counters with presets, bottom dwell timer, and 2-speed capability. Control meets and exceeds OSHA 29 CFR 1910.212 and ANSI B11.2, B11.3, and B11.19.

J.W. Speaker Corporation    Germantown, WI 53022

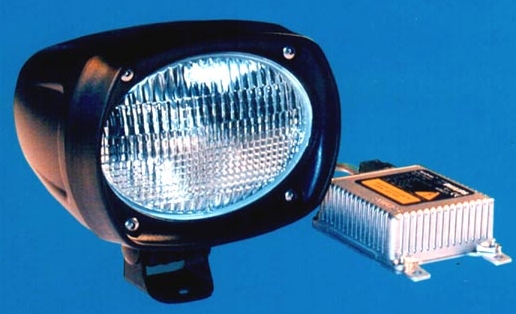

Sep 12, 2002 Xenon 12 V Model 9750 and 24 V Model 9760 High Intensity Discharge (HID) vehicle lamps measure only 6 in. W x 6 in. H x 5 in. D. Remote ballast mounts up to 10 ft from lamp for concealment and protection. Lamps offer daylight color impression with 4 to 5 times more light than halogen lamps at equal energy consumption. Start-up is instant after switch on. Since bulb has no filament, there is no breakage from shock or vibration. Flood, trapezoid, and spot patterns are available.

Hayward Industrial Products, Inc.    Elizabeth, NJ 07207

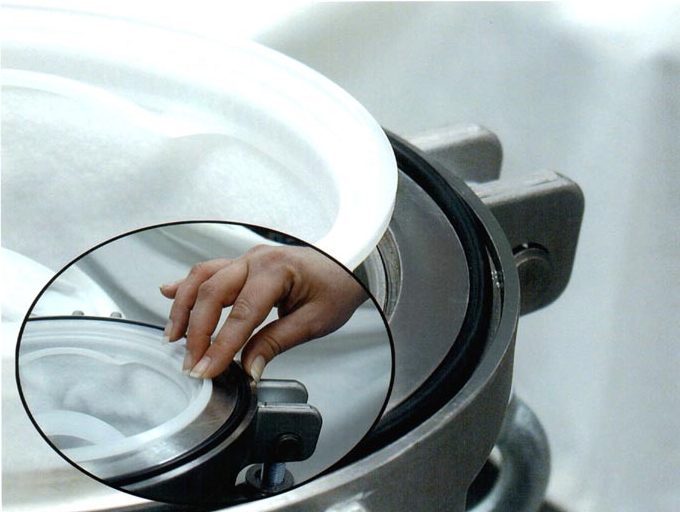

Sep 12, 2002 SENTINEL® polypropylene or polyester felt filter bags feature all-welded construction, which eliminates holes in filter media fabric caused by sewing process used to create ordinary filter bags. Manufacturing process produces consistent welded seam; there are no loose fibers or strands to contaminate downstream flow. All-plastic ring seal makes certain that process media does not bypass filter bag. Bags are available in single length, 7 x 16 in., and double length, 7 x 32 in., sizes.

Gateway Safety, Inc.    Cleveland, OH 44144
Sep 12, 2002 Strobe-VS meets ANSI Z87.1-1989 standard and is constructed with uncoated polycarbonate lenses. Lenses offer panoramic view of work area, while nylon frame offers integral browguard and molded-in sideshields. Temples are adjustable to fit various sizes. Suitable for indoor and outdoor wear, 100% polycarbonate lens blocks 99.9% of harmful UV-A and UV-B light up to 380 nm. Available in 3 frame colors with gray or clear lenses.

Adalet    Cleveland, OH 44135 3301
Sep 12, 2002 CN Series Increased Safety Control Enclosures house electrical equipment that will not generate arcs or sparks during normal operation. They also house equipment in which surface temperatures are controlled below incentive values. Able to resist impact, enclosures prevent possibility of excessive heat and ingress of water or dust. They are available in stainless steel 316L and 304 and polyester powder-coated carbon steel in sizes from 12 x 24 x 6 in. to 60 x 36 x 20 in.

L-3 Communications, Electrodynamics, Inc.    Rolling Meadows, IL 60008
Sep 12, 2002 Large-display Model CI 75 features highly visible, dual-color, internal flag. When indicator coil is energized by 50 msec pulse, flag display flips 180° and stays magnetically locked. Available in single- and dual-coil models, .75 in. display requires no bulbs or power when latched in either position. Reset to black is accomplished electrically by pulsing separate reset coil or by reversing polarity in single coil unit.

Danaher Motion/Thomson Ball & Lead Screws    Mayfield Heights, OH 44124
Sep 12, 2002 Miniature Ball Screw provides 95% typical efficiency. Standard diameter starts at 4 mm, with 1 mm lead. Manufactured as both rolled and ground unit, it is also available in range of precision classes, from ISO3 to ISO7 (0.012/300 mm to 0.050/300 mm). Ball screw has nylon wipers to protect from ingress of contamination and can be supplied with ends machined to customer's specification.

Air Quality Engineering, Inc.    Minneapolis, MN 55428
Sep 12, 2002 MistBuster® Quad, rated at 1250 cfm, eliminates mist and smoke from air stream. Because motor and impeller are on clean air side of unit, dirty air will not contaminate motor. Unit has no consumable filters to replace. Reusable concentrated cleaning solutions keep filters clean. MistBuster is rated 70 dBA @ 6 ft on high speed. It comes ready to run with 110 V electrical connections, and complies with 0.5 mg/m³ NIOSH criteria for fluid mist.
