U.S. Para Plate Corporation    Auburn, CA 95602
Aug 16, 2002 Series 5080 Manual Globe Valve offers pressure range of 0 to 6,000 psi and can be used in metering, throttling, or full open or closed operation. Encapsulated plastic seat protects against wire drawing. Teflon seat and 316 stainless steel body assure compatibility with most gases and liquids. Sizes are 3/4 and 1 in., with Cv of 3.79 and NPT or MS33649 tube connections. Ambient and cryogenic designs are offered for temperatures ranging from -420 to +450°F.

Royal Tractor Co., Inc.    New Century, KS 66031 0028

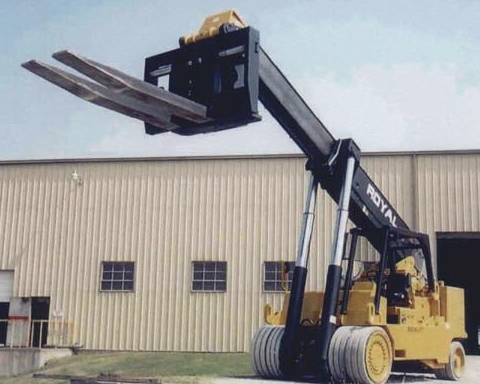

Aug 16, 2002 BT Series Rig-N-Lift Industrial Crane Trucks includes three models: BT70, rated for 70,000 lb; BT120, rated for 120,000 lb; and BT150, rated for 150,000 lb, all at 36 in. load center. All have powershift transmissions with hydrostatic transmissions optional. Other options include plain boom, boom with hook, block and winch, or fork carriages. Booms also can be two or three stage hydraulic telescoping.

Maxon Precision Motors, Inc.    Fall River, MA 02720

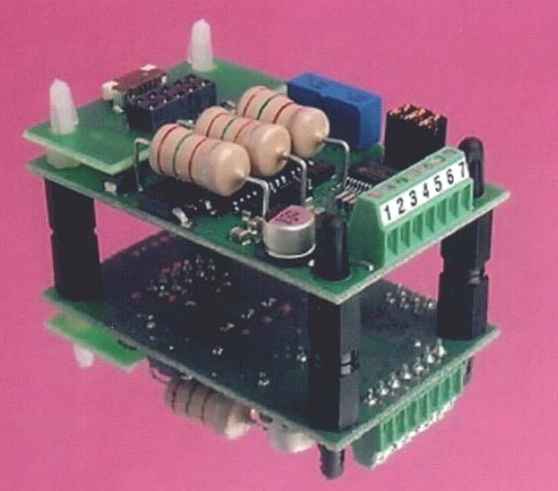

Aug 16, 2002 DEC 24/1 can control small brushless motors with Hall sensors at speeds up to 120,000 rpm. Operating in either open or closed loop mode, amplifier controls motor speed based on external voltage signal or via internal potentiometer. Inputs include direction, brake, and enable functions. Speed monitor output is available. Amplifier measures 2.2 X 1.4 X 0.9 in., weighs 0.7 oz, and works in ambient operating temperature of 14 to 113°F.

HARTING, Inc.    Elgin, IL 60123 5538

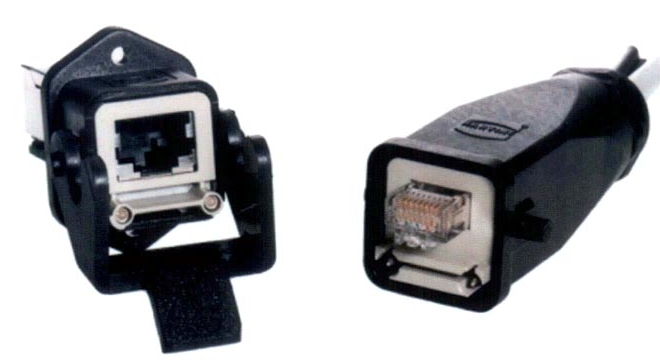

Aug 16, 2002 Industrially hardened Han-Brid RJ-45 Ethernet connectors consist of standard plugs and jacks with hoods and housings that offer protection from water, oil, dust, and dirt. Connectors are rated for Category 5 transmissions. Two 10 A rated contacts are integrated into connector for supplying power to network, so only one connector is needed for data transmission and power. Assembly is performed with standard tools, making field installation possible.

GOW-MAC Instrument Co.    Bethlehem, PA 18017 8986

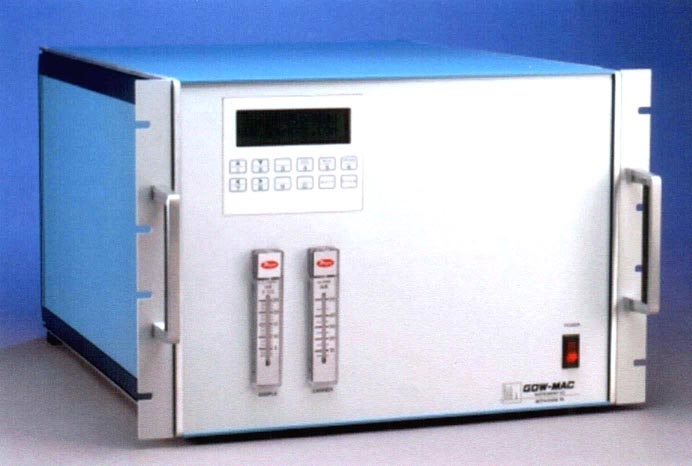

Aug 16, 2002 Series 200 Aromatic Hydrocarbon Analyzer meets all ISBT Method 12.0 criteria for selective measurement of benzene in carbon dioxide. Continuous stream or batch sampling operation can be performed. Photo-ionization detector provides specific measurement of benzene without interference from other impurities in beverage-grade carbon dioxide. Detectable limit for benzene is 3 ppb. Analyzer is capable of PC-based control and data logging.

THK America, Inc.    Schaumburg, IL 60173 5340

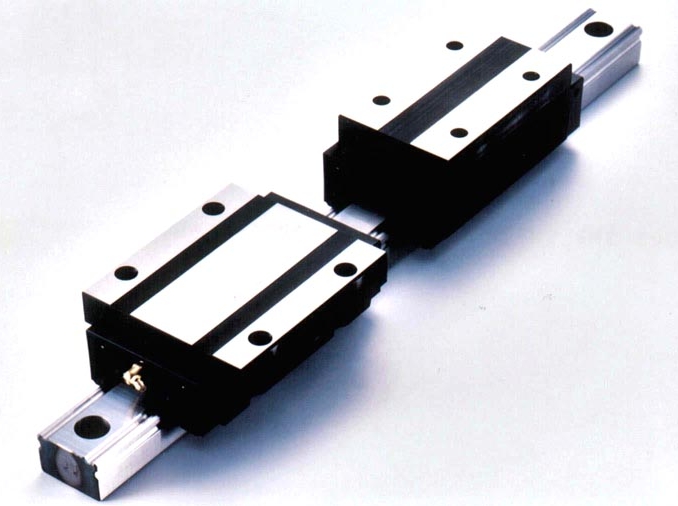

Aug 16, 2002 SNR/SNS-H Caged Ballâ„¢ LM Guides feature enhanced block, radial, reverse radial, and lateral rigidity. Curvature of rolling surface matches ball diameter. Caged Ballâ„¢ Technology isolates each load carrying re-circulating ball in individual cage or pocket, preventing ball-to-ball contact and friction. Cage acts as reservoir for lubricants, eliminating need for external lubricating system. Radial Type SNR-H and 4-directional, equal load Type SNS-H are available in identical dimensions.

Zierick Manufacturing Corp.    Mount Kisco, NY 10549

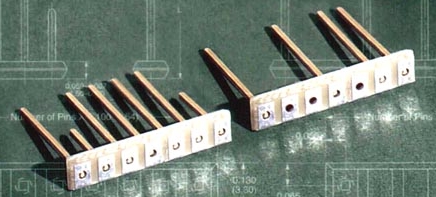

Aug 16, 2002 Custom-designed Surface Mountable Headers are available with pins missing at specified positions or with pins of different lengths. Capillary action of solder paste during reflow draws header down tightly to PCB, pulling it into proper position, and ensuring co-planarity. Header assembly is designed to move with PCB, reducing mismatch created by different coefficients of expansion of dissimilar materials.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Aug 16, 2002 Model CA10 is able to source and measure temperatures from -40 to 1400°F with accuracy of ±0.1% and reading rate of 2.5 times per second. Resolution is user-selectable for either 1 or 0.1°. Measurements are displayed on 3½ digit backlit LCD. Model CA10 accepts 1 or 2 Type K thermocouples. It includes data hold and max functions, 4 in. Type K bead wire temperature probe, calibration cable, and 9 V battery.

Avery Dennison, Fastener Div.    Framingham, MA 01702
Aug 16, 2002 MicroTach(TM) Attaching System inserts small, nylon, or polypropylene T-End(TM) fasteners measuring .172 in. in filament length. Portable hand tool fastens 2 pieces of fabric together or secures fabric to paper or cardboard packaging. Variable Needle System inserts pliable Elastic Staple(TM) fasteners attaching products to display cards and paper packaging. Single Needle System inserts strong, pliable Elastic Staple(TM) fasteners, which stretch to secure multiple products or product layers. Black Elastic Staple(TM) Fasteners enhance product appearance.

Lincoln Electric Company, Inc., The    Cleveland, OH 44117
Aug 16, 2002 Push-pull wire feeding guns handle steel and aluminum wire from .030 to 1/16 in. CobraMax fixed gooseneck is rated 150 A at 100% duty cycle. It features flip-up drive roll cover and quick wire-release lever. Standard Python torch is air cooled and rated at 200 A at 100% duty cycle. Replaceable gooseneck can be interchanged with full water-cooled barrel and gas cup combination, to achieve rating of 400 amps, 100% duty cycle. Both inlcude 3-turn, finger-tip, wire-speed adjustment.

Lincoln Electric Company, Inc., The    Cleveland, OH 44117
Aug 16, 2002 MC-6 mild-steel, metal-cored electrode is suited for low-voltage operation and out-of-position applications. It offers stable arc for consistent, defect-free welds and high tolerance to gaps. It achieves up to 97% deposition efficiency. Because electrode is deoxidized, it reduces prep-time. Applications include railcar, automotive parts, agricultural equipment, heavy equipment, structural fabrication, and shipyard industries.

Lincoln Electric Company, Inc., The    Cleveland, OH 44117

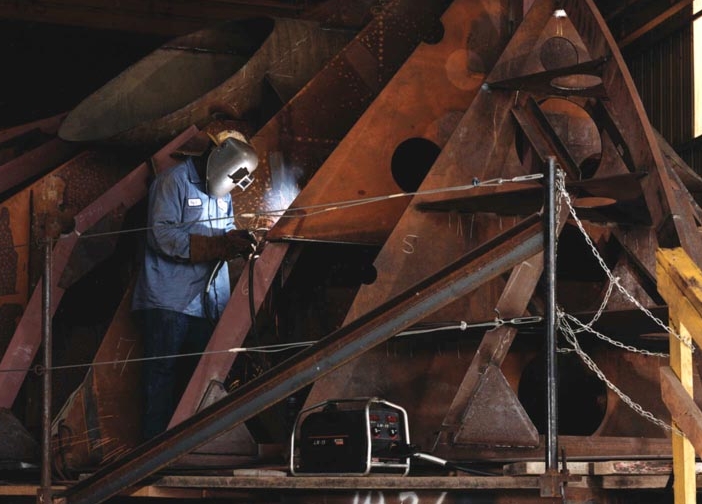

Aug 16, 2002 LN-15, with impact- and abrasion-resistant, ABS plastic case, is surrounded by full metal roll cage, made from aluminum alloy tubing. Across the Arc model has built-in contactor. Control Cable model is capable of Surface Tension Transfer® welding. LN-15 is designed for MIG and flux-cored processes using .023 to 1/16 in. solid wire or .035 to 5/54 in. flux-cored wire, at feed speeds of 50-700 ipm. Feeder includes internal, adjustable flow meter.

EFD Inc.    East Providence, RI 02914-1342
Aug 16, 2002 Pneumatically operated Model 752V-SS has no seals or O-rings to wear out and leak. Diaphragm is rated for tens of millions of cycles. Drip-free cutoff eliminates waste. Adjustable stroke control allows flow rate to be fine tuned, while microprocessor-based VALVEMATE(TM) controller allows open time to be adjusted in increments from 0.01 to 0.001 sec. Valve is suitable for automated assembly machines, XYZ tables, and retrofits on production lines.

Hassia USA    Morganville, NJ 07751
Aug 16, 2002 A+F KR 180 PA Arctic Palletizer needs no protective wrappings, yet can work at temperatures down to -30°C, with its hand-held control panel remaining fully functional. Unit allows palletizing of cases of frozen food without loss of quality due to temperature fluctuations in freezer room or warehouse. Since no heat is generated in robotic arm, formation of ice on frozen goods is avoided.

Thern, Inc.    Winona, MN 55987
Aug 16, 2002 Power Winch controls chute elevation and extension. Limit switches and brake motors also provide load control. Conveyor systems are made more versatile by cable and winch arrangement that lets power winch be mounted in easily accessible place, away from hard-to-reach load. Multi-part rigging increases leverage and reduces load on winch.

ATOFINA Chemicals, Inc. (Corporate)    Philadelphia, PA 19103 3222
Aug 16, 2002 Solarkote® PB, when blended with PVC and coextruded over PVC as capstock, upgrades PVC properties for exterior building products. It blends to share weathering performance in medium-dark colors where chalking can be a concern. It exhibits color hold in whites, and can be blended in PVC high-shear blending equipment. Applications include PVC siding, window profiles, fencing, and decking.

DJ Products, Inc.    Little Falls, MN 56345
Aug 16, 2002 WeightCaddy lifts and maneuvers heavy weights, dies, and equipment up to 2500 lbs. Variable speed thumb twist grips allow operator to travel at speeds of 0 to 3 mph forward or backward. Unit can run entire shift on one charge, and can be customized to lift and maneuver different applications.

Key Technology, Inc.    Walla Walla, WA 99362
Aug 16, 2002 Prism2 on-belt sorter features automatic belt tensioning function. Built-in graphical user interface and control module is available on right or left side of machine. Sealed body protects electronic components in wet production environment. Smart Shaker(TM) technologies make up suite of conveying products designed to make Iso-Flo Vibratory Conveyors more self-adjusting, self-diagnosing, and capable of communicating with other processing systems.

Burkert    Irvine, CA 92614 5840

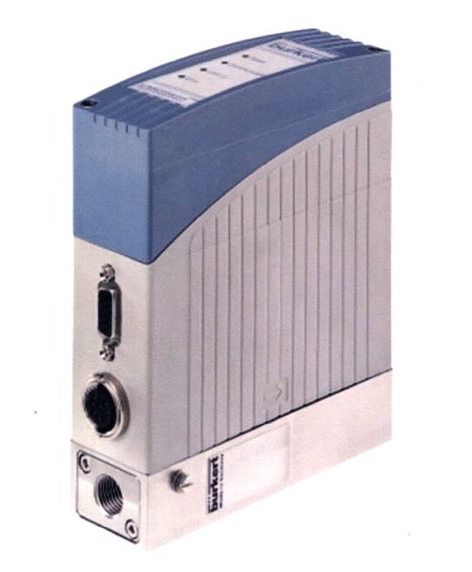

Aug 16, 2002 Type 8172, with CMOSens® technology, senses small amount of gas flow. It handles neutral gases at nominal flow rates of 20 ml_N/min to 50 l_N/min. Controller outputs measured values with accuracy of ±0.5% full scale. Maximum operating pressure is 145 psi, depending on nominal valve diameter. Fieldbus communications capabilities include PROFIBUS-DP and DeviceNet. Type 8712 provides output signal of 0-5 V, 0-10 V, 0-20 mA, or 4-20 mA.

Baan Process Inc.    Montreal, QC H3B3M4  Canada
Aug 16, 2002 Business Intelligence module for PRISM software provides customers in IBM iSeries computing environment with advanced data gathering, analysis, and collaboration functionality. Its modules enable companies to perform analyses across 60 information types, incorporating 150 numeric fields, and 190 dimensional views. Managers can combine data sources, perform comprehensive analytics, and conduct SWOT analysis of action alternatives.
